LOCA::Abstract::Group Class Reference

Compatiblity class for AbstractGroup hierarchy. More...

#include <LOCA_Abstract_Group.H>

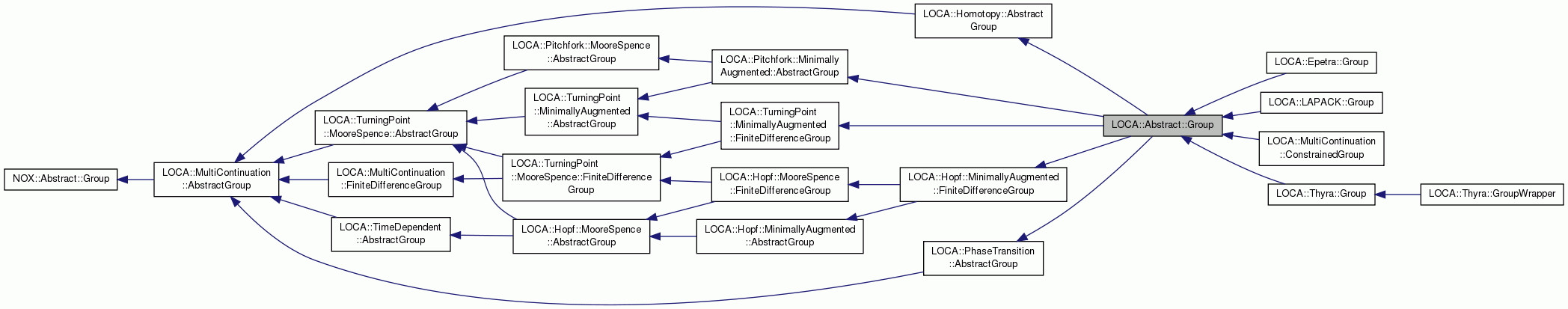

Inheritance diagram for LOCA::Abstract::Group:
Inheritance graph
[legend]

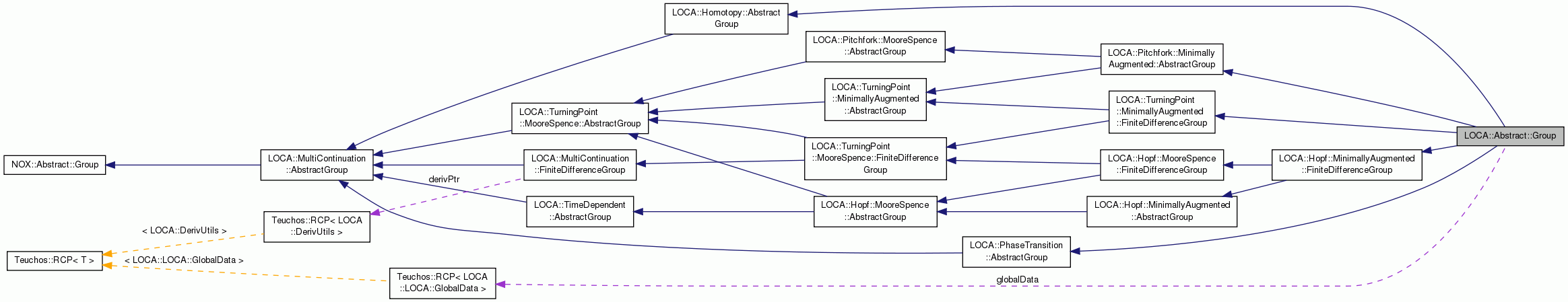

Collaboration diagram for LOCA::Abstract::Group:
Collaboration graph
[legend]

Public Member Functions

 Group (const Teuchos::RCP< LOCA::GlobalData > &global_data)
 Constructor.

 Group (const Teuchos::RCP< LOCA::GlobalData > &global_data, const Teuchos::RCP< LOCA::DerivUtils > &deriv)
 Constructor.

 Group (const Group &source, NOX::CopyType type=NOX::DeepCopy)
 Copy constructor.

virtual ~Group ()
 Destructor.

Implementation of LOCA::Homotopy::AbstractGroup virtual methods.
virtual
NOX::Abstract::Group::ReturnType
augmentJacobianForHomotopy (double a, double b)
 Replace Jacobian $J$ by $aJ+bI$ where $I$ is the identity matrix and $p$ is a scalar. More...

Implementation of LOCA::TimeDependent::AbstractGroup virtual methods.
virtual
NOX::Abstract::Group::ReturnType
computeShiftedMatrix (double alpha, double beta)
 Compute the shifted matrix. More...

virtual
NOX::Abstract::Group::ReturnType
applyShiftedMatrix (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Multiply the shifted matrix by a vector. More...

virtual
NOX::Abstract::Group::ReturnType
applyShiftedMatrixMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 Multiply the shifted matrix by a multi-vector. More...

virtual
NOX::Abstract::Group::ReturnType
applyShiftedMatrixInverseMultiVector (Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 Apply the inverse of the shifted matrix by a multi-vector, as needed by the shift-and-invert and generalized Cayley transformations. More...

virtual
NOX::Abstract::Group::ReturnType
computeSecondShiftedMatrix (double alpha, double beta)
 Compute the second shifted matrix. Can avoid recomputing if two are stored. More...

virtual
NOX::Abstract::Group::ReturnType
applySecondShiftedMatrix (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Multiply the shifted matrix by a vector. More...

virtual
NOX::Abstract::Group::ReturnType
applySecondShiftedMatrixMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 Multiply the shifted matrix by a multi-vector. More...

Implementation of LOCA::Hopf::Moorespence::AbstractGroup virtual methods.
virtual bool isComplex () const
 Is $J+i\omega B$ valid. More...

virtual
NOX::Abstract::Group::ReturnType
computeComplex (double frequency)
 Compute $J+i\omega B$. More...

virtual
NOX::Abstract::Group::ReturnType
applyComplex (const NOX::Abstract::Vector &input_real, const NOX::Abstract::Vector &input_imag, NOX::Abstract::Vector &result_real, NOX::Abstract::Vector &result_imag) const
 Compute $(J+i\omega B)(y+iz)$. More...

virtual
NOX::Abstract::Group::ReturnType
applyComplexMultiVector (const NOX::Abstract::MultiVector &input_real, const NOX::Abstract::MultiVector &input_imag, NOX::Abstract::MultiVector &result_real, NOX::Abstract::MultiVector &result_imag) const
 Compute $(J+i\omega B)(y+iz)$. More...

virtual
NOX::Abstract::Group::ReturnType
applyComplexInverseMultiVector (Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input_real, const NOX::Abstract::MultiVector &input_imag, NOX::Abstract::MultiVector &result_real, NOX::Abstract::MultiVector &result_imag) const
 Solve $(J+i\omega B)(y+iz) = a+ib$. More...

Implementation of LOCA::Hopf::MinimallyAugmented::AbstractGroup virtual methods.
virtual
NOX::Abstract::Group::ReturnType
applyComplexTranspose (const NOX::Abstract::Vector &input_real, const NOX::Abstract::Vector &input_imag, NOX::Abstract::Vector &result_real, NOX::Abstract::Vector &result_imag) const

virtual
NOX::Abstract::Group::ReturnType
applyComplexTransposeMultiVector (const NOX::Abstract::MultiVector &input_real, const NOX::Abstract::MultiVector &input_imag, NOX::Abstract::MultiVector &result_real, NOX::Abstract::MultiVector &result_imag) const

virtual
NOX::Abstract::Group::ReturnType
applyComplexTransposeInverseMultiVector (Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input_real, const NOX::Abstract::MultiVector &input_imag, NOX::Abstract::MultiVector &result_real, NOX::Abstract::MultiVector &result_imag) const
 Solve $(J+i\omega B)^H (x + iy) = a+ib$.

Implementation of LOCA::MultiContinuation::AbstractGroup virtual methods.
virtual void copy (const NOX::Abstract::Group &source)
 Assignment operator.

virtual void setParamsMulti (const std::vector< int > &paramIDs, const NOX::Abstract::MultiVector::DenseMatrix &vals)
 Set parameters indexed by (integer) paramIDs.

virtual void notifyCompletedStep ()

Implementation of NOX::Abstract::Group virtual methods.
virtual NOX::Abstract::Groupoperator= (const NOX::Abstract::Group &source)
 Copies the source group into this group. More...

Implementation of LOCA::PhaseTransition::AbstractGroup virtual methods.
virtual double computeFreeEnergy ()
 Computes the free energy at the current solution and parameter values.

- Public Member Functions inherited from LOCA::Homotopy::AbstractGroup
 AbstractGroup ()
 Default constructor.

virtual ~AbstractGroup ()
 Destructor.

- Public Member Functions inherited from LOCA::MultiContinuation::AbstractGroup
 AbstractGroup ()
 Default constructor.

virtual void setParams (const LOCA::ParameterVector &p)=0
 Set the parameter vector in the group to p (pVector = p).

virtual void setParam (int paramID, double val)=0
 Set parameter indexed by (integer) paramID.

virtual void setParam (std::string paramID, double val)=0
 Set parameter indexed by (std::string) paramID.

virtual const
LOCA::ParameterVector
getParams () const =0
 Return a const reference to the ParameterVector owned by the group.

virtual double getParam (int paramID) const =0
 Return copy of parameter indexed by (integer) paramID.

virtual double getParam (std::string paramID) const =0
 Return copy of parameter indexed by (std::string) paramID.

virtual void preProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus stepStatus)
 Perform any preprocessing before a continuation step starts. More...

virtual void postProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus stepStatus)
 Perform any postprocessing after a continuation step finishes. More...

virtual void projectToDraw (const NOX::Abstract::Vector &x, double *px) const
 Projects solution to a few scalars for multiparameter continuation. More...

virtual int projectToDrawDimension () const
 Returns the dimension of the project to draw array. More...

virtual double computeScaledDotProduct (const NOX::Abstract::Vector &a, const NOX::Abstract::Vector &b) const
 Compute a scaled dot product. More...

virtual void printSolution (const double) const
 Function to print out solution and parameter after successful step. More...

virtual void printSolution (const NOX::Abstract::Vector &, const double) const
 Function to print out a vector and parameter after successful step. More...

virtual void scaleVector (NOX::Abstract::Vector &x) const
 Scales a vector using scaling vector. More...

- Public Member Functions inherited from NOX::Abstract::Group
 Group ()
 Constructor. More...

virtual void setX (const NOX::Abstract::Vector &y)=0
 Set the solution vector x to y. More...

virtual void computeX (const NOX::Abstract::Group &grp, const NOX::Abstract::Vector &d, double step)=0
 Compute x = grp.x + step * d. More...

virtual
NOX::Abstract::Group::ReturnType
computeF ()=0
 Compute and store F(x). More...

virtual
NOX::Abstract::Group::ReturnType
computeJacobian ()
 Compute and store Jacobian. More...

virtual
NOX::Abstract::Group::ReturnType
computeGradient ()
 Compute and store gradient. More...

virtual
NOX::Abstract::Group::ReturnType
computeNewton (Teuchos::ParameterList &params)
 Compute the Newton direction, using parameters for the linear solve. More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobian (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Applies Jacobian to the given input vector and puts the answer in the result. More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianTranspose (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Applies Jacobian-Transpose to the given input vector and puts the answer in the result. More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianInverse (Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Applies the inverse of the Jacobian matrix to the given input vector and puts the answer in result. More...

virtual
NOX::Abstract::Group::ReturnType
applyRightPreconditioning (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Apply right preconditiong to the given input vector. More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyJacobian for multiple right-hand sides More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianTransposeMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyJacobianTranspose for multiple right-hand sides More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianInverseMultiVector (Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyJacobianInverse for multiple right-hand sides More...

virtual
NOX::Abstract::Group::ReturnType
applyRightPreconditioningMultiVector (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyRightPreconditioning for multiple right-hand sides More...

virtual bool isF () const =0
 Return true if F is valid.

virtual bool isJacobian () const
 Return true if the Jacobian is valid. More...

virtual bool isGradient () const
 Return true if the gradient is valid. More...

virtual bool isNewton () const
 Return true if the Newton direction is valid. More...

virtual const
NOX::Abstract::Vector
getX () const =0
 Return solution vector.

virtual const
NOX::Abstract::Vector
getScaledX () const

virtual const
NOX::Abstract::Vector
getF () const =0
 Return F(x)

virtual double getNormF () const =0
 Return 2-norm of F(x). More...

virtual const
NOX::Abstract::Vector
getGradient () const =0
 Return gradient.

virtual const
NOX::Abstract::Vector
getNewton () const =0
 Return Newton direction.

virtual Teuchos::RCP< const
NOX::Abstract::Vector
getXPtr () const =0
 Return RCP to solution vector.

virtual Teuchos::RCP< const
NOX::Abstract::Vector
getFPtr () const =0
 Return RCP to F(x)

virtual Teuchos::RCP< const
NOX::Abstract::Vector
getGradientPtr () const =0
 Return RCP to gradient.

virtual Teuchos::RCP< const
NOX::Abstract::Vector
getNewtonPtr () const =0
 Return RCP to Newton direction.

virtual void logLastLinearSolveStats (NOX::SolverStats &stats) const
 Adds statistics from last linear solve to the SovlerStats object.

virtual
NOX::Abstract::Group::ReturnType
getNormLastLinearSolveResidual (double &residual) const
 Return the norm of the last linear solve residual as the result of either a call to computeNewton() or applyJacobianInverse(). More...

virtual Teuchos::RCP
< NOX::Abstract::Group
clone (NOX::CopyType type=NOX::DeepCopy) const =0
 Create a new Group of the same derived type as this one by cloning this one, and return a ref count pointer to the new group. More...

- Public Member Functions inherited from LOCA::TurningPoint::MinimallyAugmented::FiniteDifferenceGroup
 FiniteDifferenceGroup ()
 Constructor.

 FiniteDifferenceGroup (const FiniteDifferenceGroup &source, NOX::CopyType type=NOX::DeepCopy)
 Copy constructor.

virtual ~FiniteDifferenceGroup ()
 Destructor.

virtual
NOX::Abstract::Group::ReturnType
computeDwtJnDp (const std::vector< int > &paramIDs, const NOX::Abstract::Vector &w, const NOX::Abstract::Vector &nullVector, NOX::Abstract::MultiVector::DenseMatrix &result, bool isValid)
 Computes the derivative $\partial w^TJn/\partial p$. More...

virtual
NOX::Abstract::Group::ReturnType
computeDwtJDp (const std::vector< int > &paramIDs, const NOX::Abstract::Vector &w, NOX::Abstract::MultiVector &result, bool isValid)
 Computes the derivative $\partial w^TJ/\partial p$. More...

virtual
NOX::Abstract::Group::ReturnType
computeDwtJnDx (const NOX::Abstract::Vector &w, const NOX::Abstract::Vector &nullVector, NOX::Abstract::Vector &result)
 Computes the derivative $\frac{\partial w^TJn}{\partial x}$. More...

- Public Member Functions inherited from LOCA::TurningPoint::MinimallyAugmented::AbstractGroup
 AbstractGroup ()
 Default constructor.

- Public Member Functions inherited from LOCA::TurningPoint::MooreSpence::AbstractGroup
 AbstractGroup ()
 Default constructor.

- Public Member Functions inherited from LOCA::TurningPoint::MooreSpence::FiniteDifferenceGroup
 FiniteDifferenceGroup ()
 Constructor.

 FiniteDifferenceGroup (const FiniteDifferenceGroup &source, NOX::CopyType type=NOX::DeepCopy)
 Copy constructor.

virtual
NOX::Abstract::Group::ReturnType
computeDJnDpMulti (const std::vector< int > &paramIDs, const NOX::Abstract::Vector &nullVector, NOX::Abstract::MultiVector &result, bool isValid)
 Computes the derivative $\partial Jn/\partial p$. More...

virtual
NOX::Abstract::Group::ReturnType
computeDJnDxaMulti (const NOX::Abstract::Vector &nullVector, const NOX::Abstract::MultiVector &aVector, NOX::Abstract::MultiVector &result)
 Computes the directional derivative $\frac{\partial Jn}{\partial x} a$ for the given direction $a$. More...

virtual
NOX::Abstract::Group::ReturnType
computeDJnDxaMulti (const NOX::Abstract::Vector &nullVector, const NOX::Abstract::Vector &JnVector, const NOX::Abstract::MultiVector &aVector, NOX::Abstract::MultiVector &result)
 Computes the directional derivative $\frac{\partial Jn}{\partial x} a$ for the given direction $a$. More...

virtual
NOX::Abstract::Group::ReturnType
computeDwtJnDxMulti (const NOX::Abstract::MultiVector &w, const NOX::Abstract::Vector &nullVector, NOX::Abstract::MultiVector &result)
 Computes the derivative $\frac{\partial w^TJn}{\partial x}$. More...

- Public Member Functions inherited from LOCA::MultiContinuation::FiniteDifferenceGroup
 FiniteDifferenceGroup ()
 Constructor.

 FiniteDifferenceGroup (const FiniteDifferenceGroup &source, NOX::CopyType type=NOX::DeepCopy)
 Copy constructor.

virtual void setDerivUtils (const Teuchos::RCP< LOCA::DerivUtils > &deriv)
 Set the LOCA::DerivUtils object.

virtual
NOX::Abstract::Group::ReturnType
computeDfDpMulti (const std::vector< int > &paramIDs, NOX::Abstract::MultiVector &dfdp, bool isValidF)

- Public Member Functions inherited from LOCA::Pitchfork::MinimallyAugmented::AbstractGroup
 AbstractGroup ()
 Default constructor.

virtual ~AbstractGroup ()
 Destructor.

- Public Member Functions inherited from LOCA::Pitchfork::MooreSpence::AbstractGroup
 AbstractGroup ()
 Default constructor.

virtual double innerProduct (const NOX::Abstract::Vector &a, const NOX::Abstract::Vector &b) const
 Compute the inner product of a and b. More...

virtual void innerProduct (const NOX::Abstract::MultiVector &a, const NOX::Abstract::MultiVector &b, NOX::Abstract::MultiVector::DenseMatrix &c) const
 Compute the inner product of a and b. More...

- Public Member Functions inherited from LOCA::Hopf::MinimallyAugmented::FiniteDifferenceGroup
 FiniteDifferenceGroup ()
 Constructor.

 FiniteDifferenceGroup (const FiniteDifferenceGroup &source, NOX::CopyType type=NOX::DeepCopy)
 Copy constructor.

virtual ~FiniteDifferenceGroup ()
 Destructor.

virtual
NOX::Abstract::Group::ReturnType
computeDwtCeDp (const std::vector< int > &paramIDs, const NOX::Abstract::Vector &w1, const NOX::Abstract::Vector &w2, const NOX::Abstract::Vector &y, const NOX::Abstract::Vector &x, double omega, NOX::Abstract::MultiVector::DenseMatrix &result_real, NOX::Abstract::MultiVector::DenseMatrix &result_imag, bool isValid)
 Computes the derivative $\partial w^TCe/\partial p$. More...

virtual
NOX::Abstract::Group::ReturnType
computeDwtCeDx (const NOX::Abstract::Vector &w1, const NOX::Abstract::Vector &w2, const NOX::Abstract::Vector &y, const NOX::Abstract::Vector &z, double omega, NOX::Abstract::Vector &result_real, NOX::Abstract::Vector &result_imag)
 Computes the derivative $\frac{\partial w^TCe}{\partial x}$. More...

- Public Member Functions inherited from LOCA::Hopf::MinimallyAugmented::AbstractGroup
 AbstractGroup ()
 Default constructor.

virtual ~AbstractGroup ()
 Destructor.

- Public Member Functions inherited from LOCA::Hopf::MooreSpence::AbstractGroup
 AbstractGroup ()
 Default constructor.

- Public Member Functions inherited from LOCA::TimeDependent::AbstractGroup
 AbstractGroup ()
 Default constructor.

- Public Member Functions inherited from LOCA::Hopf::MooreSpence::FiniteDifferenceGroup
 FiniteDifferenceGroup ()
 Constructor.

 FiniteDifferenceGroup (const FiniteDifferenceGroup &source, NOX::CopyType type=NOX::DeepCopy)
 Copy constructor.

virtual
NOX::Abstract::Group::ReturnType
computeDCeDp (const std::vector< int > &paramIDs, const NOX::Abstract::Vector &yVector, const NOX::Abstract::Vector &zVector, double w, NOX::Abstract::MultiVector &result_real, NOX::Abstract::MultiVector &result_imag, bool isValid)
 Computes the derivative $\frac{\partial (J+i\omega B)(y+iz)}{\partial p}$ where $p$ is the parameter indexed by paramIDs. More...

virtual
NOX::Abstract::Group::ReturnType
computeDCeDxa (const NOX::Abstract::Vector &yVector, const NOX::Abstract::Vector &zVector, double w, const NOX::Abstract::MultiVector &aVector, NOX::Abstract::MultiVector &result_real, NOX::Abstract::MultiVector &result_imag)
 Computes the directional derivative $\frac{\partial (J+i\omega B)(y+iz)}{\partial x} a$ for the given direction $a$. More...

virtual
NOX::Abstract::Group::ReturnType
computeDCeDxa (const NOX::Abstract::Vector &yVector, const NOX::Abstract::Vector &zVector, double w, const NOX::Abstract::MultiVector &aVector, const NOX::Abstract::Vector &Ce_real, const NOX::Abstract::Vector &Ce_imag, NOX::Abstract::MultiVector &result_real, NOX::Abstract::MultiVector &result_imag)
 Computes the directional derivative $\frac{\partial (J+i\omega B)(y+iz)}{\partial x} a$ for the given direction $a$. The arguments Ce_real and Ce_imag hold the real and imaginary components of $(J+i\omega B)(y+iz)$. More...

- Public Member Functions inherited from LOCA::PhaseTransition::AbstractGroup
 AbstractGroup ()
 Default constructor.

virtual ~AbstractGroup ()
 Destructor.


Protected Attributes

Teuchos::RCP< LOCA::GlobalDataglobalData
 Global data.

- Protected Attributes inherited from LOCA::MultiContinuation::FiniteDifferenceGroup
Teuchos::RCP< DerivUtilsderivPtr
 Pointer to current DerivUtils derivative computation object.


Additional Inherited Members

- Public Types inherited from NOX::Abstract::Group
enum  ReturnType {
  Ok, NotDefined, BadDependency, NotConverged,
  Failed
}
 The computation of, say, the Newton direction in computeNewton() may fail in many different ways, so we have included a variety of return codes to describe the failures. Of course, we also have a code for success. More...


Detailed Description

Compatiblity class for AbstractGroup hierarchy.

This class is derived from all LOCA AbstractGroup abstract base classes as well as all FiniteDifference groups and any other groups that provided default implementations for AbstractGroup pure virtual methods. This class provides definitions for all needed assignment operators and provides definitions for some pure virtual methods by printing error messages. This class exists primarily for compatiblity to an older class hierarchy and will most likely be removed in the future.

Member Function Documentation

NOX::Abstract::Group::ReturnType LOCA::Abstract::Group::applyComplex ( const NOX::Abstract::Vector input_real,
const NOX::Abstract::Vector input_imag,
NOX::Abstract::Vector result_real,
NOX::Abstract::Vector result_imag
) const
virtual

Compute $(J+i\omega B)(y+iz)$.

Implementation here prints an error message and returns NOX::Abstract::Group::NotDefined.

Implements LOCA::Hopf::MooreSpence::AbstractGroup.

Reimplemented in LOCA::Epetra::Group, and LOCA::LAPACK::Group.

References NOX::Abstract::Group::NotDefined.

NOX::Abstract::Group::ReturnType LOCA::Abstract::Group::applyComplexInverseMultiVector ( Teuchos::ParameterList params,
const NOX::Abstract::MultiVector input_real,
const NOX::Abstract::MultiVector input_imag,
NOX::Abstract::MultiVector result_real,
NOX::Abstract::MultiVector result_imag
) const
virtual

Solve $(J+i\omega B)(y+iz) = a+ib$.

Implementation here prints an error message and returns NOX::Abstract::Group::NotDefined.

Implements LOCA::Hopf::MooreSpence::AbstractGroup.

Reimplemented in LOCA::Epetra::Group, and LOCA::LAPACK::Group.

References NOX::Abstract::Group::NotDefined.

NOX::Abstract::Group::ReturnType LOCA::Abstract::Group::applyComplexMultiVector ( const NOX::Abstract::MultiVector input_real,
const NOX::Abstract::MultiVector input_imag,
NOX::Abstract::MultiVector result_real,
NOX::Abstract::MultiVector result_imag
) const
virtual

Compute $(J+i\omega B)(y+iz)$.

Implementation here prints an error message and returns NOX::Abstract::Group::NotDefined.

Implements LOCA::Hopf::MooreSpence::AbstractGroup.

Reimplemented in LOCA::Epetra::Group, and LOCA::LAPACK::Group.

References NOX::Abstract::Group::NotDefined.

NOX::Abstract::Group::ReturnType LOCA::Abstract::Group::applyComplexTranspose ( const NOX::Abstract::Vector input_real,
const NOX::Abstract::Vector input_imag,
NOX::Abstract::Vector result_real,
NOX::Abstract::Vector result_imag
) const
virtual

Computes conjugate-tranpose matrix vector product $ (J+i\omega B)^H (x + iy) $.

Implementation here prints an error message and returns NOX::Abstract::Group::NotDefined.

Implements LOCA::Hopf::MinimallyAugmented::AbstractGroup.

Reimplemented in LOCA::Epetra::Group, and LOCA::LAPACK::Group.

References NOX::Abstract::Group::NotDefined.

NOX::Abstract::Group::ReturnType LOCA::Abstract::Group::applyComplexTransposeMultiVector ( const NOX::Abstract::MultiVector input_real,
const NOX::Abstract::MultiVector input_imag,
NOX::Abstract::MultiVector result_real,
NOX::Abstract::MultiVector result_imag
) const
virtual

Computes conjugate-tranpose matrix vector product $ (J+i\omega B)^H (x + iy) $.

Implements LOCA::Hopf::MinimallyAugmented::AbstractGroup.

Reimplemented in LOCA::Epetra::Group, and LOCA::LAPACK::Group.

References NOX::Abstract::Group::NotDefined.

NOX::Abstract::Group::ReturnType LOCA::Abstract::Group::applySecondShiftedMatrix ( const NOX::Abstract::Vector input,
NOX::Abstract::Vector result
) const
virtual

Multiply the shifted matrix by a vector.

Implementation here prints an error message and returns NOX::Abstract::Group::NotDefined.

Implements LOCA::TimeDependent::AbstractGroup.

Reimplemented in LOCA::Epetra::Group.

References NOX::Abstract::Group::NotDefined.

NOX::Abstract::Group::ReturnType LOCA::Abstract::Group::applySecondShiftedMatrixMultiVector ( const NOX::Abstract::MultiVector input,
NOX::Abstract::MultiVector result
) const
virtual

Multiply the shifted matrix by a multi-vector.

Implementation here prints an error message and returns NOX::Abstract::Group::NotDefined.

Implements LOCA::TimeDependent::AbstractGroup.

Reimplemented in LOCA::Epetra::Group.

References NOX::Abstract::Group::NotDefined.

NOX::Abstract::Group::ReturnType LOCA::Abstract::Group::applyShiftedMatrix ( const NOX::Abstract::Vector input,
NOX::Abstract::Vector result
) const
virtual

Multiply the shifted matrix by a vector.

Implementation here prints an error message and returns NOX::Abstract::Group::NotDefined.

Implements LOCA::TimeDependent::AbstractGroup.

Reimplemented in LOCA::Epetra::Group, LOCA::LAPACK::Group, and LOCA::Thyra::Group.

References NOX::Abstract::Group::NotDefined.

NOX::Abstract::Group::ReturnType LOCA::Abstract::Group::applyShiftedMatrixInverseMultiVector ( Teuchos::ParameterList params,
const NOX::Abstract::MultiVector input,
NOX::Abstract::MultiVector result
) const
virtual

Apply the inverse of the shifted matrix by a multi-vector, as needed by the shift-and-invert and generalized Cayley transformations.

Implementation here prints an error message and returns NOX::Abstract::Group::NotDefined.

Implements LOCA::TimeDependent::AbstractGroup.

Reimplemented in LOCA::Epetra::Group, LOCA::LAPACK::Group, and LOCA::Thyra::Group.

References NOX::Abstract::Group::NotDefined.

NOX::Abstract::Group::ReturnType LOCA::Abstract::Group::applyShiftedMatrixMultiVector ( const NOX::Abstract::MultiVector input,
NOX::Abstract::MultiVector result
) const
virtual

Multiply the shifted matrix by a multi-vector.

Implementation here prints an error message and returns NOX::Abstract::Group::NotDefined.

Implements LOCA::TimeDependent::AbstractGroup.

Reimplemented in LOCA::Epetra::Group, LOCA::LAPACK::Group, and LOCA::Thyra::Group.

References NOX::Abstract::Group::NotDefined.

NOX::Abstract::Group::ReturnType LOCA::Abstract::Group::augmentJacobianForHomotopy ( double  a,
double  b
)
virtual

Replace Jacobian $J$ by $aJ+bI$ where $I$ is the identity matrix and $p$ is a scalar.

Implementation here prints an error message and returns NOX::Abstract::Group::NotDefined.

Implements LOCA::Homotopy::AbstractGroup.

Reimplemented in LOCA::Epetra::Group, and LOCA::LAPACK::Group.

References NOX::Abstract::Group::NotDefined.

NOX::Abstract::Group::ReturnType LOCA::Abstract::Group::computeComplex ( double  frequency)
virtual

Compute $J+i\omega B$.

Implementation here prints an error message and returns NOX::Abstract::Group::NotDefined.

Implements LOCA::Hopf::MooreSpence::AbstractGroup.

Reimplemented in LOCA::Epetra::Group, and LOCA::LAPACK::Group.

References NOX::Abstract::Group::NotDefined.

NOX::Abstract::Group::ReturnType LOCA::Abstract::Group::computeSecondShiftedMatrix ( double  alpha,
double  beta
)
virtual

Compute the second shifted matrix. Can avoid recomputing if two are stored.

Implementation here prints an error message and returns NOX::Abstract::Group::NotDefined.

Implements LOCA::TimeDependent::AbstractGroup.

Reimplemented in LOCA::Epetra::Group.

References NOX::Abstract::Group::NotDefined.

NOX::Abstract::Group::ReturnType LOCA::Abstract::Group::computeShiftedMatrix ( double  alpha,
double  beta
)
virtual

Compute the shifted matrix.

Implementation here prints an error message and returns NOX::Abstract::Group::NotDefined.

Implements LOCA::TimeDependent::AbstractGroup.

Reimplemented in LOCA::Epetra::Group, LOCA::LAPACK::Group, and LOCA::Thyra::Group.

References NOX::Abstract::Group::NotDefined.

bool LOCA::Abstract::Group::isComplex ( ) const
virtual

Is $J+i\omega B$ valid.

The implementation here always returns false.

Implements LOCA::Hopf::MooreSpence::AbstractGroup.

Reimplemented in LOCA::Epetra::Group, and LOCA::LAPACK::Group.

void LOCA::Abstract::Group::notifyCompletedStep ( )
virtual

Notify group that the continuation step is completed The default implementation here is to do nothing.

NOX::Abstract::Group & LOCA::Abstract::Group::operator= ( const NOX::Abstract::Group source)
virtual

Copies the source group into this group.

Note
Any shared data owned by the source should have its ownership transfered to this group. This may result in a secret modification to the source object.

Implements NOX::Abstract::Group.

Reimplemented in LOCA::Epetra::Group, LOCA::MultiContinuation::ConstrainedGroup, LOCA::LAPACK::Group, LOCA::Thyra::Group, and LOCA::Thyra::GroupWrapper.


The documentation for this class was generated from the following files:
