LOCA::Epetra::Interface::TimeDependent Class Referenceabstract

Used by LOCA::Epetra::Group to provide a link to the external code for computing the shifted matrix. More...

#include <LOCA_Epetra_Interface_TimeDependent.H>

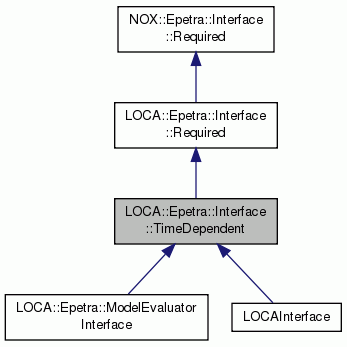

Inheritance diagram for LOCA::Epetra::Interface::TimeDependent:
Inheritance graph
[legend]
Collaboration diagram for LOCA::Epetra::Interface::TimeDependent:
Collaboration graph
[legend]

Public Member Functions

 TimeDependent ()
 Constructor.

virtual ~TimeDependent ()
 Destructor.

virtual bool computeShiftedMatrix (double alpha, double beta, const Epetra_Vector &x, Epetra_Operator &A)=0
 Call user routine for computing the shifted matrix $\alpha J + \beta M$ where $J$ is the Jacobian matrix and $M$ is the mass matrix.

virtual void setXdot (const Epetra_Vector &, const double)
 Routine used in XYZT to set x_dot and time in the interface. More...

- Public Member Functions inherited from LOCA::Epetra::Interface::Required
 Required ()
 Constructor.

virtual ~Required ()
 Destructor.

virtual void setParameters (const ParameterVector &p)=0
 Set parameters in the user's application. More...

virtual void printSolution (const Epetra_Vector &, double)
 Call user's own print routine for vector-parameter pair.

virtual void dataForPrintSolution (const int, const int, const int)
 Provides data to application for output files. More...

virtual void setMultiPointParameter (const int)
 Set multipoint parameter in the user's application. More...

virtual void preProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus, LOCA::Epetra::Group &)
 Perform any preprocessing before a continuation step starts. More...

virtual void postProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus, LOCA::Epetra::Group &)
 Perform any postprocessing after a continuation step finishes. More...

virtual void projectToDraw (const NOX::Epetra::Vector &x, double *px) const
 Projects solution to a few scalars for multiparameter continuation. More...

virtual int projectToDrawDimension () const
 Returns the dimension of the projection to draw array.

- Public Member Functions inherited from NOX::Epetra::Interface::Required
 Required ()
 Constructor.

virtual bool computeF (const Epetra_Vector &x, Epetra_Vector &F, const FillType fillFlag)=0
 Compute the function, F, given the specified input vector x. Returns true if computation was successful.


Additional Inherited Members

- Public Types inherited from NOX::Epetra::Interface::Required
enum  FillType {
  Residual, Jac, Prec, FD_Res,
  MF_Res, MF_Jac, User
}
 Type of fill that a computeF() method is used for. More...


Detailed Description

Used by LOCA::Epetra::Group to provide a link to the external code for computing the shifted matrix.

This interface is derived from the NOX::Epetra::Interface::Jacobian and additionally provides a method for computing the shifted matrix $\alpha J + \beta M$. This is needed for linear stability analysis and Hopf tracking.

Member Function Documentation

virtual void LOCA::Epetra::Interface::TimeDependent::setXdot ( const Epetra_Vector ,
const double
)
inlinevirtual

Routine used in XYZT to set x_dot and time in the interface.

The computeF() routine for XYZT problems needs to be a function of x_dot, but th NOX/LOCA computeF() does not take x_dot as an argument. This is used to set x_dot in the application interface so the subsequent call to computeF has the correct x_dot value. The timeStep argument is sent so the use can set the global time, for cases when computeF, computeJacobian, computeMassMatrix fills are functions of time (nonautonomous systems).

Reimplemented in LOCA::Epetra::ModelEvaluatorInterface, and LOCAInterface.


The documentation for this class was generated from the following file:
