Epetra_FECrsMatrix Class Reference

#include <Epetra_FECrsMatrix.h>

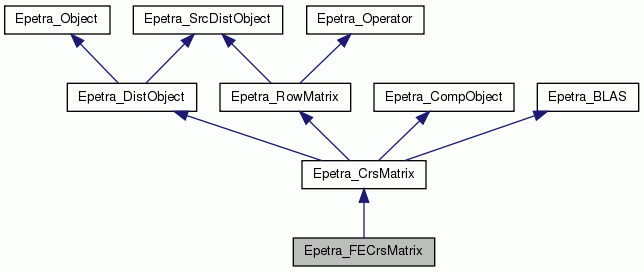

Inheritance diagram for Epetra_FECrsMatrix:
Inheritance graph
[legend]

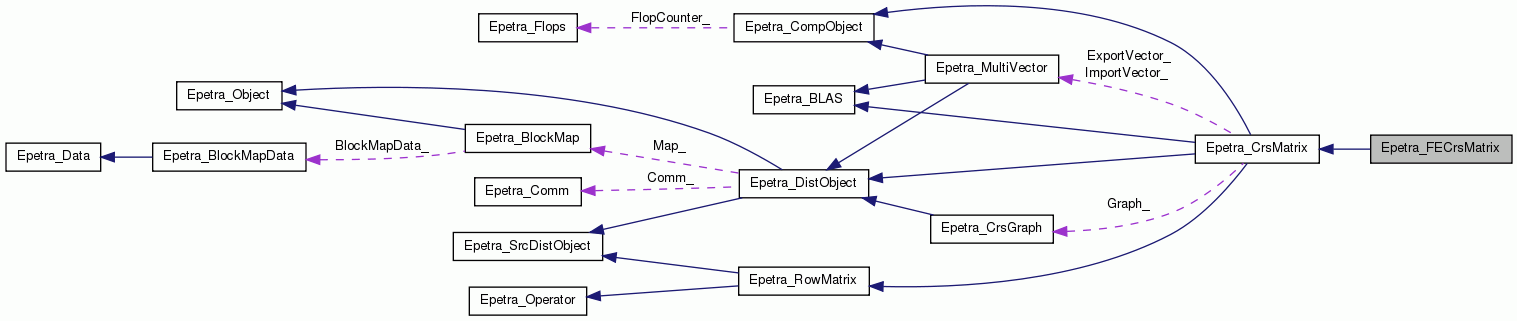

Collaboration diagram for Epetra_FECrsMatrix:
Collaboration graph
[legend]

Public Types

enum  { ROW_MAJOR = 0, COLUMN_MAJOR = 3 }


Public Member Functions

 Epetra_FECrsMatrix (Epetra_DataAccess CV, const Epetra_Map &RowMap, int *NumEntriesPerRow, bool ignoreNonLocalEntries=false)

 Epetra_FECrsMatrix (Epetra_DataAccess CV, const Epetra_Map &RowMap, int NumEntriesPerRow, bool ignoreNonLocalEntries=false)

 Epetra_FECrsMatrix (Epetra_DataAccess CV, const Epetra_Map &RowMap, const Epetra_Map &ColMap, int *NumEntriesPerRow, bool ignoreNonLocalEntries=false)

 Epetra_FECrsMatrix (Epetra_DataAccess CV, const Epetra_Map &RowMap, const Epetra_Map &ColMap, int NumEntriesPerRow, bool ignoreNonLocalEntries=false)

 Epetra_FECrsMatrix (Epetra_DataAccess CV, const Epetra_CrsGraph &Graph, bool ignoreNonLocalEntries=false)

 Epetra_FECrsMatrix (Epetra_DataAccess CV, const Epetra_FECrsGraph &Graph, bool ignoreNonLocalEntries=false)

 Epetra_FECrsMatrix (const Epetra_FECrsMatrix &src)

virtual ~Epetra_FECrsMatrix ()

Epetra_FECrsMatrixoperator= (const Epetra_FECrsMatrix &src)

int SumIntoGlobalValues (int GlobalRow, int NumEntries, const double *Values, const int *Indices)

int SumIntoGlobalValues (long long GlobalRow, int NumEntries, const double *Values, const long long *Indices)

int InsertGlobalValues (int GlobalRow, int NumEntries, const double *Values, const int *Indices)

int InsertGlobalValues (long long GlobalRow, int NumEntries, const double *Values, const long long *Indices)

int InsertGlobalValues (int GlobalRow, int NumEntries, double *Values, int *Indices)

int InsertGlobalValues (long long GlobalRow, int NumEntries, double *Values, long long *Indices)

int ReplaceGlobalValues (int GlobalRow, int NumEntries, const double *Values, const int *Indices)

int ReplaceGlobalValues (long long GlobalRow, int NumEntries, const double *Values, const long long *Indices)

int SumIntoGlobalValues (int numIndices, const int *indices, const double *values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int SumIntoGlobalValues (int numIndices, const long long *indices, const double *values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int SumIntoGlobalValues (int numRows, const int *rows, int numCols, const int *cols, const double *values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int SumIntoGlobalValues (int numRows, const long long *rows, int numCols, const long long *cols, const double *values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int SumIntoGlobalValues (int numIndices, const int *indices, const double *const *values, int format=Epetra_FECrsMatrix::ROW_MAJOR)

int SumIntoGlobalValues (int numIndices, const long long *indices, const double *const *values, int format=Epetra_FECrsMatrix::ROW_MAJOR)

int SumIntoGlobalValues (int numRows, const int *rows, int numCols, const int *cols, const double *const *values, int format=Epetra_FECrsMatrix::ROW_MAJOR)

int SumIntoGlobalValues (int numRows, const long long *rows, int numCols, const long long *cols, const double *const *values, int format=Epetra_FECrsMatrix::ROW_MAJOR)

int InsertGlobalValues (int numIndices, const int *indices, const double *values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int InsertGlobalValues (int numIndices, const long long *indices, const double *values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int InsertGlobalValues (int numRows, const int *rows, int numCols, const int *cols, const double *values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int InsertGlobalValues (int numRows, const long long *rows, int numCols, const long long *cols, const double *values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int InsertGlobalValues (int numIndices, const int *indices, const double *const *values, int format=Epetra_FECrsMatrix::ROW_MAJOR)

int InsertGlobalValues (int numIndices, const long long *indices, const double *const *values, int format=Epetra_FECrsMatrix::ROW_MAJOR)

int InsertGlobalValues (int numRows, const int *rows, int numCols, const int *cols, const double *const *values, int format=Epetra_FECrsMatrix::ROW_MAJOR)

int InsertGlobalValues (int numRows, const long long *rows, int numCols, const long long *cols, const double *const *values, int format=Epetra_FECrsMatrix::ROW_MAJOR)

int ReplaceGlobalValues (int numIndices, const int *indices, const double *values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int ReplaceGlobalValues (int numIndices, const long long *indices, const double *values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int ReplaceGlobalValues (int numRows, const int *rows, int numCols, const int *cols, const double *values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int ReplaceGlobalValues (int numRows, const long long *rows, int numCols, const long long *cols, const double *values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int ReplaceGlobalValues (int numIndices, const int *indices, const double *const *values, int format=Epetra_FECrsMatrix::ROW_MAJOR)

int ReplaceGlobalValues (int numIndices, const long long *indices, const double *const *values, int format=Epetra_FECrsMatrix::ROW_MAJOR)

int ReplaceGlobalValues (int numRows, const int *rows, int numCols, const int *cols, const double *const *values, int format=Epetra_FECrsMatrix::ROW_MAJOR)

int ReplaceGlobalValues (int numRows, const long long *rows, int numCols, const long long *cols, const double *const *values, int format=Epetra_FECrsMatrix::ROW_MAJOR)

int SumIntoGlobalValues (const Epetra_IntSerialDenseVector &indices, const Epetra_SerialDenseMatrix &values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int SumIntoGlobalValues (const Epetra_LongLongSerialDenseVector &indices, const Epetra_SerialDenseMatrix &values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int SumIntoGlobalValues (const Epetra_IntSerialDenseVector &rows, const Epetra_IntSerialDenseVector &cols, const Epetra_SerialDenseMatrix &values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int SumIntoGlobalValues (const Epetra_LongLongSerialDenseVector &rows, const Epetra_LongLongSerialDenseVector &cols, const Epetra_SerialDenseMatrix &values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int InsertGlobalValues (const Epetra_IntSerialDenseVector &indices, const Epetra_SerialDenseMatrix &values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int InsertGlobalValues (const Epetra_LongLongSerialDenseVector &indices, const Epetra_SerialDenseMatrix &values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int InsertGlobalValues (const Epetra_IntSerialDenseVector &rows, const Epetra_IntSerialDenseVector &cols, const Epetra_SerialDenseMatrix &values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int InsertGlobalValues (const Epetra_LongLongSerialDenseVector &rows, const Epetra_LongLongSerialDenseVector &cols, const Epetra_SerialDenseMatrix &values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int ReplaceGlobalValues (const Epetra_IntSerialDenseVector &indices, const Epetra_SerialDenseMatrix &values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int ReplaceGlobalValues (const Epetra_LongLongSerialDenseVector &indices, const Epetra_SerialDenseMatrix &values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int ReplaceGlobalValues (const Epetra_IntSerialDenseVector &rows, const Epetra_IntSerialDenseVector &cols, const Epetra_SerialDenseMatrix &values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int ReplaceGlobalValues (const Epetra_LongLongSerialDenseVector &rows, const Epetra_LongLongSerialDenseVector &cols, const Epetra_SerialDenseMatrix &values, int format=Epetra_FECrsMatrix::COLUMN_MAJOR)

int GlobalAssemble (bool callFillComplete=true, Epetra_CombineMode combineMode=Add, bool save_off_and_reuse_map_exporter=false)

int GlobalAssemble (const Epetra_Map &domain_map, const Epetra_Map &range_map, bool callFillComplete=true, Epetra_CombineMode combineMode=Add, bool save_off_and_reuse_map_exporter=false)

void setIgnoreNonLocalEntries (bool flag)

- Public Member Functions inherited from Epetra_CrsMatrix
void FusedImport (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Import &RowImporter, const Epetra_Map *DomainMap, const Epetra_Map *RangeMap, bool RestrictCommunicator)

void FusedExport (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Export &RowExporter, const Epetra_Map *DomainMap, const Epetra_Map *RangeMap, bool RestrictCommunicator)

void FusedImport (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Import &RowImporter, const Epetra_Import *DomainImporter, const Epetra_Map *DomainMap, const Epetra_Map *RangeMap, bool RestrictCommunicator)

void FusedExport (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Export &RowExporter, const Epetra_Export *DomainExporter, const Epetra_Map *DomainMap, const Epetra_Map *RangeMap, bool RestrictCommunicator)

 Epetra_CrsMatrix (Epetra_DataAccess CV, const Epetra_Map &RowMap, const int *NumEntriesPerRow, bool StaticProfile=false)
 Epetra_CrsMatrix constructor with variable number of indices per row. More...

 Epetra_CrsMatrix (Epetra_DataAccess CV, const Epetra_Map &RowMap, int NumEntriesPerRow, bool StaticProfile=false)
 Epetra_CrsMatrix constructor with fixed number of indices per row. More...

 Epetra_CrsMatrix (Epetra_DataAccess CV, const Epetra_Map &RowMap, const Epetra_Map &ColMap, const int *NumEntriesPerRow, bool StaticProfile=false)
 Epetra_CrsMatrix constructor with variable number of indices per row. More...

 Epetra_CrsMatrix (Epetra_DataAccess CV, const Epetra_Map &RowMap, const Epetra_Map &ColMap, int NumEntriesPerRow, bool StaticProfile=false)
 Epetra_CrsMatrix constuctor with fixed number of indices per row. More...

 Epetra_CrsMatrix (Epetra_DataAccess CV, const Epetra_CrsGraph &Graph)
 Construct a matrix using an existing Epetra_CrsGraph object. More...

 Epetra_CrsMatrix (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Import &RowImporter, const Epetra_Map *DomainMap=0, const Epetra_Map *RangeMap=0, bool RestrictCommunicator=false)
 Epetra CrsMatrix constructor that also fuses Import and FillComplete(). More...

 Epetra_CrsMatrix (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Import &RowImporter, const Epetra_Import *DomainImporter, const Epetra_Map *DomainMap, const Epetra_Map *RangeMap, bool RestrictCommunicator)
 Epetra CrsMatrix constructor that also fuses Import and FillComplete(). More...

 Epetra_CrsMatrix (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Export &RowExporter, const Epetra_Map *DomainMap=0, const Epetra_Map *RangeMap=0, bool RestrictCommunicator=false)
 Epetra CrsMatrix constructor that also fuses Ex[prt and FillComplete(). More...

 Epetra_CrsMatrix (const Epetra_CrsMatrix &SourceMatrix, const Epetra_Export &RowExporter, const Epetra_Export *DomainExporter, const Epetra_Map *DomainMap, const Epetra_Map *RangeMap, bool RestrictCommunicator)
 Epetra CrsMatrix constructor that also fuses Ex[prt and FillComplete(). More...

 Epetra_CrsMatrix (const Epetra_CrsMatrix &Matrix)
 Copy constructor.

virtual ~Epetra_CrsMatrix ()
 Epetra_CrsMatrix Destructor.

Epetra_CrsMatrixoperator= (const Epetra_CrsMatrix &src)
 Assignment operator.

int PutScalar (double ScalarConstant)
 Initialize all values in the matrix with constant value. More...

int Scale (double ScalarConstant)
 Multiply all values in the matrix by a constant value (in place: A <- ScalarConstant * A). More...

int InsertMyValues (int MyRow, int NumEntries, const double *Values, const int *Indices)
 Insert a list of elements in a given local row of the matrix. More...

int InsertMyValues (int MyRow, int NumEntries, double *Values, int *Indices)
 Insert a list of elements in a given local row of the matrix. More...

int ReplaceMyValues (int MyRow, int NumEntries, const double *Values, const int *Indices)
 Replace current values with this list of entries for a given local row of the matrix. More...

int SumIntoMyValues (int MyRow, int NumEntries, const double *Values, const int *Indices)
 Add this list of entries to existing values for a given local row of the matrix. More...

int ReplaceDiagonalValues (const Epetra_Vector &Diagonal)
 Replaces diagonal values of the matrix with those in the user-provided vector. More...

int FillComplete (bool OptimizeDataStorage=true)
 Signal that data entry is complete. Perform transformations to local index space.

int FillComplete (const Epetra_Map &DomainMap, const Epetra_Map &RangeMap, bool OptimizeDataStorage=true)
 Signal that data entry is complete. Perform transformations to local index space.

int OptimizeStorage ()
 Make consecutive row index sections contiguous, minimize internal storage used for constructing graph. More...

int MakeDataContiguous ()
 Eliminates memory that is used for construction. Make consecutive row index sections contiguous.

int ExtractGlobalRowCopy (int GlobalRow, int Length, int &NumEntries, double *Values, int *Indices) const
 Returns a copy of the specified global row in user-provided arrays. More...

int ExtractGlobalRowCopy (long long GlobalRow, int Length, int &NumEntries, double *Values, long long *Indices) const

int ExtractMyRowCopy (int MyRow, int Length, int &NumEntries, double *Values, int *Indices) const
 Returns a copy of the specified local row in user-provided arrays. More...

int ExtractGlobalRowCopy (int GlobalRow, int Length, int &NumEntries, double *Values) const
 Returns a copy of the specified global row values in user-provided array. More...

int ExtractGlobalRowCopy (long long GlobalRow, int Length, int &NumEntries, double *Values) const

int ExtractMyRowCopy (int MyRow, int Length, int &NumEntries, double *Values) const
 Returns a copy of the specified local row values in user-provided array. More...

int ExtractDiagonalCopy (Epetra_Vector &Diagonal) const
 Returns a copy of the main diagonal in a user-provided vector. More...

int ExtractGlobalRowView (int GlobalRow, int &NumEntries, double *&Values, int *&Indices) const
 Returns a view of the specified global row values via pointers to internal data. More...

int ExtractGlobalRowView (long long GlobalRow, int &NumEntries, double *&Values, long long *&Indices) const

int ExtractMyRowView (int MyRow, int &NumEntries, double *&Values, int *&Indices) const
 Returns a view of the specified local row values via pointers to internal data. More...

int ExtractGlobalRowView (int GlobalRow, int &NumEntries, double *&Values) const
 Returns a view of the specified global row values via pointers to internal data. More...

int ExtractGlobalRowView (long long GlobalRow, int &NumEntries, double *&Values) const

int ExtractMyRowView (int MyRow, int &NumEntries, double *&Values) const
 Returns a view of the specified local row values via pointers to internal data. More...

int Multiply (bool TransA, const Epetra_Vector &x, Epetra_Vector &y) const
 Returns the result of a Epetra_CrsMatrix multiplied by a Epetra_Vector x in y. More...

int Multiply1 (bool TransA, const Epetra_Vector &x, Epetra_Vector &y) const

int Multiply (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
 Returns the result of a Epetra_CrsMatrix multiplied by a Epetra_MultiVector X in Y. More...

int Multiply1 (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const

int Solve (bool Upper, bool Trans, bool UnitDiagonal, const Epetra_Vector &x, Epetra_Vector &y) const
 Returns the result of a local solve using the Epetra_CrsMatrix on a Epetra_Vector x in y. More...

int Solve (bool Upper, bool Trans, bool UnitDiagonal, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
 Returns the result of a local solve using the Epetra_CrsMatrix a Epetra_MultiVector X in Y. More...

int InvRowSums (Epetra_Vector &x) const
 Computes the inverse of the sum of absolute values of the rows of the Epetra_CrsMatrix, results returned in x. More...

int InvRowMaxs (Epetra_Vector &x) const
 Computes the inverse of the max of absolute values of the rows of the Epetra_CrsMatrix, results returned in x. More...

int LeftScale (const Epetra_Vector &x)
 Scales the Epetra_CrsMatrix on the left with a Epetra_Vector x. More...

int InvColSums (Epetra_Vector &x) const
 Computes the inverse of the sum of absolute values of the columns of the Epetra_CrsMatrix, results returned in x. More...

int InvColMaxs (Epetra_Vector &x) const
 Computes the max of absolute values of the columns of the Epetra_CrsMatrix, results returned in x. More...

int RightScale (const Epetra_Vector &x)
 Scales the Epetra_CrsMatrix on the right with a Epetra_Vector x. More...

bool Filled () const
 If FillComplete() has been called, this query returns true, otherwise it returns false.

bool StorageOptimized () const
 If OptimizeStorage() has been called, this query returns true, otherwise it returns false.

bool IndicesAreGlobal () const
 If matrix indices has not been transformed to local, this query returns true, otherwise it returns false.

bool IndicesAreLocal () const
 If matrix indices has been transformed to local, this query returns true, otherwise it returns false.

bool IndicesAreContiguous () const
 If matrix indices are packed into single array (done in OptimizeStorage()) return true, otherwise false.

bool LowerTriangular () const
 If matrix is lower triangular in local index space, this query returns true, otherwise it returns false.

bool UpperTriangular () const
 If matrix is upper triangular in local index space, this query returns true, otherwise it returns false.

bool NoDiagonal () const
 If matrix has no diagonal entries in global index space, this query returns true, otherwise it returns false.

double NormInf () const
 Returns the infinity norm of the global matrix.

double NormOne () const
 Returns the one norm of the global matrix.

double NormFrobenius () const
 Returns the frobenius norm of the global matrix.

int NumGlobalNonzeros () const
 Returns the number of nonzero entries in the global matrix.

long long NumGlobalNonzeros64 () const

int NumGlobalRows () const
 Returns the number of global matrix rows.

long long NumGlobalRows64 () const

int NumGlobalCols () const
 Returns the number of global matrix columns.

long long NumGlobalCols64 () const

int NumGlobalDiagonals () const
 Returns the number of global nonzero diagonal entries, based on global row/column index comparisons.

long long NumGlobalDiagonals64 () const

int NumMyNonzeros () const
 Returns the number of nonzero entries in the calling processor's portion of the matrix.

int NumMyRows () const
 Returns the number of matrix rows owned by the calling processor.

int NumMyCols () const
 Returns the number of entries in the set of column-indices that appear on this processor. More...

int NumMyDiagonals () const
 Returns the number of local nonzero diagonal entries, based on global row/column index comparisons. More...

int NumGlobalEntries (long long Row) const
 Returns the current number of nonzero entries in specified global row on this processor.

int NumAllocatedGlobalEntries (int Row) const
 Returns the allocated number of nonzero entries in specified global row on this processor.

int MaxNumEntries () const
 Returns the maximum number of nonzero entries across all rows on this processor. More...

int GlobalMaxNumEntries () const
 Returns the maximum number of nonzero entries across all rows on all processors. More...

int NumMyEntries (int Row) const
 Returns the current number of nonzero entries in specified local row on this processor.

int NumAllocatedMyEntries (int Row) const
 Returns the allocated number of nonzero entries in specified local row on this processor.

int IndexBase () const
 Returns the index base for row and column indices for this graph. More...

long long IndexBase64 () const

bool StaticGraph ()
 Returns true if the graph associated with this matrix was pre-constructed and therefore not changeable.

const Epetra_CrsGraphGraph () const
 Returns a reference to the Epetra_CrsGraph object associated with this matrix.

const Epetra_MapRowMap () const
 Returns the Epetra_Map object associated with the rows of this matrix.

int ReplaceRowMap (const Epetra_BlockMap &newmap)
 Replaces the current RowMap with the user-specified map object. More...

bool HaveColMap () const
 Returns true if we have a well-defined ColMap, and returns false otherwise. More...

int ReplaceColMap (const Epetra_BlockMap &newmap)
 Replaces the current ColMap with the user-specified map object. More...

int ReplaceDomainMapAndImporter (const Epetra_Map &NewDomainMap, const Epetra_Import *NewImporter)
 Replaces the current DomainMap & Importer with the user-specified map object. More...

int RemoveEmptyProcessesInPlace (const Epetra_BlockMap *NewMap)
 Remove processes owning zero rows from the Maps and their communicator. More...

const Epetra_MapColMap () const
 Returns the Epetra_Map object that describes the set of column-indices that appear in each processor's locally owned matrix rows. More...

const Epetra_MapDomainMap () const
 Returns the Epetra_Map object associated with the domain of this matrix operator. More...

const Epetra_MapRangeMap () const
 Returns the Epetra_Map object associated with the range of this matrix operator. More...

const Epetra_ImportImporter () const
 Returns the Epetra_Import object that contains the import operations for distributed operations.

const Epetra_ExportExporter () const
 Returns the Epetra_Export object that contains the export operations for distributed operations.

const Epetra_CommComm () const
 Returns a pointer to the Epetra_Comm communicator associated with this matrix.

int LRID (int GRID_in) const
 Returns the local row index for given global row index, returns -1 if no local row for this global row.

int LRID (long long GRID_in) const

int GRID (int LRID_in) const
 Returns the global row index for give local row index, returns IndexBase-1 if we don't have this local row.

long long GRID64 (int LRID_in) const

int LCID (int GCID_in) const
 Returns the local column index for given global column index, returns -1 if no local column for this global column. More...

int LCID (long long GCID_in) const

int GCID (int LCID_in) const
 Returns the global column index for give local column index, returns IndexBase-1 if we don't have this local column. More...

long long GCID64 (int LCID_in) const

bool MyGRID (int GRID_in) const
 Returns true if the GRID passed in belongs to the calling processor in this map, otherwise returns false.

bool MyGRID (long long GRID_in) const

bool MyLRID (int LRID_in) const
 Returns true if the LRID passed in belongs to the calling processor in this map, otherwise returns false.

bool MyGCID (int GCID_in) const
 Returns true if the GCID passed in belongs to the calling processor in this map, otherwise returns false. More...

bool MyGCID (long long GCID_in) const

bool MyLCID (int LCID_in) const
 Returns true if the LRID passed in belongs to the calling processor in this map, otherwise returns false. More...

bool MyGlobalRow (int GID) const
 Returns true of GID is owned by the calling processor, otherwise it returns false.

bool MyGlobalRow (long long GID) const

virtual void Print (std::ostream &os) const
 Print method.

const char * Label () const
 Returns a character string describing the operator.

int SetUseTranspose (bool UseTranspose_in)
 If set true, transpose of this operator will be applied. More...

int Apply (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
 Returns the result of a Epetra_Operator applied to a Epetra_MultiVector X in Y. More...

int ApplyInverse (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
 Returns the result of a Epetra_Operator inverse applied to an Epetra_MultiVector X in Y. More...

bool HasNormInf () const
 Returns true because this class can compute an Inf-norm.

bool UseTranspose () const
 Returns the current UseTranspose setting.

const Epetra_MapOperatorDomainMap () const
 Returns the Epetra_Map object associated with the domain of this matrix operator.

const Epetra_MapOperatorRangeMap () const
 Returns the Epetra_Map object associated with the range of this matrix operator.

int NumMyRowEntries (int MyRow, int &NumEntries) const
 Return the current number of values stored for the specified local row. More...

const Epetra_BlockMapMap () const
 Map() method inherited from Epetra_DistObject.

const Epetra_MapRowMatrixRowMap () const
 Returns the Epetra_Map object associated with the rows of this matrix.

const Epetra_MapRowMatrixColMap () const
 Returns the Epetra_Map object associated with columns of this matrix.

const Epetra_ImportRowMatrixImporter () const
 Returns the Epetra_Import object that contains the import operations for distributed operations.

double * operator[] (int Loc)
 Inlined bracket operator for fast access to data. (Const and Non-const versions) More...

double * operator[] (int Loc) const

int ExtractCrsDataPointers (int *&IndexOffset, int *&Indices, double *&Values_in) const
 Returns internal data pointers associated with Crs matrix format. More...

Epetra_IntSerialDenseVectorExpertExtractIndexOffset ()
 Returns a reference to the Epetra_IntSerialDenseVector used to hold the local IndexOffsets (CRS rowptr) More...

Epetra_IntSerialDenseVectorExpertExtractIndices ()
 Returns a reference to the Epetra_IntSerialDenseVector used to hold the local All_Indices (CRS colind) More...

double *& ExpertExtractValues ()
 Returns a reference to the double* used to hold the values array. More...

int ExpertStaticFillComplete (const Epetra_Map &DomainMap, const Epetra_Map &RangeMap, const Epetra_Import *Importer=0, const Epetra_Export *Exporter=0, int NumMyDiagonals=-1)
 Performs a FillComplete on an object that aready has filled CRS data. More...

int ExpertMakeUniqueCrsGraphData ()
 Makes sure this matrix has a unique CrsGraphData object. More...

int SortGhostsAssociatedWithEachProcessor (bool Flag)
 Forces FillComplete() to locally order ghostnodes associated with each remote processor in ascending order. More...

const Epetra_MapImportMap () const
 Use ColMap() instead.

int TransformToLocal ()
 Use FillComplete() instead.

int TransformToLocal (const Epetra_Map *DomainMap, const Epetra_Map *RangeMap)
 Use FillComplete(const Epetra_Map& DomainMap, const Epetra_Map& RangeMap) instead.

- Public Member Functions inherited from Epetra_DistObject
 Epetra_DistObject (const Epetra_BlockMap &Map)
 Basic Epetra_DistObject constuctor. More...

 Epetra_DistObject (const Epetra_BlockMap &Map, const char *const Label)

 Epetra_DistObject (const Epetra_DistObject &Source)
 Epetra_DistObject copy constructor.

virtual ~Epetra_DistObject ()
 Epetra_DistObject destructor.

int Import (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
 Imports an Epetra_DistObject using the Epetra_Import object. More...

int Import (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
 Imports an Epetra_DistObject using the Epetra_Export object. More...

int Export (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
 Exports an Epetra_DistObject using the Epetra_Import object. More...

int Export (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
 Exports an Epetra_DistObject using the Epetra_Export object. More...

const Epetra_BlockMapMap () const
 Returns the address of the Epetra_BlockMap for this multi-vector.

const Epetra_CommComm () const
 Returns the address of the Epetra_Comm for this multi-vector.

bool DistributedGlobal () const
 Returns true if this multi-vector is distributed global, i.e., not local replicated.

- Public Member Functions inherited from Epetra_Object
 Epetra_Object (int TracebackModeIn=-1, bool set_label=true)
 Epetra_Object Constructor. More...

 Epetra_Object (const char *const Label, int TracebackModeIn=-1)
 Epetra_Object Constructor. More...

 Epetra_Object (const Epetra_Object &Object)
 Epetra_Object Copy Constructor. More...

virtual ~Epetra_Object ()
 Epetra_Object Destructor. More...

virtual int ReportError (const std::string Message, int ErrorCode) const
 Error reporting method.

virtual void SetLabel (const char *const Label)
 Epetra_Object Label definition using char *. More...

- Public Member Functions inherited from Epetra_SrcDistObject
virtual ~Epetra_SrcDistObject ()
 Epetra_SrcDistObject destructor.

- Public Member Functions inherited from Epetra_CompObject
Epetra_CompObjectoperator= (const Epetra_CompObject &src)

 Epetra_CompObject ()
 Basic Epetra_CompObject constuctor.

 Epetra_CompObject (const Epetra_CompObject &Source)
 Epetra_CompObject copy constructor.

virtual ~Epetra_CompObject ()
 Epetra_CompObject destructor.

void SetFlopCounter (const Epetra_Flops &FlopCounter_in)
 Set the internal Epetra_Flops() pointer.

void SetFlopCounter (const Epetra_CompObject &CompObject)
 Set the internal Epetra_Flops() pointer to the flop counter of another Epetra_CompObject.

void UnsetFlopCounter ()
 Set the internal Epetra_Flops() pointer to 0 (no flops counted).

Epetra_FlopsGetFlopCounter () const
 Get the pointer to the Epetra_Flops() object associated with this object, returns 0 if none.

void ResetFlops () const
 Resets the number of floating point operations to zero for this multi-vector.

double Flops () const
 Returns the number of floating point operations with this multi-vector.

void UpdateFlops (int Flops_in) const
 Increment Flop count for this object.

void UpdateFlops (long int Flops_in) const
 Increment Flop count for this object.

void UpdateFlops (long long Flops_in) const
 Increment Flop count for this object.

void UpdateFlops (double Flops_in) const
 Increment Flop count for this object.

void UpdateFlops (float Flops_in) const
 Increment Flop count for this object.

- Public Member Functions inherited from Epetra_BLAS
 Epetra_BLAS (void)
 Epetra_BLAS Constructor. More...

 Epetra_BLAS (const Epetra_BLAS &BLAS)
 Epetra_BLAS Copy Constructor. More...

virtual ~Epetra_BLAS (void)
 Epetra_BLAS Destructor.

float ASUM (const int N, const float *X, const int INCX=1) const
 Epetra_BLAS one norm function (SASUM).

double ASUM (const int N, const double *X, const int INCX=1) const
 Epetra_BLAS one norm function (DASUM).

float DOT (const int N, const float *X, const float *Y, const int INCX=1, const int INCY=1) const
 Epetra_BLAS dot product function (SDOT).

double DOT (const int N, const double *X, const double *Y, const int INCX=1, const int INCY=1) const
 Epetra_BLAS dot product function (DDOT).

float NRM2 (const int N, const float *X, const int INCX=1) const
 Epetra_BLAS norm function (SNRM2).

double NRM2 (const int N, const double *X, const int INCX=1) const
 Epetra_BLAS norm function (DNRM2).

void SCAL (const int N, const float ALPHA, float *X, const int INCX=1) const
 Epetra_BLAS vector scale function (SSCAL)

void SCAL (const int N, const double ALPHA, double *X, const int INCX=1) const
 Epetra_BLAS vector scale function (DSCAL)

void COPY (const int N, const float *X, float *Y, const int INCX=1, const int INCY=1) const
 Epetra_BLAS vector copy function (SCOPY)

void COPY (const int N, const double *X, double *Y, const int INCX=1, const int INCY=1) const
 Epetra_BLAS vector scale function (DCOPY)

int IAMAX (const int N, const float *X, const int INCX=1) const
 Epetra_BLAS arg maximum of absolute value function (ISAMAX)

int IAMAX (const int N, const double *X, const int INCX=1) const
 Epetra_BLAS arg maximum of absolute value function (IDAMAX)

void AXPY (const int N, const float ALPHA, const float *X, float *Y, const int INCX=1, const int INCY=1) const
 Epetra_BLAS vector update function (SAXPY)

void AXPY (const int N, const double ALPHA, const double *X, double *Y, const int INCX=1, const int INCY=1) const
 Epetra_BLAS vector update function (DAXPY)

void GEMV (const char TRANS, const int M, const int N, const float ALPHA, const float *A, const int LDA, const float *X, const float BETA, float *Y, const int INCX=1, const int INCY=1) const
 Epetra_BLAS matrix-vector multiply function (SGEMV)

void GEMV (const char TRANS, const int M, const int N, const double ALPHA, const double *A, const int LDA, const double *X, const double BETA, double *Y, const int INCX=1, const int INCY=1) const
 Epetra_BLAS matrix-vector multiply function (DGEMV)

void GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const float ALPHA, const float *A, const int LDA, const float *B, const int LDB, const float BETA, float *C, const int LDC) const
 Epetra_BLAS matrix-matrix multiply function (SGEMM)

void GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const double ALPHA, const double *A, const int LDA, const double *B, const int LDB, const double BETA, double *C, const int LDC) const
 Epetra_BLAS matrix-matrix multiply function (DGEMM)

void SYMM (const char SIDE, const char UPLO, const int M, const int N, const float ALPHA, const float *A, const int LDA, const float *B, const int LDB, const float BETA, float *C, const int LDC) const
 Epetra_BLAS symmetric matrix-matrix multiply function (SSYMM)

void SYMM (const char SIDE, const char UPLO, const int M, const int N, const double ALPHA, const double *A, const int LDA, const double *B, const int LDB, const double BETA, double *C, const int LDC) const
 Epetra_BLAS matrix-matrix multiply function (DSYMM)

void TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const float ALPHA, const float *A, const int LDA, float *B, const int LDB) const
 Epetra_BLAS triangular matrix-matrix multiply function (STRMM)

void TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const double ALPHA, const double *A, const int LDA, double *B, const int LDB) const
 Epetra_BLAS triangular matrix-matrix multiply function (DTRMM)

void SYRK (const char UPLO, const char TRANS, const int N, const int K, const float ALPHA, const float *A, const int LDA, const float BETA, float *C, const int LDC) const
 Eperta_BLAS symetric rank k funtion (ssyrk)

void SYRK (const char UPLO, const char TRANS, const int N, const int K, const double ALPHA, const double *A, const int LDA, const double BETA, double *C, const int LDC) const
 Eperta_BLAS symetric rank k funtion (dsyrk)

- Public Member Functions inherited from Epetra_RowMatrix
virtual ~Epetra_RowMatrix ()
 Destructor.

- Public Member Functions inherited from Epetra_Operator
virtual ~Epetra_Operator ()
 Destructor.


Additional Inherited Members

- Static Public Member Functions inherited from Epetra_Object
static void SetTracebackMode (int TracebackModeValue)
 Set the value of the Epetra_Object error traceback report mode. More...

static int GetTracebackMode ()
 Get the value of the Epetra_Object error report mode.

static std::ostream & GetTracebackStream ()
 Get the output stream for error reporting.

- Static Public Attributes inherited from Epetra_Object
static int TracebackMode

- Protected Member Functions inherited from Epetra_CrsMatrix
bool Allocated () const

int SetAllocated (bool Flag)

double ** Values () const

double * All_Values () const

double * Values (int LocalRow) const

void InitializeDefaults ()

int Allocate ()

int InsertValues (int LocalRow, int NumEntries, double *Values, int *Indices)

int InsertValues (int LocalRow, int NumEntries, const double *Values, const int *Indices)

int InsertValues (int LocalRow, int NumEntries, double *Values, long long *Indices)

int InsertValues (int LocalRow, int NumEntries, const double *Values, const long long *Indices)

int InsertOffsetValues (long long GlobalRow, int NumEntries, double *Values, int *Indices)

int InsertOffsetValues (long long GlobalRow, int NumEntries, const double *Values, const int *Indices)

int ReplaceOffsetValues (long long GlobalRow, int NumEntries, const double *Values, const int *Indices)

int SumIntoOffsetValues (long long GlobalRow, int NumEntries, const double *Values, const int *Indices)

void UpdateImportVector (int NumVectors) const

void UpdateExportVector (int NumVectors) const

void GeneralMV (double *x, double *y) const

void GeneralMTV (double *x, double *y) const

void GeneralMM (double **X, int LDX, double **Y, int LDY, int NumVectors) const

void GeneralMTM (double **X, int LDX, double **Y, int LDY, int NumVectors) const

void GeneralSV (bool Upper, bool Trans, bool UnitDiagonal, double *x, double *y) const

void GeneralSM (bool Upper, bool Trans, bool UnitDiagonal, double **X, int LDX, double **Y, int LDY, int NumVectors) const

void SetStaticGraph (bool Flag)

int CheckSizes (const Epetra_SrcDistObject &A)
 Allows the source and target (this) objects to be compared for compatibility, return nonzero if not.

int CopyAndPermute (const Epetra_SrcDistObject &Source, int NumSameIDs, int NumPermuteIDs, int *PermuteToLIDs, int *PermuteFromLIDs, const Epetra_OffsetIndex *Indexor, Epetra_CombineMode CombineMode=Zero)
 Perform ID copies and permutations that are on processor.

int CopyAndPermuteCrsMatrix (const Epetra_CrsMatrix &A, int NumSameIDs, int NumPermuteIDs, int *PermuteToLIDs, int *PermuteFromLIDs, const Epetra_OffsetIndex *Indexor, Epetra_CombineMode CombineMode)

int CopyAndPermuteRowMatrix (const Epetra_RowMatrix &A, int NumSameIDs, int NumPermuteIDs, int *PermuteToLIDs, int *PermuteFromLIDs, const Epetra_OffsetIndex *Indexor, Epetra_CombineMode CombineMode)

int PackAndPrepare (const Epetra_SrcDistObject &Source, int NumExportIDs, int *ExportLIDs, int &LenExports, char *&Exports, int &SizeOfPacket, int *Sizes, bool &VarSizes, Epetra_Distributor &Distor)
 Perform any packing or preparation required for call to DoTransfer().

int UnpackAndCombine (const Epetra_SrcDistObject &Source, int NumImportIDs, int *ImportLIDs, int LenImports, char *Imports, int &SizeOfPacket, Epetra_Distributor &Distor, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor)
 Perform any unpacking and combining after call to DoTransfer().

int SortEntries ()
 Sort column entries, row-by-row, in ascending order.

bool Sorted () const
 If SortEntries() has been called, this query returns true, otherwise it returns false.

int MergeRedundantEntries ()
 Add entries that have the same column index. Remove redundant entries from list.

bool NoRedundancies () const
 If MergeRedundantEntries() has been called, this query returns true, otherwise it returns false.

void DeleteMemory ()

- Protected Member Functions inherited from Epetra_DistObject
virtual int DoTransfer (const Epetra_SrcDistObject &A, Epetra_CombineMode CombineMode, int NumSameIDs, int NumPermuteIDs, int NumRemoteIDs, int NumExportIDs, int *PermuteToLIDs, int *PermuteFromLIDs, int *RemoteLIDs, int *ExportLIDs, int &LenExports, char *&Exports, int &LenImports, char *&Imports, Epetra_Distributor &Distor, bool DoReverse, const Epetra_OffsetIndex *Indexor)
 Perform actual transfer (redistribution) of data across memory images, using Epetra_Distributor object.

- Protected Member Functions inherited from Epetra_Object
std::string toString (const int &x) const

std::string toString (const long long &x) const

std::string toString (const double &x) const

- Protected Attributes inherited from Epetra_CrsMatrix
Epetra_CrsGraph Graph_

bool Allocated_

bool StaticGraph_

bool UseTranspose_

bool constructedWithFilledGraph_

bool matrixFillCompleteCalled_

bool StorageOptimized_

double ** Values_

int * Values_alloc_lengths_

double * All_Values_

double NormInf_

double NormOne_

double NormFrob_

int NumMyRows_

Epetra_MultiVectorImportVector_

Epetra_MultiVectorExportVector_

Epetra_DataAccess CV_

bool squareFillCompleteCalled_

- Protected Attributes inherited from Epetra_DistObject
Epetra_BlockMap Map_

const Epetra_CommComm_

char * Exports_

char * Imports_

int LenExports_

int LenImports_

int * Sizes_

- Protected Attributes inherited from Epetra_CompObject
Epetra_FlopsFlopCounter_


Detailed Description

Epetra Finite-Element CrsMatrix. This class provides the ability to input finite-element style sub-matrix data, including sub-matrices with non-local rows (which could correspond to shared finite-element nodes for example). This class inherits Epetra_CrsMatrix, and so all Epetra_CrsMatrix functionality is also available.

It is intended that this class will be used as follows:

Sub-matrix data, which is assumed to be a rectangular 'table' of coefficients accompanied by 'scatter-indices', can be provided in three forms:

In all cases, a "format" parameter specifies whether the data is laid out in row-major or column-major order (i.e., whether coefficients for a row lie contiguously or whether coefficients for a column lie contiguously). See the documentation for the methods SumIntoGlobalValues() and ReplaceGlobalValues().

Important notes:

  1. Since Epetra_FECrsMatrix inherits Epetra_CrsMatrix, the semantics of the Insert/SumInto/Replace methods are the same as they are on Epetra_CrsMatrix, which is:

Constructor & Destructor Documentation

Epetra_FECrsMatrix::Epetra_FECrsMatrix ( Epetra_DataAccess  CV,
const Epetra_Map RowMap,
int *  NumEntriesPerRow,
bool  ignoreNonLocalEntries = false
)

Constructor.

Epetra_FECrsMatrix::Epetra_FECrsMatrix ( Epetra_DataAccess  CV,
const Epetra_Map RowMap,
int  NumEntriesPerRow,
bool  ignoreNonLocalEntries = false
)

Constructor.

Epetra_FECrsMatrix::Epetra_FECrsMatrix ( Epetra_DataAccess  CV,
const Epetra_Map RowMap,
const Epetra_Map ColMap,
int *  NumEntriesPerRow,
bool  ignoreNonLocalEntries = false
)

Constructor.

Epetra_FECrsMatrix::Epetra_FECrsMatrix ( Epetra_DataAccess  CV,
const Epetra_Map RowMap,
const Epetra_Map ColMap,
int  NumEntriesPerRow,
bool  ignoreNonLocalEntries = false
)

Constructor.

Epetra_FECrsMatrix::Epetra_FECrsMatrix ( Epetra_DataAccess  CV,
const Epetra_CrsGraph Graph,
bool  ignoreNonLocalEntries = false
)

Constructor.

Epetra_FECrsMatrix::Epetra_FECrsMatrix ( Epetra_DataAccess  CV,
const Epetra_FECrsGraph Graph,
bool  ignoreNonLocalEntries = false
)

Constructor.

Epetra_FECrsMatrix::Epetra_FECrsMatrix ( const Epetra_FECrsMatrix src)

Copy Constructor.

virtual Epetra_FECrsMatrix::~Epetra_FECrsMatrix ( )
virtual

Destructor.

Member Function Documentation

int Epetra_FECrsMatrix::GlobalAssemble ( bool  callFillComplete = true,
Epetra_CombineMode  combineMode = Add,
bool  save_off_and_reuse_map_exporter = false
)

Gather any overlapping/shared data into the non-overlapping partitioning defined by the Map that was passed to this matrix at construction time. Data imported from other processors is stored on the owning processor with a "sumInto" or accumulate operation. This is a collective method – every processor must enter it before any will complete it.

NOTE***: When GlobalAssemble() calls FillComplete(), it passes the arguments 'DomainMap()' and 'RangeMap()', which are the map attributes held by the base-class CrsMatrix and its graph. If a rectangular matrix is being assembled, the domain-map and range-map must be specified by calling the other overloading of this method. Otherwise, GlobalAssemble() has no way of knowing what these maps should really be.

Parameters
callFillCompleteoption argument, defaults to true. Determines whether GlobalAssemble() internally calls the FillComplete() method on this matrix.
Returns
error-code 0 if successful, non-zero if some error occurs
int Epetra_FECrsMatrix::GlobalAssemble ( const Epetra_Map domain_map,
const Epetra_Map range_map,
bool  callFillComplete = true,
Epetra_CombineMode  combineMode = Add,
bool  save_off_and_reuse_map_exporter = false
)

Gather any overlapping/shared data into the non-overlapping partitioning defined by the Map that was passed to this matrix at construction time. Data imported from other processors is stored on the owning processor with a "sumInto" or accumulate operation. This is a collective method – every processor must enter it before any will complete it.

NOTE***: When GlobalAssemble() (the other overloading of this method) calls FillComplete(), it passes the arguments 'DomainMap()' and 'RangeMap()', which are the map attributes already held by the base-class CrsMatrix and its graph. If a rectangular matrix is being assembled, the domain-map and range-map must be specified. Otherwise, GlobalAssemble() has no way of knowing what these maps should really be.

Parameters
domain_mapuser-supplied domain map for this matrix
range_mapuser-supplied range map for this matrix
callFillCompleteoption argument, defaults to true. Determines whether GlobalAssemble() internally calls the FillComplete() method on this matrix.
Returns
error-code 0 if successful, non-zero if some error occurs
int Epetra_FECrsMatrix::InsertGlobalValues ( int  GlobalRow,
int  NumEntries,
const double *  Values,
const int *  Indices
)
virtual

override base-class Epetra_CrsMatrix::InsertGlobalValues method

Reimplemented from Epetra_CrsMatrix.

int Epetra_FECrsMatrix::InsertGlobalValues ( int  GlobalRow,
int  NumEntries,
double *  Values,
int *  Indices
)
virtual

override base-class Epetra_CrsMatrix::InsertGlobalValues method

Reimplemented from Epetra_CrsMatrix.

int Epetra_FECrsMatrix::InsertGlobalValues ( int  numIndices,
const int *  indices,
const double *  values,
int  format = Epetra_FECrsMatrix::COLUMN_MAJOR
)

Insert a Fortran-style table (single-dimensional packed-list) of coefficients into the matrix.

Parameters
numIndicesNumber of rows (and columns) in the sub-matrix.
indicesList of scatter-indices (rows and columns) for the sub-matrix.
valuesList, length numIndices*numIndices. Square sub-matrix of coefficients, packed in a 1-D array. Data is packed either contiguously by row or by column, specified by the final parameter 'format'.
formatSpecifies whether the data in 'values' is packed in column-major or row-major order. Valid values are Epetra_FECrsMatrix::ROW_MAJOR or Epetra_FECrsMatrix::COLUMN_MAJOR. This is an optional parameter, default value is COLUMN_MAJOR.
int Epetra_FECrsMatrix::InsertGlobalValues ( int  numRows,
const int *  rows,
int  numCols,
const int *  cols,
const double *  values,
int  format = Epetra_FECrsMatrix::COLUMN_MAJOR
)

Insert a Fortran-style table (single-dimensional packed-list) of coefficients into the matrix.

Parameters
numRowsNumber of rows in the sub-matrix.
rowsList of row-numbers (scatter-indices) for the sub-matrix.
numColsNumber of columns in the sub-matrix.
colsList of column-numbers (scatter-indices) for the sub-matrix.
valuesList, length numRows*numCols. Rectangular sub-matrix of coefficients, packed in a 1-D array. Data is packed either contiguously by row or by column, specified by the final parameter 'format'.
formatSpecifies whether the data in 'values' is packed in column-major or row-major order. Valid values are Epetra_FECrsMatrix::ROW_MAJOR or Epetra_FECrsMatrix::COLUMN_MAJOR. This is an optional parameter, default value is COLUMN_MAJOR.
int Epetra_FECrsMatrix::InsertGlobalValues ( int  numIndices,
const int *  indices,
const double *const *  values,
int  format = Epetra_FECrsMatrix::ROW_MAJOR
)

Insert a C-style table (double-pointer, or list of lists) of coefficients into the matrix.

Parameters
numIndicesNumber of rows (and columns) in the sub-matrix.
indicesList of scatter-indices (rows and columns) for the sub-matrix.
valuesSquare sub-matrix of coefficients, provided in a 2-D array, or double-pointer.
formatSpecifies whether the data in 'values' is packed in column-major or row-major order. Valid values are Epetra_FECrsMatrix::ROW_MAJOR or Epetra_FECrsMatrix::COLUMN_MAJOR. This is an optional parameter, default value is ROW_MAJOR.
int Epetra_FECrsMatrix::InsertGlobalValues ( int  numRows,
const int *  rows,
int  numCols,
const int *  cols,
const double *const *  values,
int  format = Epetra_FECrsMatrix::ROW_MAJOR
)

Insert a C-style table (double-pointer, or list of lists) of coefficients into the matrix.

Parameters
numRowsNumber of rows in the sub-matrix.
rowsList of row-numbers (scatter-indices) for the sub-matrix.
numColsNumber of columns in the sub-matrix.
colsList of column-numbers (scatter-indices) for the sub-matrix.
valuesRectangular sub-matrix of coefficients, provided in a 2-D array, or double-pointer.
formatSpecifies whether the data in 'values' is packed in column-major or row-major order. Valid values are Epetra_FECrsMatrix::ROW_MAJOR or Epetra_FECrsMatrix::COLUMN_MAJOR. This is an optional parameter, default value is ROW_MAJOR.
int Epetra_FECrsMatrix::InsertGlobalValues ( const Epetra_IntSerialDenseVector indices,
const Epetra_SerialDenseMatrix values,
int  format = Epetra_FECrsMatrix::COLUMN_MAJOR
)

Insert a square structurally-symmetric sub-matrix into the global matrix. For non-square sub-matrices, see the other overloading of this method.

Parameters
indicesList of scatter-indices. indices.Length() must be the same as values.M() and values.N().
valuesSub-matrix of coefficients. Must be square.
formatOptional format specifier, defaults to COLUMN_MAJOR.
int Epetra_FECrsMatrix::InsertGlobalValues ( const Epetra_IntSerialDenseVector rows,
const Epetra_IntSerialDenseVector cols,
const Epetra_SerialDenseMatrix values,
int  format = Epetra_FECrsMatrix::COLUMN_MAJOR
)

Insert a general sub-matrix into the global matrix. For square structurally-symmetric sub-matrices, see the other overloading of this method.

Parameters
rowsList of row-indices. rows.Length() must be the same as values.M().
colsList of column-indices. cols.Length() must be the same as values.N().
valuesSub-matrix of coefficients.
formatOptional format specifier, defaults to COLUMN_MAJOR.
Epetra_FECrsMatrix& Epetra_FECrsMatrix::operator= ( const Epetra_FECrsMatrix src)

Assignment operator

int Epetra_FECrsMatrix::ReplaceGlobalValues ( int  GlobalRow,
int  NumEntries,
const double *  Values,
const int *  Indices
)
virtual

override base-class Epetra_CrsMatrix::ReplaceGlobalValues method

Reimplemented from Epetra_CrsMatrix.

int Epetra_FECrsMatrix::ReplaceGlobalValues ( int  numIndices,
const int *  indices,
const double *  values,
int  format = Epetra_FECrsMatrix::COLUMN_MAJOR
)

Copy a Fortran-style table (single-dimensional packed-list) of coefficients into the matrix, replacing any coefficients that may already exist at the specified row/column locations.

Parameters
numIndicesNumber of rows (and columns) in the sub-matrix.
indicesList of scatter-indices (rows and columns) for the sub-matrix.
valuesList, length numIndices*numIndices. Square sub-matrix of coefficients, packed in a 1-D array. Data is packed either contiguously by row or by column, specified by the final parameter 'format'.
formatSpecifies whether the data in 'values' is packed in column-major or row-major order. Valid values are Epetra_FECrsMatrix::ROW_MAJOR or Epetra_FECrsMatrix::COLUMN_MAJOR. This is an optional parameter, default value is COLUMN_MAJOR.
int Epetra_FECrsMatrix::ReplaceGlobalValues ( int  numRows,
const int *  rows,
int  numCols,
const int *  cols,
const double *  values,
int  format = Epetra_FECrsMatrix::COLUMN_MAJOR
)

Copy Fortran-style table (single-dimensional packed-list) of coefficients into the matrix, replacing any coefficients that may already exist at the specified row/column locations.

Parameters
numRowsNumber of rows in the sub-matrix.
rowsList of row-numbers (scatter-indices) for the sub-matrix.
numColsNumber of columns in the sub-matrix.
colsList, of column-numbers (scatter-indices) for the sub-matrix.
valuesList, length numRows*numCols. Rectangular sub-matrix of coefficients, packed in a 1-D array. Data is packed either contiguously by row or by column, specified by the final parameter 'format'.
formatSpecifies whether the data in 'values' is packed in column-major or row-major order. Valid values are Epetra_FECrsMatrix::ROW_MAJOR or Epetra_FECrsMatrix::COLUMN_MAJOR. This is an optional parameter, default value is COLUMN_MAJOR.
int Epetra_FECrsMatrix::ReplaceGlobalValues ( int  numIndices,
const int *  indices,
const double *const *  values,
int  format = Epetra_FECrsMatrix::ROW_MAJOR
)

Copy C-style table (double-pointer, or list of lists) of coefficients into the matrix, replacing any coefficients that may already exist at the specified row/column locations.

Parameters
numIndicesNumber of rows (and columns) in the sub-matrix.
indicesList of scatter-indices (rows and columns) for the sub-matrix.
valuesSquare sub-matrix of coefficients, provided in a 2-D array, or double-pointer.
formatSpecifies whether the data in 'values' is packed in column-major or row-major order. Valid values are Epetra_FECrsMatrix::ROW_MAJOR or Epetra_FECrsMatrix::COLUMN_MAJOR. This is an optional parameter, default value is ROW_MAJOR.
int Epetra_FECrsMatrix::ReplaceGlobalValues ( int  numRows,
const int *  rows,
int  numCols,
const int *  cols,
const double *const *  values,
int  format = Epetra_FECrsMatrix::ROW_MAJOR
)

Copy C-style table (double-pointer, or list of lists) of coefficients into the matrix, replacing any coefficients that may already exist at the specified row/column locations.

Parameters
numRowsNumber of rows in the sub-matrix.
rowsList of row-numbers (scatter-indices) for the sub-matrix.
numColsNumber of columns in the sub-matrix.
colsList of column-numbers (scatter-indices) for the sub-matrix.
valuesRectangular sub-matrix of coefficients, provided in a 2-D array, or double-pointer.
formatSpecifies whether the data in 'values' is packed in column-major or row-major order. Valid values are Epetra_FECrsMatrix::ROW_MAJOR or Epetra_FECrsMatrix::COLUMN_MAJOR. This is an optional parameter, default value is ROW_MAJOR.
int Epetra_FECrsMatrix::ReplaceGlobalValues ( const Epetra_IntSerialDenseVector indices,
const Epetra_SerialDenseMatrix values,
int  format = Epetra_FECrsMatrix::COLUMN_MAJOR
)

Use a square structurally-symmetric sub-matrix to replace existing values in the global matrix. For non-square sub-matrices, see the other overloading of this method.

Parameters
indicesList of scatter-indices. indices.Length() must be the same as values.M() and values.N().
valuesSub-matrix of coefficients. Must be square.
formatOptional format specifier, defaults to COLUMN_MAJOR.
int Epetra_FECrsMatrix::ReplaceGlobalValues ( const Epetra_IntSerialDenseVector rows,
const Epetra_IntSerialDenseVector cols,
const Epetra_SerialDenseMatrix values,
int  format = Epetra_FECrsMatrix::COLUMN_MAJOR
)

Use a general sub-matrix to replace existing values. For square structurally-symmetric sub-matrices, see the other overloading of this method.

Parameters
rowsList of row-indices. rows.Length() must be the same as values.M().
colsList of column-indices. cols.Length() must be the same as values.N().
valuesSub-matrix of coefficients.
formatOptional format specifier, defaults to COLUMN_MAJOR.
void Epetra_FECrsMatrix::setIgnoreNonLocalEntries ( bool  flag)
inline

Set whether or not non-local data values should be ignored. By default, non-local data values are NOT ignored.

int Epetra_FECrsMatrix::SumIntoGlobalValues ( int  GlobalRow,
int  NumEntries,
const double *  Values,
const int *  Indices
)
virtual

override base-class Epetra_CrsMatrix::SumIntoGlobalValues method

Reimplemented from Epetra_CrsMatrix.

int Epetra_FECrsMatrix::SumIntoGlobalValues ( int  numIndices,
const int *  indices,
const double *  values,
int  format = Epetra_FECrsMatrix::COLUMN_MAJOR
)

Sum a Fortran-style table (single-dimensional packed-list) of coefficients into the matrix, adding them to any coefficients that may already exist at the specified row/column locations.

Parameters
numIndicesNumber of rows (and columns) in the sub-matrix.
indicesList of scatter-indices (rows and columns) for the sub-matrix.
valuesList, length numIndices*numIndices. Square sub-matrix of coefficients, packed in a 1-D array. Data is packed either contiguously by row or by column, specified by the final parameter 'format'.
formatSpecifies whether the data in 'values' is packed in column-major or row-major order. Valid values are Epetra_FECrsMatrix::ROW_MAJOR or Epetra_FECrsMatrix::COLUMN_MAJOR. This is an optional parameter, default value is COLUMN_MAJOR.
int Epetra_FECrsMatrix::SumIntoGlobalValues ( int  numRows,
const int *  rows,
int  numCols,
const int *  cols,
const double *  values,
int  format = Epetra_FECrsMatrix::COLUMN_MAJOR
)

Sum a Fortran-style table (single-dimensional packed-list) of coefficients into the matrix, adding them to any coefficients that may already exist at the specified row/column locations.

Parameters
numRowsNumber of rows in the sub-matrix.
rowsList of row-numbers (scatter-indices) for the sub-matrix.
numColsNumber of columns in the sub-matrix.
colsList of column-numbers (scatter-indices) for the sub-matrix.
valuesList, length numRows*numCols. Rectangular sub-matrix of coefficients, packed in a 1-D array. Data is packed either contiguously by row or by column, specified by the final parameter 'format'.
formatSpecifies whether the data in 'values' is packed in column-major or row-major order. Valid values are Epetra_FECrsMatrix::ROW_MAJOR or Epetra_FECrsMatrix::COLUMN_MAJOR. This is an optional parameter, default value is COLUMN_MAJOR.
int Epetra_FECrsMatrix::SumIntoGlobalValues ( int  numIndices,
const int *  indices,
const double *const *  values,
int  format = Epetra_FECrsMatrix::ROW_MAJOR
)

Sum C-style table (double-pointer, or list of lists) of coefficients into the matrix, adding them to any coefficients that may already exist at the specified row/column locations.

Parameters
numIndicesNumber of rows (and columns) in the sub-matrix.
indicesList of scatter-indices (rows and columns) for the sub-matrix.
valuesSquare sub-matrix of coefficients, provided in a 2-D array, or double-pointer.
formatSpecifies whether the data in 'values' is packed in column-major or row-major order. Valid values are Epetra_FECrsMatrix::ROW_MAJOR or Epetra_FECrsMatrix::COLUMN_MAJOR. This is an optional parameter, default value is ROW_MAJOR.
int Epetra_FECrsMatrix::SumIntoGlobalValues ( int  numRows,
const int *  rows,
int  numCols,
const int *  cols,
const double *const *  values,
int  format = Epetra_FECrsMatrix::ROW_MAJOR
)

Sum C-style table (double-pointer, or list of lists) of coefficients into the matrix, adding them to any coefficients that may already exist at the specified row/column locations.

Parameters
numRowsNumber of rows in the sub-matrix.
rowsList of row-numbers (scatter-indices) for the sub-matrix.
numColsNumber of columns in the sub-matrix.
colsList of column-numbers (scatter-indices) for the sub-matrix.
valuesRectangular sub-matrix of coefficients, provided in a 2-D array, or double-pointer.
formatSpecifies whether the data in 'values' is packed in column-major or row-major order. Valid values are Epetra_FECrsMatrix::ROW_MAJOR or Epetra_FECrsMatrix::COLUMN_MAJOR. This is an optional parameter, default value is ROW_MAJOR.
int Epetra_FECrsMatrix::SumIntoGlobalValues ( const Epetra_IntSerialDenseVector indices,
const Epetra_SerialDenseMatrix values,
int  format = Epetra_FECrsMatrix::COLUMN_MAJOR
)

Sum a square structurally-symmetric sub-matrix into the global matrix. For non-square sub-matrices, see the other overloading of this method.

Parameters
indicesList of scatter-indices. indices.Length() must be the same as values.M() and values.N().
valuesSub-matrix of coefficients. Must be square.
formatOptional format specifier, defaults to COLUMN_MAJOR.
int Epetra_FECrsMatrix::SumIntoGlobalValues ( const Epetra_IntSerialDenseVector rows,
const Epetra_IntSerialDenseVector cols,
const Epetra_SerialDenseMatrix values,
int  format = Epetra_FECrsMatrix::COLUMN_MAJOR
)

Sum a general sub-matrix into the global matrix. For square structurally-symmetric sub-matrices, see the other overloading of this method.

Parameters
rowsList of row-indices. rows.Length() must be the same as values.M().
colsList of column-indices. cols.Length() must be the same as values.N().
valuesSub-matrix of coefficients.
formatOptional format specifier, defaults to COLUMN_MAJOR.

The documentation for this class was generated from the following file:
