Belos::OutOfPlaceNormalizerMixin< Scalar, MV > Class Template Referenceabstract

Mixin for out-of-place orthogonalization. More...

#include <BelosTsqrOrthoManager.hpp>

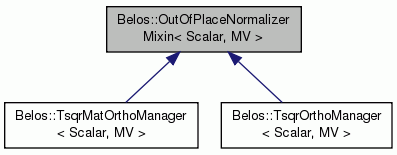

Inheritance diagram for Belos::OutOfPlaceNormalizerMixin< Scalar, MV >:
Inheritance graph
[legend]

Public Types

typedef Scalar scalar_type

typedef Teuchos::ScalarTraits
< Scalar >::magnitudeType
magnitude_type

typedef MV multivector_type
 Multivector type with which this class was specialized. More...

typedef
Teuchos::SerialDenseMatrix
< int, Scalar >
mat_type

typedef Teuchos::RCP< mat_typemat_ptr


Public Member Functions

virtual int normalizeOutOfPlace (MV &X, MV &Q, mat_ptr B) const =0
 Normalize X into Q*B. More...

virtual int projectAndNormalizeOutOfPlace (MV &X_in, MV &X_out, Teuchos::Array< mat_ptr > C, mat_ptr B, Teuchos::ArrayView< Teuchos::RCP< const MV > > Q) const =0
 Project and normalize X_in into X_out. More...

virtual ~OutOfPlaceNormalizerMixin ()
 Trivial virtual destructor, to silence compiler warnings. More...


Detailed Description

template<class Scalar, class MV>
class Belos::OutOfPlaceNormalizerMixin< Scalar, MV >

Mixin for out-of-place orthogonalization.

Author
Mark Hoemmen

This class presents an abstract interface for multiple inheritance ("mixin") for special orthogonalization methods that normalize "out-of-place." OrthoManager and MatOrthoManager both normalize (and projectAndNormalize) multivectors "in place," meaning that the input and output multivectors are the same (X, in both cases). Gram-Schmidt (modified or classical) is an example of an orthogonalization method that can normalize (and projectAndNormalize) in place. TSQR (the Tall Skinny QR factorization, see TsqrOrthoManager.hpp for references) is an orthogonalization method which cannot normalize (or projectAndNormalize) in place.

Tsqr(Mat)OrthoManager implements (Mat)OrthoManager's normalize() and projectAndNormalize() methods with scratch space and copying. However, if you handle Tsqr(Mat)OrthoManager through this mixin, you can exploit TSQR's unique interface to avoid copying back and forth between scratch space.

Definition at line 79 of file BelosTsqrOrthoManager.hpp.

Member Typedef Documentation

template<class Scalar , class MV >
typedef Scalar Belos::OutOfPlaceNormalizerMixin< Scalar, MV >::scalar_type

Definition at line 81 of file BelosTsqrOrthoManager.hpp.

template<class Scalar , class MV >
typedef Teuchos::ScalarTraits<Scalar>::magnitudeType Belos::OutOfPlaceNormalizerMixin< Scalar, MV >::magnitude_type

Definition at line 82 of file BelosTsqrOrthoManager.hpp.

template<class Scalar , class MV >
Belos::OutOfPlaceNormalizerMixin< Scalar, MV >::multivector_type

Multivector type with which this class was specialized.

Definition at line 85 of file BelosTsqrOrthoManager.hpp.

template<class Scalar , class MV >
typedef Teuchos::SerialDenseMatrix<int, Scalar> Belos::OutOfPlaceNormalizerMixin< Scalar, MV >::mat_type

Definition at line 87 of file BelosTsqrOrthoManager.hpp.

template<class Scalar , class MV >
typedef Teuchos::RCP<mat_type> Belos::OutOfPlaceNormalizerMixin< Scalar, MV >::mat_ptr

Definition at line 88 of file BelosTsqrOrthoManager.hpp.

Constructor & Destructor Documentation

template<class Scalar , class MV >
virtual Belos::OutOfPlaceNormalizerMixin< Scalar, MV >::~OutOfPlaceNormalizerMixin ( )
inlinevirtual

Trivial virtual destructor, to silence compiler warnings.

Definition at line 127 of file BelosTsqrOrthoManager.hpp.

Member Function Documentation

template<class Scalar , class MV >
virtual int Belos::OutOfPlaceNormalizerMixin< Scalar, MV >::normalizeOutOfPlace ( MV &  X,
MV &  Q,
mat_ptr  B
) const
pure virtual

Normalize X into Q*B.

Parameters
X[in/out] On input: Multivector to normalize. On output: Possibly overwritten with invalid values.
Q[out] On output: Normalized multivector.
B[out] On output: Normalization coefficients.
Returns
Rank of the input multivector X.

Implemented in Belos::TsqrMatOrthoManager< Scalar, MV, OP >, and Belos::TsqrOrthoManager< Scalar, MV >.

template<class Scalar , class MV >
virtual int Belos::OutOfPlaceNormalizerMixin< Scalar, MV >::projectAndNormalizeOutOfPlace ( MV &  X_in,
MV &  X_out,
Teuchos::Array< mat_ptr C,
mat_ptr  B,
Teuchos::ArrayView< Teuchos::RCP< const MV > >  Q
) const
pure virtual

Project and normalize X_in into X_out.

Project X_in against Q, storing projection coefficients in C, and normalize X_in into X_out, storing normalization coefficients in B. On output, X_out has the resulting orthogonal vectors. X_in may be overwritten with invalid values.

Parameters
X_in[in/out] On input: The vectors to project against Q and normalize. On output: possibly overwritten with invalid values.
X_out[out] The normalized input vectors after projection against Q.
C[out] Projection coefficients
B[out] Normalization coefficients
Q[in] The orthogonal basis against which to project
Returns
Rank of X_in after projection

Implemented in Belos::TsqrMatOrthoManager< Scalar, MV, OP >, and Belos::TsqrOrthoManager< Scalar, MV >.


The documentation for this class was generated from the following file:
