#include <Xpetra_ReorderedBlockedMultiVector.hpp>

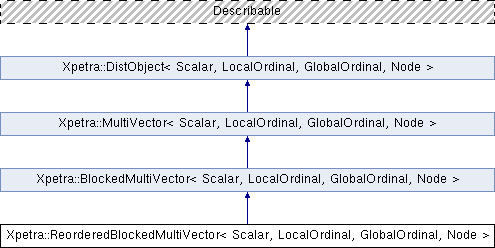

Inheritance diagram for Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Public Types
typedef Scalar	scalar_type

typedef LocalOrdinal	local_ordinal_type

typedef GlobalOrdinal	global_ordinal_type

typedef Node	node_type

Public Types inherited from Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar	scalar_type

typedef LocalOrdinal	local_ordinal_type

typedef GlobalOrdinal	global_ordinal_type

typedef Node	node_type

Public Types inherited from Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar	scalar_type

typedef LocalOrdinal	local_ordinal_type

typedef GlobalOrdinal	global_ordinal_type

typedef Node	node_type

Private Member Functions
Teuchos::RCP< const Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node > >	mergeSubBlockMaps (Teuchos::RCP< const Xpetra::BlockReorderManager > brm)

Private Attributes
Teuchos::RCP< const Xpetra::BlockReorderManager >	brm_

Teuchos::RCP< const Xpetra::BlockedMultiVector < Scalar, LocalOrdinal, GlobalOrdinal, Node > >	fullVec_

Constructor/Destructor Methods
	ReorderedBlockedMultiVector (Teuchos::RCP< const BlockedMap > &rangeMap, Teuchos::RCP< const Xpetra::BlockReorderManager > brm, Teuchos::RCP< const Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > > bvec)
	Constructor. More...

virtual	~ReorderedBlockedMultiVector ()
	Destructor. More...

Overridden from Teuchos::Describable
std::string	description () const
	Return a simple one-line description of this object. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object. More...

Additional Inherited Members
Public Member Functions inherited from Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >
Teuchos::RCP< const Map >	getMap () const
	Access function for the underlying Map this DistObject was constructed with. More...

Teuchos::RCP< const Xpetra::BlockedMap < LocalOrdinal, GlobalOrdinal, Node > >	getBlockedMap () const
	Access function for the underlying Map this DistObject was constructed with. More...

Teuchos::RCP< MultiVector >	getMultiVector (size_t r) const
	return partial multivector associated with block row r More...

Teuchos::RCP< MultiVector >	getMultiVector (size_t r, bool bThyraMode) const
	return partial multivector associated with block row r More...

void	setMultiVector (size_t r, Teuchos::RCP< const MultiVector > v, bool bThyraMode)
	set partial multivector associated with block row r More...

Teuchos::RCP< MultiVector >	Merge () const
	merge BlockedMultiVector blocks to a single MultiVector More...

	BlockedMultiVector (const Teuchos::RCP< const BlockedMap > &map, size_t NumVectors, bool zeroOut=true)
	Constructor. More...

	BlockedMultiVector (Teuchos::RCP< const Xpetra::BlockedMap< LocalOrdinal, GlobalOrdinal, Node > > bmap, Teuchos::RCP< const MultiVector > v)

	BlockedMultiVector (Teuchos::RCP< const Xpetra::MapExtractor< Scalar, LocalOrdinal, GlobalOrdinal, Node >> mapExtractor, Teuchos::RCP< const MultiVector > v)

	BlockedMultiVector (const Teuchos::RCP< const BlockedMap > &map, std::vector< Teuchos::RCP< MultiVector > > &vin)

virtual	~BlockedMultiVector ()
	Destructor. More...

BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	operator= (const MultiVector &rhs)
	Assignment operator: Does a deep copy. More...

virtual void	replaceGlobalValue (GlobalOrdinal, size_t, const Scalar &)
	Replace value, using global (row) index. More...

virtual void	sumIntoGlobalValue (GlobalOrdinal, size_t, const Scalar &)
	Add value to existing value, using global (row) index. More...

virtual void	replaceLocalValue (LocalOrdinal, size_t, const Scalar &)
	Replace value, using local (row) index. More...

virtual void	sumIntoLocalValue (LocalOrdinal, size_t, const Scalar &)
	Add value to existing value, using local (row) index. More...

virtual void	putScalar (const Scalar &value)
	Set all values in the multivector with the given value. More...

virtual Teuchos::RCP< const Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	getVector (size_t j) const
	Return a Vector which is a const view of column j. More...

virtual Teuchos::RCP < Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	getVectorNonConst (size_t j)
	Return a Vector which is a nonconst view of column j. More...

virtual Teuchos::ArrayRCP < const Scalar >	getData (size_t j) const
	Const view of the local values in a particular vector of this multivector. More...

virtual Teuchos::ArrayRCP< Scalar >	getDataNonConst (size_t j)
	View of the local values in a particular vector of this multivector. More...

virtual void	dot (const MultiVector &, const Teuchos::ArrayView< Scalar > &) const
	Compute dot product of each corresponding pair of vectors, dots[i] = this[i].dot(A[i]). More...

virtual void	abs (const MultiVector &)
	Put element-wise absolute values of input Multi-vector in target: A = abs(this). More...

virtual void	reciprocal (const MultiVector &)
	Put element-wise reciprocal values of input Multi-vector in target, this(i,j) = 1/A(i,j). More...

virtual void	scale (const Scalar &alpha)
	Scale the current values of a multi-vector, this = alpha*this. More...

virtual void	scale (Teuchos::ArrayView< const Scalar > alpha)
	Scale the current values of a multi-vector, this[j] = alpha[j]*this[j]. More...

virtual void	update (const Scalar &alpha, const MultiVector &A, const Scalar &beta)
	Update multi-vector values with scaled values of A, this = betathis + alphaA. More...

virtual void	update (const Scalar &alpha, const MultiVector &A, const Scalar &beta, const MultiVector &B, const Scalar &gamma)
	Update multi-vector with scaled values of A and B, this = gammathis + alphaA + beta*B. More...

virtual void	norm1 (const Teuchos::ArrayView< typename Teuchos::ScalarTraits< Scalar >::magnitudeType > &norms) const
	Compute 1-norm of each vector in multi-vector. More...

virtual void	norm2 (const Teuchos::ArrayView< typename Teuchos::ScalarTraits< Scalar >::magnitudeType > &norms) const

virtual void	normInf (const Teuchos::ArrayView< typename Teuchos::ScalarTraits< Scalar >::magnitudeType > &norms) const
	Compute Inf-norm of each vector in multi-vector. More...

virtual void	meanValue (const Teuchos::ArrayView< Scalar > &) const
	Compute mean (average) value of each vector in multi-vector. The outcome of this routine is undefined for non-floating point scalar types (e.g., int). More...

virtual void	multiply (Teuchos::ETransp, Teuchos::ETransp, const Scalar &, const MultiVector &, const MultiVector &, const Scalar &)
	Matrix-matrix multiplication: this = betathis + alphaop(A)*op(B). More...

virtual void	elementWiseMultiply (Scalar scalarAB, const Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A, const MultiVector &B, Scalar scalarThis)
	Element-wise multiply of a Vector A with a MultiVector B. More...

virtual size_t	getNumVectors () const
	Number of columns in the multivector. More...

virtual size_t	getLocalLength () const
	Local number of rows on the calling process. More...

virtual global_size_t	getGlobalLength () const
	Global number of rows in the multivector. More...

virtual bool	isSameSize (const Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &vec) const
	Local number of rows on the calling process. More...

virtual void	replaceMap (const RCP< const Map > &map)

virtual void	doImport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &, const Import &, CombineMode)
	Import. More...

virtual void	doExport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &, const Import &, CombineMode)
	Export. More...

virtual void	doImport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &, const Export &, CombineMode)
	Import (using an Exporter). More...

virtual void	doExport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &, const Export &, CombineMode)
	Export (using an Importer). More...

virtual void	setSeed (unsigned int seed)
	Set seed for Random function. More...

virtual void	randomize (bool bUseXpetraImplementation=false)
	Set multi-vector values to random numbers. More...

virtual void	Xpetra_randomize ()
	Set multi-vector values to random numbers. XPetra implementation. More...

Public Member Functions inherited from Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual	~MultiVector ()
	Destructor. More...

MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	operator= (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &rhs)
	Assignment operator: Does a deep copy. More...

virtual void	replaceMap (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &map)=0

Public Member Functions inherited from Xpetra::DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual	~DistObject ()
	Destructor. More...

Protected Member Functions inherited from Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual void	assign (const MultiVector &rhs)
	Implementation of the assignment operator (operator=); does a deep copy. More...

Detailed Description

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
class Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Definition at line 73 of file Xpetra_ReorderedBlockedMultiVector.hpp.

Member Typedef Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

typedef Scalar Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::scalar_type

Definition at line 76 of file Xpetra_ReorderedBlockedMultiVector.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

typedef LocalOrdinal Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_ordinal_type

Definition at line 77 of file Xpetra_ReorderedBlockedMultiVector.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

typedef GlobalOrdinal Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::global_ordinal_type

Definition at line 78 of file Xpetra_ReorderedBlockedMultiVector.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

typedef Node Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::node_type

Definition at line 79 of file Xpetra_ReorderedBlockedMultiVector.hpp.

Constructor & Destructor Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ReorderedBlockedMultiVector	(	Teuchos::RCP< const BlockedMap > &	rangeMap,
		Teuchos::RCP< const Xpetra::BlockReorderManager >	brm,
		Teuchos::RCP< const Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	bvec
	)

inline

Constructor.

Parameters

rangeMaps	range maps for all blocks
domainMaps	domain maps for all blocks
npr	extimated number of entries per row in each block(!)
brm	of type BlockReorderManager
bmat	original full blocked operator (we keep the RCP to make sure all subblocks are available)

Definition at line 99 of file Xpetra_ReorderedBlockedMultiVector.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~ReorderedBlockedMultiVector ( )

inlinevirtual

Destructor.

Definition at line 110 of file Xpetra_ReorderedBlockedMultiVector.hpp.

Member Function Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

Teuchos::RCP<const Xpetra::Map<LocalOrdinal,GlobalOrdinal,Node> > Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::mergeSubBlockMaps ( Teuchos::RCP< const Xpetra::BlockReorderManager > brm )

inlineprivate

Definition at line 118 of file Xpetra_ReorderedBlockedMultiVector.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

std::string Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::description ( ) const

inlinevirtual

Return a simple one-line description of this object.

Reimplemented from Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 153 of file Xpetra_ReorderedBlockedMultiVector.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

inlinevirtual

Print the object with some verbosity level to an FancyOStream object.

Reimplemented from Xpetra::BlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 156 of file Xpetra_ReorderedBlockedMultiVector.hpp.

Member Data Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

Teuchos::RCP<const Xpetra::BlockReorderManager > Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::brm_

private

Definition at line 165 of file Xpetra_ReorderedBlockedMultiVector.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = KokkosClassic::DefaultNode::DefaultNodeType>

Teuchos::RCP<const Xpetra::BlockedMultiVector<Scalar,LocalOrdinal,GlobalOrdinal,Node> > Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::fullVec_

private

Definition at line 166 of file Xpetra_ReorderedBlockedMultiVector.hpp.

The documentation for this class was generated from the following file:

Xpetra_ReorderedBlockedMultiVector.hpp

Public Types

Private Member Functions

Private Attributes

Constructor/Destructor Methods

Overridden from Teuchos::Describable

Additional Inherited Members

Detailed Description

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType> class Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
class Xpetra::ReorderedBlockedMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >
