Xpetra: Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node > Class Template Reference

Xpetra Version of the Day

All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Macros Pages

#include <Xpetra_Import.hpp>

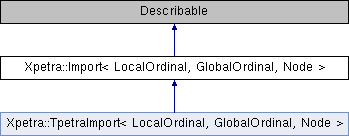

Inheritance diagram for Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >:

Public Types
typedef LocalOrdinal	local_ordinal_type

typedef GlobalOrdinal	global_ordinal_type

typedef Node	node_type

Constructor/Destructor Methods
virtual	~Import ()
	Destructor. More...

Import Attribute Methods
virtual size_t	getNumSameIDs () const =0
	Number of initial identical IDs. More...

virtual size_t	getNumPermuteIDs () const =0
	Number of IDs to permute but not to communicate. More...

virtual ArrayView< const LocalOrdinal >	getPermuteFromLIDs () const =0
	List of local IDs in the source Map that are permuted. More...

virtual ArrayView< const LocalOrdinal >	getPermuteToLIDs () const =0
	List of local IDs in the target Map that are permuted. More...

virtual size_t	getNumRemoteIDs () const =0
	Number of entries not on the calling process. More...

virtual ArrayView< const LocalOrdinal >	getRemoteLIDs () const =0
	List of entries in the target Map to receive from other processes. More...

virtual size_t	getNumExportIDs () const =0
	Number of entries that must be sent by the calling process to other processes. More...

virtual ArrayView< const LocalOrdinal >	getExportLIDs () const =0
	List of entries in the source Map that will be sent to other processes. More...

virtual ArrayView< const int >	getExportPIDs () const =0
	List of processes to which entries will be sent. More...

virtual Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getSourceMap () const =0
	The Source Map used to construct this Import object. More...

virtual Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getTargetMap () const =0
	The Target Map used to construct this Import object. More...

virtual void	setDistributorParameters (const Teuchos::RCP< Teuchos::ParameterList > params) const =0
	Set parameters on the underlying object. More...

I/O Methods
virtual void	print (std::ostream &os) const =0
	Print the Import's data to the given output stream. More...

Detailed Description

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
class Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >

Definition at line 62 of file Xpetra_Import.hpp.

Member Typedef Documentation

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

typedef LocalOrdinal Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >::local_ordinal_type

Definition at line 66 of file Xpetra_Import.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

typedef GlobalOrdinal Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >::global_ordinal_type

Definition at line 67 of file Xpetra_Import.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

typedef Node Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >::node_type

Definition at line 68 of file Xpetra_Import.hpp.

Constructor & Destructor Documentation

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >::~Import ( )

inlinevirtual

Destructor.

Definition at line 74 of file Xpetra_Import.hpp.

Member Function Documentation

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual size_t Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >::getNumSameIDs ( ) const

pure virtual

Number of initial identical IDs.

Implemented in Xpetra::TpetraImport< int, long long, EpetraNode >, Xpetra::TpetraImport< int, int, EpetraNode >, Xpetra::EpetraImportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraImport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual size_t Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >::getNumPermuteIDs ( ) const

pure virtual

Number of IDs to permute but not to communicate.

Implemented in Xpetra::TpetraImport< int, long long, EpetraNode >, Xpetra::TpetraImport< int, int, EpetraNode >, Xpetra::EpetraImportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraImport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual ArrayView< const LocalOrdinal > Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >::getPermuteFromLIDs ( ) const

pure virtual

List of local IDs in the source Map that are permuted.

Implemented in Xpetra::TpetraImport< int, long long, EpetraNode >, Xpetra::TpetraImport< int, int, EpetraNode >, Xpetra::EpetraImportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraImport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual ArrayView< const LocalOrdinal > Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >::getPermuteToLIDs ( ) const

pure virtual

List of local IDs in the target Map that are permuted.

Implemented in Xpetra::TpetraImport< int, long long, EpetraNode >, Xpetra::TpetraImport< int, int, EpetraNode >, Xpetra::EpetraImportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraImport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual size_t Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >::getNumRemoteIDs ( ) const

pure virtual

Number of entries not on the calling process.

Implemented in Xpetra::TpetraImport< int, long long, EpetraNode >, Xpetra::TpetraImport< int, int, EpetraNode >, Xpetra::EpetraImportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraImport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual ArrayView< const LocalOrdinal > Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >::getRemoteLIDs ( ) const

pure virtual

List of entries in the target Map to receive from other processes.

Implemented in Xpetra::TpetraImport< int, long long, EpetraNode >, Xpetra::TpetraImport< int, int, EpetraNode >, Xpetra::EpetraImportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraImport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual size_t Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >::getNumExportIDs ( ) const

pure virtual

Number of entries that must be sent by the calling process to other processes.

Implemented in Xpetra::TpetraImport< int, long long, EpetraNode >, Xpetra::TpetraImport< int, int, EpetraNode >, Xpetra::EpetraImportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraImport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual ArrayView< const LocalOrdinal > Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >::getExportLIDs ( ) const

pure virtual

List of entries in the source Map that will be sent to other processes.

Implemented in Xpetra::TpetraImport< int, long long, EpetraNode >, Xpetra::TpetraImport< int, int, EpetraNode >, Xpetra::EpetraImportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraImport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual ArrayView< const int > Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >::getExportPIDs ( ) const

pure virtual

List of processes to which entries will be sent.

Implemented in Xpetra::TpetraImport< int, long long, EpetraNode >, Xpetra::TpetraImport< int, int, EpetraNode >, Xpetra::EpetraImportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraImport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >::getSourceMap ( ) const

pure virtual

The Source Map used to construct this Import object.

Implemented in Xpetra::TpetraImport< int, long long, EpetraNode >, Xpetra::TpetraImport< int, int, EpetraNode >, Xpetra::EpetraImportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraImport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >::getTargetMap ( ) const

pure virtual

The Target Map used to construct this Import object.

Implemented in Xpetra::TpetraImport< int, long long, EpetraNode >, Xpetra::TpetraImport< int, int, EpetraNode >, Xpetra::EpetraImportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraImport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >::setDistributorParameters ( const Teuchos::RCP< Teuchos::ParameterList > params ) const

pure virtual

Set parameters on the underlying object.

Implemented in Xpetra::TpetraImport< int, long long, EpetraNode >, Xpetra::TpetraImport< int, int, EpetraNode >, Xpetra::EpetraImportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraImport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node >::print ( std::ostream & os ) const

pure virtual

Print the Import's data to the given output stream.

Implemented in Xpetra::TpetraImport< int, long long, EpetraNode >, Xpetra::TpetraImport< int, int, EpetraNode >, Xpetra::EpetraImportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraImport< LocalOrdinal, GlobalOrdinal, Node >.

The documentation for this class was generated from the following file:

Xpetra_Import.hpp
