Tempus::StepperBackwardEulerObserverBase< Scalar > Class Template Referenceabstract

Base observer for StepperBackwardEuler. More...

#include <Tempus_StepperBackwardEulerObserverBase.hpp>

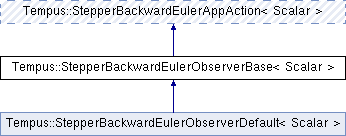

Inheritance diagram for Tempus::StepperBackwardEulerObserverBase< Scalar >:
Tempus::StepperBackwardEulerAppAction< Scalar > Tempus::StepperBackwardEulerObserverDefault< Scalar >

Public Member Functions

virtual void observe (Teuchos::RCP< const SolutionHistory< Scalar > >, Teuchos::RCP< const StepperBackwardEuler< Scalar > >, const typename StepperBackwardEulerAppAction< Scalar >::ACTION_LOCATION actLoc)=0
 Observe BackwardEuler Stepper. More...

- Public Member Functions inherited from Tempus::StepperBackwardEulerAppAction< Scalar >
 StepperBackwardEulerAppAction ()
 Constructor. More...

virtual ~StepperBackwardEulerAppAction ()
 Destructor. More...


Private Member Functions

void execute (Teuchos::RCP< SolutionHistory< Scalar > > sh, Teuchos::RCP< StepperBackwardEuler< Scalar > > stepper, const typename StepperBackwardEulerAppAction< Scalar >::ACTION_LOCATION actLoc)
 Execute application action for BackwardEuler Stepper. More...


Additional Inherited Members

- Public Types inherited from Tempus::StepperBackwardEulerAppAction< Scalar >
enum  ACTION_LOCATION { BEGIN_STEP, BEFORE_SOLVE, AFTER_SOLVE, END_STEP }
 Indicates the location of application action (see algorithm). More...


Detailed Description

template<class Scalar>
class Tempus::StepperBackwardEulerObserverBase< Scalar >

Base observer for StepperBackwardEuler.

This class provides a means to observe values (e.g., solution variables through SolutionHistory, and stepper member data through the Stepper), and cannot modify them.

Users deriving from this class can observer a lot of data, and it is expected that users will NOT modify any of that data. If the user wishes to modify the solution and/or stepper data during the Stepper::takeStep, they should use the Modifier class (with care!).

Below is the BackwardEuler algorithm with the locations of the observe calls italicized.

\begin{algorithm} \renewcommand{\thealgorithm}{} \caption{DIRK Backward Euler with observe calls indicated.} \begin{algorithmic}[1] \State \quad {\it observer.observe(solutionHistory, stepper, BEGIN\_STEP)} \State Compute the predictor (e.g., apply stepper to $x_n$). \State \quad {\it observer.observe(solutionHistory, stepper, BEFORE\_SOLVE)} \State Solve $\mathcal{F}_n(\dot{x}=(x_n-x_{n-1})/\Delta t_n, x_n, t_n)=0$ for $x_n$ \State \quad {\it observer.observe(solutionHistory, stepper, AFTER\_SOLVE)} \State $\dot{x}_n \leftarrow (x_n-x_{n-1})/\Delta t_n$ \State \quad {\it observer.observe(solutionHistory, stepper, END\_STEP)} \end{algorithmic} \end{algorithm}

Definition at line 48 of file Tempus_StepperBackwardEulerObserverBase.hpp.

Member Function Documentation

template<class Scalar>
void Tempus::StepperBackwardEulerObserverBase< Scalar >::execute ( Teuchos::RCP< SolutionHistory< Scalar > >  sh,
Teuchos::RCP< StepperBackwardEuler< Scalar > >  stepper,
const typename StepperBackwardEulerAppAction< Scalar >::ACTION_LOCATION  actLoc
)
inlineprivatevirtual

Execute application action for BackwardEuler Stepper.

Implements Tempus::StepperBackwardEulerAppAction< Scalar >.

Definition at line 63 of file Tempus_StepperBackwardEulerObserverBase.hpp.

template<class Scalar>
virtual void Tempus::StepperBackwardEulerObserverBase< Scalar >::observe ( Teuchos::RCP< const SolutionHistory< Scalar > >  ,
Teuchos::RCP< const StepperBackwardEuler< Scalar > >  ,
const typename StepperBackwardEulerAppAction< Scalar >::ACTION_LOCATION  actLoc
)
pure virtual

The documentation for this class was generated from the following file:
