Time integrator implementing forward sensitivity analysis. More...

#include <Tempus_IntegratorForwardSensitivity_decl.hpp>

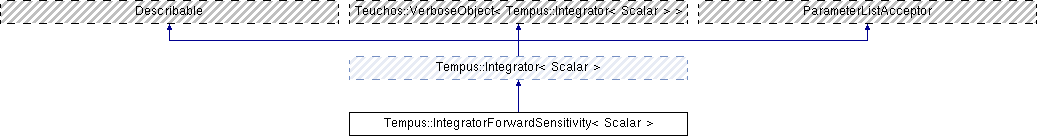

Inheritance diagram for Tempus::IntegratorForwardSensitivity< Scalar >:

Public Member Functions
	IntegratorForwardSensitivity (Teuchos::RCP< Teuchos::ParameterList > pList, const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &model)
	Constructor with ParameterList and model, and will be fully initialized. More...

	IntegratorForwardSensitivity (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &model, std::string stepperType)
	Constructor with model and "Stepper Type" and is fully initialized with default settings. More...

	IntegratorForwardSensitivity ()
	Destructor. More...

virtual	~IntegratorForwardSensitivity ()
	Destructor. More...

void	parseScreenOutput ()
	Parse when screen output should be executed. More...

Basic integrator methods
virtual bool	advanceTime ()
	Advance the solution to timeMax, and return true if successful. More...

virtual bool	advanceTime (const Scalar timeFinal) override
	Advance the solution to timeFinal, and return true if successful. More...

virtual void	startIntegrator ()
	Perform tasks before start of integrator. More...

virtual void	startTimeStep ()
	Start time step. More...

virtual void	checkTimeStep ()
	Check if time step has passed or failed. More...

virtual void	endIntegrator ()
	Perform tasks after end of integrator. More...

virtual Teuchos::RCP < Teuchos::ParameterList >	getTempusParameterList () override
	Return a copy of the Tempus ParameterList. More...

virtual void	setTempusParameterList (Teuchos::RCP< Teuchos::ParameterList > pl) override

Accessor methods
virtual Scalar	getTime () const override
	Get current time. More...

virtual int	getIndex () const override
	Get current index. More...

virtual Status	getStatus () const override
	Get Status. More...

virtual Teuchos::RCP< Stepper < Scalar > >	getStepper () const override
	Get the Stepper. More...

virtual void	setStepper (Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > model)
	Set the Stepper. More...

virtual void	setStepperWStepper (Teuchos::RCP< Stepper< Scalar > > stepper)
	Set the Stepper. More...

virtual void	initializeSolutionHistory (Teuchos::RCP< SolutionState< Scalar > > state=Teuchos::null)
	Set the initial state which has the initial conditions. More...

virtual void	initializeSolutionHistory (Scalar t0, Teuchos::RCP< const Thyra::VectorBase< Scalar > > x0, Teuchos::RCP< const Thyra::VectorBase< Scalar > > xdot0=Teuchos::null, Teuchos::RCP< const Thyra::VectorBase< Scalar > > xdotdot0=Teuchos::null, Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > DxDp0=Teuchos::null, Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > DxdotDp0=Teuchos::null, Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > DxdotdotDp0=Teuchos::null)
	Set the initial state from Thyra::VectorBase(s) More...

virtual Teuchos::RCP< const SolutionHistory< Scalar > >	getSolutionHistory () const override
	Get the SolutionHistory. More...

virtual void	setSolutionHistory (Teuchos::RCP< SolutionHistory< Scalar > > sh=Teuchos::null)
	Set the SolutionHistory. More...

virtual Teuchos::RCP< const TimeStepControl< Scalar > >	getTimeStepControl () const override
	Get the TimeStepControl. More...

virtual Teuchos::RCP < TimeStepControl< Scalar > >	getNonConstTimeStepControl () override

virtual void	setTimeStepControl (Teuchos::RCP< TimeStepControl< Scalar > > tsc=Teuchos::null)
	Set the TimeStepControl. More...

virtual Teuchos::RCP < IntegratorObserver< Scalar > >	getObserver ()
	Get the Observer. More...

virtual void	setObserver (Teuchos::RCP< IntegratorObserver< Scalar > > obs=Teuchos::null)
	Set the Observer. More...

virtual void	initialize ()
	Initializes the Integrator after set* function calls. More...

virtual Teuchos::RCP < Teuchos::Time >	getIntegratorTimer () const override
	Returns the IntegratorTimer_ for this Integrator. More...

virtual Teuchos::RCP < Teuchos::Time >	getStepperTimer () const override

virtual Teuchos::RCP< const Thyra::VectorBase< Scalar > >	getX () const
	Get current the solution, x. More...

virtual Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	getDxDp () const

virtual Teuchos::RCP< const Thyra::VectorBase< Scalar > >	getXdot () const
	Get current the time derivative of the solution, xdot. More...

virtual Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	getDxdotDp () const

virtual Teuchos::RCP< const Thyra::VectorBase< Scalar > >	getXdotdot () const
	Get current the second time derivative of the solution, xdotdot. More...

virtual Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	getDxdotdotDp () const

virtual Teuchos::RCP < SolutionState< Scalar > >	getCurrentState ()
	Get current state. More...

Overridden from Teuchos::ParameterListAcceptor
void	setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &pl) override

Teuchos::RCP < Teuchos::ParameterList >	getNonconstParameterList () override

Teuchos::RCP < Teuchos::ParameterList >	unsetParameterList () override

Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const override

Overridden from Teuchos::Describable
std::string	description () const override

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const override

Basic integrator methods

Protected Member Functions
void	createSensitivityModelAndStepper (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &model)

Protected Attributes
Teuchos::RCP < Thyra::ModelEvaluator < Scalar > >	model_

Teuchos::RCP < SensitivityModelEvaluatorBase < Scalar > >	sens_model_

Teuchos::RCP < StepperStaggeredForwardSensitivity < Scalar > >	sens_stepper_

Teuchos::RCP< IntegratorBasic < Scalar > >	integrator_

Teuchos::RCP < Teuchos::ParameterList >	tempus_pl_

Teuchos::RCP < Teuchos::ParameterList >	sens_pl_

Teuchos::RCP < Teuchos::ParameterList >	stepper_pl_

bool	use_combined_method_

Detailed Description

template<class Scalar>
class Tempus::IntegratorForwardSensitivity< Scalar >

Time integrator implementing forward sensitivity analysis.

This integrator implements forward parameter sensitivity analysis by propagating the derivative of the solution with respect to model parameters alongside the solution. It supports sensitivity propagation methods:

"Combined" where the sensitivity and state equations are solved simultaneously. This is most appropriate for explicit time integration methods or implicit methods where a very-lightweight nonlinear solution strategy is used.
"Staggered" where the sensitivity equations are solved at each time step immediately after the state equations are solved. This is useful for implicit methods since it saves the cost of solving the sensitivity equations while the state equations are being solved. It generally does not work for explicit methods (and wouldn't be more efficient than the combined method even if it did).

Note that this integrator implements all of the same functions as the IntegratorBasic, but is not derived from IntegratorBasic. It also provides functions for setting the sensitivity initial conditions and extracting the sensitivity at the final time. Also the vectors stored in the solution history store product vectors of the state and sensitivities using Thyra;:DefaultMultiVectorProductVector.

Definition at line 46 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >

Tempus::IntegratorForwardSensitivity< Scalar >::IntegratorForwardSensitivity	(	Teuchos::RCP< Teuchos::ParameterList >	pList,
		const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	model
	)

Constructor with ParameterList and model, and will be fully initialized.

In addition to all of the regular integrator options, the supplied parameter list supports the following options contained within a sublist "Sensitivities" from the top-level parameter list:

"Sensitivity Method" (default: "Combined") The sensitivity analysis method as described above.
"Reuse State Linear Solver" (default: false) For the staggered method, whether to reuse the model's W matrix, solver, and preconditioner when solving the sensitivity equations. If they can be reused, substantial savings in compute time are possible.
"Use DfDp as Tangent" (default: false) Reinterpret the df/dp out-arg as the tangent vector (df/dx)(x,p) * dx/dp + df/dp(x,p) as described in the Tempus::CombinedForwardSensitivityModelEvaluator documentation.
"Sensitivity Parameter Index" (default: 0) Model evaluator parameter index for which sensitivities will be computed.
"Sensitivity X Tangent Index" (default: 1) If "Use DfDp as Tangent" is true, the model evaluator parameter index for passing dx/dp as a Thyra::DefaultMultiVectorProductVector.
"Sensitivity X-Dot Tangent Index" (default: 2) If "Use DfDp as Tangent" is true, the model evaluator parameter index for passing dx_dot/dp as a Thyra::DefaultMultiVectorProductVector.
"Sensitivity X-Dot-Dot Tangent Index" (default: 3) If "Use DfDp as Tangent" is true, the model evaluator parameter index for passing dx_dot_dot/dp as a Thyra::DefaultMultiVectorProductVector (if the model supports x_dot_dot).

Definition at line 23 of file Tempus_IntegratorForwardSensitivity_impl.hpp.

template<class Scalar >

Tempus::IntegratorForwardSensitivity< Scalar >::IntegratorForwardSensitivity	(	const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	model,
		std::string	stepperType
	)

Constructor with model and "Stepper Type" and is fully initialized with default settings.

Definition at line 43 of file Tempus_IntegratorForwardSensitivity_impl.hpp.

template<class Scalar >

Tempus::IntegratorForwardSensitivity< Scalar >::IntegratorForwardSensitivity ( )

Destructor.

Constructor that requires a subsequent setParameterList, setStepper, and initialize calls.

Definition at line 64 of file Tempus_IntegratorForwardSensitivity_impl.hpp.

template<class Scalar >

virtual Tempus::IntegratorForwardSensitivity< Scalar >::~IntegratorForwardSensitivity ( )

inlinevirtual

Destructor.

Definition at line 96 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

Member Function Documentation

template<class Scalar >

virtual bool Tempus::IntegratorForwardSensitivity< Scalar >::advanceTime ( )

inlinevirtual

Advance the solution to timeMax, and return true if successful.

Definition at line 101 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual bool Tempus::IntegratorForwardSensitivity< Scalar >::advanceTime ( const Scalar timeFinal )

inlineoverridevirtual

Advance the solution to timeFinal, and return true if successful.

Implements Tempus::Integrator< Scalar >.

Definition at line 104 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual void Tempus::IntegratorForwardSensitivity< Scalar >::checkTimeStep ( )

inlinevirtual

Check if time step has passed or failed.

Definition at line 113 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

void Tempus::IntegratorForwardSensitivity< Scalar >::createSensitivityModelAndStepper ( const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > & model )

protected

Definition at line 306 of file Tempus_IntegratorForwardSensitivity_impl.hpp.

template<class Scalar >

void Tempus::IntegratorForwardSensitivity< Scalar >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel
	)		const

override

Definition at line 243 of file Tempus_IntegratorForwardSensitivity_impl.hpp.

template<class Scalar >

std::string Tempus::IntegratorForwardSensitivity< Scalar >::description ( ) const

override

Definition at line 234 of file Tempus_IntegratorForwardSensitivity_impl.hpp.

template<class Scalar >

virtual void Tempus::IntegratorForwardSensitivity< Scalar >::endIntegrator ( )

inlinevirtual

Perform tasks after end of integrator.

Definition at line 116 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual Teuchos::RCP<SolutionState<Scalar> > Tempus::IntegratorForwardSensitivity< Scalar >::getCurrentState ( )

inlinevirtual

Get current state.

Definition at line 203 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > Tempus::IntegratorForwardSensitivity< Scalar >::getDxdotdotDp ( ) const

virtual

Definition at line 218 of file Tempus_IntegratorForwardSensitivity_impl.hpp.

template<class Scalar >

Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > Tempus::IntegratorForwardSensitivity< Scalar >::getDxdotDp ( ) const

virtual

Definition at line 189 of file Tempus_IntegratorForwardSensitivity_impl.hpp.

template<class Scalar >

Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > Tempus::IntegratorForwardSensitivity< Scalar >::getDxDp ( ) const

virtual

Definition at line 161 of file Tempus_IntegratorForwardSensitivity_impl.hpp.

template<class Scalar >

virtual int Tempus::IntegratorForwardSensitivity< Scalar >::getIndex ( ) const

inlineoverridevirtual

Get current index.

Implements Tempus::Integrator< Scalar >.

Definition at line 131 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual Teuchos::RCP<Teuchos::Time> Tempus::IntegratorForwardSensitivity< Scalar >::getIntegratorTimer ( ) const

inlineoverridevirtual

Returns the IntegratorTimer_ for this Integrator.

Implements Tempus::Integrator< Scalar >.

Definition at line 187 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

Teuchos::RCP<Teuchos::ParameterList> Tempus::IntegratorForwardSensitivity< Scalar >::getNonconstParameterList ( )

inlineoverride

Definition at line 214 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual Teuchos::RCP<TimeStepControl<Scalar> > Tempus::IntegratorForwardSensitivity< Scalar >::getNonConstTimeStepControl ( )

inlineoverridevirtual

Implements Tempus::Integrator< Scalar >.

Definition at line 171 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual Teuchos::RCP<IntegratorObserver<Scalar> > Tempus::IntegratorForwardSensitivity< Scalar >::getObserver ( )

inlinevirtual

Get the Observer.

Definition at line 178 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual Teuchos::RCP<const SolutionHistory<Scalar> > Tempus::IntegratorForwardSensitivity< Scalar >::getSolutionHistory ( ) const

inlineoverridevirtual

Get the SolutionHistory.

Implements Tempus::Integrator< Scalar >.

Definition at line 162 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual Status Tempus::IntegratorForwardSensitivity< Scalar >::getStatus ( ) const

inlineoverridevirtual

Get Status.

Implements Tempus::Integrator< Scalar >.

Definition at line 134 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual Teuchos::RCP<Stepper<Scalar> > Tempus::IntegratorForwardSensitivity< Scalar >::getStepper ( ) const

inlineoverridevirtual

Get the Stepper.

Implements Tempus::Integrator< Scalar >.

Definition at line 137 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual Teuchos::RCP<Teuchos::Time> Tempus::IntegratorForwardSensitivity< Scalar >::getStepperTimer ( ) const

inlineoverridevirtual

Implements Tempus::Integrator< Scalar >.

Definition at line 189 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual Teuchos::RCP<Teuchos::ParameterList> Tempus::IntegratorForwardSensitivity< Scalar >::getTempusParameterList ( )

inlineoverridevirtual

Return a copy of the Tempus ParameterList.

Implements Tempus::Integrator< Scalar >.

Definition at line 119 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual Scalar Tempus::IntegratorForwardSensitivity< Scalar >::getTime ( ) const

inlineoverridevirtual

Get current time.

Implements Tempus::Integrator< Scalar >.

Definition at line 128 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual Teuchos::RCP<const TimeStepControl<Scalar> > Tempus::IntegratorForwardSensitivity< Scalar >::getTimeStepControl ( ) const

inlineoverridevirtual

Get the TimeStepControl.

Implements Tempus::Integrator< Scalar >.

Definition at line 169 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

Teuchos::RCP< const Teuchos::ParameterList > Tempus::IntegratorForwardSensitivity< Scalar >::getValidParameters ( ) const

override

Definition at line 286 of file Tempus_IntegratorForwardSensitivity_impl.hpp.

template<class Scalar >

Teuchos::RCP< const Thyra::VectorBase< Scalar > > Tempus::IntegratorForwardSensitivity< Scalar >::getX ( ) const

virtual

Get current the solution, x.

Definition at line 148 of file Tempus_IntegratorForwardSensitivity_impl.hpp.

template<class Scalar >

Teuchos::RCP< const Thyra::VectorBase< Scalar > > Tempus::IntegratorForwardSensitivity< Scalar >::getXdot ( ) const

virtual

Get current the time derivative of the solution, xdot.

Definition at line 176 of file Tempus_IntegratorForwardSensitivity_impl.hpp.

template<class Scalar >

Teuchos::RCP< const Thyra::VectorBase< Scalar > > Tempus::IntegratorForwardSensitivity< Scalar >::getXdotdot ( ) const

virtual

Get current the second time derivative of the solution, xdotdot.

Definition at line 204 of file Tempus_IntegratorForwardSensitivity_impl.hpp.

template<class Scalar >

virtual void Tempus::IntegratorForwardSensitivity< Scalar >::initialize ( )

inlinevirtual

Initializes the Integrator after set* function calls.

Definition at line 185 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual void Tempus::IntegratorForwardSensitivity< Scalar >::initializeSolutionHistory ( Teuchos::RCP< SolutionState< Scalar > > state = Teuchos::null )

inlinevirtual

Set the initial state which has the initial conditions.

Definition at line 147 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

void Tempus::IntegratorForwardSensitivity< Scalar >::initializeSolutionHistory	(	Scalar	t0,
		Teuchos::RCP< const Thyra::VectorBase< Scalar > >	x0,
		Teuchos::RCP< const Thyra::VectorBase< Scalar > >	xdot0 = `Teuchos::null`,
		Teuchos::RCP< const Thyra::VectorBase< Scalar > >	xdotdot0 = `Teuchos::null`,
		Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	DxDp0 = `Teuchos::null`,
		Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	DxdotDp0 = `Teuchos::null`,
		Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	DxdotdotDp0 = `Teuchos::null`
	)

virtual

Set the initial state from Thyra::VectorBase(s)

Definition at line 84 of file Tempus_IntegratorForwardSensitivity_impl.hpp.

template<class Scalar >

void Tempus::IntegratorForwardSensitivity< Scalar >::parseScreenOutput ( )

inline

Parse when screen output should be executed.

Definition at line 208 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual void Tempus::IntegratorForwardSensitivity< Scalar >::setObserver ( Teuchos::RCP< IntegratorObserver< Scalar > > obs = Teuchos::null )

inlinevirtual

Set the Observer.

Definition at line 181 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

void Tempus::IntegratorForwardSensitivity< Scalar >::setParameterList ( const Teuchos::RCP< Teuchos::ParameterList > & pl )

override

Definition at line 254 of file Tempus_IntegratorForwardSensitivity_impl.hpp.

template<class Scalar >

virtual void Tempus::IntegratorForwardSensitivity< Scalar >::setSolutionHistory ( Teuchos::RCP< SolutionHistory< Scalar > > sh = Teuchos::null )

inlinevirtual

Set the SolutionHistory.

Definition at line 165 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

void Tempus::IntegratorForwardSensitivity< Scalar >::setStepper ( Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > model )

virtual

Set the Stepper.

Definition at line 72 of file Tempus_IntegratorForwardSensitivity_impl.hpp.

template<class Scalar >

virtual void Tempus::IntegratorForwardSensitivity< Scalar >::setStepperWStepper ( Teuchos::RCP< Stepper< Scalar > > stepper )

inlinevirtual

Set the Stepper.

Definition at line 144 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual void Tempus::IntegratorForwardSensitivity< Scalar >::setTempusParameterList ( Teuchos::RCP< Teuchos::ParameterList > pl )

inlineoverridevirtual

Implements Tempus::Integrator< Scalar >.

Definition at line 121 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual void Tempus::IntegratorForwardSensitivity< Scalar >::setTimeStepControl ( Teuchos::RCP< TimeStepControl< Scalar > > tsc = Teuchos::null )

inlinevirtual

Set the TimeStepControl.

Definition at line 174 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual void Tempus::IntegratorForwardSensitivity< Scalar >::startIntegrator ( )

inlinevirtual

Perform tasks before start of integrator.

Definition at line 107 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

virtual void Tempus::IntegratorForwardSensitivity< Scalar >::startTimeStep ( )

inlinevirtual

Start time step.

Definition at line 110 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

Teuchos::RCP< Teuchos::ParameterList > Tempus::IntegratorForwardSensitivity< Scalar >::unsetParameterList ( )

override

Definition at line 273 of file Tempus_IntegratorForwardSensitivity_impl.hpp.

Member Data Documentation

template<class Scalar >

Teuchos::RCP<IntegratorBasic<Scalar> > Tempus::IntegratorForwardSensitivity< Scalar >::integrator_

protected

Definition at line 239 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

Teuchos::RCP<Thyra::ModelEvaluator<Scalar> > Tempus::IntegratorForwardSensitivity< Scalar >::model_

protected

Definition at line 236 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

Teuchos::RCP<SensitivityModelEvaluatorBase<Scalar> > Tempus::IntegratorForwardSensitivity< Scalar >::sens_model_

protected

Definition at line 237 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

Teuchos::RCP<Teuchos::ParameterList> Tempus::IntegratorForwardSensitivity< Scalar >::sens_pl_

protected

Definition at line 241 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

Teuchos::RCP<StepperStaggeredForwardSensitivity<Scalar> > Tempus::IntegratorForwardSensitivity< Scalar >::sens_stepper_

protected

Definition at line 238 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

Teuchos::RCP<Teuchos::ParameterList> Tempus::IntegratorForwardSensitivity< Scalar >::stepper_pl_

protected

Definition at line 242 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

Teuchos::RCP<Teuchos::ParameterList> Tempus::IntegratorForwardSensitivity< Scalar >::tempus_pl_

protected

Definition at line 240 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

template<class Scalar >

bool Tempus::IntegratorForwardSensitivity< Scalar >::use_combined_method_

protected

Definition at line 243 of file Tempus_IntegratorForwardSensitivity_decl.hpp.

The documentation for this class was generated from the following files:

http://docs.trilinos.org/r13.0/packages/tempus/src/Tempus_IntegratorForwardSensitivity_decl.hpp
http://docs.trilinos.org/r13.0/packages/tempus/src/Tempus_IntegratorForwardSensitivity_impl.hpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

template<class Scalar> class Tempus::IntegratorForwardSensitivity< Scalar >

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class Scalar>
class Tempus::IntegratorForwardSensitivity< Scalar >
