MueLu  Version of the Day
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups Pages
MueLu::UnsmooshFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > Class Template Reference

Factory for building "unsmooshed" transfer operators from transfer operators associated with a scalar helper problem (built by the VariableDofLaplacianFactory) More...

#include <MueLu_UnsmooshFactory_decl.hpp>

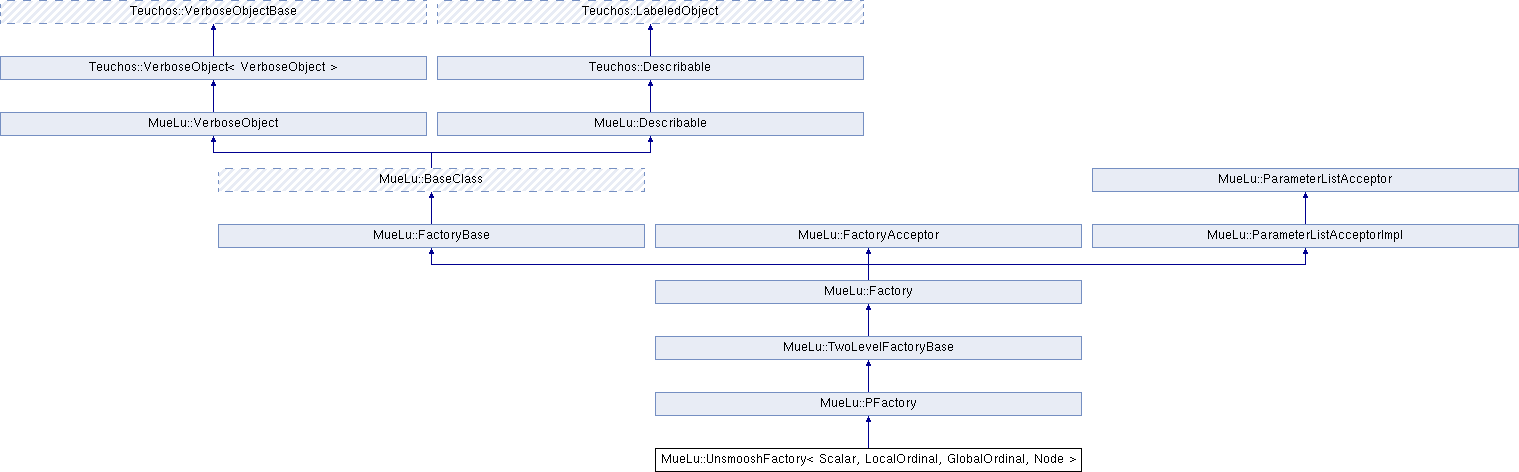

Inheritance diagram for MueLu::UnsmooshFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >:
MueLu::PFactory MueLu::TwoLevelFactoryBase MueLu::Factory MueLu::FactoryBase MueLu::FactoryAcceptor MueLu::ParameterListAcceptorImpl MueLu::BaseClass MueLu::ParameterListAcceptor MueLu::VerboseObject MueLu::Describable Teuchos::VerboseObject< VerboseObject > Teuchos::Describable Teuchos::VerboseObjectBase Teuchos::LabeledObject

Public Member Functions

void Build (Level &fineLevel, Level &coarseLevel) const
 Build an object with this factory. More...

void BuildP (Level &, Level &) const
 Abstract Build method. More...

- Public Member Functions inherited from MueLu::PFactory
 PFactory ()
 Constructor. More...

virtual ~PFactory ()
 Destructor. More...

void setRestrictionMode (bool bRestrictionMode=false)

bool isRestrictionModeSet ()
 returns restrictionMode flag More...

- Public Member Functions inherited from MueLu::TwoLevelFactoryBase
 TwoLevelFactoryBase ()
 Constructor. More...

virtual ~TwoLevelFactoryBase ()
 Destructor. More...

virtual void CallDeclareInput (Level &requestedLevel) const

virtual void CallBuild (Level &requestedLevel) const

- Public Member Functions inherited from MueLu::Factory
void EnableMultipleCallCheck () const
 Constructor. More...

void DisableMultipleCallCheck () const

void ResetDebugData () const

- Public Member Functions inherited from MueLu::FactoryBase
 FactoryBase ()
 Constructor. More...

virtual ~FactoryBase ()
 Destructor. More...

int GetID () const
 return unique factory id More...

- Public Member Functions inherited from MueLu::BaseClass
virtual ~BaseClass ()
 Destructor. More...

- Public Member Functions inherited from MueLu::VerboseObject
VerbLevel GetVerbLevel () const
 Get the verbosity level. More...

void SetVerbLevel (const VerbLevel verbLevel)
 Set the verbosity level of this object. More...

int GetProcRankVerbose () const
 Get proc rank used for printing. Do not use this information for any other purpose. More...

int SetProcRankVerbose (int procRank) const
 Set proc rank used for printing. More...

bool IsPrint (MsgType type, int thisProcRankOnly=-1) const
 Find out whether we need to print out information for a specific message type. More...

Teuchos::FancyOStreamGetOStream (MsgType type, int thisProcRankOnly=0) const
 Get an output stream for outputting the input message type. More...

Teuchos::FancyOStreamGetBlackHole () const

 VerboseObject ()

virtual ~VerboseObject ()
 Destructor. More...

- Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
 VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectsetVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObjectsetOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
RCP< const ParameterList
getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
readVerboseObjectSublist (ParameterList *paramList, RCP< FancyOStream > *oStream, EVerbosityLevel *verbLevel)

void readVerboseObjectSublist (ParameterList *paramList, VerboseObject< ObjectType > *verboseObject)

- Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual ~VerboseObjectBase ()

 VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBasesetOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBasesetOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBasesetLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStreamgetOStream () const

virtual RCP< FancyOStreamgetOverridingOStream () const

virtual std::string getLinePrefix () const

virtual OSTab getOSTab (const int tabs=1, const std::string &linePrefix="") const

- Public Member Functions inherited from MueLu::Describable
virtual ~Describable ()
 Destructor. More...

virtual std::string ShortClassName () const
 Return the class name of the object, without template parameters and without namespace. More...

virtual void describe (Teuchos::FancyOStream &out_arg, const VerbLevel verbLevel=Default) const

virtual std::string description () const
 Return a simple one-line description of this object. More...

void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
 Print the object with some verbosity level to an FancyOStream object. More...

- Public Member Functions inherited from Teuchos::Describable
void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Public Member Functions inherited from MueLu::FactoryAcceptor
virtual ~FactoryAcceptor ()

virtual void SetFactory (const std::string &varName, const RCP< const FactoryBase > &factory)=0
 Configuration. More...

virtual const RCP< const
FactoryBase
GetFactory (const std::string &varName) const =0

- Public Member Functions inherited from MueLu::ParameterListAcceptorImpl
 ParameterListAcceptorImpl ()

virtual ~ParameterListAcceptorImpl ()=default

virtual void SetParameterList (const Teuchos::ParameterList &paramList)
 Set parameters from a parameter list and return with default values. More...

virtual const
Teuchos::ParameterList
GetParameterList () const

void SetParameter (const std::string &name, const ParameterEntry &entry)
 Set a parameter directly as a ParameterEntry. More...

const ParameterEntryGetParameter (const std::string &name) const
 Retrieves a const entry with the name name. More...

virtual void GetDocumentation (std::ostream &os) const

- Public Member Functions inherited from MueLu::ParameterListAcceptor
 ParameterListAcceptor ()

virtual ~ParameterListAcceptor ()=default


Constructors/Destructors.

 UnsmooshFactory ()
 Constructor. More...

virtual ~UnsmooshFactory ()
 Destructor. More...

RCP< const ParameterListGetValidParameterList () const
 Return a const parameter list of valid parameters that setParameterList() will accept. More...

void DeclareInput (Level &fineLevel, Level &coarseLevel) const
 Input. More...


Additional Inherited Members

- Static Public Member Functions inherited from MueLu::Factory
static void EnableMultipleCheckGlobally ()

static void DisableMultipleCheckGlobally ()

- Static Public Member Functions inherited from MueLu::VerboseObject
static void SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static void SetMueLuOFileStream (const std::string &filename)

static Teuchos::RCP
< Teuchos::FancyOStream
GetMueLuOStream ()

static void SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
 Set the default (global) verbosity level. More...

static VerbLevel GetDefaultVerbLevel ()
 Get the default (global) verbosity level. More...

- Static Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
static void setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel getDefaultVerbLevel ()

- Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStreamgetDefaultOStream ()

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default

- Protected Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
void initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

- Protected Member Functions inherited from Teuchos::VerboseObjectBase
void initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void informUpdatedVerbosityState () const

- Protected Attributes inherited from MueLu::PFactory
bool restrictionMode_


Detailed Description

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>
class MueLu::UnsmooshFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Factory for building "unsmooshed" transfer operators from transfer operators associated with a scalar helper problem (built by the VariableDofLaplacianFactory)

The output prolongation operator P is compatible to the input matrix A. The input prolongation matrix P is supposed to be built by the VariableDofLaplacianFactory with 1 DOF per node. The DofStatus array declares for each row, whether it is a standard dof or a padded/pseudo Dirichlet dof. The user has to provide the parameter "maxDofPerNode", since the coarse matrices are always padded by construction (i.e. constant number of DOFs per node). This parameter is needed for building the column map of the unsmooshed prolongation operator. The parameter "fineIsPadded" allows to specify whether the input matrix A on the finest level is padded or not. In the padded case we have an artificially extended input matrix with pseudo Dirichlet rows on inactive rows. In the non-padded version we have "variable" number of Dofs per node.

Input/output of UnsmooshFactory

User parameters of UnsmooshFactory

Parameter type default master.xml validated requested description
A Factory null * * Generating factory of the input matrix A with potentially variable number of DOFs. Might be padded or non-padded. Padded means, that the matrix has additional artificial rows and columns to have a constant number of DOFs per node. Needed to match the row map for the unsmooshed version of P with the row map of the unamalgamated input matrix A.
P Factory null * * Generating factory of the (amalgamated) prolongator P generated from a (pseudo Laplacian) with 1 Dofs per node. Will be unsmooshed to be compatible with input matrix A in this factory.
DofStatus Facotry null * * Generating factory for dofStatus array (usually generated by the VariableDofLaplacdianFactory). It is a Teuchos::Array<char> of size number of Rows of input matrix P multiplied by the maximum possible number of Dofs per node.
maxDofPerNode int 1 * Maximum number of DOFs per node. Needed for generating unsmooshed P. Note, that the coarse matrices are always padded, i.e. we have constant number of DOFs per node.

fineIsPadded | bool | false | * | | True if finest level input matrix is padded (default is false)

The * in the master.xml column denotes that the parameter is defined in the master.xml file.
The * in the validated column means that the parameter is declared in the list of valid input parameters (see UnsmooshFactory::GetValidParameters).
The * in the requested column states that the data is requested as input with all dependencies (see UnsmooshFactory::DeclareInput).

Variables provided by UnsmooshFactory

After UnsmooshFactory::Build the following data is available (if requested)

Parameter generated by description
P UnsmooshFactory Unsmooshed prolongation operator

Definition at line 97 of file MueLu_UnsmooshFactory_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
MueLu::UnsmooshFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::UnsmooshFactory ( )

Constructor.

Definition at line 57 of file MueLu_UnsmooshFactory_def.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>
virtual MueLu::UnsmooshFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~UnsmooshFactory ( )
inlinevirtual

Destructor.

Definition at line 110 of file MueLu_UnsmooshFactory_decl.hpp.

Member Function Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< const ParameterList > MueLu::UnsmooshFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetValidParameterList ( ) const
virtual

Return a const parameter list of valid parameters that setParameterList() will accept.

Also define the default values of parameters according to the input parameter list.

Implements MueLu::ParameterListAcceptor.

Definition at line 60 of file MueLu_UnsmooshFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::UnsmooshFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::DeclareInput ( Level fineLevel,
Level coarseLevel
) const
virtual

Input.

Implements MueLu::TwoLevelFactoryBase.

Definition at line 73 of file MueLu_UnsmooshFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::UnsmooshFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Build ( Level fineLevel,
Level coarseLevel
) const
virtual

Build an object with this factory.

Implements MueLu::TwoLevelFactoryBase.

Definition at line 85 of file MueLu_UnsmooshFactory_def.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>
void MueLu::UnsmooshFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BuildP ( Level fineLevel,
Level coarseLevel
) const
inlinevirtual

Abstract Build method.

Implements MueLu::PFactory.

Definition at line 124 of file MueLu_UnsmooshFactory_decl.hpp.


The documentation for this class was generated from the following files:
