MueLu::PFactory Class Referenceabstract

Factory that provides an interface for a concrete implementation of a prolongation operator. More...

#include <MueLu_PFactory_decl.hpp>

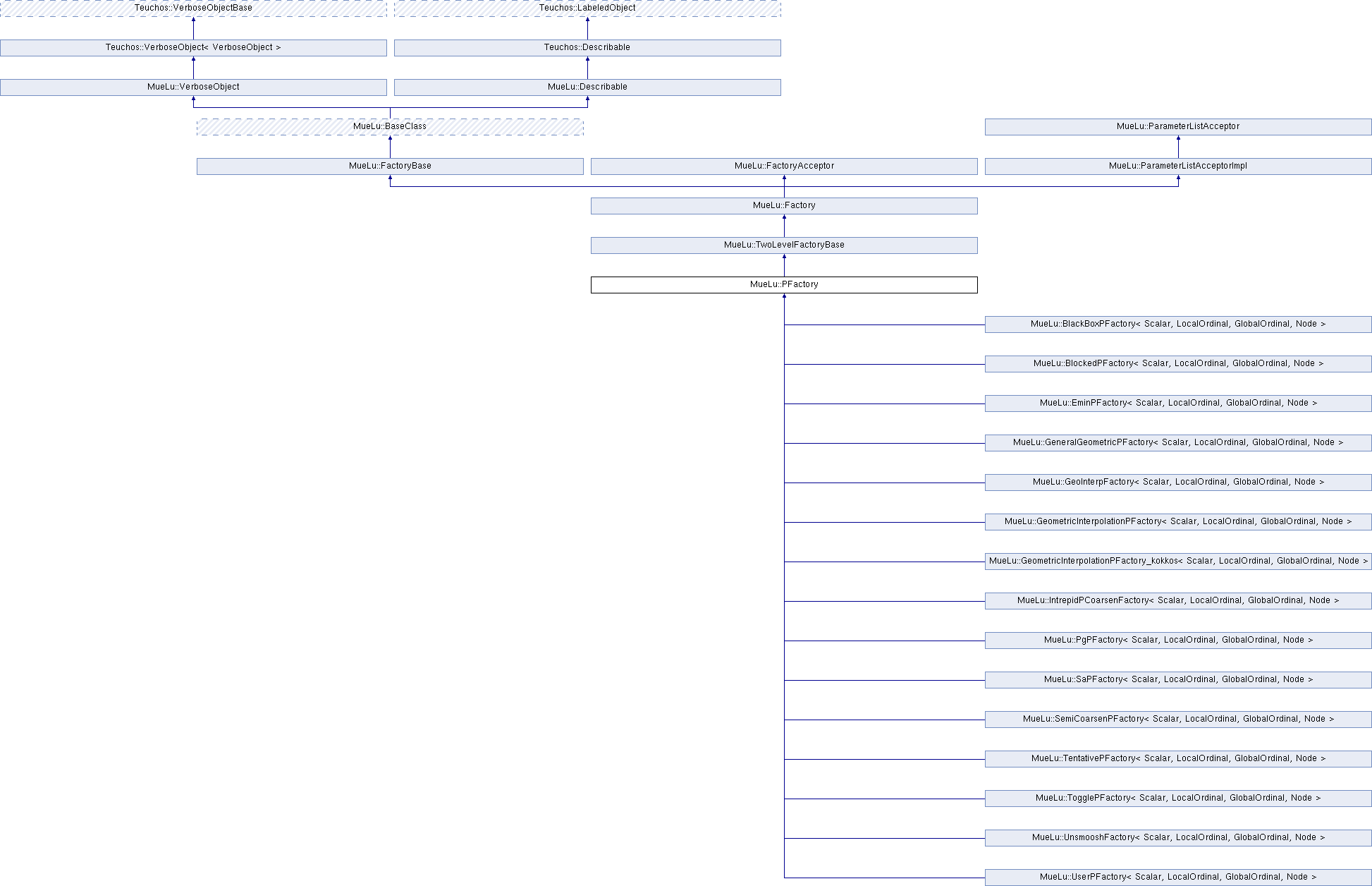

Inheritance diagram for MueLu::PFactory:
MueLu::TwoLevelFactoryBase MueLu::Factory MueLu::FactoryBase MueLu::FactoryAcceptor MueLu::ParameterListAcceptorImpl MueLu::BaseClass MueLu::ParameterListAcceptor MueLu::VerboseObject MueLu::Describable Teuchos::VerboseObject< VerboseObject > Teuchos::Describable Teuchos::VerboseObjectBase Teuchos::LabeledObject MueLu::BlackBoxPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::BlockedPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::EminPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::GeneralGeometricPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::GeoInterpFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::GeometricInterpolationPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::GeometricInterpolationPFactory_kokkos< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::IntrepidPCoarsenFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::PgPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::SaPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::SemiCoarsenPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::TentativePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::UnsmooshFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::UserPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Protected Attributes

bool restrictionMode_


Constructors/Destructors.

 PFactory ()
 Constructor. More...

virtual ~PFactory ()
 Destructor. More...


Build methods.

virtual void BuildP (Level &fineLevel, Level &coarseLevel) const =0
 Abstract Build method. More...


Restriction mode

void setRestrictionMode (bool bRestrictionMode=false)

bool isRestrictionModeSet ()
 returns restrictionMode flag More...


Additional Inherited Members

- Public Member Functions inherited from MueLu::TwoLevelFactoryBase
 TwoLevelFactoryBase ()
 Constructor. More...

virtual ~TwoLevelFactoryBase ()
 Destructor. More...

virtual void DeclareInput (Level &fineLevel, Level &coarseLevel) const =0
 Input. More...

virtual void CallDeclareInput (Level &requestedLevel) const

virtual void Build (Level &fineLevel, Level &coarseLevel) const =0
 Build an object with this factory. More...

virtual void CallBuild (Level &requestedLevel) const

- Public Member Functions inherited from MueLu::Factory
void EnableMultipleCallCheck () const
 Constructor. More...

void DisableMultipleCallCheck () const

void ResetDebugData () const

- Public Member Functions inherited from MueLu::FactoryBase
 FactoryBase ()
 Constructor. More...

virtual ~FactoryBase ()
 Destructor. More...

int GetID () const
 return unique factory id More...

- Public Member Functions inherited from MueLu::BaseClass
virtual ~BaseClass ()
 Destructor. More...

- Public Member Functions inherited from MueLu::VerboseObject
VerbLevel GetVerbLevel () const
 Get the verbosity level. More...

void SetVerbLevel (const VerbLevel verbLevel)
 Set the verbosity level of this object. More...

int GetProcRankVerbose () const
 Get proc rank used for printing. Do not use this information for any other purpose. More...

int SetProcRankVerbose (int procRank) const
 Set proc rank used for printing. More...

bool IsPrint (MsgType type, int thisProcRankOnly=-1) const
 Find out whether we need to print out information for a specific message type. More...

Teuchos::FancyOStreamGetOStream (MsgType type, int thisProcRankOnly=0) const
 Get an output stream for outputting the input message type. More...

Teuchos::FancyOStreamGetBlackHole () const

 VerboseObject ()

virtual ~VerboseObject ()
 Destructor. More...

- Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
 VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectsetVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObjectsetOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
RCP< const ParameterList
getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
readVerboseObjectSublist (ParameterList *paramList, RCP< FancyOStream > *oStream, EVerbosityLevel *verbLevel)

void readVerboseObjectSublist (ParameterList *paramList, VerboseObject< ObjectType > *verboseObject)

- Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual ~VerboseObjectBase ()

 VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBasesetOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBasesetOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBasesetLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStreamgetOStream () const

virtual RCP< FancyOStreamgetOverridingOStream () const

virtual std::string getLinePrefix () const

virtual OSTab getOSTab (const int tabs=1, const std::string &linePrefix="") const

- Public Member Functions inherited from MueLu::Describable
virtual ~Describable ()
 Destructor. More...

virtual std::string ShortClassName () const
 Return the class name of the object, without template parameters and without namespace. More...

virtual void describe (Teuchos::FancyOStream &out_arg, const VerbLevel verbLevel=Default) const

virtual std::string description () const
 Return a simple one-line description of this object. More...

void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
 Print the object with some verbosity level to an FancyOStream object. More...

- Public Member Functions inherited from Teuchos::Describable
void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Public Member Functions inherited from MueLu::FactoryAcceptor
virtual ~FactoryAcceptor ()

virtual void SetFactory (const std::string &varName, const RCP< const FactoryBase > &factory)=0
 Configuration. More...

virtual const RCP< const
FactoryBase
GetFactory (const std::string &varName) const =0

- Public Member Functions inherited from MueLu::ParameterListAcceptorImpl
 ParameterListAcceptorImpl ()

virtual ~ParameterListAcceptorImpl ()=default

virtual void SetParameterList (const Teuchos::ParameterList &paramList)
 Set parameters from a parameter list and return with default values. More...

virtual const
Teuchos::ParameterList
GetParameterList () const

void SetParameter (const std::string &name, const ParameterEntry &entry)
 Set a parameter directly as a ParameterEntry. More...

const ParameterEntryGetParameter (const std::string &name) const
 Retrieves a const entry with the name name. More...

virtual void GetDocumentation (std::ostream &os) const

- Public Member Functions inherited from MueLu::ParameterListAcceptor
 ParameterListAcceptor ()

virtual ~ParameterListAcceptor ()=default

virtual Teuchos::RCP< const
Teuchos::ParameterList
GetValidParameterList () const =0
 Return a const parameter list of valid parameters that setParameterList() will accept. More...

- Static Public Member Functions inherited from MueLu::Factory
static void EnableMultipleCheckGlobally ()

static void DisableMultipleCheckGlobally ()

- Static Public Member Functions inherited from MueLu::VerboseObject
static void SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static void SetMueLuOFileStream (const std::string &filename)

static Teuchos::RCP
< Teuchos::FancyOStream
GetMueLuOStream ()

static void SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
 Set the default (global) verbosity level. More...

static VerbLevel GetDefaultVerbLevel ()
 Get the default (global) verbosity level. More...

- Static Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
static void setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel getDefaultVerbLevel ()

- Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStreamgetDefaultOStream ()

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default

- Protected Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
void initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

- Protected Member Functions inherited from Teuchos::VerboseObjectBase
void initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void informUpdatedVerbosityState () const


Detailed Description

Factory that provides an interface for a concrete implementation of a prolongation operator.

For a concrete implementation the user has to overwrite the virtual Build method.

Definition at line 64 of file MueLu_PFactory_decl.hpp.

Constructor & Destructor Documentation

MueLu::PFactory::PFactory ( )
inline

Constructor.

Definition at line 75 of file MueLu_PFactory_decl.hpp.

virtual MueLu::PFactory::~PFactory ( )
inlinevirtual

Destructor.

Definition at line 78 of file MueLu_PFactory_decl.hpp.

Member Function Documentation

void MueLu::PFactory::setRestrictionMode ( bool  bRestrictionMode = false)
inline

switch prolongator factory to restriction mode if set to true, the prolongation factory generates a restriciton operator instead of a prolongation operator

Definition at line 96 of file MueLu_PFactory_decl.hpp.

bool MueLu::PFactory::isRestrictionModeSet ( )
inline

returns restrictionMode flag

Definition at line 101 of file MueLu_PFactory_decl.hpp.

Member Data Documentation

bool MueLu::PFactory::restrictionMode_
protected

Definition at line 68 of file MueLu_PFactory_decl.hpp.


The documentation for this class was generated from the following file:
