MueLu::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node > Class Template Reference

Wraps an existing MueLu::Hierarchy as a Tpetra::Operator. More...

#include <MueLu_TpetraOperator_fwd.hpp>

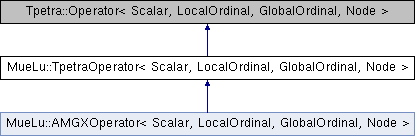

Inheritance diagram for MueLu::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >:
MueLu::AMGXOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Public Member Functions

Teuchos::RCP< const
Tpetra::Map< LocalOrdinal,
GlobalOrdinal, Node > >
getDomainMap () const
 Returns the Tpetra::Map object associated with the domain of this operator. More...

Teuchos::RCP< const
Tpetra::Map< LocalOrdinal,
GlobalOrdinal, Node > >
getRangeMap () const
 Returns the Tpetra::Map object associated with the range of this operator. More...

void apply (const Tpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, Tpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::one()) const
 Returns in Y the result of a Tpetra::Operator applied to a Tpetra::MultiVector X. More...

bool hasTransposeApply () const
 Indicates whether this operator supports applying the adjoint operator. More...


Protected Member Functions

 TpetraOperator ()


Private Attributes

RCP< MueLu::Hierarchy< Scalar,
LocalOrdinal, GlobalOrdinal,
Node > >
Hierarchy_

RCP< Xpetra::Operator< Scalar,
LocalOrdinal, GlobalOrdinal,
Node > >
Operator_


Constructor/Destructor

 TpetraOperator (const RCP< Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &Op)
 Constructor. More...

 TpetraOperator (const RCP< MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &H)
 Constructor. More...

virtual ~TpetraOperator ()
 Destructor. More...


MueLu specific

RCP< MueLu::Hierarchy< Scalar,
LocalOrdinal, GlobalOrdinal,
Node > >
GetHierarchy () const
 Direct access to the underlying MueLu::Hierarchy. More...

RCP< Xpetra::Operator< Scalar,
LocalOrdinal, GlobalOrdinal,
Node > >
GetOperator () const
 Direct access to the underlying MueLu::Operator. More...


Detailed Description

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
class MueLu::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Wraps an existing MueLu::Hierarchy as a Tpetra::Operator.

Definition at line 54 of file MueLu_TpetraOperator_fwd.hpp.

Constructor & Destructor Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
MueLu::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraOperator ( )
inlineprotected

Definition at line 67 of file MueLu_TpetraOperator_decl.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
MueLu::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraOperator ( const RCP< Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &  Op)
inline

Constructor.

Definition at line 74 of file MueLu_TpetraOperator_decl.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
MueLu::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraOperator ( const RCP< MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &  H)
inline

Constructor.

Definition at line 77 of file MueLu_TpetraOperator_decl.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
virtual MueLu::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~TpetraOperator ( )
inlinevirtual

Destructor.

Definition at line 80 of file MueLu_TpetraOperator_decl.hpp.

Member Function Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP< const Tpetra::Map< LocalOrdinal, GlobalOrdinal, Node > > MueLu::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const

Returns the Tpetra::Map object associated with the domain of this operator.

Definition at line 70 of file MueLu_TpetraOperator_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
Teuchos::RCP< const Tpetra::Map< LocalOrdinal, GlobalOrdinal, Node > > MueLu::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const

Returns the Tpetra::Map object associated with the range of this operator.

Definition at line 88 of file MueLu_TpetraOperator_def.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
void MueLu::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::apply ( const Tpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &  X,
Tpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &  Y,
Teuchos::ETransp  mode = Teuchos::NO_TRANS,
Scalar  alpha = Teuchos::ScalarTraits<Scalar>::one(),
Scalar  beta = Teuchos::ScalarTraits<Scalar>::one()
) const

Returns in Y the result of a Tpetra::Operator applied to a Tpetra::MultiVector X.

Parameters
[in]X- Tpetra::MultiVector of dimension NumVectors to multiply with matrix.
[out]Y-Tpetra::MultiVector of dimension NumVectors containing result.

Definition at line 106 of file MueLu_TpetraOperator_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
bool MueLu::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::hasTransposeApply ( ) const

Indicates whether this operator supports applying the adjoint operator.

Definition at line 131 of file MueLu_TpetraOperator_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node > > MueLu::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetHierarchy ( ) const

Direct access to the underlying MueLu::Hierarchy.

Definition at line 137 of file MueLu_TpetraOperator_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > > MueLu::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetOperator ( ) const

Direct access to the underlying MueLu::Operator.

Definition at line 143 of file MueLu_TpetraOperator_def.hpp.

Member Data Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
RCP<MueLu::Hierarchy<Scalar, LocalOrdinal, GlobalOrdinal, Node> > MueLu::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Hierarchy_
private

Definition at line 116 of file MueLu_TpetraOperator_decl.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
RCP<Xpetra::Operator<Scalar, LocalOrdinal, GlobalOrdinal, Node> > MueLu::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Operator_
private

Definition at line 117 of file MueLu_TpetraOperator_decl.hpp.


The documentation for this class was generated from the following files:
