Provides methods to build a multigrid hierarchy and apply multigrid cycles. More...

#include <MueLu_Hierarchy_decl.hpp>

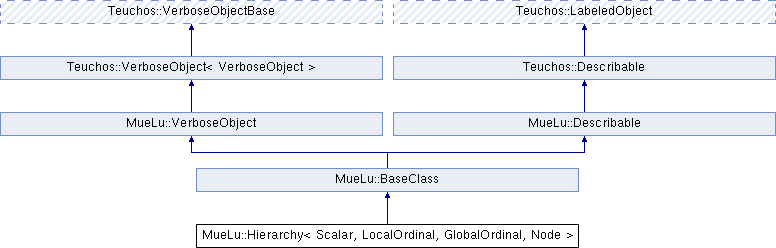

Inheritance diagram for MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Classes
struct	ConvData
	Data struct for defining stopping criteria of multigrid iteration. More...

Public Member Functions
void	AddLevel (const RCP< Level > &level)
	Add a level at the end of the hierarchy. More...

void	AddNewLevel ()
	Add a new level at the end of the hierarchy. More...

RCP< Level > &	GetLevel (const int levelID=0)
	Retrieve a certain level from hierarchy. More...

int	GetNumLevels () const

int	GetGlobalNumLevels () const

MagnitudeType	GetRate () const

double	GetOperatorComplexity () const

double	GetSmootherComplexity () const

void	CheckLevel (Level &level, int levelID)
	Helper function. More...

void	SetMatvecParams (RCP< ParameterList > matvecParams)

bool	Setup (int coarseLevelID, const RCP< const FactoryManagerBase > fineLevelManager, const RCP< const FactoryManagerBase > coarseLevelManager, const RCP< const FactoryManagerBase > nextLevelManager=Teuchos::null)
	Multi-level setup phase: build a new level of the hierarchy. More...

void	Setup (const FactoryManagerBase &manager=FactoryManager(), int startLevel=0, int numDesiredLevels=GetDefaultMaxLevels())

void	SetupRe ()

void	Clear (int startLevel=0)
	Clear impermanent data from previous setup. More...

void	ExpertClear ()

CycleType	GetCycle () const
	Returns multigrid cycle type (supports VCYCLE and WCYCLE) More...

void	SetCycle (CycleType Cycle)
	Supports VCYCLE and WCYCLE types. More...

void	SetCycleStartLevel (int cycleStart)

void	SetProlongatorScalingFactor (double scalingFactor)
	Specify damping factor alpha such that x = x + alphaPc, where c is the coarse grid correction. More...

ReturnType	Iterate (const MultiVector &B, MultiVector &X, ConvData conv=ConvData(), bool InitialGuessIsZero=false, LO startLevel=0)
	Apply the multigrid preconditioner. More...

void	Write (const LO &start=-1, const LO &end=-1, const std::string &suffix="")
	Print matrices in the multigrid hierarchy to file. More...

void	EnableGraphDumping (const std::string &filename, int levelID=1)

void	setlib (Xpetra::UnderlyingLib inlib)

Xpetra::UnderlyingLib	lib ()

void	ResetDescription ()
	force recreation of cached description_ next time description() is called: More...

void	AllocateLevelMultiVectors (int numvecs)

void	DeleteLevelMultiVectors ()

Public Member Functions inherited from MueLu::BaseClass
virtual	~BaseClass ()
	Destructor. More...

Public Member Functions inherited from MueLu::VerboseObject
VerbLevel	GetVerbLevel () const
	Get the verbosity level. More...

void	SetVerbLevel (const VerbLevel verbLevel)
	Set the verbosity level of this object. More...

int	GetProcRankVerbose () const
	Get proc rank used for printing. Do not use this information for any other purpose. More...

int	SetProcRankVerbose (int procRank) const
	Set proc rank used for printing. More...

bool	IsPrint (MsgType type, int thisProcRankOnly=-1) const
	Find out whether we need to print out information for a specific message type. More...

Teuchos::FancyOStream &	GetOStream (MsgType type, int thisProcRankOnly=0) const
	Get an output stream for outputting the input message type. More...

Teuchos::FancyOStream &	GetBlackHole () const

	VerboseObject ()

virtual	~VerboseObject ()
	Destructor. More...

Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
	VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObject &	setVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObject &	setOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel	getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT RCP< const ParameterList >	getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	readVerboseObjectSublist (ParameterList paramList, RCP< FancyOStream > oStream, EVerbosityLevel *verbLevel)

void	readVerboseObjectSublist (ParameterList paramList, VerboseObject< ObjectType > verboseObject)

Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual	~VerboseObjectBase ()

	VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBase &	setOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBase &	setOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBase &	setLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStream >	getOStream () const

virtual RCP< FancyOStream >	getOverridingOStream () const

virtual std::string	getLinePrefix () const

virtual OSTab	getOSTab (const int tabs=1, const std::string &linePrefix="") const

Public Member Functions inherited from MueLu::Describable
virtual	~Describable ()
	Destructor. More...

virtual std::string	ShortClassName () const
	Return the class name of the object, without template parameters and without namespace. More...

Public Member Functions inherited from Teuchos::Describable
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Protected Member Functions
const RCP< const FactoryManagerBase > &	GetLevelManager (const int levelID) const

Protected Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
void	initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

Protected Member Functions inherited from Teuchos::VerboseObjectBase
void	initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void	informUpdatedVerbosityState () const

Private Types
typedef Teuchos::ScalarTraits< SC >	STS

typedef STS::magnitudeType	MagnitudeType

Private Member Functions
int	LastLevelID () const

void	DumpCurrentGraph () const

	Hierarchy (const Hierarchy &h)
	Copy constructor is not implemented. More...

void	ReplaceCoordinateMap (Level &level)

Private Attributes
Array< RCP< Level > >	Levels_
	Container for Level objects. More...

Xpetra::global_size_t	maxCoarseSize_

bool	implicitTranspose_

bool	fuseProlongationAndUpdate_

bool	doPRrebalance_

bool	isPreconditioner_
	Hierarchy may be used in a standalone mode, or as a preconditioner. More...

CycleType	Cycle_
	V- or W-cycle. More...

int	WCycleStartLevel_
	Level at which to start W-cycle. More...

double	scalingFactor_
	Scaling factor to be applied to coarse grid correction. More...

Xpetra::UnderlyingLib	lib_
	Epetra/Tpetra mode. More...

std::string	description_ = ""
	cache description to avoid recreating in each call to description() - use ResetDescription() to force recreation in Setup, SetupRe, etc. More...

bool	isDumpingEnabled_
	Graph dumping. More...

int	dumpLevel_

std::string	dumpFile_

MagnitudeType	rate_
	Convergece rate. More...

Array< RCP< const FactoryManagerBase > >	levelManagers_
	Level managers used during the Setup. More...

int	sizeOfAllocatedLevelMultiVectors_
	Caching (Multi)Vectors used in Hierarchy::Iterate() More...

Array< RCP< MultiVector > >	residual_

Array< RCP< MultiVector > >	coarseRhs_

Array< RCP< MultiVector > >	coarseX_

Array< RCP< MultiVector > >	coarseImport_

Array< RCP< MultiVector > >	coarseExport_

Array< RCP< MultiVector > >	correction_

Friends
template<class S2 , class LO2 , class GO2 , class N2 >
class	Hierarchy

Constructors/Destructors
	Hierarchy ()
	Default constructor. More...

	Hierarchy (const std::string &label)
	Constructor that labels the hierarchy. More...

	Hierarchy (const RCP< Matrix > &A)
	Constructor. More...

	Hierarchy (const RCP< Matrix > &A, const std::string &label)
	Constructor. More...

virtual	~Hierarchy ()
	Destructor. More...

Set/Get Methods.
Xpetra::global_size_t	GetMaxCoarseSize () const

bool	GetImplicitTranspose () const

bool	GetFuseProlongationAndUpdate () const

void	SetMaxCoarseSize (Xpetra::global_size_t maxCoarseSize)

void	SetPRrebalance (bool doPRrebalance)

void	SetImplicitTranspose (const bool &implicit)

void	SetFuseProlongationAndUpdate (const bool &fuse)

static CycleType	GetDefaultCycle ()

static int	GetDefaultCycleStartLevel ()

static bool	GetDefaultImplicitTranspose ()

static bool	GetDefaultFuseProlongationAndUpdate ()

static Xpetra::global_size_t	GetDefaultMaxCoarseSize ()

static int	GetDefaultMaxLevels ()

static bool	GetDefaultPRrebalance ()

Permanent storage
void	Keep (const std::string &ename, const FactoryBase *factory=NoFactory::get())
	Call Level::Keep(ename, factory) for each level of the Hierarchy. More...

void	Delete (const std::string &ename, const FactoryBase *factory=NoFactory::get())
	Call Level::Delete(ename, factory) for each level of the Hierarchy. More...

void	AddKeepFlag (const std::string &ename, const FactoryBase *factory=NoFactory::get(), KeepType keep=MueLu::Keep)
	Call Level::AddKeepFlag for each level of the Hierarchy. More...

void	RemoveKeepFlag (const std::string &ename, const FactoryBase *factory, KeepType keep=MueLu::All)
	Call Level::RemoveKeepFlag for each level of the Hierarchy. More...

Overridden from Teuchos::Describable
std::string	description () const
	Return a simple one-line description of this object. More...

void	describe (Teuchos::FancyOStream &out, const VerbLevel verbLevel=Default) const
	Print the Hierarchy with some verbosity level to a FancyOStream object. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::VERB_HIGH) const
	Print the object with some verbosity level to an FancyOStream object. More...

void	print (std::ostream &out=std::cout, const VerbLevel verbLevel=(MueLu::Parameters\|MueLu::Statistics0)) const
	Hierarchy::print is local hierarchy function, thus the statistics can be different from global ones. More...

void	IsPreconditioner (const bool flag)

Additional Inherited Members
Static Public Member Functions inherited from MueLu::VerboseObject
static void	SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static void	SetMueLuOFileStream (const std::string &filename)

static Teuchos::RCP < Teuchos::FancyOStream >	GetMueLuOStream ()

static void	SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
	Set the default (global) verbosity level. More...

static VerbLevel	GetDefaultVerbLevel ()
	Get the default (global) verbosity level. More...

Static Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
static void	setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel	getDefaultVerbLevel ()

Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void	setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStream >	getDefaultOStream ()

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>
class MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Provides methods to build a multigrid hierarchy and apply multigrid cycles.

Allows users to manually populate operators at different levels within a multigrid method and push them into the hierarchy via SetLevel() and/or to supply factories for automatically generating prolongators, restrictors, and coarse level discretizations. Additionally, this class contains an apply method that supports V and W cycles.

Definition at line 103 of file MueLu_Hierarchy_decl.hpp.

Member Typedef Documentation

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

typedef Teuchos::ScalarTraits<SC> MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::STS

private

Definition at line 107 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

typedef STS::magnitudeType MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::MagnitudeType

private

Definition at line 108 of file MueLu_Hierarchy_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Hierarchy ( )

Default constructor.

Definition at line 82 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Hierarchy ( const std::string & label )

Constructor that labels the hierarchy.

Definition at line 93 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Hierarchy ( const RCP< Matrix > & A )

Constructor.

Definition at line 101 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Hierarchy	(	const RCP< Matrix > &	A,
		const std::string &	label
	)

Constructor.

Definition at line 117 of file MueLu_Hierarchy_def.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

virtual MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~Hierarchy ( )

inlinevirtual

Destructor.

Definition at line 138 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Hierarchy ( const Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node > & h )

private

Copy constructor is not implemented.

Member Function Documentation

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

static CycleType MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetDefaultCycle ( )

inlinestatic

Definition at line 146 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

static int MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetDefaultCycleStartLevel ( )

inlinestatic

Definition at line 147 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

static bool MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetDefaultImplicitTranspose ( )

inlinestatic

Definition at line 148 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

static bool MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetDefaultFuseProlongationAndUpdate ( )

inlinestatic

Definition at line 149 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

static Xpetra::global_size_t MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetDefaultMaxCoarseSize ( )

inlinestatic

Definition at line 150 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

static int MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetDefaultMaxLevels ( )

inlinestatic

Definition at line 151 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

static bool MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetDefaultPRrebalance ( )

inlinestatic

Definition at line 152 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

Xpetra::global_size_t MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetMaxCoarseSize ( ) const

inline

Definition at line 154 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

bool MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetImplicitTranspose ( ) const

inline

Definition at line 155 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

bool MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetFuseProlongationAndUpdate ( ) const

inline

Definition at line 156 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetMaxCoarseSize ( Xpetra::global_size_t maxCoarseSize )

inline

Definition at line 158 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetPRrebalance ( bool doPRrebalance )

inline

Definition at line 159 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetImplicitTranspose ( const bool & implicit )

inline

Definition at line 160 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetFuseProlongationAndUpdate ( const bool & fuse )

inline

Definition at line 161 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

int MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::LastLevelID ( ) const

inlineprivate

Definition at line 171 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::DumpCurrentGraph ( ) const

private

Definition at line 1396 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::AddLevel ( const RCP< Level > & level )

Add a level at the end of the hierarchy.

Definition at line 125 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::AddNewLevel ( )

Add a new level at the end of the hierarchy.

Definition at line 142 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

RCP< Level > & MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetLevel ( const int levelID = 0 )

Retrieve a certain level from hierarchy.

Definition at line 149 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

int MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetNumLevels ( ) const

Definition at line 156 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

int MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetGlobalNumLevels ( ) const

Definition at line 161 of file MueLu_Hierarchy_def.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

MagnitudeType MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetRate ( ) const

inline

Definition at line 188 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

double MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetOperatorComplexity ( ) const

Definition at line 173 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

double MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetSmootherComplexity ( ) const

Definition at line 196 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::CheckLevel	(	Level &	level,
		int	levelID
	)

Helper function.

Definition at line 236 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetMatvecParams ( RCP< ParameterList > matvecParams )

Definition at line 246 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Setup	(	int	coarseLevelID,
		const RCP< const FactoryManagerBase >	fineLevelManager,
		const RCP< const FactoryManagerBase >	coarseLevelManager,
		const RCP< const FactoryManagerBase >	nextLevelManager = `Teuchos::null`
	)

Multi-level setup phase: build a new level of the hierarchy.

This method is aimed to be used in a loop building the hierarchy level by level. See Hierarchy::Setup(manager, startLevel, numDesiredLevels) for an example of usage.

@param coarseLevelID ID of the level to be built.
@param fineLevelManager defines how to build missing data of the fineLevel (example: aggregates)
@param coarseLevelManager defines how to build the level
@param nextLevelManager defines how the next coarse level will be built. This is used to post corresponding request before building the coarse level to keep useful data.

CoarseLevel is considered to be the last level if:

input parameter isLastLevel == true or
Ac->getRowMap()->getGlobalNumElements() <= maxCoarseSize_ Method return true if CoarseLevel is the last level.

Pre-condition: FineLevel:

must have kept useful data (TODO: not tested yet)
must be Teuchos::null when Setup is called for finest level (Setup then automatically calls Request for "Smoother" and "CoarseSolver") CoarseLevel:
already allocated (using Hierarchy::AddLevel())
requests already posted (exception: for finest level (=fineLevelManager==null) requests are called within setup routine) NextLevel:
do not need to be allocate but could (FIXME: will be deleted if lastlevel...).
should be null when Setup is called for last level

Post-condition: FineLevel:

temporary data have been used and released (this condition is not tested) CoarseLevel:
built, requests have been used
if it is the last level (due to input parameter isLastLevel or getGlobalNumElements() <= maxCoarseSize_), then the coarse solver factory of the factory manager have been used instead of the smoother factory. NextLevel: If input parameter isLastLevel == false:
have been allocated
requests already posted.

Definition at line 290 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Setup	(	const FactoryManagerBase &	manager = `FactoryManager()`,
		int	startLevel = `0`,
		int	numDesiredLevels = `GetDefaultMaxLevels()`
	)

Definition at line 566 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetupRe ( )

Definition at line 526 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Clear ( int startLevel = 0 )

Clear impermanent data from previous setup.

Definition at line 638 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ExpertClear ( )

Definition at line 647 of file MueLu_Hierarchy_def.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

CycleType MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetCycle ( ) const

inline

Returns multigrid cycle type (supports VCYCLE and WCYCLE)

Definition at line 252 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetCycle ( CycleType Cycle )

inline

Supports VCYCLE and WCYCLE types.

Definition at line 255 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetCycleStartLevel ( int cycleStart )

inline

Definition at line 257 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetProlongatorScalingFactor ( double scalingFactor )

inline

Specify damping factor alpha such that x = x + alpha*P*c, where c is the coarse grid correction.

Definition at line 260 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

ReturnType MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Iterate	(	const MultiVector &	B,
		MultiVector &	X,
		ConvData	conv = `ConvData()`,
		bool	InitialGuessIsZero = `false`,
		LO	startLevel = `0`
	)

Apply the multigrid preconditioner.

In theory, more general cycle types than just V- and W-cycles are possible. However, the enumerated type CycleType would have to be extended.

Parameters

B	right-hand side of linear problem
X	initial and final (approximate) solution of linear problem
ConvData	struct which stores convergence criteria (maximum number of multigrid iterations or stopping tolerance)
InitialGuessIsZero	Indicates whether the initial guess is zero
startLevel	index of starting level to build multigrid hierarchy (default = 0)

Definition at line 859 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Write	(	const LO &	start = `-1`,
		const LO &	end = `-1`,
		const std::string &	suffix = `""`
	)

Print matrices in the multigrid hierarchy to file.

Parameters

[in]	start	start level
[in]	end	end level

Default behavior is to print system and transfer matrices from the entire hierarchy. Files are named "A_0.m", "P_1.m", "R_1.m", etc, and are in matrix market coordinate format.

Definition at line 1175 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Keep	(	const std::string &	ename,
		const FactoryBase *	factory = `NoFactory::get()`
	)

Call Level::Keep(ename, factory) for each level of the Hierarchy.

Definition at line 1204 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Delete	(	const std::string &	ename,
		const FactoryBase *	factory = `NoFactory::get()`
	)

Call Level::Delete(ename, factory) for each level of the Hierarchy.

Definition at line 1210 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::AddKeepFlag	(	const std::string &	ename,
		const FactoryBase *	factory = `NoFactory::get()`,
		KeepType	keep = `MueLu::Keep`
	)

Call Level::AddKeepFlag for each level of the Hierarchy.

Definition at line 1216 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::RemoveKeepFlag	(	const std::string &	ename,
		const FactoryBase *	factory,
		KeepType	keep = `MueLu::All`
	)

Call Level::RemoveKeepFlag for each level of the Hierarchy.

Definition at line 1222 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

std::string MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::description ( ) const

virtual

Return a simple one-line description of this object.

Reimplemented from MueLu::Describable.

Definition at line 1228 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::describe	(	Teuchos::FancyOStream &	out,
		const VerbLevel	verbLevel = `Default`
	)		const

virtual

Print the Hierarchy with some verbosity level to a FancyOStream object.

Parameters

[in]	out	The Teuchos::FancyOstream.
[in]	verbLevel	Controls amount of output.

Reimplemented from MueLu::Describable.

Definition at line 1245 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::VERB_HIGH`
	)		const

virtual

Print the object with some verbosity level to an FancyOStream object.

Reimplemented from MueLu::Describable.

Definition at line 1240 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::print	(	std::ostream &	out = `std::cout`,
		const VerbLevel	verbLevel = `(MueLu::Parameters \| MueLu::Statistics0)`
	)		const

Hierarchy::print is local hierarchy function, thus the statistics can be different from global ones.

Definition at line 1384 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::IsPreconditioner ( const bool flag )

Indicate whether the multigrid method is a preconditioner or a solver.

This is used in conjunction with the verbosity level to determine whether the residuals can be printed.

Definition at line 1391 of file MueLu_Hierarchy_def.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::EnableGraphDumping	(	const std::string &	filename,
		int	levelID = `1`
	)

inline

Definition at line 332 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setlib ( Xpetra::UnderlyingLib inlib )

inline

Definition at line 338 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

Xpetra::UnderlyingLib MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::lib ( )

inline

Definition at line 339 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ResetDescription ( )

inline

force recreation of cached description_ next time description() is called:

Definition at line 342 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::AllocateLevelMultiVectors ( int numvecs )

Definition at line 1529 of file MueLu_Hierarchy_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::DeleteLevelMultiVectors ( )

Definition at line 1589 of file MueLu_Hierarchy_def.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

const RCP<const FactoryManagerBase>& MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetLevelManager ( const int levelID ) const

inlineprotected

Definition at line 350 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ReplaceCoordinateMap ( Level & level )

private

We replace coordinates GIDs to make them consistent with matrix GIDs, even if user does not do that. Ideally, though, we should completely remove any notion of coordinate GIDs, and deal only with LIDs, assuming that they are consistent with matrix block IDs

Definition at line 1456 of file MueLu_Hierarchy_def.hpp.

Friends And Related Function Documentation

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

template<class S2 , class LO2 , class GO2 , class N2 >

friend class Hierarchy

friend

Definition at line 168 of file MueLu_Hierarchy_decl.hpp.

Member Data Documentation

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

Array<RCP<Level> > MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Levels_

private

Container for Level objects.

Definition at line 359 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

Xpetra::global_size_t MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::maxCoarseSize_

private

Minimum size of a matrix on any level. If we fall below that, we stop the coarsening

Definition at line 369 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

bool MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::implicitTranspose_

private

Potential speed up of the setup by skipping R construction, and using transpose matrix-matrix product for RAP

Definition at line 373 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

bool MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::fuseProlongationAndUpdate_

private

Potential speed up of the solve by fusing prolongation and update steps. This can lead to more iterations to round-off error accumulation.

Definition at line 377 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

bool MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doPRrebalance_

private

Potential speed up of the setup by skipping rebalancing of P and R, and doing extra import during solve

Definition at line 381 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

bool MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isPreconditioner_

private

Hierarchy may be used in a standalone mode, or as a preconditioner.

Definition at line 384 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

CycleType MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Cycle_

private

V- or W-cycle.

Definition at line 387 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

int MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::WCycleStartLevel_

private

Level at which to start W-cycle.

Definition at line 390 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

double MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::scalingFactor_

private

Scaling factor to be applied to coarse grid correction.

Definition at line 393 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

Xpetra::UnderlyingLib MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::lib_

private

Epetra/Tpetra mode.

Definition at line 396 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

std::string MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::description_ = ""

mutableprivate

cache description to avoid recreating in each call to description() - use ResetDescription() to force recreation in Setup, SetupRe, etc.

Definition at line 399 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

bool MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isDumpingEnabled_

private

Graph dumping.

If enabled, we dump the graph on a specified level into a specified file

Definition at line 406 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

int MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dumpLevel_

private

Definition at line 407 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

std::string MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dumpFile_

private

Definition at line 408 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

MagnitudeType MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::rate_

private

Convergece rate.

Definition at line 411 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

Array<RCP<const FactoryManagerBase> > MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::levelManagers_

private

Level managers used during the Setup.

Definition at line 414 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

int MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::sizeOfAllocatedLevelMultiVectors_

private

Caching (Multi)Vectors used in Hierarchy::Iterate()

Definition at line 417 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

Array<RCP<MultiVector> > MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::residual_

private

Definition at line 418 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

Array<RCP<MultiVector> > MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::coarseRhs_

private

Definition at line 418 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

Array<RCP<MultiVector> > MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::coarseX_

private

Definition at line 418 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

Array<RCP<MultiVector> > MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::coarseImport_

private

Definition at line 418 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

Array<RCP<MultiVector> > MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::coarseExport_

private

Definition at line 418 of file MueLu_Hierarchy_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

Array<RCP<MultiVector> > MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >::correction_

private

Definition at line 418 of file MueLu_Hierarchy_decl.hpp.

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Friends

Constructors/Destructors

Set/Get Methods.

Permanent storage

Overridden from Teuchos::Describable

Additional Inherited Members

Detailed Description

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode> class MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>
class MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node >
