MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node > Class Template Reference

#include <MueLu_ParameterListInterpreter_decl.hpp>

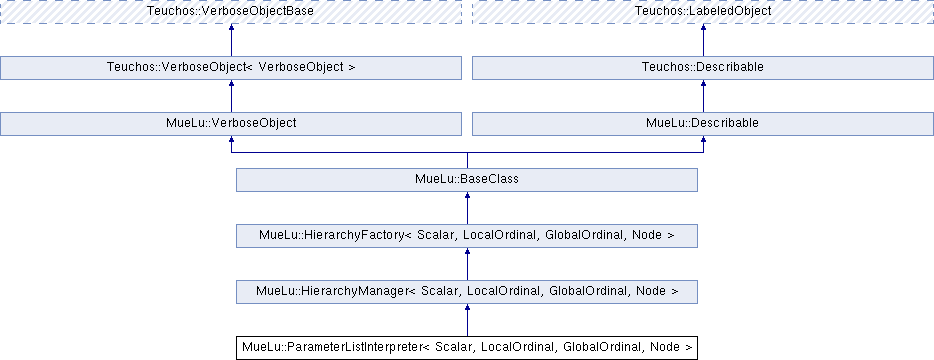

Inheritance diagram for MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Public Member Functions
void	SetParameterList (const Teuchos::ParameterList &paramList)
	Set parameter list for Parameter list interpreter. More...
void	SetupHierarchy (Hierarchy &H) const
	Call the SetupHierarchy routine from the HiearchyManager object. More...
Public Member Functions inherited from MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node >
	HierarchyManager (int numDesiredLevel=MasterList::getDefault< int >("max levels"))
virtual	~HierarchyManager ()
void	AddFactoryManager (int startLevel, int numDesiredLevel, RCP< FactoryManagerBase > manager)
RCP< FactoryManagerBase >	GetFactoryManager (int levelID) const
size_t	getNumFactoryManagers () const
	returns number of factory managers stored in levelManagers_ vector. More...
void	CheckConfig ()
virtual RCP< Hierarchy >	CreateHierarchy () const
	Create an empty Hierarchy object. More...
virtual RCP< Hierarchy >	CreateHierarchy (const std::string &label) const
	Create a labeled empty Hierarchy object. More...
Public Member Functions inherited from MueLu::HierarchyFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual	~HierarchyFactory ()
	Destructor. More...
Public Member Functions inherited from MueLu::BaseClass
virtual	~BaseClass ()
	Destructor. More...
Public Member Functions inherited from MueLu::VerboseObject
VerbLevel	GetVerbLevel () const
	Get the verbosity level. More...
void	SetVerbLevel (const VerbLevel verbLevel)
	Set the verbosity level of this object. More...
int	GetProcRankVerbose () const
	Get proc rank used for printing. Do not use this information for any other purpose. More...
int	SetProcRankVerbose (int procRank) const
	Set proc rank used for printing. More...
bool	IsPrint (MsgType type, int thisProcRankOnly=-1) const
	Find out whether we need to print out information for a specific message type. More...
Teuchos::FancyOStream &	GetOStream (MsgType type, int thisProcRankOnly=0) const
	Get an output stream for outputting the input message type. More...
Teuchos::FancyOStream &	GetBlackHole () const
	VerboseObject ()
virtual	~VerboseObject ()
	Destructor. More...
Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
	VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)
virtual const VerboseObject &	setVerbLevel (const EVerbosityLevel verbLevel) const
virtual const VerboseObject &	setOverridingVerbLevel (const EVerbosityLevel verbLevel) const
virtual EVerbosityLevel	getVerbLevel () const
TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT RCP< const ParameterList >	getValidVerboseObjectSublist ()
TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	setupVerboseObjectSublist (ParameterList *paramList)
TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	readVerboseObjectSublist (ParameterList *paramList, RCP< FancyOStream > *oStream, EVerbosityLevel *verbLevel)
void	readVerboseObjectSublist (ParameterList *paramList, VerboseObject< ObjectType > *verboseObject)
Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual	~VerboseObjectBase ()
	VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)
virtual const VerboseObjectBase &	setOStream (const RCP< FancyOStream > &oStream) const
virtual const VerboseObjectBase &	setOverridingOStream (const RCP< FancyOStream > &oStream) const
virtual VerboseObjectBase &	setLinePrefix (const std::string &linePrefix)
virtual RCP< FancyOStream >	getOStream () const
virtual RCP< FancyOStream >	getOverridingOStream () const
virtual std::string	getLinePrefix () const
virtual OSTab	getOSTab (const int tabs=1, const std::string &linePrefix="") const
Public Member Functions inherited from MueLu::Describable
virtual	~Describable ()
	Destructor. More...
virtual std::string	ShortClassName () const
	Return the class name of the object, without template parameters and without namespace. More...
virtual void	describe (Teuchos::FancyOStream &out_arg, const VerbLevel verbLevel=Default) const
virtual std::string	description () const
	Return a simple one-line description of this object. More...
void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object. More...
Public Member Functions inherited from Teuchos::Describable
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	LabeledObject ()
virtual	~LabeledObject ()
virtual void	setObjectLabel (const std::string &objectLabel)
virtual std::string	getObjectLabel () const
DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)
std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Private Types
typedef std::pair< std::string, const FactoryBase * >	keep_pair

Private Member Functions
virtual void	SetupOperator (Operator &A) const
	Setup Operator object. More...

Private Attributes
int	blockSize_
	block size of matrix (fixed block size) More...
CycleType	Cycle_
	multigrid cycle type (V-cycle or W-cycle) More...
int	WCycleStartLevel_
	in case of W-cycle, level on which cycle should start More...
double	scalingFactor_
	prolongator scaling factor More...
GlobalOrdinal	dofOffset_
	global offset variable describing offset of DOFs in operator More...

Constructors/Destructors
	ParameterListInterpreter ()
	Empty constructor. More...
	ParameterListInterpreter (Teuchos::ParameterList &paramList, Teuchos::RCP< const Teuchos::Comm< int > > comm=Teuchos::null, Teuchos::RCP< FactoryFactory > factFact=Teuchos::null, Teuchos::RCP< FacadeClassFactory > facadeFact=Teuchos::null)
	Constructor that accepts a user-provided ParameterList. More...
	ParameterListInterpreter (const std::string &xmlFileName, const Teuchos::Comm< int > &comm, Teuchos::RCP< FactoryFactory > factFact=Teuchos::null, Teuchos::RCP< FacadeClassFactory > facadeFact=Teuchos::null)
	Constructor that reads parameters from an XML file. More...
virtual	~ParameterListInterpreter ()
	Destructor. More...
bool	changedPRrebalance_
	Easy interpreter stuff. More...
bool	changedImplicitTranspose_
bool	useCoordinates_
bool	useKokkos_
void	SetEasyParameterList (const Teuchos::ParameterList &paramList)
void	Validate (const Teuchos::ParameterList &paramList) const
void	UpdateFactoryManager (Teuchos::ParameterList &paramList, const Teuchos::ParameterList &defaultList, FactoryManager &manager, int levelID, std::vector< keep_pair > &keeps) const
void	UpdateFactoryManager_Smoothers (Teuchos::ParameterList &paramList, const Teuchos::ParameterList &defaultList, FactoryManager &manager, int levelID, std::vector< keep_pair > &keeps) const
void	UpdateFactoryManager_CoarseSolvers (Teuchos::ParameterList &paramList, const Teuchos::ParameterList &defaultList, FactoryManager &manager, int levelID, std::vector< keep_pair > &keeps) const
void	UpdateFactoryManager_Aggregation_TentativeP (Teuchos::ParameterList &paramList, const Teuchos::ParameterList &defaultList, FactoryManager &manager, int levelID, std::vector< keep_pair > &keeps) const
void	UpdateFactoryManager_Restriction (Teuchos::ParameterList &paramList, const Teuchos::ParameterList &defaultList, FactoryManager &manager, int levelID, std::vector< keep_pair > &keeps) const
void	UpdateFactoryManager_RAP (Teuchos::ParameterList &paramList, const Teuchos::ParameterList &defaultList, FactoryManager &manager, int levelID, std::vector< keep_pair > &keeps) const
void	UpdateFactoryManager_Coordinates (Teuchos::ParameterList &paramList, const Teuchos::ParameterList &defaultList, FactoryManager &manager, int levelID, std::vector< keep_pair > &keeps) const
void	UpdateFactoryManager_Repartition (Teuchos::ParameterList &paramList, const Teuchos::ParameterList &defaultList, FactoryManager &manager, int levelID, std::vector< keep_pair > &keeps, RCP< Factory > &nullSpaceFactory) const
void	UpdateFactoryManager_Nullspace (Teuchos::ParameterList &paramList, const Teuchos::ParameterList &defaultList, FactoryManager &manager, int levelID, std::vector< keep_pair > &keeps, RCP< Factory > &nullSpaceFactory) const
void	UpdateFactoryManager_SemiCoarsen (Teuchos::ParameterList &paramList, const Teuchos::ParameterList &defaultList, FactoryManager &manager, int levelID, std::vector< keep_pair > &keeps) const
void	UpdateFactoryManager_PCoarsen (Teuchos::ParameterList &paramList, const Teuchos::ParameterList &defaultList, FactoryManager &manager, int levelID, std::vector< keep_pair > &keeps) const
void	UpdateFactoryManager_SA (Teuchos::ParameterList &paramList, const Teuchos::ParameterList &defaultList, FactoryManager &manager, int levelID, std::vector< keep_pair > &keeps) const
void	UpdateFactoryManager_Emin (Teuchos::ParameterList &paramList, const Teuchos::ParameterList &defaultList, FactoryManager &manager, int levelID, std::vector< keep_pair > &keeps) const
void	UpdateFactoryManager_PG (Teuchos::ParameterList &paramList, const Teuchos::ParameterList &defaultList, FactoryManager &manager, int levelID, std::vector< keep_pair > &keeps) const
void	UpdateFactoryManager_Matlab (Teuchos::ParameterList &paramList, const Teuchos::ParameterList &defaultList, FactoryManager &manager, int levelID, std::vector< keep_pair > &keeps) const
typedef std::map< std::string, RCP< const FactoryBase > >	FactoryMap
typedef std::map< std::string, RCP< FactoryManagerBase > >	FactoryManagerMap
Teuchos::RCP< FactoryFactory >	factFact_
	Internal factory for factories. More...
Teuchos::RCP < MueLu::FacadeClassFactory < Scalar, LocalOrdinal, GlobalOrdinal, Node > >	facadeFact_
	FacadeClass factory. More...
void	SetFactoryParameterList (const Teuchos::ParameterList &paramList)
	Factory interpreter stuff. More...
void	BuildFactoryMap (const Teuchos::ParameterList &paramList, const FactoryMap &factoryMapIn, FactoryMap &factoryMapOut, FactoryManagerMap &factoryManagers) const
	Interpret "Factories" sublist. More...

Additional Inherited Members
Public Types inherited from MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef std::map< std::string, RCP< const FactoryBase > >	FactoryMap
Static Public Member Functions inherited from MueLu::VerboseObject
static void	SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)
static void	SetMueLuOFileStream (const std::string &filename)
static Teuchos::RCP < Teuchos::FancyOStream >	GetMueLuOStream ()
static void	SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
	Set the default (global) verbosity level. More...
static VerbLevel	GetDefaultVerbLevel ()
	Get the default (global) verbosity level. More...
Static Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
static void	setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)
static EVerbosityLevel	getDefaultVerbLevel ()
Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void	setDefaultOStream (const RCP< FancyOStream > &defaultOStream)
static RCP< FancyOStream >	getDefaultOStream ()
Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default
Protected Member Functions inherited from MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual void	SetupExtra (Hierarchy &) const
	Setup extra data. More...
Teuchos::RCP< FactoryManagerBase >	LvlMngr (int levelID, int lastLevelID) const
Protected Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
void	initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)
Protected Member Functions inherited from Teuchos::VerboseObjectBase
void	initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)
virtual void	informUpdatedVerbosityState () const
Protected Attributes inherited from MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node >
int	numDesiredLevel_
Xpetra::global_size_t	maxCoarseSize_
MsgType	verbosity_
bool	doPRrebalance_
bool	implicitTranspose_
bool	fuseProlongationAndUpdate_
int	sizeOfMultiVectors_
int	graphOutputLevel_
Teuchos::Array< int >	matricesToPrint_
Teuchos::Array< int >	prolongatorsToPrint_
Teuchos::Array< int >	restrictorsToPrint_
Teuchos::Array< int >	nullspaceToPrint_
Teuchos::Array< int >	coordinatesToPrint_
Teuchos::Array< int >	elementToNodeMapsToPrint_
Teuchos::RCP < Teuchos::ParameterList >	matvecParams_
std::map< int, std::vector < keep_pair > >	keep_

Detailed Description

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>
class MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Definition at line 118 of file MueLu_ParameterListInterpreter_decl.hpp.

Member Typedef Documentation

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

typedef std::pair<std::string, const FactoryBase*> MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::keep_pair

private

Definition at line 122 of file MueLu_ParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

typedef std::map<std::string, RCP<const FactoryBase> > MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::FactoryMap

private

Definition at line 260 of file MueLu_ParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

typedef std::map<std::string, RCP<FactoryManagerBase> > MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::FactoryManagerMap

private

Definition at line 261 of file MueLu_ParameterListInterpreter_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ParameterListInterpreter ( )

inlineprotected

Empty constructor.

Constructor for derived classes

Definition at line 133 of file MueLu_ParameterListInterpreter_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ParameterListInterpreter	(	Teuchos::ParameterList &	paramList,
		Teuchos::RCP< const Teuchos::Comm< int > >	comm = Teuchos::null,
		Teuchos::RCP< FactoryFactory >	factFact = Teuchos::null,
		Teuchos::RCP< FacadeClassFactory >	facadeFact = Teuchos::null
	)

Constructor that accepts a user-provided ParameterList.

Constructor for parameter list interpreter which directly interprets Teuchos::ParameterLists

The parameter list can be either in the easy parameter list format or in the factory driven parameter list format.

Parameters

[in]	paramList	(Teuchos::ParameterList): ParameterList containing the MueLu parameters
[in]	comm	(RCP<Teuchos::Comm<int> >): Optional RCP of a Teuchos communicator (default: Teuchos::null)
[in]	factFact	(RCP<FactoryFactory>): Optional parameter allowing to define user-specific factory interpreters for user-specific extensions of the XML interface. (default: Teuchos::null)
[in]	facadeFact	(RCP<FacadeFactory>): Optional parameter containing a FacadeFactory class. The user can register its own facade classes in the FacadeFactory and provide it to the ParameterListInterpreter. (default: Teuchos::null, means, only standard FacadeClass that come with MueLu are available)

Definition at line 131 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ParameterListInterpreter	(	const std::string &	xmlFileName,
		const Teuchos::Comm< int > &	comm,
		Teuchos::RCP< FactoryFactory >	factFact = Teuchos::null,
		Teuchos::RCP< FacadeClassFactory >	facadeFact = Teuchos::null
	)

Constructor that reads parameters from an XML file.

XML options are converted to ParameterList entries by Teuchos.

Parameters

[in]	xmlFileName	(std::string): XML file to read
[in]	comm	(Teuchos::Comm<int>): Teuchos communicator
[in]	factFact	(RCP<FactoryFactory>): Optional parameter allowing to define user-specific factory interpreters for user-specific extensions of the XML interface. (default: Teuchos::null)
[in]	facadeFact	(RCP<FacadeFactory>): Optional parameter containing a FacadeFactory class. The user can register its own facade classes in the FacadeFactory and provide it to the ParameterListInterpreter. (default: Teuchos::null, means, only standard FacadeClass that come with MueLu are available)

Definition at line 157 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

virtual MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~ParameterListInterpreter ( )

inlinevirtual

Destructor.

Definition at line 166 of file MueLu_ParameterListInterpreter_decl.hpp.

Member Function Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetParameterList

(

const Teuchos::ParameterList &

paramList

)

Set parameter list for Parameter list interpreter.

The routine checks whether it is a parameter list in the easy parameter format or the more advanced factory-based parameter format and calls the corresponding interpreter routine.

When finished, the parameter list is set that will used by the hierarchy build phase.

This method includes validation and some pre-parsing of the list for:

• verbosity level
• data to export
• cycle type
• max coarse size
• max levels
• number of equations

Parameters

[in]

paramList,:

ParameterList containing the MueLu parameters.

Definition at line 170 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetupHierarchy ( Hierarchy &  H ) const

virtual

Call the SetupHierarchy routine from the HiearchyManager object.

Reimplemented from MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 2322 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetupOperator ( Operator &  A ) const

privatevirtual

Setup Operator object.

Reimplemented from MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 2302 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetEasyParameterList ( const Teuchos::ParameterList &  paramList )

private

Definition at line 248 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Validate ( const Teuchos::ParameterList &  paramList ) const

private

Definition at line 1826 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::UpdateFactoryManager ( Teuchos::ParameterList &  paramList, const Teuchos::ParameterList &  defaultList, FactoryManager &  manager, int  levelID, std::vector< keep_pair > &  keeps  ) const

private

Definition at line 519 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::UpdateFactoryManager_Smoothers ( Teuchos::ParameterList &  paramList, const Teuchos::ParameterList &  defaultList, FactoryManager &  manager, int  levelID, std::vector< keep_pair > &  keeps  ) const

private

Definition at line 657 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::UpdateFactoryManager_CoarseSolvers ( Teuchos::ParameterList &  paramList, const Teuchos::ParameterList &  defaultList, FactoryManager &  manager, int  levelID, std::vector< keep_pair > &  keeps  ) const

private

Definition at line 867 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::UpdateFactoryManager_Aggregation_TentativeP ( Teuchos::ParameterList &  paramList, const Teuchos::ParameterList &  defaultList, FactoryManager &  manager, int  levelID, std::vector< keep_pair > &  keeps  ) const

private

Definition at line 926 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::UpdateFactoryManager_Restriction ( Teuchos::ParameterList &  paramList, const Teuchos::ParameterList &  defaultList, FactoryManager &  manager, int  levelID, std::vector< keep_pair > &  keeps  ) const

private

Definition at line 1255 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::UpdateFactoryManager_RAP ( Teuchos::ParameterList &  paramList, const Teuchos::ParameterList &  defaultList, FactoryManager &  manager, int  levelID, std::vector< keep_pair > &  keeps  ) const

private

Definition at line 1103 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::UpdateFactoryManager_Coordinates ( Teuchos::ParameterList &  paramList, const Teuchos::ParameterList &  defaultList, FactoryManager &  manager, int  levelID, std::vector< keep_pair > &  keeps  ) const

private

Definition at line 1222 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::UpdateFactoryManager_Repartition ( Teuchos::ParameterList &  paramList, const Teuchos::ParameterList &  defaultList, FactoryManager &  manager, int  levelID, std::vector< keep_pair > &  keeps, RCP< Factory > &  nullSpaceFactory  ) const

private

Definition at line 1318 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::UpdateFactoryManager_Nullspace ( Teuchos::ParameterList &  paramList, const Teuchos::ParameterList &  defaultList, FactoryManager &  manager, int  levelID, std::vector< keep_pair > &  keeps, RCP< Factory > &  nullSpaceFactory  ) const

private

Definition at line 1524 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::UpdateFactoryManager_SemiCoarsen ( Teuchos::ParameterList &  paramList, const Teuchos::ParameterList &  defaultList, FactoryManager &  manager, int  levelID, std::vector< keep_pair > &  keeps  ) const

private

Definition at line 1553 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::UpdateFactoryManager_PCoarsen ( Teuchos::ParameterList &  paramList, const Teuchos::ParameterList &  defaultList, FactoryManager &  manager, int  levelID, std::vector< keep_pair > &  keeps  ) const

private

Definition at line 1613 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::UpdateFactoryManager_SA ( Teuchos::ParameterList &  paramList, const Teuchos::ParameterList &  defaultList, FactoryManager &  manager, int  levelID, std::vector< keep_pair > &  keeps  ) const

private

Definition at line 1665 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::UpdateFactoryManager_Emin ( Teuchos::ParameterList &  paramList, const Teuchos::ParameterList &  defaultList, FactoryManager &  manager, int  levelID, std::vector< keep_pair > &  keeps  ) const

private

Definition at line 1715 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::UpdateFactoryManager_PG ( Teuchos::ParameterList &  paramList, const Teuchos::ParameterList &  defaultList, FactoryManager &  manager, int  levelID, std::vector< keep_pair > &  keeps  ) const

private

Definition at line 1783 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::UpdateFactoryManager_Matlab ( Teuchos::ParameterList &  paramList, const Teuchos::ParameterList &  defaultList, FactoryManager &  manager, int  levelID, std::vector< keep_pair > &  keeps  ) const

private

Definition at line 1803 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetFactoryParameterList ( const Teuchos::ParameterList &  paramList )

private

Factory interpreter stuff.

Definition at line 1905 of file MueLu_ParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BuildFactoryMap ( const Teuchos::ParameterList &  paramList, const FactoryMap &  factoryMapIn, FactoryMap &  factoryMapOut, FactoryManagerMap &  factoryManagers  ) const

private

Interpret "Factories" sublist.

Parameters

paramList	[in]: "Factories" ParameterList
factoryMapIn	[in]: FactoryMap maps variable names to factories. This factory map is used to resolve data dependencies of previously defined factories.
factoryMapOut	[out]: FactoryMap maps variable names to factories. New factory entries are added to that FactoryMap. Usually, factoryMapIn and factoryMapOut should use the same object, such that new factories are added. We have to distinguish input and output if we build sub-factory managers, though.
factoryManagers	[in/out]: FacotryManagerMap maps group names to a FactoryManager object.

Interpret "Factories" parameter list. For each "factory" entry, add a new entry in the factoryMapOut map or create a new FacotryManager

Parameter List Parsing:

Create an entry in factoryMapOut for each parameter of the list paramList

<ParameterList name="..."> <Parameter name="smootherFact0" type="string" value="TrilinosSmoother">

<ParameterList name="smootherFact1"> <Parameter name="type" type="string" value="TrilinosSmoother"> ... </ParameterList> </ParameterList>

---

Group factories We can group factories using parameter sublists with the "group" parameter

<ParameterList name="myFirstGroup"> <Parameter name="group" type="string" value="FactoryManager"> <Parameter name="A" type="string" value="mySubBlockAFactory1"> <Parameter name="P" type="string" value="myTentativePFact1"> <Parameter name="Aggregates" type="string" value="myAggFact1"> <Parameter name="Nullspace" type="string" value="myNspFact1"> <Parameter name="CoarseMap" type="string" value="myCoarseMap1"> </ParameterList> <ParameterList name="mySecondGroup"> <Parameter name="group" type="string" value="FactoryManager"> <Parameter name="A" type="string" value="mySubBlockAFactory2"> <Parameter name="P" type="string" value="myTentativePFact2"> <Parameter name="Aggregates" type="string" value="myAggFact1"> <Parameter name="Nullspace" type="string" value="myNspFact2"> <Parameter name="CoarseMap" type="string" value="myCoarseMap2"> </ParameterList>

These factory groups can be used with factories for blocked operators (such as the BlockedPFactory) to easily define the operations on the sub-blocks.

<ParameterList name="myBlockedPFact"> <Parameter name="factory" type="string" value="BlockedPFactory">

<ParameterList name="block1"> <Parameter name="group" type="string" value="myFirstGroup"> </ParameterList>

<ParameterList name="block2"> <Parameter name="group" type="string" value="mySecondGroup"> </ParameterList> </ParameterList>

As an alternative one can also directly specify the factories in the sublists "block1", "block2", etc..., of course. But using blocks has the advantage that one can reuse them in all blocked factories.

<ParameterList name="myBlockedPFact"> <Parameter name="factory" type="string" value="BlockedPFactory">

<ParameterList name="block1"> <Parameter name="A" type="string" value="mySubBlockAFactory1"> <Parameter name="P" type="string" value="myTentativePFact1"> <Parameter name="Aggregates" type="string" value="myAggFact1"> <Parameter name="Nullspace" type="string" value="myNspFact1"> <Parameter name="CoarseMap" type="string" value="myCoarseMap1"> </ParameterList>

<ParameterList name="block2"> <Parameter name="A" type="string" value="mySubBlockAFactory2"> <Parameter name="P" type="string" value="myTentativePFact2"> <Parameter name="Aggregates" type="string" value="myAggFact1"> <Parameter name="Nullspace" type="string" value="myNspFact2"> <Parameter name="CoarseMap" type="string" value="myCoarseMap2"> </ParameterList> </ParameterList>

As an alternative one can also directly specify the factories in the sublists "block1", "block2", etc..., of course.------— add more dependencies (circular dependencies)

The NullspaceFactory needs to know which factory generates the null space on the coarse level (e.g., the TentativePFactory or the RebalancedPFactory). However, we cannot set the information in this place in the xml file, since the tentative prolongator facotry is typically defined later. We have to add that dependency later to the NullspaceFactory:

<ParameterList name="myNspFact"> <Parameter name="factory" type="string" value="NullspaceFactory">

</ParameterList>

<ParameterList name="myTentativePFact"> <Parameter name="factory" type="string" value="TentativePFactory"> <...> <Parameter name="Nullspace" type="string" value="myNspFact"> <Parameter name="CoarseMap" type="string" value="myCoarseMap"> </ParameterList>

<ParameterList name="myRebalanceProlongatorFact"> <Parameter name="factory" type="string" value="RebalanceTransferFactory"> <...> <Parameter name="Nullspace" type="string" value="myTentativePFact"> </ParameterList>

After the definition of the generating factory for the nullspace (in this case myRebalanceProlongatorFact) we add that dependency to the NullspaceFactory instance myNspFact

<ParameterList name="myNspFactDeps"> <Parameter name="dependency for" type="string" value="myNspFact"> <Parameter name="Nullspace" type="string" value="myRebalanceProlongatorFact"> </ParameterList>

We have to create a new block (with a different name than myNspFact). In the example we use "myNspFactDeps". It should contain a parameter "dependency for" with the name of the factory that we want the dependencies to be addded to. With above block we do not need the entry for the Nullspace in the global FactoryManager any more.

Definition at line 2199 of file MueLu_ParameterListInterpreter_def.hpp.

Member Data Documentation

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

int MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::blockSize_

private

block size of matrix (fixed block size)

Definition at line 195 of file MueLu_ParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

CycleType MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Cycle_

private

multigrid cycle type (V-cycle or W-cycle)

Definition at line 196 of file MueLu_ParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

int MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::WCycleStartLevel_

private

in case of W-cycle, level on which cycle should start

Definition at line 197 of file MueLu_ParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

double MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::scalingFactor_

private

prolongator scaling factor

Definition at line 198 of file MueLu_ParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

GlobalOrdinal MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dofOffset_

private

global offset variable describing offset of DOFs in operator

Definition at line 199 of file MueLu_ParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

bool MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::changedPRrebalance_

private

Easy interpreter stuff.

Definition at line 204 of file MueLu_ParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

bool MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::changedImplicitTranspose_

private

Definition at line 205 of file MueLu_ParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

bool MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::useCoordinates_

private

Definition at line 245 of file MueLu_ParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

bool MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::useKokkos_

private

Definition at line 246 of file MueLu_ParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

Teuchos::RCP<FactoryFactory> MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::factFact_

private

Internal factory for factories.

Definition at line 266 of file MueLu_ParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

Teuchos::RCP<MueLu::FacadeClassFactory<Scalar, LocalOrdinal, GlobalOrdinal, Node> > MueLu::ParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::facadeFact_

private

FacadeClass factory.

Definition at line 269 of file MueLu_ParameterListInterpreter_decl.hpp.

---

The documentation for this class was generated from the following files:

• MueLu_ParameterListInterpreter_decl.hpp
• MueLu_ParameterListInterpreter_def.hpp
