Class that accepts ML-style parameters and builds a MueLu preconditioner. This interpreter uses the same default values as ML. This allows to compare ML/MueLu results. More...

#include <MueLu_MLParameterListInterpreter_decl.hpp>

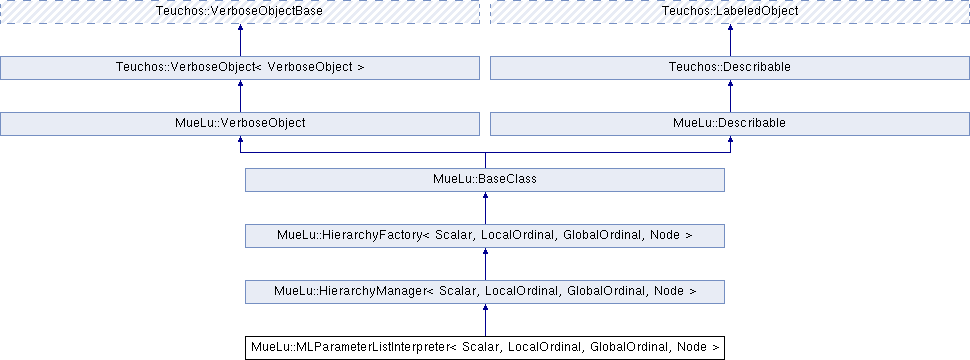

Inheritance diagram for MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Private Attributes
int	nullspaceDim_
	nullspace can be embedded in the ML parameter list More...

double *	nullspace_

double *	xcoord_
	coordinates can be embedded in the ML parameter list More...

double *	ycoord_

double *	zcoord_

std::vector< RCP< FactoryBase > >	TransferFacts_

Constructors/Destructors.
	MLParameterListInterpreter ()
	Constructor. More...

	MLParameterListInterpreter (Teuchos::ParameterList &paramList, Teuchos::RCP< const Teuchos::Comm< int > > comm=Teuchos::null, std::vector< RCP< FactoryBase > > factoryList=std::vector< RCP< FactoryBase > >(0))

	MLParameterListInterpreter (const std::string &xmlFileName, std::vector< RCP< FactoryBase > > factoryList=std::vector< RCP< FactoryBase > >(0))

virtual	~MLParameterListInterpreter ()
	Destructor. More...

void	SetParameterList (const Teuchos::ParameterList &paramList)

virtual void	SetupHierarchy (Hierarchy &H) const
	Setup Hierarchy object. More...

static helper functions translating parameter list to factories
static helper functions that also can be used from outside for translating ML parameters into MueLu objects
static RCP< SmootherFactory >	GetSmootherFactory (const Teuchos::ParameterList &paramList, const RCP< FactoryBase > &AFact=Teuchos::null)
	Read smoother options and build the corresponding smoother factory. More...

Handling of additional user-specific transfer factories
void	AddTransferFactory (const RCP< FactoryBase > &factory)
	Add transfer factory in the end of list of transfer factories for RAPFactory. More...

size_t	NumTransferFactories () const
	Returns number of transfer factories. More...

int	blksize_
	Matrix configuration storage. More...

virtual void	SetupOperator (Operator &Op) const
	Setup Operator object. More...

Additional Inherited Members
Public Types inherited from MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef std::map< std::string, RCP< const FactoryBase > >	FactoryMap

Public Member Functions inherited from MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node >
	HierarchyManager (int numDesiredLevel=MasterList::getDefault< int >("max levels"))

virtual	~HierarchyManager ()

void	AddFactoryManager (int startLevel, int numDesiredLevel, RCP< FactoryManagerBase > manager)

RCP< FactoryManagerBase >	GetFactoryManager (int levelID) const

size_t	getNumFactoryManagers () const
	returns number of factory managers stored in levelManagers_ vector. More...

void	CheckConfig ()

virtual RCP< Hierarchy >	CreateHierarchy () const
	Create an empty Hierarchy object. More...

virtual RCP< Hierarchy >	CreateHierarchy (const std::string &label) const
	Create a labeled empty Hierarchy object. More...

Public Member Functions inherited from MueLu::HierarchyFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual	~HierarchyFactory ()
	Destructor. More...

Public Member Functions inherited from MueLu::BaseClass
virtual	~BaseClass ()
	Destructor. More...

Public Member Functions inherited from MueLu::VerboseObject
VerbLevel	GetVerbLevel () const
	Get the verbosity level. More...

void	SetVerbLevel (const VerbLevel verbLevel)
	Set the verbosity level of this object. More...

int	GetProcRankVerbose () const
	Get proc rank used for printing. Do not use this information for any other purpose. More...

int	SetProcRankVerbose (int procRank) const
	Set proc rank used for printing. More...

bool	IsPrint (MsgType type, int thisProcRankOnly=-1) const
	Find out whether we need to print out information for a specific message type. More...

Teuchos::FancyOStream &	GetOStream (MsgType type, int thisProcRankOnly=0) const
	Get an output stream for outputting the input message type. More...

Teuchos::FancyOStream &	GetBlackHole () const

	VerboseObject ()

virtual	~VerboseObject ()
	Destructor. More...

Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
	VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObject &	setVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObject &	setOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel	getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT RCP< const ParameterList >	getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	readVerboseObjectSublist (ParameterList paramList, RCP< FancyOStream > oStream, EVerbosityLevel *verbLevel)

void	readVerboseObjectSublist (ParameterList paramList, VerboseObject< ObjectType > verboseObject)

Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual	~VerboseObjectBase ()

	VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBase &	setOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBase &	setOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBase &	setLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStream >	getOStream () const

virtual RCP< FancyOStream >	getOverridingOStream () const

virtual std::string	getLinePrefix () const

virtual OSTab	getOSTab (const int tabs=1, const std::string &linePrefix="") const

Public Member Functions inherited from MueLu::Describable
virtual	~Describable ()
	Destructor. More...

virtual std::string	ShortClassName () const
	Return the class name of the object, without template parameters and without namespace. More...

virtual void	describe (Teuchos::FancyOStream &out_arg, const VerbLevel verbLevel=Default) const

virtual std::string	description () const
	Return a simple one-line description of this object. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object. More...

Public Member Functions inherited from Teuchos::Describable
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Static Public Member Functions inherited from MueLu::VerboseObject
static void	SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static void	SetMueLuOFileStream (const std::string &filename)

static Teuchos::RCP < Teuchos::FancyOStream >	GetMueLuOStream ()

static void	SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
	Set the default (global) verbosity level. More...

static VerbLevel	GetDefaultVerbLevel ()
	Get the default (global) verbosity level. More...

Static Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
static void	setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel	getDefaultVerbLevel ()

Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void	setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStream >	getDefaultOStream ()

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Protected Member Functions inherited from MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual void	SetupExtra (Hierarchy &) const
	Setup extra data. More...

Teuchos::RCP< FactoryManagerBase >	LvlMngr (int levelID, int lastLevelID) const

Protected Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
void	initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

Protected Member Functions inherited from Teuchos::VerboseObjectBase
void	initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void	informUpdatedVerbosityState () const

Protected Attributes inherited from MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node >
int	numDesiredLevel_

Xpetra::global_size_t	maxCoarseSize_

MsgType	verbosity_

bool	doPRrebalance_

bool	implicitTranspose_

bool	fuseProlongationAndUpdate_

int	sizeOfMultiVectors_

int	graphOutputLevel_

Teuchos::Array< int >	matricesToPrint_

Teuchos::Array< int >	prolongatorsToPrint_

Teuchos::Array< int >	restrictorsToPrint_

Teuchos::Array< int >	nullspaceToPrint_

Teuchos::Array< int >	coordinatesToPrint_

Teuchos::Array< int >	elementToNodeMapsToPrint_

Teuchos::RCP < Teuchos::ParameterList >	matvecParams_

std::map< int, std::vector < keep_pair > >	keep_

Detailed Description

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>
class MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Class that accepts ML-style parameters and builds a MueLu preconditioner. This interpreter uses the same default values as ML. This allows to compare ML/MueLu results.

The parameter list is validated only if the package ML is available and parameter "ML validate parameter list" is true. TODO: A warning is issued if ML is not available

Definition at line 128 of file MueLu_MLParameterListInterpreter_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::MLParameterListInterpreter ( )

inline

Constructor.

Definition at line 137 of file MueLu_MLParameterListInterpreter_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::MLParameterListInterpreter	(	Teuchos::ParameterList &	paramList,
		Teuchos::RCP< const Teuchos::Comm< int > >	comm = `Teuchos::null`,
		std::vector< RCP< FactoryBase > >	factoryList = `std::vector<RCP<FactoryBase> >(0)`
	)

Constructor.

Parameters

	paramList,:	parameter list with ML parameters
[in]	comm	(RCP<Teuchos::Comm<int> >): Optional RCP of a Teuchos communicator (default: Teuchos::null)
	factoryList,:	vector with RCP of FactoryBase objects

The factories in factoryList allow the user to add user-specific factories to the MueLu Hierarchy. The idea is to be able to add some factories that write out some debug information etc. which are not handled by the ML Parameter List itself. See information about the RAPFactory::AddTransferFactory method, too!

Definition at line 126 of file MueLu_MLParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::MLParameterListInterpreter	(	const std::string &	xmlFileName,
		std::vector< RCP< FactoryBase > >	factoryList = `std::vector<RCP<FactoryBase> >(0)`
	)

Constructor.

Parameters

xmlFileName,:	file name for XML file with ML parameters
factoryList,:	vector with RCP of FactoryBase objects

The factories in factoryList allow the user to add user-specific factories to the MueLu Hierarchy. The idea is to be able to add some factories that write out some debug information etc. which are not handled by the ML Parameter List itself. See information about the RAPFactory::AddTransferFactory method, too!

Definition at line 145 of file MueLu_MLParameterListInterpreter_def.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

virtual MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~MLParameterListInterpreter ( )

inlinevirtual

Destructor.

Definition at line 159 of file MueLu_MLParameterListInterpreter_decl.hpp.

Member Function Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetParameterList ( const Teuchos::ParameterList & paramList )

Definition at line 151 of file MueLu_MLParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetupHierarchy ( Hierarchy & H ) const

virtual

Setup Hierarchy object.

Reimplemented from MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 564 of file MueLu_MLParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

RCP< MueLu::SmootherFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > > MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetSmootherFactory	(	const Teuchos::ParameterList &	paramList,
		const RCP< FactoryBase > &	AFact = `Teuchos::null`
	)

static

Read smoother options and build the corresponding smoother factory.

Definition at line 629 of file MueLu_MLParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::AddTransferFactory ( const RCP< FactoryBase > & factory )

Add transfer factory in the end of list of transfer factories for RAPFactory.

This allows the user to add user-specific factories to the MueLu Hierarchy. The idea is to be able to add some factories that write out some debug information etc. which are not handled by the ML Parameter List itself. See information about the RAPFactory::AddTransferFactory method, too!

Definition at line 765 of file MueLu_MLParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

size_t MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::NumTransferFactories ( ) const

Returns number of transfer factories.

Definition at line 772 of file MueLu_MLParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetupOperator ( Operator & Op ) const

privatevirtual

Setup Operator object.

Reimplemented from MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 777 of file MueLu_MLParameterListInterpreter_def.hpp.

Member Data Documentation

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

int MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::nullspaceDim_

private

nullspace can be embedded in the ML parameter list

Definition at line 206 of file MueLu_MLParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

double* MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::nullspace_

private

Definition at line 207 of file MueLu_MLParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

double* MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::xcoord_

private

coordinates can be embedded in the ML parameter list

Definition at line 210 of file MueLu_MLParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

double* MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ycoord_

private

Definition at line 211 of file MueLu_MLParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

double* MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::zcoord_

private

Definition at line 212 of file MueLu_MLParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

std::vector<RCP<FactoryBase> > MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TransferFacts_

private

list of user-defined transfer Factories We use this vector to add some special user-given factories to the Hierarchy (RAPFactory) This way the user can extend the standard functionality of the MLParameterListInterpreter beyond the capabibilities of ML.

Definition at line 218 of file MueLu_MLParameterListInterpreter_decl.hpp.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

int MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::blksize_

private

Matrix configuration storage.

Definition at line 226 of file MueLu_MLParameterListInterpreter_decl.hpp.

The documentation for this class was generated from the following files:

Private Attributes

Constructors/Destructors.

static helper functions translating parameter list to factories

Handling of additional user-specific transfer factories

Additional Inherited Members

Detailed Description

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode> class MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>
class MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >
