Thyra::DampenedNewtonNonlinearSolver< Scalar > Class Template Reference

Simple dampended Newton solver using a Armijo line search :-) More...

#include <Thyra_DampenedNewtonNonlinearSolver.hpp>

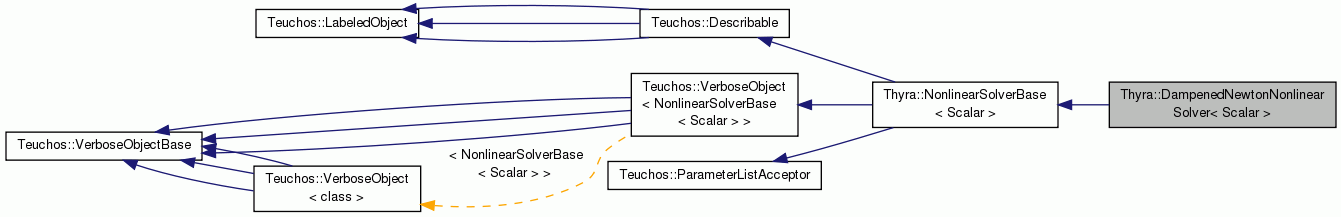

Inheritance diagram for Thyra::DampenedNewtonNonlinearSolver< Scalar >:
Inheritance graph
[legend]

Public Types

typedef Teuchos::ScalarTraits
< Scalar >
ST

typedef ST::magnitudeType ScalarMag

typedef Teuchos::ScalarTraits
< ScalarMag
SMT


Public Member Functions

 STANDARD_MEMBER_COMPOSITION_MEMBERS (ScalarMag, defaultTol)
 The default solution tolerance. More...

 STANDARD_MEMBER_COMPOSITION_MEMBERS (int, defaultMaxNewtonIterations)
 The default maximum number of iterations. More...

 STANDARD_MEMBER_COMPOSITION_MEMBERS (bool, useDampenedLineSearch)
 The default maximum number of iterations. More...

 STANDARD_MEMBER_COMPOSITION_MEMBERS (Scalar, armijoConstant)
 Set the armijo constant for the line search. More...

 STANDARD_MEMBER_COMPOSITION_MEMBERS (int, maxLineSearchIterations)
 Set the maximum number of backtracking line search iterations to take. More...

 DampenedNewtonNonlinearSolver (const ScalarMag defaultTol=1e-2, const int defaultMaxNewtonIterations=1000, const bool useDampenedLineSearch=true, const Scalar armijoConstant=1e-4, const int maxLineSearchIterations=20)

- Public Member Functions inherited from Thyra::NonlinearSolverBase< Scalar >
virtual bool supportsCloning () const
 Return if this solver object supports cloning or not. More...

virtual RCP
< NonlinearSolverBase< Scalar > >
cloneNonlinearSolver () const
 Clone the solver algorithm if supported. More...


Static Public Member Functions

static RCP< const
Teuchos::ParameterList
getValidSolveCriteriaExtraParameters ()


Overridden from ParameterListAcceptor

void setParameterList (RCP< Teuchos::ParameterList > const &paramList)

RCP< Teuchos::ParameterListgetNonconstParameterList ()

RCP< Teuchos::ParameterListunsetParameterList ()

RCP< const Teuchos::ParameterListgetParameterList () const

RCP< const Teuchos::ParameterListgetValidParameters () const


Overridden from NonlinearSolverBase

void setModel (const RCP< const ModelEvaluator< Scalar > > &model)

RCP< const ModelEvaluator
< Scalar > >
getModel () const

SolveStatus< Scalar > solve (VectorBase< Scalar > *x, const SolveCriteria< Scalar > *solveCriteria, VectorBase< Scalar > *delta)

RCP< const VectorBase< Scalar > > get_current_x () const

bool is_W_current () const

RCP< LinearOpWithSolveBase
< Scalar > >
get_nonconst_W (const bool forceUpToDate)

RCP< const
LinearOpWithSolveBase< Scalar > >
get_W () const

void set_W_is_current (bool W_is_current)


Additional Inherited Members

Detailed Description

template<class Scalar>
class Thyra::DampenedNewtonNonlinearSolver< Scalar >

Simple dampended Newton solver using a Armijo line search :-)

This class derives from Teuchos::VerboseObject and therefore will send output to *this->getOStream() if !Teuchos::isNull(this->getOStream()). The amount of output sent to *this->getOStream() depends on the verbosity level returned by this->getVerbLevel():

ToDo: Finish documentation.

Definition at line 80 of file Thyra_DampenedNewtonNonlinearSolver.hpp.

Member Typedef Documentation

template<class Scalar >
typedef Teuchos::ScalarTraits<Scalar> Thyra::DampenedNewtonNonlinearSolver< Scalar >::ST

Definition at line 84 of file Thyra_DampenedNewtonNonlinearSolver.hpp.

template<class Scalar >
typedef ST::magnitudeType Thyra::DampenedNewtonNonlinearSolver< Scalar >::ScalarMag

Definition at line 86 of file Thyra_DampenedNewtonNonlinearSolver.hpp.

template<class Scalar >
typedef Teuchos::ScalarTraits<ScalarMag> Thyra::DampenedNewtonNonlinearSolver< Scalar >::SMT

Definition at line 88 of file Thyra_DampenedNewtonNonlinearSolver.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Thyra::DampenedNewtonNonlinearSolver< Scalar >::DampenedNewtonNonlinearSolver ( const ScalarMag  defaultTol = 1e-2,
const int  defaultMaxNewtonIterations = 1000,
const bool  useDampenedLineSearch = true,
const Scalar  armijoConstant = 1e-4,
const int  maxLineSearchIterations = 20
)

Definition at line 176 of file Thyra_DampenedNewtonNonlinearSolver.hpp.

Member Function Documentation

template<class Scalar >
Thyra::DampenedNewtonNonlinearSolver< Scalar >::STANDARD_MEMBER_COMPOSITION_MEMBERS ( ScalarMag  ,
defaultTol
)

The default solution tolerance.

template<class Scalar >
Thyra::DampenedNewtonNonlinearSolver< Scalar >::STANDARD_MEMBER_COMPOSITION_MEMBERS ( int  ,
defaultMaxNewtonIterations
)

The default maximum number of iterations.

template<class Scalar >
Thyra::DampenedNewtonNonlinearSolver< Scalar >::STANDARD_MEMBER_COMPOSITION_MEMBERS ( bool  ,
useDampenedLineSearch
)

The default maximum number of iterations.

template<class Scalar >
Thyra::DampenedNewtonNonlinearSolver< Scalar >::STANDARD_MEMBER_COMPOSITION_MEMBERS ( Scalar  ,
armijoConstant
)

Set the armijo constant for the line search.

template<class Scalar >
Thyra::DampenedNewtonNonlinearSolver< Scalar >::STANDARD_MEMBER_COMPOSITION_MEMBERS ( int  ,
maxLineSearchIterations
)

Set the maximum number of backtracking line search iterations to take.

template<class Scalar >
RCP< const Teuchos::ParameterList > Thyra::DampenedNewtonNonlinearSolver< Scalar >::getValidSolveCriteriaExtraParameters ( )
static

Definition at line 193 of file Thyra_DampenedNewtonNonlinearSolver.hpp.

template<class Scalar >
void Thyra::DampenedNewtonNonlinearSolver< Scalar >::setParameterList ( RCP< Teuchos::ParameterList > const &  paramList)
virtual
template<class Scalar >
RCP< Teuchos::ParameterList > Thyra::DampenedNewtonNonlinearSolver< Scalar >::getNonconstParameterList ( )
virtual
template<class Scalar >
RCP< Teuchos::ParameterList > Thyra::DampenedNewtonNonlinearSolver< Scalar >::unsetParameterList ( )
virtual
template<class Scalar >
RCP< const Teuchos::ParameterList > Thyra::DampenedNewtonNonlinearSolver< Scalar >::getParameterList ( ) const
virtual

Reimplemented from Teuchos::ParameterListAcceptor.

Definition at line 241 of file Thyra_DampenedNewtonNonlinearSolver.hpp.

template<class Scalar >
RCP< const Teuchos::ParameterList > Thyra::DampenedNewtonNonlinearSolver< Scalar >::getValidParameters ( ) const
virtual

Reimplemented from Teuchos::ParameterListAcceptor.

Definition at line 248 of file Thyra_DampenedNewtonNonlinearSolver.hpp.

template<class Scalar >
void Thyra::DampenedNewtonNonlinearSolver< Scalar >::setModel ( const RCP< const ModelEvaluator< Scalar > > &  model)
virtual
template<class Scalar >
RCP< const ModelEvaluator< Scalar > > Thyra::DampenedNewtonNonlinearSolver< Scalar >::getModel ( ) const
virtual
template<class Scalar >
SolveStatus< Scalar > Thyra::DampenedNewtonNonlinearSolver< Scalar >::solve ( VectorBase< Scalar > *  x,
const SolveCriteria< Scalar > *  solveCriteria,
VectorBase< Scalar > *  delta
)
virtual
template<class Scalar >
RCP< const VectorBase< Scalar > > Thyra::DampenedNewtonNonlinearSolver< Scalar >::get_current_x ( ) const
virtual

Reimplemented from Thyra::NonlinearSolverBase< Scalar >.

Definition at line 490 of file Thyra_DampenedNewtonNonlinearSolver.hpp.

template<class Scalar >
bool Thyra::DampenedNewtonNonlinearSolver< Scalar >::is_W_current ( ) const
virtual

Reimplemented from Thyra::NonlinearSolverBase< Scalar >.

Definition at line 496 of file Thyra_DampenedNewtonNonlinearSolver.hpp.

template<class Scalar >
RCP< LinearOpWithSolveBase< Scalar > > Thyra::DampenedNewtonNonlinearSolver< Scalar >::get_nonconst_W ( const bool  forceUpToDate)
virtual

Reimplemented from Thyra::NonlinearSolverBase< Scalar >.

Definition at line 503 of file Thyra_DampenedNewtonNonlinearSolver.hpp.

template<class Scalar >
RCP< const LinearOpWithSolveBase< Scalar > > Thyra::DampenedNewtonNonlinearSolver< Scalar >::get_W ( ) const
virtual

Reimplemented from Thyra::NonlinearSolverBase< Scalar >.

Definition at line 513 of file Thyra_DampenedNewtonNonlinearSolver.hpp.

template<class Scalar >
void Thyra::DampenedNewtonNonlinearSolver< Scalar >::set_W_is_current ( bool  W_is_current)
virtual

Reimplemented from Thyra::NonlinearSolverBase< Scalar >.

Definition at line 519 of file Thyra_DampenedNewtonNonlinearSolver.hpp.


The documentation for this class was generated from the following file:
