Implicit subclass that takes a blocked triangular LOWB object and turns it into a LOWSB object. More...

#include <Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp>

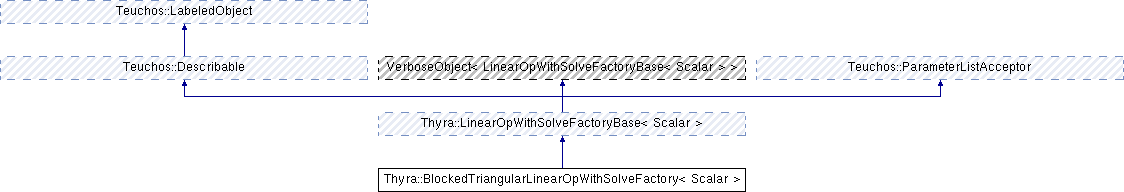

Inheritance diagram for Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >:

Private Types
typedef Teuchos::ConstNonconstObjectContainer < LinearOpWithSolveFactoryBase < Scalar > >	LOWSF_t

Private Member Functions
	BlockedTriangularLinearOpWithSolveFactory ()

Private Attributes
Array< LOWSF_t >	lowsf_

Related Functions
(Note that these are not member functions.)
template<class Scalar >
RCP < BlockedTriangularLinearOpWithSolveFactory < Scalar > >	blockedTriangularLinearOpWithSolveFactory (const Array< RCP< LinearOpWithSolveFactoryBase< Scalar > > > &lowsf)
	Nonmember constructor. More...

template<class Scalar >
RCP < BlockedTriangularLinearOpWithSolveFactory < Scalar > >	blockedTriangularLinearOpWithSolveFactory (const Array< RCP< const LinearOpWithSolveFactoryBase< Scalar > > > &lowsf)
	Nonmember constructor. More...

Overridden from Constructors/Initializers/Accessors
	BlockedTriangularLinearOpWithSolveFactory (const Array< RCP< LinearOpWithSolveFactoryBase< Scalar > > > &lowsf)
	Create given an array of non-const LOWSFB objects. More...

	BlockedTriangularLinearOpWithSolveFactory (const Array< RCP< const LinearOpWithSolveFactoryBase< Scalar > > > &lowsf)
	Create given an array of const LOWSFB objects. More...

Array< RCP < LinearOpWithSolveFactoryBase < Scalar > > >	getUnderlyingLOWSF ()

Array< RCP< const LinearOpWithSolveFactoryBase < Scalar > > >	getUnderlyingLOWSF () const

Overridden from Teuchos::Describable.
std::string	description () const

Overridden from ParameterListAcceptor (simple forwarding functions)
void	setParameterList (RCP< ParameterList > const &paramList)

RCP< ParameterList >	getNonconstParameterList ()

RCP< ParameterList >	unsetParameterList ()

RCP< const ParameterList >	getParameterList () const

RCP< const ParameterList >	getValidParameters () const

Overridden from LinearOpWithSolveFactoyBase
virtual bool	acceptsPreconditionerFactory () const
	returns false. More...

virtual void	setPreconditionerFactory (const RCP< PreconditionerFactoryBase< Scalar > > &precFactory, const std::string &precFactoryName)
	Throws exception. More...

virtual RCP < PreconditionerFactoryBase < Scalar > >	getPreconditionerFactory () const
	Returns null . More...

virtual void	unsetPreconditionerFactory (RCP< PreconditionerFactoryBase< Scalar > > precFactory, std::string precFactoryName)
	Throws exception. More...

virtual bool	isCompatible (const LinearOpSourceBase< Scalar > &fwdOpSrc) const

virtual RCP < LinearOpWithSolveBase < Scalar > >	createOp () const

virtual void	initializeOp (const RCP< const LinearOpSourceBase< Scalar > > &fwdOpSrc, LinearOpWithSolveBase< Scalar > *Op, const ESupportSolveUse supportSolveUse) const

virtual void	initializeAndReuseOp (const RCP< const LinearOpSourceBase< Scalar > > &fwdOpSrc, LinearOpWithSolveBase< Scalar > *Op) const

virtual void	uninitializeOp (LinearOpWithSolveBase< Scalar > Op, RCP< const LinearOpSourceBase< Scalar > > fwdOpSrc, RCP< const PreconditionerBase< Scalar > > prec, RCP< const LinearOpSourceBase< Scalar > > approxFwdOpSrc, ESupportSolveUse *supportSolveUse) const

virtual bool	supportsPreconditionerInputType (const EPreconditionerInputType precOpType) const

virtual void	initializePreconditionedOp (const RCP< const LinearOpSourceBase< Scalar > > &fwdOpSrc, const RCP< const PreconditionerBase< Scalar > > &prec, LinearOpWithSolveBase< Scalar > *Op, const ESupportSolveUse supportSolveUse) const

virtual void	initializeApproxPreconditionedOp (const RCP< const LinearOpSourceBase< Scalar > > &fwdOpSrc, const RCP< const LinearOpSourceBase< Scalar > > &approxFwdOpSrc, LinearOpWithSolveBase< Scalar > *Op, const ESupportSolveUse supportSolveUse) const

void	informUpdatedVerbosityState () const
	Overridden from Teuchos::VerboseObjectBase. More...

Additional Inherited Members
Public Member Functions inherited from Thyra::LinearOpWithSolveFactoryBase< Scalar >
bool	isCompatible (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const LinearOpBase< Scalar > &fwdOp)

void	setDefaultObjectLabel (const LinearOpBase< Scalar > &fwdOp, const Ptr< LinearOpWithSolveBase< Scalar > > &Op)

void	initializeOp (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const RCP< const LinearOpBase< Scalar > > &fwdOp, const Ptr< LinearOpWithSolveBase< Scalar > > &Op, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED)

void	initializeAndReuseOp (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const RCP< const LinearOpBase< Scalar > > &fwdOp, const Ptr< LinearOpWithSolveBase< Scalar > > &Op)

void	initializePreconditionedOp (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const RCP< const LinearOpBase< Scalar > > &fwdOp, const RCP< const PreconditionerBase< Scalar > > &prec, const Ptr< LinearOpWithSolveBase< Scalar > > &Op, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED)

void	initializeApproxPreconditionedOp (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const RCP< const LinearOpBase< Scalar > > &fwdOp, const RCP< const LinearOpBase< Scalar > > &approxFwdOp, const Ptr< LinearOpWithSolveBase< Scalar > > &Op, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED)

RCP< LinearOpWithSolveBase < Scalar > >	linearOpWithSolve (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const RCP< const LinearOpBase< Scalar > > &fwdOp, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED)

RCP< LinearOpBase< Scalar > >	inverse (const LinearOpWithSolveFactoryBase< Scalar > &LOWSF, const RCP< const LinearOpBase< Scalar > > &fwdOp, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED, const Ptr< const SolveCriteria< Scalar > > &fwdSolveCriteria=Teuchos::null, const EThrowOnSolveFailure throwOnFwdSolveFailure=THROW_ON_SOLVE_FAILURE, const Ptr< const SolveCriteria< Scalar > > &adjSolveCriteria=Teuchos::null, const EThrowOnSolveFailure throwOnAdjSolveFailure=THROW_ON_SOLVE_FAILURE)

void	uninitializeOp (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const Ptr< LinearOpWithSolveBase< Scalar > > &Op, const Ptr< RCP< const LinearOpBase< Scalar > > > &fwdOp=Teuchos::null, const Ptr< RCP< const PreconditionerBase< Scalar > > > &prec=Teuchos::null, const Ptr< RCP< const LinearOpBase< Scalar > > > &approxFwdOp=Teuchos::null, const Ptr< ESupportSolveUse > &supportSolveUse=Teuchos::null)

Public Member Functions inherited from Teuchos::Describable
virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Public Member Functions inherited from Teuchos::ParameterListAcceptor
virtual void	setParameterList (const RCP< ParameterList > &paramList)=0

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

template<class Scalar>
class Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >

Implicit subclass that takes a blocked triangular LOWB object and turns it into a LOWSB object.

This class takes any upper or lower triangular PhysicallyBlockedLinearOpBase object and compatible LinearOpWithSolveFactoryBase object(s) and creates a LOWSB version by creating LOWSB objects along the diagonal.

For example, consider the lower block triangular linear operator:

      [ M(0,0)                   ]
  M = [ M(1,0)   M(1,1)          ]
      [ M(2,0)   M(2,1)   M(2,2) ]

This class object will then create a new LOWSB object (of type DefaultBlockedTriangularLinearOpWithSolve) that looks like:

         [ invM(0,0)                       ]
  invM = [ M(1,0)     invM(1,1)            ]
         [ M(2,0)     M(2,1)     invM(2,2) ]

where invM(k,k) are LOWSB objects created from the LOB objects M(k,k) given a LOWSFB object.

This class is not very compliciated, see the function initializeOp() see what this class actually does!

Note, this is basically the same as DefaultBlockedTriangularLinearOpWithSolveFactory except this version allows you to set a different LOWSF for each diagonal block.

Definition at line 61 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

Member Typedef Documentation

template<class Scalar >

typedef Teuchos::ConstNonconstObjectContainer< LinearOpWithSolveFactoryBase<Scalar> > Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::LOWSF_t

private

Definition at line 187 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

Constructor & Destructor Documentation

template<class Scalar >

Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::BlockedTriangularLinearOpWithSolveFactory ( const Array< RCP< LinearOpWithSolveFactoryBase< Scalar > > > & lowsf )

Create given an array of non-const LOWSFB objects.

Parameters

lowsf [in,persisting] The LOWSFB objects that will be used to create the LOWSB objects for the diagonal blocks.

Preconditions:

!is_null(lowsf)

Definition at line 225 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::BlockedTriangularLinearOpWithSolveFactory ( const Array< RCP< const LinearOpWithSolveFactoryBase< Scalar > > > & lowsf )

Create given an array of const LOWSFB objects.

Parameters

lowsf [in,persisting] The LOWSFB objects that will be used to create the LOWSB objects for the diagonal blocks.

Preconditions:

!is_null(lowsf)

Definition at line 239 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::BlockedTriangularLinearOpWithSolveFactory ( )

private

Member Function Documentation

template<class Scalar >

Array< RCP< LinearOpWithSolveFactoryBase< Scalar > > > Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::getUnderlyingLOWSF ( )

Definition at line 253 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

Array< RCP< const LinearOpWithSolveFactoryBase< Scalar > > > Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::getUnderlyingLOWSF ( ) const

Definition at line 264 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

std::string Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::description ( ) const

virtual

Reimplemented from Teuchos::Describable.

Definition at line 276 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

void Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::setParameterList ( RCP< ParameterList > const & paramList )

Definition at line 297 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

RCP< ParameterList > Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::getNonconstParameterList ( )

virtual

Implements Teuchos::ParameterListAcceptor.

Definition at line 307 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

RCP< ParameterList > Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::unsetParameterList ( )

virtual

Implements Teuchos::ParameterListAcceptor.

Definition at line 314 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

RCP< const ParameterList > Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::getParameterList ( ) const

virtual

Reimplemented from Teuchos::ParameterListAcceptor.

Definition at line 325 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

RCP< const ParameterList > Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::getValidParameters ( ) const

virtual

Reimplemented from Teuchos::ParameterListAcceptor.

Definition at line 332 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

bool Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::acceptsPreconditionerFactory ( ) const

virtual

returns false.

Reimplemented from Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 341 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

void Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::setPreconditionerFactory	(	const RCP< PreconditionerFactoryBase< Scalar > > &	precFactory,
		const std::string &	precFactoryName
	)

virtual

Throws exception.

Reimplemented from Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 348 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

RCP< PreconditionerFactoryBase< Scalar > > Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::getPreconditionerFactory ( ) const

virtual

Returns null .

Reimplemented from Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 360 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

void Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::unsetPreconditionerFactory	(	RCP< PreconditionerFactoryBase< Scalar > > *	precFactory,
		std::string *	precFactoryName
	)

virtual

Throws exception.

Reimplemented from Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 368 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

bool Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::isCompatible ( const LinearOpSourceBase< Scalar > & fwdOpSrc ) const

virtual

Implements Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 379 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

RCP< LinearOpWithSolveBase< Scalar > > Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::createOp ( ) const

virtual

Implements Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 389 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

void Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::initializeOp	(	const RCP< const LinearOpSourceBase< Scalar > > &	fwdOpSrc,
		LinearOpWithSolveBase< Scalar > *	Op,
		const ESupportSolveUse	supportSolveUse
	)		const

virtual

Implements Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 395 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

void Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::initializeAndReuseOp	(	const RCP< const LinearOpSourceBase< Scalar > > &	fwdOpSrc,
		LinearOpWithSolveBase< Scalar > *	Op
	)		const

virtual

Reimplemented from Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 471 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

void Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::uninitializeOp	(	LinearOpWithSolveBase< Scalar > *	Op,
		RCP< const LinearOpSourceBase< Scalar > > *	fwdOpSrc,
		RCP< const PreconditionerBase< Scalar > > *	prec,
		RCP< const LinearOpSourceBase< Scalar > > *	approxFwdOpSrc,
		ESupportSolveUse *	supportSolveUse
	)		const

virtual

Implements Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 480 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

bool Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::supportsPreconditionerInputType ( const EPreconditionerInputType precOpType ) const

virtual

Reimplemented from Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 507 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

void Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::initializePreconditionedOp	(	const RCP< const LinearOpSourceBase< Scalar > > &	fwdOpSrc,
		const RCP< const PreconditionerBase< Scalar > > &	prec,
		LinearOpWithSolveBase< Scalar > *	Op,
		const ESupportSolveUse	supportSolveUse
	)		const

virtual

Reimplemented from Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 521 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

void Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::initializeApproxPreconditionedOp	(	const RCP< const LinearOpSourceBase< Scalar > > &	fwdOpSrc,
		const RCP< const LinearOpSourceBase< Scalar > > &	approxFwdOpSrc,
		LinearOpWithSolveBase< Scalar > *	Op,
		const ESupportSolveUse	supportSolveUse
	)		const

virtual

Reimplemented from Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 535 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

void Thyra::BlockedTriangularLinearOpWithSolveFactory< Scalar >::informUpdatedVerbosityState ( ) const

protected

Overridden from Teuchos::VerboseObjectBase.

Definition at line 551 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

Friends And Related Function Documentation

template<class Scalar >

RCP< BlockedTriangularLinearOpWithSolveFactory< Scalar > > blockedTriangularLinearOpWithSolveFactory ( const Array< RCP< LinearOpWithSolveFactoryBase< Scalar > > > & lowsf )

Definition at line 201 of file Thyra_BlockedTriangularLinearOpWithSolveFactory.hpp.

template<class Scalar >

RCP< BlockedTriangularLinearOpWithSolveFactory< Scalar > > blockedTriangularLinearOpWithSolveFactory ( const Array< RCP< const LinearOpWithSolveFactoryBase< Scalar > > > & lowsf )
