Tempus_Test::SinCosModelAdjoint< Scalar > Class Template Reference

Non-member constructor. More...

#include <SinCosModel_decl.hpp>

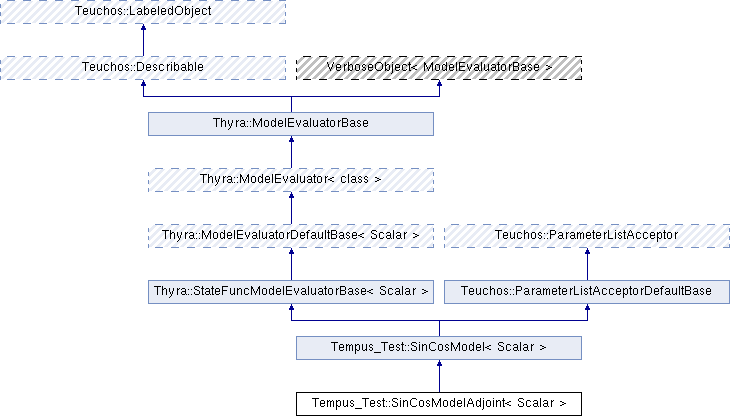

Inheritance diagram for Tempus_Test::SinCosModelAdjoint< Scalar >:
Tempus_Test::SinCosModel< Scalar > Thyra::StateFuncModelEvaluatorBase< Scalar > Teuchos::ParameterListAcceptorDefaultBase Thyra::ModelEvaluatorDefaultBase< Scalar > Teuchos::ParameterListAcceptor Thyra::ModelEvaluator< class > Thyra::ModelEvaluatorBase Teuchos::Describable Teuchos::LabeledObject

Public Member Functions

 SinCosModelAdjoint (Teuchos::RCP< Teuchos::ParameterList > pList=Teuchos::null)

- Public Member Functions inherited from Tempus_Test::SinCosModel< Scalar >
 SinCosModel (Teuchos::RCP< Teuchos::ParameterList > pList=Teuchos::null)

Thyra::ModelEvaluatorBase::InArgs
< Scalar >
getExactSolution (double t) const

Thyra::ModelEvaluatorBase::InArgs
< Scalar >
getExactSensSolution (int j, double t) const

Teuchos::RCP< const
Thyra::VectorSpaceBase< Scalar > >
get_x_space () const

Teuchos::RCP< const
Thyra::VectorSpaceBase< Scalar > >
get_f_space () const

Thyra::ModelEvaluatorBase::InArgs
< Scalar >
getNominalValues () const

Teuchos::RCP< const
Thyra::LinearOpWithSolveFactoryBase
< Scalar > >
get_W_factory () const

Teuchos::RCP< const
Thyra::VectorSpaceBase< Scalar > >
get_p_space (int l) const

Teuchos::RCP< const
Teuchos::Array< std::string > >
get_p_names (int l) const

Teuchos::RCP< const
Thyra::VectorSpaceBase< Scalar > >
get_g_space (int j) const

void setParameterList (Teuchos::RCP< Teuchos::ParameterList > const &paramList)

Teuchos::RCP< const
Teuchos::ParameterList
getValidParameters () const

- Public Member Functions inherited from Thyra::StateFuncModelEvaluatorBase< Scalar >
RCP< const VectorSpaceBase
< Scalar > >
get_p_space (int l) const

RCP< const Teuchos::Array
< std::string > >
get_p_names (int l) const

RCP< const VectorSpaceBase
< Scalar > >
get_g_space (int j) const

Teuchos::ArrayView< const
std::string >
get_g_names (int j) const

ModelEvaluatorBase::InArgs
< Scalar >
getNominalValues () const

ModelEvaluatorBase::InArgs
< Scalar >
getLowerBounds () const

ModelEvaluatorBase::InArgs
< Scalar >
getUpperBounds () const

RCP< LinearOpBase< Scalar > > create_W_op () const

RCP< PreconditionerBase< Scalar > > create_W_prec () const

RCP< const
LinearOpWithSolveFactoryBase
< Scalar > >
get_W_factory () const

void reportFinalPoint (const ModelEvaluatorBase::InArgs< Scalar > &finalPoint, const bool wasSolved)

- Public Member Functions inherited from Thyra::ModelEvaluator< class >
virtual int Np () const =0

virtual int Ng () const =0

virtual RCP< const
VectorSpaceBase< Scalar > >
get_f_multiplier_space () const =0

virtual RCP< const
VectorSpaceBase< Scalar > >
get_g_multiplier_space (int j) const =0

virtual RCP< LinearOpBase
< Scalar > >
create_DfDp_op (int l) const =0

virtual RCP< LinearOpBase
< Scalar > >
create_DgDx_dot_op (int j) const =0

virtual RCP< LinearOpBase
< Scalar > >
create_DgDx_op (int j) const =0

virtual RCP< LinearOpBase
< Scalar > >
create_DgDp_op (int j, int l) const =0

virtual
ModelEvaluatorBase::OutArgs
< Scalar >
createOutArgs () const =0

virtual void evalModel (const ModelEvaluatorBase::InArgs< Scalar > &inArgs, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs) const =0

 ModelEvaluatorBase ()

std::string toString (ModelEvaluatorBase::EInArgsMembers)

std::string toString (ModelEvaluatorBase::EOutArgsMembers)

std::string toString (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

ModelEvaluatorBase::EDerivativeMultiVectorOrientation getOtherDerivativeMultiVectorOrientation (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

- Public Member Functions inherited from Teuchos::Describable
virtual std::string description () const

virtual void describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Public Member Functions inherited from Teuchos::ParameterListAcceptorDefaultBase
RCP< ParameterListgetNonconstParameterList ()

RCP< ParameterListunsetParameterList ()

RCP< const ParameterListgetParameterList () const


Public functions overridden from ModelEvaluator.

Thyra::ModelEvaluatorBase::InArgs
< Scalar >
createInArgs () const

Teuchos::RCP
< Thyra::LinearOpWithSolveBase
< Scalar > >
create_W () const

Teuchos::RCP
< Thyra::LinearOpBase< Scalar > >
create_W_op () const


Private functions overridden from ModelEvaluatorDefaultBase.

Thyra::ModelEvaluatorBase::OutArgs
< Scalar >
createOutArgsImpl () const

void evalModelImpl (const Thyra::ModelEvaluatorBase::InArgs< Scalar > &inArgs_bar, const Thyra::ModelEvaluatorBase::OutArgs< Scalar > &outArgs_bar) const


Additional Inherited Members

- Public Types inherited from Thyra::ModelEvaluator< class >
enum  EInArgsMembers

enum  EInArgs_p_mp

enum  EEvalType

enum  EDerivativeMultiVectorOrientation

enum  EDerivativeLinearOp

enum  EDerivativeLinearity

enum  ERankStatus

enum  EOutArgsMembers

enum  EOutArgsDfDp

enum  EOutArgsDgDx_dot

enum  EOutArgsDgDx

enum  EOutArgsDgDp

enum  EOutArgsDfDp_mp

enum  EOutArgs_g_mp

enum  EOutArgsDgDx_dot_mp

enum  EOutArgsDgDx_mp

enum  EOutArgsDgDp_mp

typedef Teuchos::ScalarTraits
< Scalar >::magnitudeType
ScalarMag

- Static Public Attributes inherited from Thyra::ModelEvaluator< class >
static const int NUM_E_IN_ARGS_MEMBERS

static const int NUM_E_OUT_ARGS_MEMBERS

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default

- Protected Member Functions inherited from Teuchos::ParameterListAcceptorDefaultBase
void setMyParamList (const RCP< ParameterList > &paramList)

RCP< ParameterListgetMyNonconstParamList ()

RCP< const ParameterListgetMyParamList () const

- Protected Attributes inherited from Tempus_Test::SinCosModel< Scalar >
int dim_
 Number of state unknowns (2) More...

int Np_
 Number of parameter vectors (1) More...

int np_
 Number of parameters in this vector (2) More...

int Ng_
 Number of observation functions (1) More...

int ng_
 Number of elements in this observation function (1) More...

bool haveIC_
 false => no nominal values are provided (default=true) More...

bool acceptModelParams_
 Changes inArgs to require parameters. More...

bool useDfDpAsTangent_
 Treat DfDp OutArg as tangent (df/dx*dx/dp+df/dp) More...

bool isInitialized_

Thyra::ModelEvaluatorBase::InArgs
< Scalar >
inArgs_

Thyra::ModelEvaluatorBase::OutArgs
< Scalar >
outArgs_

Thyra::ModelEvaluatorBase::InArgs
< Scalar >
nominalValues_

Teuchos::RCP< const
Thyra::VectorSpaceBase< Scalar > >
x_space_

Teuchos::RCP< const
Thyra::VectorSpaceBase< Scalar > >
f_space_

Teuchos::RCP< const
Thyra::VectorSpaceBase< Scalar > >
p_space_

Teuchos::RCP< const
Thyra::VectorSpaceBase< Scalar > >
g_space_

Teuchos::RCP< const
Thyra::VectorSpaceBase< Scalar > >
DxDp_space_

Scalar a_
 Model parameter. More...

Scalar f_
 Model parameter. More...

Scalar L_
 Model parameter. More...

Scalar phi_
 Parameter determined from the IC. More...

Scalar b_
 Parameter determined from the IC. More...

Scalar t0_ic_
 Time value where the initial condition is specified. More...

Scalar x0_ic_
 Initial condition for x0. More...

Scalar x1_ic_
 Initial condition for x1. More...


Detailed Description

template<class Scalar>
class Tempus_Test::SinCosModelAdjoint< Scalar >

Non-member constructor.

Adjoint for SinCosModel

This model evaluator modifies evalModel() to compute the adjoint operator instead of the forward operator.

Definition at line 204 of file SinCosModel_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Tempus_Test::SinCosModelAdjoint< Scalar >::SinCosModelAdjoint ( Teuchos::RCP< Teuchos::ParameterList pList = Teuchos::null)
inline

Definition at line 207 of file SinCosModel_decl.hpp.

Member Function Documentation

template<class Scalar >
Thyra::ModelEvaluatorBase::InArgs< Scalar > Tempus_Test::SinCosModelAdjoint< Scalar >::createInArgs ( ) const
virtual

Reimplemented from Tempus_Test::SinCosModel< Scalar >.

Definition at line 667 of file SinCosModel_impl.hpp.

template<class Scalar >
Teuchos::RCP< Thyra::LinearOpWithSolveBase< Scalar > > Tempus_Test::SinCosModelAdjoint< Scalar >::create_W ( ) const
virtual

Reimplemented from Tempus_Test::SinCosModel< Scalar >.

Definition at line 620 of file SinCosModel_impl.hpp.

template<class Scalar >
Teuchos::RCP< Thyra::LinearOpBase< Scalar > > Tempus_Test::SinCosModelAdjoint< Scalar >::create_W_op ( ) const
virtual

Reimplemented from Tempus_Test::SinCosModel< Scalar >.

Definition at line 658 of file SinCosModel_impl.hpp.

template<class Scalar >
Thyra::ModelEvaluatorBase::OutArgs< Scalar > Tempus_Test::SinCosModelAdjoint< Scalar >::createOutArgsImpl ( ) const
private

Definition at line 682 of file SinCosModel_impl.hpp.

template<class Scalar >
void Tempus_Test::SinCosModelAdjoint< Scalar >::evalModelImpl ( const Thyra::ModelEvaluatorBase::InArgs< Scalar > &  inArgs_bar,
const Thyra::ModelEvaluatorBase::OutArgs< Scalar > &  outArgs_bar
) const
private

Definition at line 695 of file SinCosModel_impl.hpp.


The documentation for this class was generated from the following files:
