ModelEvaluator pair for implicit and explicit (IMEX) evaulations. More...

#include <Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_decl.hpp>

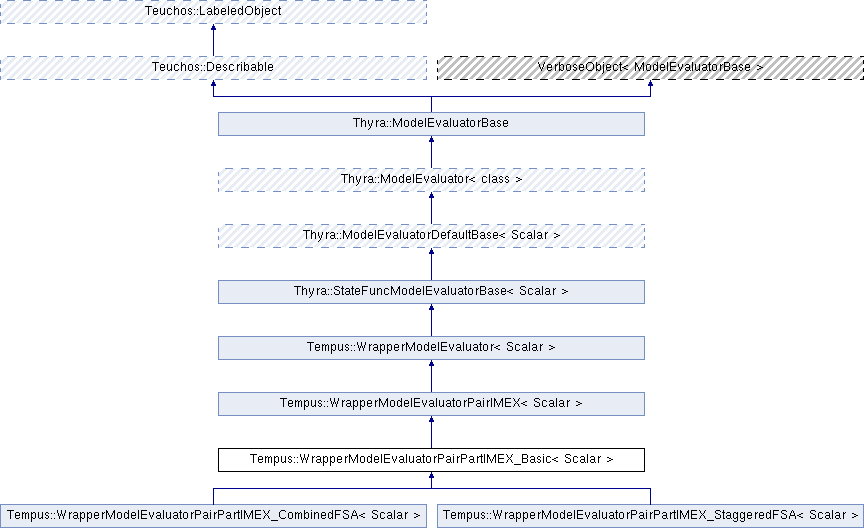

Inheritance diagram for Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >:

Public Member Functions
	WrapperModelEvaluatorPairPartIMEX_Basic ()

	WrapperModelEvaluatorPairPartIMEX_Basic (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &explicitModel, const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &implicitModel, int numExplicitOnlyBlocks=0, int parameterIndex=-1)
	Constructor. More...

virtual	~WrapperModelEvaluatorPairPartIMEX_Basic ()
	Destructor. More...

virtual void	initialize ()
	Initialize after setting member data. More...

Public Member Functions inherited from Tempus::WrapperModelEvaluatorPairIMEX< Scalar >
Public Member Functions inherited from Tempus::WrapperModelEvaluator< Scalar >
Public Member Functions inherited from Thyra::StateFuncModelEvaluatorBase< Scalar >
RCP< const VectorSpaceBase < Scalar > >	get_p_space (int l) const

RCP< const Teuchos::Array < std::string > >	get_p_names (int l) const

RCP< const VectorSpaceBase < Scalar > >	get_g_space (int j) const

Teuchos::ArrayView< const std::string >	get_g_names (int j) const

ModelEvaluatorBase::InArgs < Scalar >	getNominalValues () const

ModelEvaluatorBase::InArgs < Scalar >	getLowerBounds () const

ModelEvaluatorBase::InArgs < Scalar >	getUpperBounds () const

RCP< LinearOpBase< Scalar > >	create_W_op () const

RCP< PreconditionerBase< Scalar > >	create_W_prec () const

RCP< const LinearOpWithSolveFactoryBase < Scalar > >	get_W_factory () const

void	reportFinalPoint (const ModelEvaluatorBase::InArgs< Scalar > &finalPoint, const bool wasSolved)

Public Member Functions inherited from Thyra::ModelEvaluator< class >
virtual int	Np () const =0

virtual int	Ng () const =0

virtual RCP< const VectorSpaceBase< Scalar > >	get_f_multiplier_space () const =0

virtual RCP< const VectorSpaceBase< Scalar > >	get_g_multiplier_space (int j) const =0

virtual RCP < LinearOpWithSolveBase < Scalar > >	create_W () const =0

virtual RCP< LinearOpBase < Scalar > >	create_DfDp_op (int l) const =0

virtual RCP< LinearOpBase < Scalar > >	create_DgDx_dot_op (int j) const =0

virtual RCP< LinearOpBase < Scalar > >	create_DgDx_op (int j) const =0

virtual RCP< LinearOpBase < Scalar > >	create_DgDp_op (int j, int l) const =0

virtual ModelEvaluatorBase::OutArgs < Scalar >	createOutArgs () const =0

virtual void	evalModel (const ModelEvaluatorBase::InArgs< Scalar > &inArgs, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs) const =0

	ModelEvaluatorBase ()

std::string	toString (ModelEvaluatorBase::EInArgsMembers)

std::string	toString (ModelEvaluatorBase::EOutArgsMembers)

std::string	toString (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

ModelEvaluatorBase::EDerivativeMultiVectorOrientation	getOtherDerivativeMultiVectorOrientation (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

Public Member Functions inherited from Teuchos::Describable
virtual std::string	description () const

virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Protected Member Functions
void	setup (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &explicitModel, const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &implicitModel, int numExplicitOnlyBlocks=0, int parameterIndex=-1)
	Setup ME when using default constructor – for derived classes. More...

Protected Attributes
Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	explicitModel_

Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	implicitModel_

Teuchos::RCP< TimeDerivative < Scalar > >	timeDer_

Thyra::ModelEvaluatorBase::InArgs < Scalar >	wrapperImplicitInArgs_

Thyra::ModelEvaluatorBase::OutArgs < Scalar >	wrapperImplicitOutArgs_

int	numExplicitOnlyBlocks_

int	parameterIndex_
	implicit parameter index for explicit-only vector More...

bool	useImplicitModel_
	if true, use implicitModel_ else explicitModel_ More...

Overridden from Tempus::WrapperModelEvaluatorPairIMEX
virtual void	setAppModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &me)
	Set the underlying application ModelEvaluator. More...

virtual Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	getAppModel () const
	Get the underlying application ModelEvaluator. More...

virtual Thyra::ModelEvaluatorBase::InArgs < Scalar >	getInArgs ()
	Get InArgs the wrapper ModelEvalutor. More...

virtual Thyra::ModelEvaluatorBase::OutArgs < Scalar >	getOutArgs ()
	Get OutArgs the wrapper ModelEvalutor. More...

void	setForSolve (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &y=Teuchos::null, const int index=-1)
	Set parameters for application implicit ModelEvaluator solve. More...

Methods that apply to both explicit and implicit terms.
virtual Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > >	get_x_space () const
	Get the x-solution space. More...

virtual Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > >	get_g_space (int i) const
	Get the g space. More...

virtual Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > >	get_p_space (int i) const
	Get the p space. More...

virtual void	setNumExplicitOnlyBlocks (int numExp)

virtual void	setExplicitModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model)

virtual void	setImplicitModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model)

virtual Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	getExplicitModel () const

virtual Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	getImplicitModel () const

virtual int	getNumExplicitOnlyBlocks () const

virtual Teuchos::RCP < Thyra::VectorBase< Scalar > >	getIMEXVector (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &full) const
	Extract IMEX vector from a full solution vector. More...

virtual Teuchos::RCP< const Thyra::VectorBase< Scalar > >	getIMEXVector (const Teuchos::RCP< const Thyra::VectorBase< Scalar > > &full) const
	Extract IMEX vector for reading. More...

virtual Teuchos::RCP < Thyra::VectorBase< Scalar > >	getExplicitOnlyVector (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &full) const
	Extract explicit-only vector from a full solution vector. More...

virtual Teuchos::RCP< const Thyra::VectorBase< Scalar > >	getExplicitOnlyVector (const Teuchos::RCP< const Thyra::VectorBase< Scalar > > &full) const
	Extract explicit-only vector for reading. More...

virtual void	setParameterIndex (int parameterIndex=-1)
	Set the parameter index for explicit-only vector. More...

virtual int	getParameterIndex () const
	Get the parameter index for explicit-only vector. More...

virtual void	setUseImplicitModel (bool tf)

virtual bool	getUseImplicitModel () const

Overridden from Thyra::StateFuncModelEvaluatorBase
virtual Teuchos::RCP < Thyra::LinearOpBase< Scalar > >	create_W_op () const

Teuchos::RCP< const Thyra::LinearOpWithSolveFactoryBase < Scalar > >	get_W_factory () const

virtual Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > >	get_f_space () const

virtual Thyra::ModelEvaluatorBase::InArgs < Scalar >	getNominalValues () const

virtual Thyra::ModelEvaluatorBase::InArgs < Scalar >	createInArgs () const

virtual Thyra::ModelEvaluatorBase::OutArgs < Scalar >	createOutArgsImpl () const

virtual void	evalModelImpl (const Thyra::ModelEvaluatorBase::InArgs< Scalar > &in, const Thyra::ModelEvaluatorBase::OutArgs< Scalar > &out) const

Additional Inherited Members
Public Types inherited from Thyra::ModelEvaluator< class >
enum	EInArgsMembers

enum	EInArgs_p_mp

enum	EEvalType

enum	EDerivativeMultiVectorOrientation

enum	EDerivativeLinearOp

enum	EDerivativeLinearity

enum	ERankStatus

enum	EOutArgsMembers

enum	EOutArgsDfDp

enum	EOutArgsDgDx_dot

enum	EOutArgsDgDx

enum	EOutArgsDgDp

enum	EOutArgsDfDp_mp

enum	EOutArgs_g_mp

enum	EOutArgsDgDx_dot_mp

enum	EOutArgsDgDx_mp

enum	EOutArgsDgDp_mp

typedef Teuchos::ScalarTraits < Scalar >::magnitudeType	ScalarMag

Static Public Attributes inherited from Thyra::ModelEvaluator< class >
static const int	NUM_E_IN_ARGS_MEMBERS

static const int	NUM_E_OUT_ARGS_MEMBERS

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

template<typename Scalar>
class Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >

ModelEvaluator pair for implicit and explicit (IMEX) evaulations.

All functions called on WrapperModelEvaluatorPairPartIMEX_Basic will call the same function on the implicit Model Evaluator. This was selected because the WrapperModelEvaluatorPairPartIMEX_Basic will be passed to the solvers which in turn make calls to solve the implicit ODE.

If the explicit version of the Model Evaluator functions are needed, one should directly call it through the explicit Model Evaluator, e.g., getExplicitModel()->get_x_space().

The one exception to this rule is for getNominalValues(), which is controlled by implicitNominalValues. During the Integrator initialization this->getNominalValues needs to return explicitModel_->getNominalValues() [implicitNominalValues=false is the default], but during the nonlinear solves this->getNominalValues needs to return implicitModel_->getNominalValues() [implicitNominalValues=true].

Definition at line 37 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_decl.hpp.

Constructor & Destructor Documentation

template<typename Scalar >

Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::WrapperModelEvaluatorPairPartIMEX_Basic ( )

Default constructor – Still requires setting the models and running initialize.

Definition at line 19 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::WrapperModelEvaluatorPairPartIMEX_Basic	(	const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &	explicitModel,
		const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &	implicitModel,
		int	numExplicitOnlyBlocks = `0`,
		int	parameterIndex = `-1`
	)

Constructor.

Definition at line 29 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

virtual Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::~WrapperModelEvaluatorPairPartIMEX_Basic ( )

inlinevirtual

Destructor.

Definition at line 51 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_decl.hpp.

Member Function Documentation

template<typename Scalar >

void Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::initialize ( )

virtual

Initialize after setting member data.

Implements Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

Reimplemented in Tempus::WrapperModelEvaluatorPairPartIMEX_StaggeredFSA< Scalar >, and Tempus::WrapperModelEvaluatorPairPartIMEX_CombinedFSA< Scalar >.

Definition at line 61 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

void Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::setAppModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > & me )

virtual

Set the underlying application ModelEvaluator.

Implements Tempus::WrapperModelEvaluator< Scalar >.

Definition at line 107 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::getAppModel ( ) const

virtual

Get the underlying application ModelEvaluator.

Implements Tempus::WrapperModelEvaluator< Scalar >.

Definition at line 120 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

virtual Thyra::ModelEvaluatorBase::InArgs<Scalar> Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::getInArgs ( )

inlinevirtual

Get InArgs the wrapper ModelEvalutor.

Definition at line 64 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_decl.hpp.

template<typename Scalar >

virtual Thyra::ModelEvaluatorBase::OutArgs<Scalar> Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::getOutArgs ( )

inlinevirtual

Get OutArgs the wrapper ModelEvalutor.

Definition at line 70 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_decl.hpp.

template<typename Scalar >

void Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::setForSolve	(	const Teuchos::RCP< Thyra::VectorBase< Scalar > > &	x,
		const Teuchos::RCP< Thyra::VectorBase< Scalar > > &	xDot,
		const Scalar	time,
		const Teuchos::RCP< ImplicitODEParameters< Scalar > > &	p,
		const Teuchos::RCP< Thyra::VectorBase< Scalar > > &	y = `Teuchos::null`,
		const int	index = `-1`
	)

inlinevirtual

Set parameters for application implicit ModelEvaluator solve.

Implements Tempus::WrapperModelEvaluator< Scalar >.

Definition at line 76 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_decl.hpp.

template<typename Scalar >

Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > > Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::get_x_space ( ) const

virtual

Get the x-solution space.

Implements Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

Definition at line 132 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > > Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::get_g_space ( int i ) const

virtual

Get the g space.

Implements Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

Definition at line 141 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > > Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::get_p_space ( int i ) const

virtual

Get the p space.

Implements Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

Reimplemented in Tempus::WrapperModelEvaluatorPairPartIMEX_StaggeredFSA< Scalar >, and Tempus::WrapperModelEvaluatorPairPartIMEX_CombinedFSA< Scalar >.

Definition at line 150 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

virtual void Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::setNumExplicitOnlyBlocks ( int numExp )

inlinevirtual

Definition at line 123 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_decl.hpp.

template<typename Scalar >

virtual void Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::setExplicitModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > & model )

inlinevirtual

Implements Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

Definition at line 127 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_decl.hpp.

template<typename Scalar >

void Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::setImplicitModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > & model )

virtual

Implements Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

Definition at line 158 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

virtual Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::getExplicitModel ( ) const

inlinevirtual

Implements Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

Definition at line 134 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_decl.hpp.

template<typename Scalar >

virtual Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::getImplicitModel ( ) const

inlinevirtual

Implements Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

Definition at line 139 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_decl.hpp.

template<typename Scalar >

virtual int Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::getNumExplicitOnlyBlocks ( ) const

inlinevirtual

Definition at line 144 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_decl.hpp.

template<typename Scalar >

Teuchos::RCP< Thyra::VectorBase< Scalar > > Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::getIMEXVector ( const Teuchos::RCP< Thyra::VectorBase< Scalar > > & full ) const

virtual

Extract IMEX vector from a full solution vector.

Reimplemented in Tempus::WrapperModelEvaluatorPairPartIMEX_StaggeredFSA< Scalar >, and Tempus::WrapperModelEvaluatorPairPartIMEX_CombinedFSA< Scalar >.

Definition at line 166 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

Teuchos::RCP< const Thyra::VectorBase< Scalar > > Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::getIMEXVector ( const Teuchos::RCP< const Thyra::VectorBase< Scalar > > & full ) const

virtual

Extract IMEX vector for reading.

Reimplemented in Tempus::WrapperModelEvaluatorPairPartIMEX_StaggeredFSA< Scalar >, and Tempus::WrapperModelEvaluatorPairPartIMEX_CombinedFSA< Scalar >.

Definition at line 204 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

Teuchos::RCP< Thyra::VectorBase< Scalar > > Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::getExplicitOnlyVector ( const Teuchos::RCP< Thyra::VectorBase< Scalar > > & full ) const

virtual

Extract explicit-only vector from a full solution vector.

Reimplemented in Tempus::WrapperModelEvaluatorPairPartIMEX_StaggeredFSA< Scalar >, and Tempus::WrapperModelEvaluatorPairPartIMEX_CombinedFSA< Scalar >.

Definition at line 244 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

Teuchos::RCP< const Thyra::VectorBase< Scalar > > Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::getExplicitOnlyVector ( const Teuchos::RCP< const Thyra::VectorBase< Scalar > > & full ) const

virtual

Extract explicit-only vector for reading.

Reimplemented in Tempus::WrapperModelEvaluatorPairPartIMEX_StaggeredFSA< Scalar >, and Tempus::WrapperModelEvaluatorPairPartIMEX_CombinedFSA< Scalar >.

Definition at line 278 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

void Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::setParameterIndex ( int parameterIndex = -1 )

virtual

Set the parameter index for explicit-only vector.

Definition at line 311 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

virtual int Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::getParameterIndex ( ) const

inlinevirtual

Get the parameter index for explicit-only vector.

Definition at line 168 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_decl.hpp.

template<typename Scalar >

virtual void Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::setUseImplicitModel ( bool tf )

inlinevirtual

Set parameter to switch wrapperME base functions between explicit and implicit functions.

Definition at line 172 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_decl.hpp.

template<typename Scalar >

virtual bool Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::getUseImplicitModel ( ) const

inlinevirtual

Get parameter to switch wrapperME base functions between explicit and implicit functions.

Definition at line 175 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_decl.hpp.

template<typename Scalar >

virtual Teuchos::RCP<Thyra::LinearOpBase<Scalar> > Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::create_W_op ( ) const

inlinevirtual

Implements Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

Definition at line 180 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_decl.hpp.

template<typename Scalar >

Teuchos::RCP<const Thyra::LinearOpWithSolveFactoryBase<Scalar> > Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::get_W_factory ( ) const

inlinevirtual

Implements Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

Definition at line 186 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_decl.hpp.

template<typename Scalar >

Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > > Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::get_f_space ( ) const

virtual

Implements Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

Definition at line 359 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

Thyra::ModelEvaluatorBase::InArgs< Scalar > Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::getNominalValues ( ) const

virtual

Implements Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

Definition at line 368 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

Thyra::ModelEvaluatorBase::InArgs< Scalar > Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::createInArgs ( ) const

virtual

Implements Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

Reimplemented in Tempus::WrapperModelEvaluatorPairPartIMEX_StaggeredFSA< Scalar >, and Tempus::WrapperModelEvaluatorPairPartIMEX_CombinedFSA< Scalar >.

Definition at line 377 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

Thyra::ModelEvaluatorBase::OutArgs< Scalar > Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::createOutArgsImpl ( ) const

virtual

Implements Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

Definition at line 398 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

void Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::evalModelImpl	(	const Thyra::ModelEvaluatorBase::InArgs< Scalar > &	in,
		const Thyra::ModelEvaluatorBase::OutArgs< Scalar > &	out
	)		const

virtual

Implements Tempus::WrapperModelEvaluatorPairIMEX< Scalar >.

Reimplemented in Tempus::WrapperModelEvaluatorPairPartIMEX_StaggeredFSA< Scalar >, and Tempus::WrapperModelEvaluatorPairPartIMEX_CombinedFSA< Scalar >.

Definition at line 418 of file Tempus_WrapperModelEvaluatorPairPartIMEX_Basic_impl.hpp.

template<typename Scalar >

void Tempus::WrapperModelEvaluatorPairPartIMEX_Basic< Scalar >::setup	(	const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &	explicitModel,
		const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &	implicitModel,
		int	numExplicitOnlyBlocks = `0`,
		int	parameterIndex = `-1`
	)
