Tempus::SensitivityModelEvaluatorBase< Scalar > Class Template Reference

A ModelEvaluator decorator for sensitivity analysis. More...

#include <Tempus_SensitivityModelEvaluatorBase.hpp>

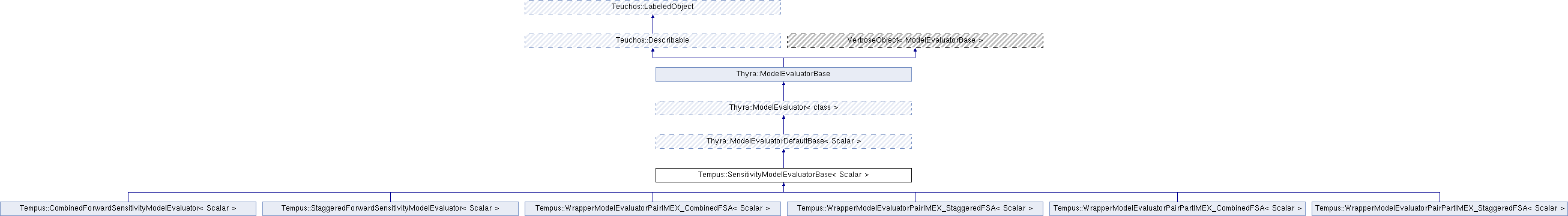

Inheritance diagram for Tempus::SensitivityModelEvaluatorBase< Scalar >:
Thyra::ModelEvaluatorDefaultBase< Scalar > Thyra::ModelEvaluator< class > Thyra::ModelEvaluatorBase Teuchos::Describable Teuchos::LabeledObject Tempus::CombinedForwardSensitivityModelEvaluator< Scalar > Tempus::StaggeredForwardSensitivityModelEvaluator< Scalar > Tempus::WrapperModelEvaluatorPairIMEX_CombinedFSA< Scalar > Tempus::WrapperModelEvaluatorPairIMEX_StaggeredFSA< Scalar > Tempus::WrapperModelEvaluatorPairPartIMEX_CombinedFSA< Scalar > Tempus::WrapperModelEvaluatorPairPartIMEX_StaggeredFSA< Scalar >

Public Member Functions

 SensitivityModelEvaluatorBase ()
 Constructor. More...

virtual ~SensitivityModelEvaluatorBase ()
 Destructor. More...

virtual Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
getForwardModel () const
 Get the underlying forward model. More...

virtual void setForwardSolutionHistory (const Teuchos::RCP< const Tempus::SolutionHistory< Scalar > > &)
 Set solution history from forward state evaluation (for interpolation) More...

virtual void setForwardSolutionState (const Teuchos::RCP< const Tempus::SolutionState< Scalar > > &)
 Set solution state from forward state evaluation (for frozen state) More...

virtual void setSolver (const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &, const bool)
 Set the solver of the underlying model if you want to reuse it. More...

- Public Member Functions inherited from Thyra::ModelEvaluator< class >
virtual int Np () const =0

virtual int Ng () const =0

virtual RCP< const
VectorSpaceBase< Scalar > >
get_x_space () const =0

virtual RCP< const
VectorSpaceBase< Scalar > >
get_f_space () const =0

virtual RCP< const
VectorSpaceBase< Scalar > >
get_f_multiplier_space () const =0

virtual RCP< const
VectorSpaceBase< Scalar > >
get_p_space (int l) const =0

virtual RCP< const
Teuchos::Array< std::string > >
get_p_names (int l) const =0

virtual RCP< const
VectorSpaceBase< Scalar > >
get_g_space (int j) const =0

virtual RCP< const
VectorSpaceBase< Scalar > >
get_g_multiplier_space (int j) const =0

virtual Teuchos::ArrayView
< const std::string >
get_g_names (int j) const =0

virtual
ModelEvaluatorBase::InArgs
< Scalar >
getNominalValues () const =0

virtual
ModelEvaluatorBase::InArgs
< Scalar >
getLowerBounds () const =0

virtual
ModelEvaluatorBase::InArgs
< Scalar >
getUpperBounds () const =0

virtual RCP
< LinearOpWithSolveBase
< Scalar > >
create_W () const =0

virtual RCP< LinearOpBase
< Scalar > >
create_W_op () const =0

virtual RCP
< PreconditionerBase< Scalar > >
create_W_prec () const =0

virtual RCP< LinearOpBase
< Scalar > >
create_DfDp_op (int l) const =0

virtual RCP< LinearOpBase
< Scalar > >
create_DgDx_dot_op (int j) const =0

virtual RCP< LinearOpBase
< Scalar > >
create_DgDx_op (int j) const =0

virtual RCP< LinearOpBase
< Scalar > >
create_DgDp_op (int j, int l) const =0

virtual RCP< const
LinearOpWithSolveFactoryBase
< Scalar > >
get_W_factory () const =0

virtual
ModelEvaluatorBase::InArgs
< Scalar >
createInArgs () const =0

virtual
ModelEvaluatorBase::OutArgs
< Scalar >
createOutArgs () const =0

virtual void evalModel (const ModelEvaluatorBase::InArgs< Scalar > &inArgs, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs) const =0

virtual void reportFinalPoint (const ModelEvaluatorBase::InArgs< Scalar > &finalPoint, const bool wasSolved)=0

 ModelEvaluatorBase ()

std::string toString (ModelEvaluatorBase::EInArgsMembers)

std::string toString (ModelEvaluatorBase::EOutArgsMembers)

std::string toString (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

ModelEvaluatorBase::EDerivativeMultiVectorOrientation getOtherDerivativeMultiVectorOrientation (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

- Public Member Functions inherited from Teuchos::Describable
virtual std::string description () const

virtual void describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)


Additional Inherited Members

- Public Types inherited from Thyra::ModelEvaluator< class >
enum  EInArgsMembers

enum  EInArgs_p_mp

enum  EEvalType

enum  EDerivativeMultiVectorOrientation

enum  EDerivativeLinearOp

enum  EDerivativeLinearity

enum  ERankStatus

enum  EOutArgsMembers

enum  EOutArgsDfDp

enum  EOutArgsDgDx_dot

enum  EOutArgsDgDx

enum  EOutArgsDgDp

enum  EOutArgsDfDp_mp

enum  EOutArgs_g_mp

enum  EOutArgsDgDx_dot_mp

enum  EOutArgsDgDx_mp

enum  EOutArgsDgDp_mp

typedef Teuchos::ScalarTraits
< Scalar >::magnitudeType
ScalarMag

- Static Public Attributes inherited from Thyra::ModelEvaluator< class >
static const int NUM_E_IN_ARGS_MEMBERS

static const int NUM_E_OUT_ARGS_MEMBERS

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default


Detailed Description

template<typename Scalar>
class Tempus::SensitivityModelEvaluatorBase< Scalar >

A ModelEvaluator decorator for sensitivity analysis.

Used in sensitivity analysis model evaluators for interpolating from a previous solution and such. All additional methods have default, empty implementations, since different sensitivity model evaluators need slightly different capabilities.

Definition at line 28 of file Tempus_SensitivityModelEvaluatorBase.hpp.

Constructor & Destructor Documentation

template<typename Scalar >
Tempus::SensitivityModelEvaluatorBase< Scalar >::SensitivityModelEvaluatorBase ( )
inline

Constructor.

Definition at line 32 of file Tempus_SensitivityModelEvaluatorBase.hpp.

template<typename Scalar >
virtual Tempus::SensitivityModelEvaluatorBase< Scalar >::~SensitivityModelEvaluatorBase ( )
inlinevirtual

Destructor.

Definition at line 35 of file Tempus_SensitivityModelEvaluatorBase.hpp.

Member Function Documentation

template<typename Scalar >
virtual Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::SensitivityModelEvaluatorBase< Scalar >::getForwardModel ( ) const
inlinevirtual
template<typename Scalar >
virtual void Tempus::SensitivityModelEvaluatorBase< Scalar >::setForwardSolutionHistory ( const Teuchos::RCP< const Tempus::SolutionHistory< Scalar > > &  )
inlinevirtual
template<typename Scalar >
virtual void Tempus::SensitivityModelEvaluatorBase< Scalar >::setForwardSolutionState ( const Teuchos::RCP< const Tempus::SolutionState< Scalar > > &  )
inlinevirtual
template<typename Scalar >
virtual void Tempus::SensitivityModelEvaluatorBase< Scalar >::setSolver ( const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &  ,
const bool
)
inlinevirtual

The documentation for this class was generated from the following file:
