Tempus::Interpolator< Scalar > Class Template Referenceabstract

Base strategy class for interpolation functionality. More...

#include <Tempus_Interpolator.hpp>

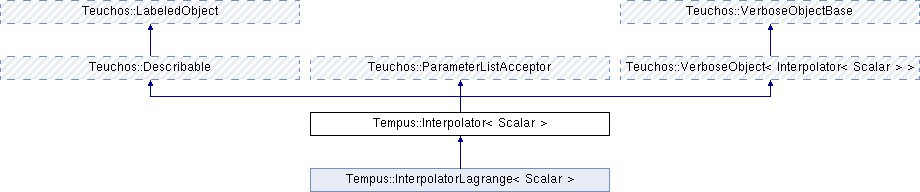

Inheritance diagram for Tempus::Interpolator< Scalar >:
Teuchos::Describable Teuchos::ParameterListAcceptor Teuchos::VerboseObject< Interpolator< Scalar > > Teuchos::LabeledObject Teuchos::VerboseObjectBase Tempus::InterpolatorLagrange< Scalar >

Public Member Functions

virtual void setNodes (const Teuchos::RCP< const std::vector< Teuchos::RCP< SolutionState< Scalar > > > > &nodes)=0
 Store pointer to interpolation nodes. More...

virtual void interpolate (const Scalar &t, SolutionState< Scalar > *state_out) const =0
 Perform an interpolation. More...

virtual int order () const =0
 Return the order of the interpolation. More...

- Public Member Functions inherited from Teuchos::Describable
virtual std::string description () const

virtual void describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Public Member Functions inherited from Teuchos::ParameterListAcceptor
virtual void setParameterList (const RCP< ParameterList > &paramList)=0

virtual RCP< ParameterListgetNonconstParameterList ()=0

virtual RCP< ParameterListunsetParameterList ()=0

virtual RCP< const ParameterListgetParameterList () const

virtual RCP< const ParameterListgetValidParameters () const

- Public Member Functions inherited from Teuchos::VerboseObject< Interpolator< Scalar > >
 VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectsetVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObjectsetOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
RCP< const ParameterList
getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
readVerboseObjectSublist (ParameterList *paramList, RCP< FancyOStream > *oStream, EVerbosityLevel *verbLevel)

void readVerboseObjectSublist (ParameterList *paramList, VerboseObject< ObjectType > *verboseObject)

- Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual ~VerboseObjectBase ()

 VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBasesetOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBasesetOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBasesetLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStreamgetOStream () const

virtual RCP< FancyOStreamgetOverridingOStream () const

virtual std::string getLinePrefix () const

virtual OSTab getOSTab (const int tabs=1, const std::string &linePrefix="") const


Additional Inherited Members

- Static Public Member Functions inherited from Teuchos::VerboseObject< Interpolator< Scalar > >
static void setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel getDefaultVerbLevel ()

- Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStreamgetDefaultOStream ()

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default

- Protected Member Functions inherited from Teuchos::VerboseObject< Interpolator< Scalar > >
void initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

- Protected Member Functions inherited from Teuchos::VerboseObjectBase
void initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void informUpdatedVerbosityState () const


Detailed Description

template<class Scalar>
class Tempus::Interpolator< Scalar >

Base strategy class for interpolation functionality.

Definition at line 31 of file Tempus_Interpolator.hpp.

Member Function Documentation

template<class Scalar>
virtual void Tempus::Interpolator< Scalar >::setNodes ( const Teuchos::RCP< const std::vector< Teuchos::RCP< SolutionState< Scalar > > > > &  nodes)
pure virtual

Store pointer to interpolation nodes.

This function represent a persisting relationship between the interpolation nodes and the interpolator. For simple interpolators like linear and Hermite, this is not needed, but for interpolators like cubic splines where there is some computational work in assembling the interpolant, this is important.

Preconditions:

  • nodes must have unique time values and be sorted in ascending time order

Postconditions:

  • If this function is called twice and nodes is a different pointer than was previously called, then it is possible that the interpolant will be recomputed when interpolate is next called.

Implemented in Tempus::InterpolatorLagrange< Scalar >.

template<class Scalar>
virtual void Tempus::Interpolator< Scalar >::interpolate ( const Scalar &  t,
SolutionState< Scalar > *  state_out
) const
pure virtual

Perform an interpolation.

Implemented in Tempus::InterpolatorLagrange< Scalar >.

template<class Scalar>
virtual int Tempus::Interpolator< Scalar >::order ( ) const
pure virtual

Return the order of the interpolation.

Implemented in Tempus::InterpolatorLagrange< Scalar >.


The documentation for this class was generated from the following file:
