Tempus::AdjointSensitivityModelEvaluator< Scalar > Class Template Reference

ModelEvaluator for forming adjoint sensitivity equations. More...

#include <Tempus_AdjointSensitivityModelEvaluator_decl.hpp>

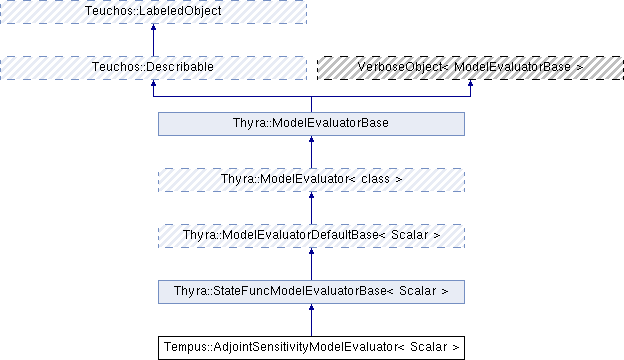

Inheritance diagram for Tempus::AdjointSensitivityModelEvaluator< Scalar >:
Thyra::StateFuncModelEvaluatorBase< Scalar > Thyra::ModelEvaluatorDefaultBase< Scalar > Thyra::ModelEvaluator< class > Thyra::ModelEvaluatorBase Teuchos::Describable Teuchos::LabeledObject

Public Types

typedef Thyra::VectorBase< Scalar > Vector

typedef Thyra::MultiVectorBase
< Scalar >
MultiVector

- Public Types inherited from Thyra::ModelEvaluator< class >
enum  EInArgsMembers

enum  EInArgs_p_mp

enum  EEvalType

enum  EDerivativeMultiVectorOrientation

enum  EDerivativeLinearOp

enum  EDerivativeLinearity

enum  ERankStatus

enum  EOutArgsMembers

enum  EOutArgsDfDp

enum  EOutArgsDgDx_dot

enum  EOutArgsDgDx

enum  EOutArgsDgDp

enum  EOutArgsDfDp_mp

enum  EOutArgs_g_mp

enum  EOutArgsDgDx_dot_mp

enum  EOutArgsDgDx_mp

enum  EOutArgsDgDp_mp

typedef Teuchos::ScalarTraits
< Scalar >::magnitudeType
ScalarMag


Public Member Functions

 AdjointSensitivityModelEvaluator (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model, const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &adjoint_residual_model, const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &adjoint_solve_model, const Scalar &t_init, const Scalar &t_final, const bool is_pseudotransient, const Teuchos::RCP< const Teuchos::ParameterList > &pList=Teuchos::null)
 Constructor. More...

Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
getModel () const
 Get the underlying model 'f'. More...

Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
getAdjointResidualModel () const
 Get the underlying adjoint residual model. More...

Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
getAdjointSolveModel () const
 Get the underlying adjoint solve model. More...

void setFinalTime (const Scalar t_final)
 Set the final time from the forward evaluation. More...

void setForwardSolutionHistory (const Teuchos::RCP< const Tempus::SolutionHistory< Scalar > > &sh)
 Set solution history from forward evaluation. More...

- Public Member Functions inherited from Thyra::StateFuncModelEvaluatorBase< Scalar >
RCP< const VectorSpaceBase
< Scalar > >
get_p_space (int l) const

RCP< const Teuchos::Array
< std::string > >
get_p_names (int l) const

RCP< const VectorSpaceBase
< Scalar > >
get_g_space (int j) const

Teuchos::ArrayView< const
std::string >
get_g_names (int j) const

ModelEvaluatorBase::InArgs
< Scalar >
getNominalValues () const

ModelEvaluatorBase::InArgs
< Scalar >
getLowerBounds () const

ModelEvaluatorBase::InArgs
< Scalar >
getUpperBounds () const

RCP< LinearOpBase< Scalar > > create_W_op () const

RCP< PreconditionerBase< Scalar > > create_W_prec () const

RCP< const
LinearOpWithSolveFactoryBase
< Scalar > >
get_W_factory () const

void reportFinalPoint (const ModelEvaluatorBase::InArgs< Scalar > &finalPoint, const bool wasSolved)

- Public Member Functions inherited from Thyra::ModelEvaluator< class >
virtual int Np () const =0

virtual int Ng () const =0

virtual RCP< const
VectorSpaceBase< Scalar > >
get_f_multiplier_space () const =0

virtual RCP< const
VectorSpaceBase< Scalar > >
get_g_multiplier_space (int j) const =0

virtual RCP
< LinearOpWithSolveBase
< Scalar > >
create_W () const =0

virtual RCP< LinearOpBase
< Scalar > >
create_DfDp_op (int l) const =0

virtual RCP< LinearOpBase
< Scalar > >
create_DgDx_dot_op (int j) const =0

virtual RCP< LinearOpBase
< Scalar > >
create_DgDx_op (int j) const =0

virtual RCP< LinearOpBase
< Scalar > >
create_DgDp_op (int j, int l) const =0

virtual
ModelEvaluatorBase::OutArgs
< Scalar >
createOutArgs () const =0

virtual void evalModel (const ModelEvaluatorBase::InArgs< Scalar > &inArgs, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs) const =0

 ModelEvaluatorBase ()

std::string toString (ModelEvaluatorBase::EInArgsMembers)

std::string toString (ModelEvaluatorBase::EOutArgsMembers)

std::string toString (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

ModelEvaluatorBase::EDerivativeMultiVectorOrientation getOtherDerivativeMultiVectorOrientation (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

- Public Member Functions inherited from Teuchos::Describable
virtual std::string description () const

virtual void describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)


Static Public Member Functions

static Teuchos::RCP< const
Teuchos::ParameterList
getValidParameters ()


Private Types

typedef
Thyra::DefaultMultiVectorProductVectorSpace
< Scalar >
DMVPVS

typedef
Thyra::DefaultMultiVectorProductVector
< Scalar >
DMVPV


Private Member Functions

Thyra::ModelEvaluatorBase::OutArgs
< Scalar >
createOutArgsImpl () const

void evalModelImpl (const Thyra::ModelEvaluatorBase::InArgs< Scalar > &inArgs, const Thyra::ModelEvaluatorBase::OutArgs< Scalar > &outArgs) const


Private Attributes

Thyra::ModelEvaluatorBase::InArgs
< Scalar >
prototypeInArgs_

Thyra::ModelEvaluatorBase::OutArgs
< Scalar >
prototypeOutArgs_

Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
model_

Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
adjoint_residual_model_

Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
adjoint_solve_model_

Teuchos::RCP< const DMVPVSadjoint_space_

Teuchos::RCP< const DMVPVSresidual_space_

Teuchos::RCP< const DMVPVSresponse_space_

Teuchos::RCP< const
Tempus::SolutionHistory
< Scalar > >
sh_

Scalar t_init_

Scalar t_final_

bool is_pseudotransient_

bool mass_matrix_is_constant_

bool mass_matrix_is_identity_

int p_index_

int g_index_

int num_adjoint_

bool mass_matrix_is_computed_

bool jacobian_matrix_is_computed_

bool response_gradient_is_computed_

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
my_x_dot_

Teuchos::RCP
< Thyra::LinearOpBase< Scalar > >
my_dfdx_

Teuchos::RCP
< Thyra::LinearOpBase< Scalar > >
my_dfdxdot_

Teuchos::RCP
< Thyra::LinearOpBase< Scalar > >
my_dfdp_op_

Teuchos::RCP
< Thyra::MultiVectorBase
< Scalar > >
my_dfdp_mv_

Teuchos::RCP
< Thyra::MultiVectorBase
< Scalar > >
my_dgdx_mv_

Teuchos::RCP
< Tempus::SolutionState
< Scalar > >
forward_state_

Scalar t_interp_


Public functions overridden from ModelEvaulator.

Teuchos::RCP< const
Thyra::VectorSpaceBase< Scalar > >
get_p_space (int p) const

Teuchos::RCP< const
Teuchos::Array< std::string > >
get_p_names (int p) const

Teuchos::RCP< const
Thyra::VectorSpaceBase< Scalar > >
get_x_space () const

Teuchos::RCP< const
Thyra::VectorSpaceBase< Scalar > >
get_f_space () const

Teuchos::RCP< const
Thyra::VectorSpaceBase< Scalar > >
get_g_space (int j) const

Teuchos::RCP
< Thyra::LinearOpBase< Scalar > >
create_W_op () const

Teuchos::RCP< const
Thyra::LinearOpWithSolveFactoryBase
< Scalar > >
get_W_factory () const

Thyra::ModelEvaluatorBase::InArgs
< Scalar >
createInArgs () const

Thyra::ModelEvaluatorBase::InArgs
< Scalar >
getNominalValues () const


Additional Inherited Members

- Static Public Attributes inherited from Thyra::ModelEvaluator< class >
static const int NUM_E_IN_ARGS_MEMBERS

static const int NUM_E_OUT_ARGS_MEMBERS

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default


Detailed Description

template<typename Scalar>
class Tempus::AdjointSensitivityModelEvaluator< Scalar >

ModelEvaluator for forming adjoint sensitivity equations.

This class wraps a given ModelEvalutor encapsulating f(x_dot,x,p) and creates a new "residual" for the adjoint sensitivity equations: F(y) = d/dt( df/dx_dot^T*y ) - df/dx^T*y + dg/dx^T = 0 where y is the adjoint variable. Nominally y is a multi-vector belonging to the vector space of the residual f with number of columns equal to the dimension of g. To satisfy the model evaluator interface, y is converted to a product vector formed by its columns. This is the form of the adjoint equations suitable for computing pseudotransientsensitivities of a response function g(x(T),p) or adjoint sensitivities for a time-integrated response function int_0^T g(x(t),p).

To compute adjoint sensitivities, the equations f(x_dot,x,p) = 0 are integrated forward in time to some final time T, with the adjoint equations above integrated backward in time starting at T. Since the tempus integrator can only integrate forward in time, we define tau = T - t and transform the adjoint equations to: F(y) = d/dtau( df/dx_dot^T*y ) + df/dx^T*y - dg/dx^T = 0. The initial conditions for y are y(T) = 0. The sensitivity of g(T) is then int_0^T(dg/dp(T) - df/dp^T*y)dt + dx/dp(0)^T*df/dx_dot(0)^T*y(0) for transient adjoint sensitivites and is dg/dp(T) - df/dp^T*y for pseudotransient.

This model evaluator supports both implicit and explict forms of the governing equations. However it assumes df/dx_dot is constant with respect to x_dot, x, and t so that the adjoint equations become F(y) = df/dxdot^T*y_dot + df/dx^T*y - dg/dx^T = 0. Moving beyond this assumption will require modifications to the steppers in how they generate time-derivative terms.

Definition at line 55 of file Tempus_AdjointSensitivityModelEvaluator_decl.hpp.

Member Typedef Documentation

template<typename Scalar >
typedef Thyra::VectorBase<Scalar> Tempus::AdjointSensitivityModelEvaluator< Scalar >::Vector
template<typename Scalar >
typedef Thyra::MultiVectorBase<Scalar> Tempus::AdjointSensitivityModelEvaluator< Scalar >::MultiVector
template<typename Scalar >
typedef Thyra::DefaultMultiVectorProductVectorSpace<Scalar> Tempus::AdjointSensitivityModelEvaluator< Scalar >::DMVPVS
private
template<typename Scalar >
typedef Thyra::DefaultMultiVectorProductVector<Scalar> Tempus::AdjointSensitivityModelEvaluator< Scalar >::DMVPV
private

Constructor & Destructor Documentation

template<typename Scalar >
Tempus::AdjointSensitivityModelEvaluator< Scalar >::AdjointSensitivityModelEvaluator ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  model,
const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  adjoint_residual_model,
const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  adjoint_solve_model,
const Scalar &  t_init,
const Scalar &  t_final,
const bool  is_pseudotransient,
const Teuchos::RCP< const Teuchos::ParameterList > &  pList = Teuchos::null
)

Constructor.

t_final is the final integration time used to implement the time transformation described above. num_adjoint is the number of adjoint variables defining the number of columns in y, which is determined by the number of elements in the vector space for the response g. The optionally supplied parameter list supports the following options:

  • "Sensitivity Parameter Index", (default: 0) The model evaluator parameter index for which sensitivities will be computed.
  • "Response Function Index", (default: 0) The model evaluator response index for which sensitivities will be computed.
  • "Mass Matrix Is Constant" (default: true) Whether the mass matrix df/dx_dot is a constant matrix. As describe above, this is currently required to be true.
  • "Mass Matrix Is Identity" (default: false) Whether the mass matrix is the identity matrix, in which some computations can be skipped.

Definition at line 29 of file Tempus_AdjointSensitivityModelEvaluator_impl.hpp.

Member Function Documentation

template<typename Scalar >
Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::AdjointSensitivityModelEvaluator< Scalar >::getModel ( ) const
inline

Get the underlying model 'f'.

Definition at line 91 of file Tempus_AdjointSensitivityModelEvaluator_decl.hpp.

template<typename Scalar >
Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::AdjointSensitivityModelEvaluator< Scalar >::getAdjointResidualModel ( ) const
inline

Get the underlying adjoint residual model.

Definition at line 97 of file Tempus_AdjointSensitivityModelEvaluator_decl.hpp.

template<typename Scalar >
Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::AdjointSensitivityModelEvaluator< Scalar >::getAdjointSolveModel ( ) const
inline

Get the underlying adjoint solve model.

Definition at line 104 of file Tempus_AdjointSensitivityModelEvaluator_decl.hpp.

template<typename Scalar >
void Tempus::AdjointSensitivityModelEvaluator< Scalar >::setFinalTime ( const Scalar  t_final)

Set the final time from the forward evaluation.

Definition at line 123 of file Tempus_AdjointSensitivityModelEvaluator_impl.hpp.

template<typename Scalar >
void Tempus::AdjointSensitivityModelEvaluator< Scalar >::setForwardSolutionHistory ( const Teuchos::RCP< const Tempus::SolutionHistory< Scalar > > &  sh)

Set solution history from forward evaluation.

Definition at line 130 of file Tempus_AdjointSensitivityModelEvaluator_impl.hpp.

template<typename Scalar >
Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > > Tempus::AdjointSensitivityModelEvaluator< Scalar >::get_p_space ( int  p) const
virtual
template<typename Scalar >
Teuchos::RCP< const Teuchos::Array< std::string > > Tempus::AdjointSensitivityModelEvaluator< Scalar >::get_p_names ( int  p) const
virtual
template<typename Scalar >
Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > > Tempus::AdjointSensitivityModelEvaluator< Scalar >::get_x_space ( ) const
virtual
template<typename Scalar >
Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > > Tempus::AdjointSensitivityModelEvaluator< Scalar >::get_f_space ( ) const
virtual
template<typename Scalar >
Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > > Tempus::AdjointSensitivityModelEvaluator< Scalar >::get_g_space ( int  j) const
virtual
template<typename Scalar >
Teuchos::RCP< Thyra::LinearOpBase< Scalar > > Tempus::AdjointSensitivityModelEvaluator< Scalar >::create_W_op ( ) const
virtual
template<typename Scalar >
Teuchos::RCP< const Thyra::LinearOpWithSolveFactoryBase< Scalar > > Tempus::AdjointSensitivityModelEvaluator< Scalar >::get_W_factory ( ) const
virtual
template<typename Scalar >
Thyra::ModelEvaluatorBase::InArgs< Scalar > Tempus::AdjointSensitivityModelEvaluator< Scalar >::createInArgs ( ) const
virtual
template<typename Scalar >
Thyra::ModelEvaluatorBase::InArgs< Scalar > Tempus::AdjointSensitivityModelEvaluator< Scalar >::getNominalValues ( ) const
virtual
template<class Scalar >
Teuchos::RCP< const Teuchos::ParameterList > Tempus::AdjointSensitivityModelEvaluator< Scalar >::getValidParameters ( )
static
template<typename Scalar >
Thyra::ModelEvaluatorBase::OutArgs< Scalar > Tempus::AdjointSensitivityModelEvaluator< Scalar >::createOutArgsImpl ( ) const
private
template<typename Scalar >
void Tempus::AdjointSensitivityModelEvaluator< Scalar >::evalModelImpl ( const Thyra::ModelEvaluatorBase::InArgs< Scalar > &  inArgs,
const Thyra::ModelEvaluatorBase::OutArgs< Scalar > &  outArgs
) const
private

Member Data Documentation

template<typename Scalar >
Thyra::ModelEvaluatorBase::InArgs<Scalar> Tempus::AdjointSensitivityModelEvaluator< Scalar >::prototypeInArgs_
private
template<typename Scalar >
Thyra::ModelEvaluatorBase::OutArgs<Scalar> Tempus::AdjointSensitivityModelEvaluator< Scalar >::prototypeOutArgs_
private
template<typename Scalar >
Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::AdjointSensitivityModelEvaluator< Scalar >::model_
private
template<typename Scalar >
Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::AdjointSensitivityModelEvaluator< Scalar >::adjoint_residual_model_
private
template<typename Scalar >
Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::AdjointSensitivityModelEvaluator< Scalar >::adjoint_solve_model_
private
template<typename Scalar >
Teuchos::RCP<const DMVPVS> Tempus::AdjointSensitivityModelEvaluator< Scalar >::adjoint_space_
private
template<typename Scalar >
Teuchos::RCP<const DMVPVS> Tempus::AdjointSensitivityModelEvaluator< Scalar >::residual_space_
private
template<typename Scalar >
Teuchos::RCP<const DMVPVS> Tempus::AdjointSensitivityModelEvaluator< Scalar >::response_space_
private
template<typename Scalar >
Teuchos::RCP<const Tempus::SolutionHistory<Scalar> > Tempus::AdjointSensitivityModelEvaluator< Scalar >::sh_
private
template<typename Scalar >
Scalar Tempus::AdjointSensitivityModelEvaluator< Scalar >::t_init_
private
template<typename Scalar >
Scalar Tempus::AdjointSensitivityModelEvaluator< Scalar >::t_final_
private
template<typename Scalar >
bool Tempus::AdjointSensitivityModelEvaluator< Scalar >::is_pseudotransient_
private
template<typename Scalar >
bool Tempus::AdjointSensitivityModelEvaluator< Scalar >::mass_matrix_is_constant_
private
template<typename Scalar >
bool Tempus::AdjointSensitivityModelEvaluator< Scalar >::mass_matrix_is_identity_
private
template<typename Scalar >
int Tempus::AdjointSensitivityModelEvaluator< Scalar >::p_index_
private
template<typename Scalar >
int Tempus::AdjointSensitivityModelEvaluator< Scalar >::g_index_
private
template<typename Scalar >
int Tempus::AdjointSensitivityModelEvaluator< Scalar >::num_adjoint_
private
template<typename Scalar >
bool Tempus::AdjointSensitivityModelEvaluator< Scalar >::mass_matrix_is_computed_
mutableprivate
template<typename Scalar >
bool Tempus::AdjointSensitivityModelEvaluator< Scalar >::jacobian_matrix_is_computed_
mutableprivate
template<typename Scalar >
bool Tempus::AdjointSensitivityModelEvaluator< Scalar >::response_gradient_is_computed_
mutableprivate
template<typename Scalar >
Teuchos::RCP<Thyra::VectorBase<Scalar> > Tempus::AdjointSensitivityModelEvaluator< Scalar >::my_x_dot_
mutableprivate
template<typename Scalar >
Teuchos::RCP<Thyra::LinearOpBase<Scalar> > Tempus::AdjointSensitivityModelEvaluator< Scalar >::my_dfdx_
mutableprivate
template<typename Scalar >
Teuchos::RCP<Thyra::LinearOpBase<Scalar> > Tempus::AdjointSensitivityModelEvaluator< Scalar >::my_dfdxdot_
mutableprivate
template<typename Scalar >
Teuchos::RCP<Thyra::LinearOpBase<Scalar> > Tempus::AdjointSensitivityModelEvaluator< Scalar >::my_dfdp_op_
mutableprivate
template<typename Scalar >
Teuchos::RCP<Thyra::MultiVectorBase<Scalar> > Tempus::AdjointSensitivityModelEvaluator< Scalar >::my_dfdp_mv_
mutableprivate
template<typename Scalar >
Teuchos::RCP<Thyra::MultiVectorBase<Scalar> > Tempus::AdjointSensitivityModelEvaluator< Scalar >::my_dgdx_mv_
mutableprivate
template<typename Scalar >
Teuchos::RCP<Tempus::SolutionState<Scalar> > Tempus::AdjointSensitivityModelEvaluator< Scalar >::forward_state_
mutableprivate
template<typename Scalar >
Scalar Tempus::AdjointSensitivityModelEvaluator< Scalar >::t_interp_
mutableprivate

The documentation for this class was generated from the following files:
