A virtual class that simplifies the construction of custom operators. More...

#include <Teko_BlockImplicitLinearOp.hpp>

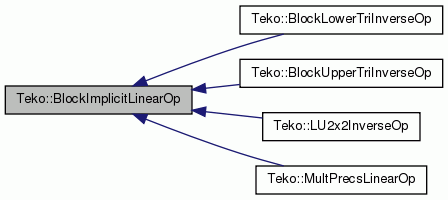

Inheritance diagram for Teko::BlockImplicitLinearOp:

Public Member Functions
virtual VectorSpace	range () const =0
	Range space of this operator. More...

virtual VectorSpace	domain () const =0
	Domain space of this operator. More...

virtual void	implicitApply (const BlockedMultiVector &x, BlockedMultiVector &y, const double alpha=1.0, const double beta=0.0) const =0
	Perform a matrix vector multiply with this implicitly defined blocked operator. More...

virtual void	implicitApply (const Thyra::EOpTransp M_trans, const BlockedMultiVector &x, BlockedMultiVector &y, const double alpha=1.0, const double beta=0.0) const
	Perform a matrix vector multiply with this implicitly defined blocked operator. More...

Protected Member Functions

virtual bool	opSupportedImpl (const Thyra::EOpTransp M_trans) const
	Functions required by Thyra::LinearOpBase. More...

Detailed Description

A virtual class that simplifies the construction of custom operators.

A virtual class that simplifies the construction of custom operators. Good examples can be found in LU2x2InverseOp and in BlockUpperTriInverseOp.

Definition at line 24 of file Teko_BlockImplicitLinearOp.hpp.

Member Function Documentation

virtual VectorSpace Teko::BlockImplicitLinearOp::range ( ) const

pure virtual

Range space of this operator.

Implemented in Teko::LU2x2InverseOp, Teko::MultPrecsLinearOp, Teko::BlockDiagonalInverseOp, Teko::BlockLowerTriInverseOp, and Teko::BlockUpperTriInverseOp.

virtual VectorSpace Teko::BlockImplicitLinearOp::domain ( ) const

pure virtual

Domain space of this operator.

Implemented in Teko::LU2x2InverseOp, Teko::MultPrecsLinearOp, Teko::BlockDiagonalInverseOp, Teko::BlockLowerTriInverseOp, and Teko::BlockUpperTriInverseOp.

virtual void Teko::BlockImplicitLinearOp::implicitApply	(	const BlockedMultiVector &	x,
		BlockedMultiVector &	y,
		const double	alpha = `1.0`,
		const double	beta = `0.0`
	)		const

pure virtual

Perform a matrix vector multiply with this implicitly defined blocked operator.

The apply function takes one vector as input and applies a linear operator. The result is returned in $y$ . If this operator is reprsented as $M$ then $y = \alpha M x + \beta y$

Parameters

[in]	x
[in,out]	y
[in]	alpha	(default=1)
[in]	beta	(default=0)

Implemented in Teko::LU2x2InverseOp, Teko::BlockDiagonalInverseOp, Teko::BlockLowerTriInverseOp, Teko::MultPrecsLinearOp, and Teko::BlockUpperTriInverseOp.

void Teko::BlockImplicitLinearOp::implicitApply	(	const Thyra::EOpTransp	M_trans,
		const BlockedMultiVector &	x,
		BlockedMultiVector &	y,
		const double	alpha = `1.0`,
		const double	beta = `0.0`
	)		const

virtual

Perform a matrix vector multiply with this implicitly defined blocked operator.

The apply function takes one vector as input and applies a linear operator. The result is returned in $y$ . If this operator is reprsented as $M$ then $y = \alpha M x + \beta y$

Parameters

[in]	x
[in,out]	y
[in]	alpha	(default=1)
[in]	beta	(default=0)

Reimplemented in Teko::BlockDiagonalInverseOp, and Teko::BlockUpperTriInverseOp.

Definition at line 21 of file Teko_BlockImplicitLinearOp.cpp.

bool Teko::BlockImplicitLinearOp::opSupportedImpl ( const Thyra::EOpTransp M_trans ) const

protectedvirtual

Functions required by Thyra::LinearOpBase.

Definition at line 32 of file Teko_BlockImplicitLinearOp.cpp.

The documentation for this class was generated from the following files:
