Rythmos::InterpolationBufferAppenderBase< Scalar > Class Template Reference

Base class for strategy objects that append data from one InterplationBufferBase object to another. More...

#include <Rythmos_InterpolationBufferAppenderBase.hpp>

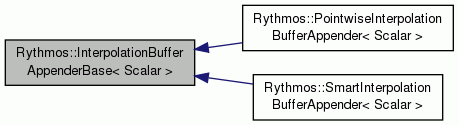

Inheritance diagram for Rythmos::InterpolationBufferAppenderBase< Scalar >:

Public Member Functions
virtual void	append (const InterpolationBufferBase< Scalar > &interpBuffSource, const TimeRange< Scalar > &range, const Ptr< InterpolationBufferBase< Scalar > > &interpBuffSink)=0
	Append or Prepend data from one interpolation buffer into another. More...

Protected Member Functions
void	assertAppendPreconditions (const InterpolationBufferBase< Scalar > &interpBuffSource, const TimeRange< Scalar > &range, const InterpolationBufferBase< Scalar > &interpBuffSink) const

Detailed Description

template<class Scalar>
class Rythmos::InterpolationBufferAppenderBase< Scalar >

Base class for strategy objects that append data from one InterplationBufferBase object to another.

Definition at line 50 of file Rythmos_InterpolationBufferAppenderBase.hpp.

Member Function Documentation

template<class Scalar >

virtual void Rythmos::InterpolationBufferAppenderBase< Scalar >::append ( const InterpolationBufferBase< Scalar > &  interpBuffSource, const TimeRange< Scalar > &  range, const Ptr< InterpolationBufferBase< Scalar > > &  interpBuffSink  )

pure virtual

Append or Prepend data from one interpolation buffer into another.

Parameters

interpBuffSink	[in/out] The interpolation buffer that will recieve the data from interpBuffSource interpolation buffer.
interpBuffSource	[in] The interpolation buffer that will be queried to get interpolated values to put into interpBuffSink interoplation buffer.
range	[in] The time range in interpBuffSource that will be converted into interpBuffSink interpolation buffer.

Preconditions:

• (range.lower() == interpBuffSink->getTimeRange().upper()) || (range.upper() == interpBuffSink->getTimeRange().lower())
• interpBuffSource.getTimeRange().lower() <= range.lower()
• range.upper() <= interpBuffSource.getTimeRange().upper()

Postconditions:

• if prior to the call range.lower() == interpBuffSink->getTimeRange().upper() then after the call interpBuffSink->getTimeRange().upper() == range.upper()
• if prior to the call range.upper() == interpBuffSink->getTimeRange().lower() then after the call interpBuffSink->getTimeRange().lower() == range.lower()

Implemented in Rythmos::PointwiseInterpolationBufferAppender< Scalar >, and Rythmos::SmartInterpolationBufferAppender< Scalar >.

template<class Scalar >

void Rythmos::InterpolationBufferAppenderBase< Scalar >::assertAppendPreconditions ( const InterpolationBufferBase< Scalar > &  interpBuffSource, const TimeRange< Scalar > &  range, const InterpolationBufferBase< Scalar > &  interpBuffSink  ) const

protected

Definition at line 101 of file Rythmos_InterpolationBufferAppenderBase.hpp.

---

The documentation for this class was generated from the following file:

• Rythmos_InterpolationBufferAppenderBase.hpp
