#include <Panzer_STK_ScatterFields_decl.hpp>

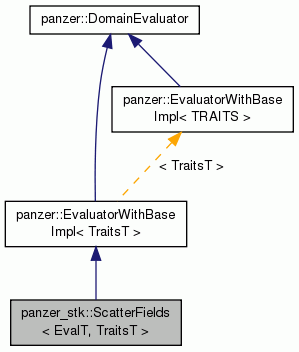

Inheritance diagram for panzer_stk::ScatterFields< EvalT, TraitsT >:

Public Member Functions
	ScatterFields (const std::string &scatterName, const Teuchos::RCP< STK_Interface > mesh, const Teuchos::RCP< const panzer::PureBasis > &basis, const std::vector< std::string > &names)

	ScatterFields (const std::string &scatterName, const Teuchos::RCP< STK_Interface > mesh, const Teuchos::RCP< const panzer::PureBasis > &basis, const std::vector< std::string > &names, const std::vector< double > &scaling)

void	postRegistrationSetup (typename TraitsT::SetupData d, PHX::FieldManager< TraitsT > &fm)

void	evaluateFields (typename TraitsT::EvalData d)

template<>
void	evaluateFields (panzer::Traits::EvalData workset)

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< TraitsT >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...

Public Member Functions inherited from PHX::EvaluatorWithBaseImpl< TraitsT >
virtual void	evaluateFields (typename Traits::EvalData d) override=0

Public Member Functions inherited from PHX::Evaluator< Traits >
	Evaluator ()

virtual	~Evaluator ()

virtual void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &vm)=0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	evaluatedFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	contributedFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	dependentFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	unsharedFields () const =0

virtual void	preEvaluate (typename Traits::PreEvalData d)=0

virtual void	postEvaluate (typename Traits::PostEvalData d)=0

virtual const std::string &	getName () const =0

virtual void	bindField (const PHX::FieldTag &ft, const std::any &f)=0

virtual PHX::DeviceEvaluator < Traits > *	createDeviceEvaluator () const =0

virtual void	rebuildDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void	deleteDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void	printFieldValues (std::ostream &os) const =0

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...

virtual	~DomainEvaluator ()=default
	Default destructor. More...

void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...

DomainType	getDomain ()
	Get the domain for the evaluator. More...

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Private Types
typedef EvalT::ScalarT	ScalarT

typedef panzer_stk::STK_Interface::SolutionFieldType	VariableField

Private Member Functions
void	initialize (const std::string &scatterName, const Teuchos::RCP< STK_Interface > mesh, const Teuchos::RCP< const panzer::PureBasis > &basis, const std::vector< std::string > &names, const std::vector< double > &scaling)

Private Attributes
std::vector< PHX::MDField < const ScalarT, panzer::Cell, panzer::NODE > >	scatterFields_

Teuchos::RCP< STK_Interface >	mesh_

std::vector< double >	scaling_

bool	cellFields_

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0, GHOST =1, REAL =2, VIRTUAL =3, EXTERNAL =4, ALL =5 }
	Domain types supported by worksets. More...

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< TraitsT >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename TraitsT>
class panzer_stk::ScatterFields< EvalT, TraitsT >

This class is a scatter operation to the mesh. It takes a set of field names and basis objects and then writes them to the mesh object. Note that scaling vector must be the same length as the names vector. The scaling is applied to each field.

Definition at line 37 of file Panzer_STK_ScatterFields_decl.hpp.
