panzer_stk::ScatterCellQuantity< EvalT, Traits > Class Template Reference

#include <Panzer_STK_ScatterCellQuantity_decl.hpp>

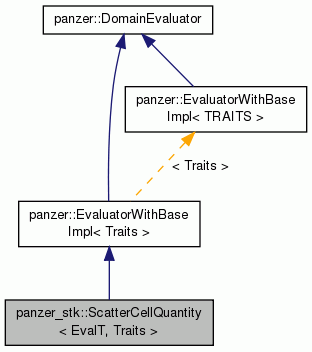

Inheritance diagram for panzer_stk::ScatterCellQuantity< EvalT, Traits >:
Inheritance graph
[legend]

Public Member Functions

 ScatterCellQuantity (const Teuchos::ParameterList &p)

void postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &fm)

void evaluateFields (typename Traits::EvalData d)

- Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void setDetailsIndex (const int di)
 An evaluator builder sets the details index. More...

- Public Member Functions inherited from PHX::Evaluator< Traits >
 Evaluator ()

virtual ~Evaluator ()

virtual const std::vector
< Teuchos::RCP< FieldTag > > &
evaluatedFields () const =0

virtual const std::vector
< Teuchos::RCP< FieldTag > > &
contributedFields () const =0

virtual const std::vector
< Teuchos::RCP< FieldTag > > &
dependentFields () const =0

virtual const std::vector
< Teuchos::RCP< FieldTag > > &
unsharedFields () const =0

virtual void preEvaluate (typename Traits::PreEvalData d)=0

virtual void postEvaluate (typename Traits::PostEvalData d)=0

virtual const std::string & getName () const =0

virtual void bindField (const PHX::FieldTag &ft, const PHX::any &f)=0

virtual PHX::DeviceEvaluator
< Traits > *
createDeviceEvaluator () const =0

virtual void rebuildDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void deleteDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void printFieldValues (std::ostream &os) const =0

- Public Member Functions inherited from panzer::DomainEvaluator
 DomainEvaluator (DomainType domain=ALL)
 Constructor. More...

virtual ~DomainEvaluator ()=default
 Default destructor. More...

void setDomain (const DomainType domain)
 Set the domain for the evaluator. More...

DomainType getDomain ()
 Get the domain for the evaluator. More...

virtual int cellStartIndex (const panzer::Workset &workset) const
 Returns the starting cell for the specified domain for a given workset. More...

virtual int cellEndIndex (const panzer::Workset &workset) const
 Returns the non-inclusive end cell for the specified domain for a given workset. More...


Private Types

using ScalarT = typename EvalT::ScalarT


Private Attributes

std::vector< PHX::MDField
< const ScalarT, panzer::Cell > >
scatterFields_

Teuchos::RCP< STK_Interfacemesh_

Teuchos::RCP< std::map
< std::string, double > >
varScaleFactors_


Additional Inherited Members

- Public Types inherited from panzer::DomainEvaluator
enum  DomainType : int {
  OWNED =0, GHOST =1, REAL =2, VIRTUAL =3,
  EXTERNAL =4, ALL =5
}
 Domain types supported by worksets. More...

- Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor wda


Detailed Description

template<typename EvalT, typename Traits>
class panzer_stk::ScatterCellQuantity< EvalT, Traits >

This class is a scatter operation to the mesh. It takes a set of field names on cells and writes them to the mesh.

The constructor takes a STK_Interface RCP and parameter list that is required to contain the following fields "Scatter Name" string specifying the name of this evaulator "Field Names" of type this is a comma seperated list of strings, "Workset Size" of type int "Mesh" of type Teuchos::RCP<const panzer_stk::STK_Interface>.

Definition at line 73 of file Panzer_STK_ScatterCellQuantity_decl.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >
using panzer_stk::ScatterCellQuantity< EvalT, Traits >::ScalarT = typename EvalT::ScalarT
private

Definition at line 94 of file Panzer_STK_ScatterCellQuantity_decl.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >
panzer_stk::ScatterCellQuantity< EvalT, Traits >::ScatterCellQuantity ( const Teuchos::ParameterList p)

Definition at line 64 of file Panzer_STK_ScatterCellQuantity_impl.hpp.

Member Function Documentation

template<typename EvalT , typename Traits >
void panzer_stk::ScatterCellQuantity< EvalT, Traits >::postRegistrationSetup ( typename Traits::SetupData  d,
PHX::FieldManager< Traits > &  fm
)
virtual

Implements PHX::Evaluator< Traits >.

Definition at line 100 of file Panzer_STK_ScatterCellQuantity_impl.hpp.

template<typename EvalT , typename Traits >
void panzer_stk::ScatterCellQuantity< EvalT, Traits >::evaluateFields ( typename Traits::EvalData  d)
virtual

Member Data Documentation

template<typename EvalT , typename Traits >
std::vector< PHX::MDField<const ScalarT,panzer::Cell> > panzer_stk::ScatterCellQuantity< EvalT, Traits >::scatterFields_
private

Definition at line 95 of file Panzer_STK_ScatterCellQuantity_decl.hpp.

template<typename EvalT , typename Traits >
Teuchos::RCP<STK_Interface> panzer_stk::ScatterCellQuantity< EvalT, Traits >::mesh_
private

Definition at line 96 of file Panzer_STK_ScatterCellQuantity_decl.hpp.

template<typename EvalT , typename Traits >
Teuchos::RCP<std::map<std::string,double> > panzer_stk::ScatterCellQuantity< EvalT, Traits >::varScaleFactors_
private

Definition at line 102 of file Panzer_STK_ScatterCellQuantity_decl.hpp.


The documentation for this class was generated from the following files:
