panzer_stk::IOClosureModelFactory< EvalT > Class Template Reference

#include <Panzer_STK_IOClosureModel_Factory_decl.hpp>

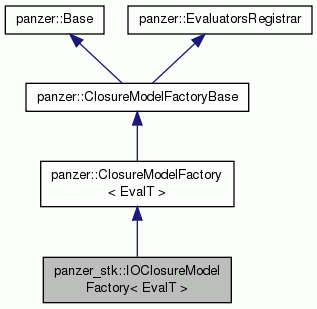

Inheritance diagram for panzer_stk::IOClosureModelFactory< EvalT >:

Public Member Functions
	IOClosureModelFactory (const Teuchos::RCP< const panzer::ClosureModelFactory< EvalT > > userCMF_, const Teuchos::RCP< STK_Interface > &mesh, const Teuchos::ParameterList &outputList)
	IOClosureModelFactory (const Teuchos::RCP< const panzer::ClosureModelFactory< EvalT > > userCMF_, const Teuchos::RCP< STK_Interface > &mesh, const std::map< std::string, std::vector< std::string > > &nodalFields, const std::map< std::string, std::vector< std::string > > &cellFields)
Teuchos::RCP< std::vector < Teuchos::RCP< PHX::Evaluator < panzer::Traits > > > >	buildClosureModels (const std::string &model_id, const Teuchos::ParameterList &models, const panzer::FieldLayoutLibrary &fl, const Teuchos::RCP< panzer::IntegrationRule > &ir, const Teuchos::ParameterList &default_params, const Teuchos::ParameterList &user_data, const Teuchos::RCP< panzer::GlobalData > &global_data, PHX::FieldManager< panzer::Traits > &fm) const
template<>
Teuchos::RCP< std::vector < Teuchos::RCP< PHX::Evaluator < panzer::Traits > > > >	buildClosureModels (const std::string &model_id, const Teuchos::ParameterList &models, const panzer::FieldLayoutLibrary &fl, const Teuchos::RCP< panzer::IntegrationRule > &ir, const Teuchos::ParameterList &default_params, const Teuchos::ParameterList &user_data, const Teuchos::RCP< panzer::GlobalData > &global_data, PHX::FieldManager< panzer::Traits > &fm) const
template<>
Teuchos::RCP< std::vector < Teuchos::RCP< PHX::Evaluator < panzer::Traits > > > >	buildClosureModels (const std::string &model_id, const Teuchos::ParameterList &models, const panzer::FieldLayoutLibrary &fl, const Teuchos::RCP< panzer::IntegrationRule > &ir, const Teuchos::ParameterList &default_params, const Teuchos::ParameterList &user_data, const Teuchos::RCP< panzer::GlobalData > &global_data, PHX::FieldManager< panzer::Traits > &fm) const
Public Member Functions inherited from panzer::ClosureModelFactory< EvalT >
	ClosureModelFactory (bool throw_if_model_not_found=true)
virtual	~ClosureModelFactory ()
virtual void	registerEvaluators (const std::vector< Teuchos::RCP< PHX::Evaluator< panzer::Traits > > > &evaluators, PHX::FieldManager< panzer::Traits > &fm) const
virtual void	setThrowOnModelNotFound (bool do_throw)
Public Member Functions inherited from panzer::ClosureModelFactoryBase
	ClosureModelFactoryBase ()
virtual	~ClosureModelFactoryBase ()
Public Member Functions inherited from panzer::Base
	Base ()
virtual	~Base ()
Public Member Functions inherited from panzer::EvaluatorsRegistrar
int	setDetailsIndex (const int details_index)
int	getDetailsIndex () const
	Get the WorksetDetails index. More...

Private Member Functions
void	parseOutputList (const Teuchos::ParameterList &pl, std::map< std::string, std::vector< std::string > > &blockIdToFields) const

Private Attributes
Teuchos::RCP< STK_Interface >	mesh_
	Mesh pointer, will be passed around. More...
std::map< std::string, std::vector< std::string > >	blockIdToCellAvgFields_
	Map showing which cell averaged fields need to be written out for each element block. More...
std::map< std::string, std::vector< std::string > >	blockIdToCellAvgVectors_
	Map showing which cell averaged vector fields need to be written out for each element block. More...
std::map< std::string, std::vector< std::string > >	blockIdToCellFields_
	Map showing which cell fields need to be written out for each element block. More...
std::map< std::string, std::vector< std::string > >	blockIdToNodalFields_
	Map showing which nodal fields need to be written out for each element block. More...
std::map< std::string, bool >	blockIdEvaluated_
Teuchos::RCP< const panzer::ClosureModelFactory < EvalT > >	userCMF_
	we will reuse the drekar closure model factory More...

Additional Inherited Members
Protected Member Functions inherited from panzer::EvaluatorsRegistrar
	EvaluatorsRegistrar ()
	Default ctor initializes WorksetDetails index to 0. More...
virtual	~EvaluatorsRegistrar ()
template<typename EvalT >
void	registerEvaluator (PHX::FieldManager< panzer::Traits > &fm, const Teuchos::RCP< PHX::Evaluator< panzer::Traits > > &op) const
Protected Attributes inherited from panzer::ClosureModelFactory< EvalT >
bool	m_throw_if_model_not_found

Detailed Description

template<typename EvalT>
class panzer_stk::IOClosureModelFactory< EvalT >

Definition at line 62 of file Panzer_STK_IOClosureModel_Factory_decl.hpp.

Constructor & Destructor Documentation

template<typename EvalT >

panzer_stk::IOClosureModelFactory< EvalT >::IOClosureModelFactory	(	const Teuchos::RCP< const panzer::ClosureModelFactory< EvalT > >	userCMF_,
		const Teuchos::RCP< STK_Interface > &	mesh,
		const Teuchos::ParameterList &	outputList
	)

Definition at line 55 of file Panzer_STK_IOClosureModel_Factory_impl.hpp.

template<typename EvalT >

panzer_stk::IOClosureModelFactory< EvalT >::IOClosureModelFactory	(	const Teuchos::RCP< const panzer::ClosureModelFactory< EvalT > >	userCMF_,
		const Teuchos::RCP< STK_Interface > &	mesh,
		const std::map< std::string, std::vector< std::string > > &	nodalFields,
		const std::map< std::string, std::vector< std::string > > &	cellFields
	)

Definition at line 70 of file Panzer_STK_IOClosureModel_Factory_impl.hpp.

Member Function Documentation

template<typename EvalT >

Teuchos::RCP< std::vector< Teuchos::RCP< PHX::Evaluator< panzer::Traits > > > > panzer_stk::IOClosureModelFactory< EvalT >::buildClosureModels ( const std::string &  model_id, const Teuchos::ParameterList &  models, const panzer::FieldLayoutLibrary &  fl, const Teuchos::RCP< panzer::IntegrationRule > &  ir, const Teuchos::ParameterList &  default_params, const Teuchos::ParameterList &  user_data, const Teuchos::RCP< panzer::GlobalData > &  global_data, PHX::FieldManager< panzer::Traits > &  fm  ) const

virtual

Implements panzer::ClosureModelFactory< EvalT >.

Definition at line 112 of file Panzer_STK_IOClosureModel_Factory_impl.hpp.

template<typename EvalT >

void panzer_stk::IOClosureModelFactory< EvalT >::parseOutputList ( const Teuchos::ParameterList &  pl, std::map< std::string, std::vector< std::string > > &  blockIdToFields  ) const

private

Definition at line 91 of file Panzer_STK_IOClosureModel_Factory_impl.hpp.

template<>

Teuchos::RCP< std::vector< Teuchos::RCP< PHX::Evaluator< panzer::Traits > > > > panzer_stk::IOClosureModelFactory< panzer::Traits::Residual >::buildClosureModels ( const std::string &  model_id, const Teuchos::ParameterList &  models, const panzer::FieldLayoutLibrary &  fl, const Teuchos::RCP< panzer::IntegrationRule > &  ir, const Teuchos::ParameterList &  default_params, const Teuchos::ParameterList &  user_data, const Teuchos::RCP< panzer::GlobalData > &  global_data, PHX::FieldManager< panzer::Traits > &  fm  ) const

virtual

Implements panzer::ClosureModelFactory< EvalT >.

Definition at line 54 of file Panzer_STK_IOClosureModel_Factory.cpp.

template<>

Teuchos::RCP< std::vector< Teuchos::RCP< PHX::Evaluator< panzer::Traits > > > > panzer_stk::IOClosureModelFactory< panzer::Traits::Residual >::buildClosureModels ( const std::string &  model_id, const Teuchos::ParameterList &  models, const panzer::FieldLayoutLibrary &  fl, const Teuchos::RCP< panzer::IntegrationRule > &  ir, const Teuchos::ParameterList &  default_params, const Teuchos::ParameterList &  user_data, const Teuchos::RCP< panzer::GlobalData > &  global_data, PHX::FieldManager< panzer::Traits > &  fm  ) const

virtual

Implements panzer::ClosureModelFactory< EvalT >.

Member Data Documentation

template<typename EvalT >

Teuchos::RCP<STK_Interface> panzer_stk::IOClosureModelFactory< EvalT >::mesh_

private

Mesh pointer, will be passed around.

Definition at line 89 of file Panzer_STK_IOClosureModel_Factory_decl.hpp.

template<typename EvalT >

std::map<std::string,std::vector<std::string> > panzer_stk::IOClosureModelFactory< EvalT >::blockIdToCellAvgFields_

private

Map showing which cell averaged fields need to be written out for each element block.

Definition at line 92 of file Panzer_STK_IOClosureModel_Factory_decl.hpp.

template<typename EvalT >

std::map<std::string,std::vector<std::string> > panzer_stk::IOClosureModelFactory< EvalT >::blockIdToCellAvgVectors_

private

Map showing which cell averaged vector fields need to be written out for each element block.

Definition at line 95 of file Panzer_STK_IOClosureModel_Factory_decl.hpp.

template<typename EvalT >

std::map<std::string,std::vector<std::string> > panzer_stk::IOClosureModelFactory< EvalT >::blockIdToCellFields_

private

Map showing which cell fields need to be written out for each element block.

Definition at line 98 of file Panzer_STK_IOClosureModel_Factory_decl.hpp.

template<typename EvalT >

std::map<std::string,std::vector<std::string> > panzer_stk::IOClosureModelFactory< EvalT >::blockIdToNodalFields_

private

Map showing which nodal fields need to be written out for each element block.

Definition at line 101 of file Panzer_STK_IOClosureModel_Factory_decl.hpp.

template<typename EvalT >

std::map<std::string,bool> panzer_stk::IOClosureModelFactory< EvalT >::blockIdEvaluated_

mutableprivate

Map stating if an evaluator for a particular block ID has been included.

This is a bit of hack that is done to gurantee only one evaluator is added to each field manager. However, if an instantiation of this closure model factory is used in multiple places then the appropriate evaluator will be added and required only once. So its likely that not every field manager will have (and require) the scatter cell evaluators.

Definition at line 111 of file Panzer_STK_IOClosureModel_Factory_decl.hpp.

template<typename EvalT >

Teuchos::RCP<const panzer::ClosureModelFactory<EvalT> > panzer_stk::IOClosureModelFactory< EvalT >::userCMF_

private

we will reuse the drekar closure model factory

Definition at line 114 of file Panzer_STK_IOClosureModel_Factory_decl.hpp.

---

The documentation for this class was generated from the following files:

• Panzer_STK_IOClosureModel_Factory_decl.hpp
• Panzer_STK_IOClosureModel_Factory_impl.hpp
