#include <Panzer_STK_GatherFields_decl.hpp>

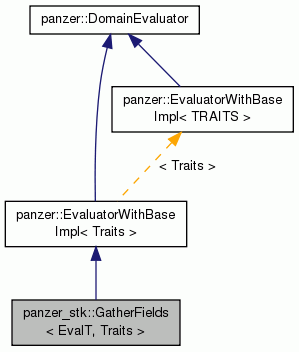

Inheritance diagram for panzer_stk::GatherFields< EvalT, Traits >:

Public Member Functions
	GatherFields (const Teuchos::RCP< const panzer_stk::STK_Interface > &mesh, const Teuchos::ParameterList &p)

void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &vm)

void	evaluateFields (typename Traits::EvalData d)

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...

Public Member Functions inherited from PHX::Evaluator< Traits >
	Evaluator ()

virtual	~Evaluator ()

virtual const std::vector < Teuchos::RCP< FieldTag > > &	evaluatedFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	contributedFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	dependentFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	unsharedFields () const =0

virtual void	preEvaluate (typename Traits::PreEvalData d)=0

virtual void	postEvaluate (typename Traits::PostEvalData d)=0

virtual const std::string &	getName () const =0

virtual void	bindField (const PHX::FieldTag &ft, const PHX::any &f)=0

virtual PHX::DeviceEvaluator < Traits > *	createDeviceEvaluator () const =0

virtual void	rebuildDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void	deleteDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void	printFieldValues (std::ostream &os) const =0

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...

virtual	~DomainEvaluator ()=default
	Default destructor. More...

void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...

DomainType	getDomain ()
	Get the domain for the evaluator. More...

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Private Types
typedef EvalT::ScalarT	ScalarT

typedef panzer_stk::STK_Interface::SolutionFieldType	VariableField

Private Member Functions
	GatherFields ()

Private Attributes
std::vector< PHX::MDField < ScalarT, panzer::Cell, panzer::NODE > >	gatherFields_

std::vector< VariableField * >	stkFields_

Teuchos::RCP< const STK_Interface >	mesh_

bool	isConstant_

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0, GHOST =1, REAL =2, VIRTUAL =3, EXTERNAL =4, ALL =5 }
	Domain types supported by worksets. More...

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer_stk::GatherFields< EvalT, Traits >

This class is a gather operation from the mesh. It takes a set of field names and basis objects and then reads them in from the mesh object.

The constructor takes a STK_Interface RCP and parameter list that is required to contain the following two fields "Field Names" of type Teuchos::RCP<std::vector<std::string> > and "Basis" of type Teuchos::RCP<panzer::Basis>.

Definition at line 70 of file Panzer_STK_GatherFields_decl.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >

typedef EvalT::ScalarT panzer_stk::GatherFields< EvalT, Traits >::ScalarT

private

Definition at line 83 of file Panzer_STK_GatherFields_decl.hpp.

template<typename EvalT , typename Traits >

typedef panzer_stk::STK_Interface::SolutionFieldType panzer_stk::GatherFields< EvalT, Traits >::VariableField

private

Definition at line 84 of file Panzer_STK_GatherFields_decl.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >

panzer_stk::GatherFields< EvalT, Traits >::GatherFields	(	const Teuchos::RCP< const panzer_stk::STK_Interface > &	mesh,
		const Teuchos::ParameterList &	p
	)
