panzer::ResponseScatterEvaluator_Probe< EvalT, Traits, LO, GO > Class Template Reference

#include <Panzer_ResponseScatterEvaluator_Probe.hpp>

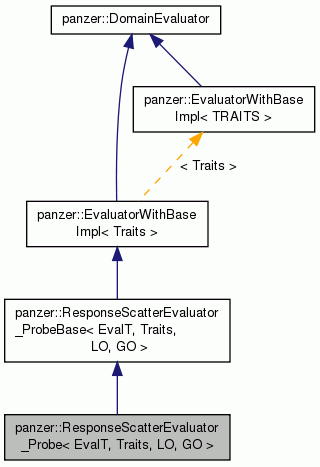

Inheritance diagram for panzer::ResponseScatterEvaluator_Probe< EvalT, Traits, LO, GO >:

Public Types
typedef ResponseScatterEvaluator_ProbeBase < EvalT, Traits, LO, GO >	Base
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int {   OWNED =0, GHOST =1, REAL =2, VIRTUAL =3,   EXTERNAL =4, ALL =5 }
	Domain types supported by worksets. More...

Public Member Functions
	ResponseScatterEvaluator_Probe (const std::string &responseName, const std::string &fieldName, const int fieldComponent, const Teuchos::Array< double > &point, const IntegrationRule &ir, const Teuchos::RCP< const PureBasis > &basis, const Teuchos::RCP< const panzer::GlobalIndexer > &indexer, const Teuchos::RCP< ProbeScatterBase > &probeScatter)
	A constructor with concrete arguments instead of a parameter list. More...
Public Member Functions inherited from panzer::ResponseScatterEvaluator_ProbeBase< EvalT, Traits, LO, GO >
	ResponseScatterEvaluator_ProbeBase (const std::string &responseName, const std::string &fieldName, const int fieldComponent, const Teuchos::Array< double > &point, const IntegrationRule &ir, const Teuchos::RCP< const PureBasis > &basis, const Teuchos::RCP< const panzer::GlobalIndexer > &indexer, const Teuchos::RCP< ProbeScatterBase > &probeScatter)
	A constructor with concrete arguments instead of a parameter list. More...
void	evaluateFields (typename Traits::EvalData d)
void	postRegistrationSetup (typename Traits::SetupData, PHX::FieldManager< Traits > &)
void	preEvaluate (typename Traits::PreEvalData d)
bool	findCellAndComputeBasisValues (typename Traits::EvalData d)
Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...
Public Member Functions inherited from PHX::EvaluatorWithBaseImpl< Traits >
virtual void	evaluateFields (typename Traits::EvalData d) override=0
Public Member Functions inherited from PHX::Evaluator< Traits >
	Evaluator ()
virtual	~Evaluator ()
virtual void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &vm)=0
virtual const std::vector < Teuchos::RCP< FieldTag > > &	evaluatedFields () const =0
virtual const std::vector < Teuchos::RCP< FieldTag > > &	contributedFields () const =0
virtual const std::vector < Teuchos::RCP< FieldTag > > &	dependentFields () const =0
virtual const std::vector < Teuchos::RCP< FieldTag > > &	unsharedFields () const =0
virtual void	preEvaluate (typename Traits::PreEvalData d)=0
virtual void	postEvaluate (typename Traits::PostEvalData d)=0
virtual const std::string &	getName () const =0
virtual void	bindField (const PHX::FieldTag &ft, const std::any &f)=0
virtual PHX::DeviceEvaluator < Traits > *	createDeviceEvaluator () const =0
virtual void	rebuildDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0
virtual void	deleteDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0
virtual void	printFieldValues (std::ostream &os) const =0
Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...
virtual	~DomainEvaluator ()=default
	Default destructor. More...
void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...
DomainType	getDomain ()
	Get the domain for the evaluator. More...
virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...
virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Additional Inherited Members
Protected Types inherited from panzer::ResponseScatterEvaluator_ProbeBase< EvalT, Traits, LO, GO >
typedef EvalT::ScalarT	ScalarT
Protected Attributes inherited from panzer::ResponseScatterEvaluator_ProbeBase< EvalT, Traits, LO, GO >
std::string	responseName_
std::string	fieldName_
int	fieldComponent_
Teuchos::Array< double >	point_
Teuchos::RCP< const panzer::PureBasis >	basis_
Teuchos::RCP< Response_Probe < EvalT > >	responseObj_
Teuchos::RCP< const shards::CellTopology >	topology_
Teuchos::RCP< const panzer::GlobalIndexer >	globalIndexer_
Teuchos::RCP< PHX::FieldTag >	scatterHolder_
PHX::MDField< const ScalarT, Cell, BASIS >	field_
Teuchos::RCP< ProbeScatterBase >	scatterObj_
bool	haveProbe_
int	cellIndex_
size_t	workset_id_
size_t	num_basis
size_t	num_dim
Kokkos::DynRankView< double, PHX::Device >	basis_values_
Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits, typename LO, typename GO>
class panzer::ResponseScatterEvaluator_Probe< EvalT, Traits, LO, GO >

This class handles calculation of a DOF at a single point in space

Definition at line 117 of file Panzer_ResponseScatterEvaluator_Probe.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits , typename LO , typename GO >

typedef ResponseScatterEvaluator_ProbeBase<EvalT,Traits,LO,GO> panzer::ResponseScatterEvaluator_Probe< EvalT, Traits, LO, GO >::Base

Definition at line 121 of file Panzer_ResponseScatterEvaluator_Probe.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits , typename LO , typename GO >

panzer::ResponseScatterEvaluator_Probe< EvalT, Traits, LO, GO >::ResponseScatterEvaluator_Probe ( const std::string &  responseName, const std::string &  fieldName, const int  fieldComponent, const Teuchos::Array< double > &  point, const IntegrationRule &  ir, const Teuchos::RCP< const PureBasis > &  basis, const Teuchos::RCP< const panzer::GlobalIndexer > &  indexer, const Teuchos::RCP< ProbeScatterBase > &  probeScatter  )

inline

A constructor with concrete arguments instead of a parameter list.

Definition at line 124 of file Panzer_ResponseScatterEvaluator_Probe.hpp.

---

The documentation for this class was generated from the following file:

• Panzer_ResponseScatterEvaluator_Probe.hpp
