#include <Panzer_ResponseScatterEvaluator_Probe.hpp>

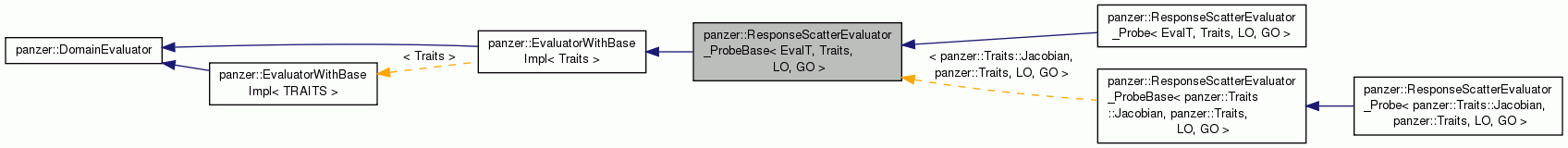

Inheritance diagram for panzer::ResponseScatterEvaluator_ProbeBase< EvalT, Traits, LO, GO >:

Public Member Functions
	ResponseScatterEvaluator_ProbeBase (const std::string &responseName, const std::string &fieldName, const int fieldComponent, const Teuchos::Array< double > &point, const IntegrationRule &ir, const Teuchos::RCP< const PureBasis > &basis, const Teuchos::RCP< const panzer::GlobalIndexer > &indexer, const Teuchos::RCP< ProbeScatterBase > &probeScatter)
	A constructor with concrete arguments instead of a parameter list. More...

void	evaluateFields (typename Traits::EvalData d)

void	preEvaluate (typename Traits::PreEvalData d)

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...

Public Member Functions inherited from PHX::EvaluatorWithBaseImpl< Traits >
virtual void	evaluateFields (typename Traits::EvalData d) override=0

Public Member Functions inherited from PHX::Evaluator< Traits >
	Evaluator ()

virtual	~Evaluator ()

virtual void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &vm)=0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	evaluatedFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	contributedFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	dependentFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	unsharedFields () const =0

virtual void	preEvaluate (typename Traits::PreEvalData d)=0

virtual void	postEvaluate (typename Traits::PostEvalData d)=0

virtual const std::string &	getName () const =0

virtual void	bindField (const PHX::FieldTag &ft, const PHX::any &f)=0

virtual PHX::DeviceEvaluator < Traits > *	createDeviceEvaluator () const =0

virtual void	rebuildDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void	deleteDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void	printFieldValues (std::ostream &os) const =0

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...

virtual	~DomainEvaluator ()=default
	Default destructor. More...

void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...

DomainType	getDomain ()
	Get the domain for the evaluator. More...

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Protected Types
typedef EvalT::ScalarT	ScalarT

Protected Member Functions
bool	computeBasisValues (typename Traits::EvalData d)

Protected Attributes
std::string	responseName_

std::string	fieldName_

int	fieldComponent_

Teuchos::Array< double >	point_

Teuchos::RCP< const panzer::PureBasis >	basis_

Teuchos::RCP< Response_Probe < EvalT > >	responseObj_

Teuchos::RCP< const shards::CellTopology >	topology_

Teuchos::RCP< const panzer::GlobalIndexer >	globalIndexer_

Teuchos::RCP< PHX::FieldTag >	scatterHolder_

PHX::MDField< const ScalarT, Cell, BASIS >	field_

Teuchos::RCP< ProbeScatterBase >	scatterObj_

int	cellIndex_

size_t	num_basis

size_t	num_dim

Kokkos::DynRankView< double, PHX::Device >	basis_values_

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0, GHOST =1, REAL =2, VIRTUAL =3, EXTERNAL =4, ALL =5 }
	Domain types supported by worksets. More...

Detailed Description

template<typename EvalT, typename Traits, typename LO, typename GO>
class panzer::ResponseScatterEvaluator_ProbeBase< EvalT, Traits, LO, GO >

This class handles calculation of a DOF at a single point in space

Definition at line 97 of file Panzer_ResponseScatterEvaluator_Probe.hpp.

Member Typedef Documentation

template<typename EvalT, typename Traits, typename LO, typename GO>

typedef EvalT::ScalarT panzer::ResponseScatterEvaluator_ProbeBase< EvalT, Traits, LO, GO >::ScalarT

protected

Definition at line 118 of file Panzer_ResponseScatterEvaluator_Probe.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits , typename LO , typename GO >

panzer::ResponseScatterEvaluator_ProbeBase< EvalT, Traits, LO, GO >::ResponseScatterEvaluator_ProbeBase	(	const std::string &	responseName,
		const std::string &	fieldName,
		const int	fieldComponent,
		const Teuchos::Array< double > &	point,
		const IntegrationRule &	ir,
		const Teuchos::RCP< const PureBasis > &	basis,
		const Teuchos::RCP< const panzer::GlobalIndexer > &	indexer,
		const Teuchos::RCP< ProbeScatterBase > &	probeScatter
	)
