panzer::ResponseMESupportBuilderBase Class Reference

#include <Panzer_ResponseMESupportBuilderBase.hpp>

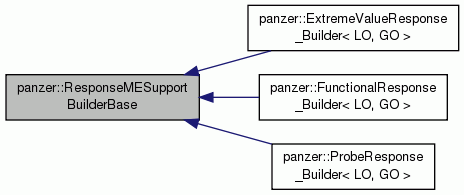

Inheritance diagram for panzer::ResponseMESupportBuilderBase:

Public Member Functions
virtual	~ResponseMESupportBuilderBase ()
virtual void	setDerivativeInformation (const Teuchos::RCP< const panzer::LinearObjFactory< panzer::Traits > > &linearObjFactory)=0
virtual Teuchos::RCP < panzer::ResponseEvaluatorFactoryBase >	buildValueFactory () const =0
virtual Teuchos::RCP < panzer::ResponseEvaluatorFactoryBase >	buildDerivativeFactory () const =0
virtual Teuchos::RCP < panzer::ResponseEvaluatorFactoryBase >	buildTangentFactory () const
virtual Teuchos::RCP < panzer::ResponseEvaluatorFactoryBase >	buildHessianFactory () const =0
template<typename T >
Teuchos::RCP < panzer::ResponseEvaluatorFactoryBase >	build () const

Detailed Description

This class is used by the model evaluator and it supports setting up derivative information for a response. In particular, it provides a mechanism for defining which distributed parameters are used for compute derivatives.

Definition at line 29 of file Panzer_ResponseMESupportBuilderBase.hpp.

Constructor & Destructor Documentation

virtual panzer::ResponseMESupportBuilderBase::~ResponseMESupportBuilderBase ( )

inlinevirtual

Definition at line 31 of file Panzer_ResponseMESupportBuilderBase.hpp.

Member Function Documentation

virtual void panzer::ResponseMESupportBuilderBase::setDerivativeInformation ( const Teuchos::RCP< const panzer::LinearObjFactory< panzer::Traits > > &  linearObjFactory )

pure virtual

This method controls how the derivative vector is allocated and scattered. The idea here is a Response can have different partial derivatives and this provides the mechanism for supporting that.

Implemented in panzer::ExtremeValueResponse_Builder< LO, GO >, panzer::ProbeResponse_Builder< LO, GO >, and panzer::FunctionalResponse_Builder< LO, GO >.

virtual Teuchos::RCP<panzer::ResponseEvaluatorFactoryBase> panzer::ResponseMESupportBuilderBase::buildValueFactory ( ) const

pure virtual

Using a panzer::Residual evaluation type build the REFB for this response.

Implemented in panzer::ExtremeValueResponse_Builder< LO, GO >, panzer::ProbeResponse_Builder< LO, GO >, and panzer::FunctionalResponse_Builder< LO, GO >.

virtual Teuchos::RCP<panzer::ResponseEvaluatorFactoryBase> panzer::ResponseMESupportBuilderBase::buildDerivativeFactory ( ) const

pure virtual

Using a panzer::Jacobian evaluation type build the REFB for this response.

Implemented in panzer::ExtremeValueResponse_Builder< LO, GO >, panzer::ProbeResponse_Builder< LO, GO >, and panzer::FunctionalResponse_Builder< LO, GO >.

virtual Teuchos::RCP<panzer::ResponseEvaluatorFactoryBase> panzer::ResponseMESupportBuilderBase::buildTangentFactory ( ) const

inlinevirtual

Using a panzer::Tangent evaluation type build the REFB for this response.

Reimplemented in panzer::ExtremeValueResponse_Builder< LO, GO >, panzer::ProbeResponse_Builder< LO, GO >, and panzer::FunctionalResponse_Builder< LO, GO >.

Definition at line 52 of file Panzer_ResponseMESupportBuilderBase.hpp.

virtual Teuchos::RCP<panzer::ResponseEvaluatorFactoryBase> panzer::ResponseMESupportBuilderBase::buildHessianFactory ( ) const

pure virtual

Using a panzer::Tangent evaluation type build the REFB for this response.

Implemented in panzer::ExtremeValueResponse_Builder< LO, GO >, and panzer::FunctionalResponse_Builder< LO, GO >.

template<typename T >

Teuchos::RCP<panzer::ResponseEvaluatorFactoryBase> panzer::ResponseMESupportBuilderBase::build ( ) const

inline

Satisfy the required interface for the builder used in the "addResponse" function in the ResponseLibrary.

Definition at line 67 of file Panzer_ResponseMESupportBuilderBase.hpp.

---

The documentation for this class was generated from the following file:

• Panzer_ResponseMESupportBuilderBase.hpp
