panzer::LinearObjFactory< Traits > Class Template Reference

#include <Panzer_LinearObjFactory.hpp>

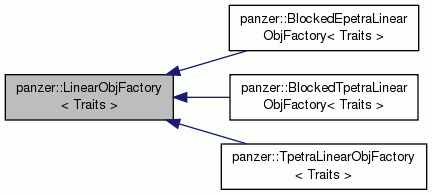

Inheritance diagram for panzer::LinearObjFactory< Traits >:

Classes
struct	Gather_Builder
struct	GatherDomain_Builder
struct	GatherOrientation_Builder
struct	GatherTangent_Builder
struct	Scatter_Builder
struct	ScatterDirichlet_Builder

Public Member Functions
virtual	~LinearObjFactory ()
template<typename BuilderT >
void	buildGatherScatterEvaluators (const BuilderT &builder)
virtual void	readVector (const std::string &identifier, LinearObjContainer &loc, int id) const =0
virtual void	writeVector (const std::string &identifier, const LinearObjContainer &loc, int id) const =0
virtual Teuchos::RCP < LinearObjContainer >	buildLinearObjContainer () const =0
virtual Teuchos::RCP < LinearObjContainer >	buildPrimitiveLinearObjContainer () const =0
virtual Teuchos::RCP < LinearObjContainer >	buildGhostedLinearObjContainer () const =0
virtual Teuchos::RCP < LinearObjContainer >	buildPrimitiveGhostedLinearObjContainer () const =0
virtual Teuchos::RCP < ReadOnlyVector_GlobalEvaluationData >	buildReadOnlyDomainContainer () const =0
virtual void	globalToGhostContainer (const LinearObjContainer &container, LinearObjContainer &ghostContainer, int) const =0
virtual void	ghostToGlobalContainer (const LinearObjContainer &ghostContainer, LinearObjContainer &container, int) const =0
virtual void	initializeContainer (int, LinearObjContainer &loc) const =0
virtual void	initializeGhostedContainer (int, LinearObjContainer &loc) const =0
virtual void	adjustForDirichletConditions (const LinearObjContainer &localBCRows, const LinearObjContainer &globalBCRows, LinearObjContainer &ghostedObjs, bool zeroVectorRows=false, bool adjustX=false) const =0
virtual void	applyDirichletBCs (const LinearObjContainer &counter, LinearObjContainer &result) const =0
virtual Teuchos::MpiComm< int >	getComm () const =0
template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildScatter (const Teuchos::ParameterList &pl) const
	Use preconstructed scatter evaluators. More...
template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildGather (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators. More...
template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildGatherTangent (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators. More...
template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildGatherDomain (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators. More...
template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildGatherOrientation (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators. More...
template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildScatterDirichlet (const Teuchos::ParameterList &pl) const
	Use preconstructed dirichlet scatter evaluators. More...
virtual Teuchos::RCP< const panzer::GlobalIndexer >	getDomainGlobalIndexer () const =0
	Get the domain global indexer object associated with this factory. More...
virtual Teuchos::RCP< const panzer::GlobalIndexer >	getRangeGlobalIndexer () const =0
	Get the range global indexer object associated with this factory. More...
virtual void	beginFill (LinearObjContainer &) const
virtual void	endFill (LinearObjContainer &) const

Private Types
typedef PHX::TemplateManager < typename Traits::EvalTypes, panzer::CloneableEvaluator, PHX::EvaluatorDerived< _, Traits > >	Evaluator_TemplateManager

Private Attributes
Teuchos::RCP < Evaluator_TemplateManager >	scatterManager_
Teuchos::RCP < Evaluator_TemplateManager >	scatterDirichletManager_
Teuchos::RCP < Evaluator_TemplateManager >	gatherManager_
Teuchos::RCP < Evaluator_TemplateManager >	gatherTangentManager_
Teuchos::RCP < Evaluator_TemplateManager >	gatherDomainManager_
Teuchos::RCP < Evaluator_TemplateManager >	gatherOrientManager_

Detailed Description

template<typename Traits>
class panzer::LinearObjFactory< Traits >

Abstract factory that builds the linear algebra objects required for the assembly including the gather/scatter evaluator objects.

The interface for construction of the gather scatter is externally very simple, but in fact under the hood it is quite complex. The user of this factory object simply calls buildGather(const Teuchos::ParameterList & pl) const, buildScatter(const Teuchos::ParameterList & pl) const, or buildScatterDirichlet(const Teuchos::ParameterList & pl) const.

To implement a version of this class an author must overide all the linear algebra construction functions. The new version should also call the base class version of buildGatherScatterEvaluators in the constructor with a reference to itself passed in as an argument. This requires the new version of the class to implement the following functions

template <typename EvalT> Teuchos::RCP<panzer::CloneableEvaluator> buildScatter() const;
template <typename EvalT> Teuchos::RCP<panzer::CloneableEvaluator> buildGather() const;
template <typename EvalT> Teuchos::RCP<panzer::CloneableEvaluator> buildGatherDomain() const;
template <typename EvalT> Teuchos::RCP<panzer::CloneableEvaluator> buildGatherOrientation() const;
template <typename EvalT> Teuchos::RCP<panzer::CloneableEvaluator> buildScatterDirichlet() const;

This builds the correct scatter/gather/scatter-dirichlet evaluator objects and returns them as a CloneableEvaluator (These evaluators must overide the CloneableEvaluator::clone function which takes a parameter list). The cloned evaluators will be the ones actually returned from the buildGather(const Teuchos::ParameterList & pl) const, buildGatherDomain(const Teuchos::ParameterList & pl) const, buildGatherOrientation(const Teuchos::ParameterList & pl) const, buildScatter(const Teuchos::ParameterList & pl) const, or buildScatterDirichlet(const Teuchos::ParameterList & pl) const functions.

Definition at line 72 of file Panzer_LinearObjFactory.hpp.

Member Typedef Documentation

template<typename Traits>

typedef PHX::TemplateManager<typename Traits::EvalTypes, panzer::CloneableEvaluator, PHX::EvaluatorDerived<_,Traits> > panzer::LinearObjFactory< Traits >::Evaluator_TemplateManager

private

Definition at line 260 of file Panzer_LinearObjFactory.hpp.

Constructor & Destructor Documentation

template<typename Traits>

virtual panzer::LinearObjFactory< Traits >::~LinearObjFactory ( )

inlinevirtual

Definition at line 74 of file Panzer_LinearObjFactory.hpp.

Member Function Documentation

template<typename Traits >

template<typename BuilderT >

void panzer::LinearObjFactory< Traits >::buildGatherScatterEvaluators ( const BuilderT &  builder )

inline

This builds all the required evaluators. It is required to be called before the build[Gather,Scatter,ScatterDirichlet] functions are called. This would typically be called by the inheriting class.

Parameters

[in]

builder

Template class to build all required evaluators. The class has the following interface. template <typename EvalT> Teuchos::RCP<panzer::CloneableEvaluator> buildScatter() const; template <typename EvalT> Teuchos::RCP<panzer::CloneableEvaluator> buildGather() const; template <typename EvalT> Teuchos::RCP<panzer::CloneableEvaluator> buildGatherDomain() const; template <typename EvalT> Teuchos::RCP<panzer::CloneableEvaluator> buildGatherOrientation() const; template <typename EvalT> Teuchos::RCP<panzer::CloneableEvaluator> buildScatterDirichlet() const;

Definition at line 340 of file Panzer_LinearObjFactory.hpp.

template<typename Traits>

virtual void panzer::LinearObjFactory< Traits >::readVector ( const std::string &  identifier, LinearObjContainer &  loc, int  id  ) const

pure virtual

Read in a vector from a file. Fill a particular vector in the linear object container.

Parameters

[in]	identifier	Key for specifying which file(s) to read
[in]	loc	Linear object container to fill with the vector
[in]	id	Id for the field to be filled

Implemented in panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >, and panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

template<typename Traits>

virtual void panzer::LinearObjFactory< Traits >::writeVector ( const std::string &  identifier, const LinearObjContainer &  loc, int  id  ) const

pure virtual

Write in a vector from a file. Fill a particular vector in the linear object container.

Parameters

[in]	identifier	Key for specifying which file(s) to read
[in]	loc	Linear object container to fill with the vector
[in]	id	Id for the field to be filled

Implemented in panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >, and panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

template<typename Traits>

virtual Teuchos::RCP<LinearObjContainer> panzer::LinearObjFactory< Traits >::buildLinearObjContainer ( ) const

pure virtual

Build a container with all the neccessary linear algebra objects. This is the non-ghosted version.

Implemented in panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >, and panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

template<typename Traits>

virtual Teuchos::RCP<LinearObjContainer> panzer::LinearObjFactory< Traits >::buildPrimitiveLinearObjContainer ( ) const

pure virtual

Build a container with all the neccessary linear algebra objects, purely on the single physics. This gives linear algebra objects that are relevant for a single physics solve. In many cases this is simply a call to buildLinearObjContainer however, in a few important cases (for instance in stochastic galerkin methods) this will return a container for a single instantiation of the physics. This is the non-ghosted version.

Implemented in panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >, and panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

template<typename Traits>

virtual Teuchos::RCP<LinearObjContainer> panzer::LinearObjFactory< Traits >::buildGhostedLinearObjContainer ( ) const

pure virtual

Build a container with all the neccessary linear algebra objects. This is the ghosted version.

Implemented in panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >, and panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

template<typename Traits>

virtual Teuchos::RCP<LinearObjContainer> panzer::LinearObjFactory< Traits >::buildPrimitiveGhostedLinearObjContainer ( ) const

pure virtual

Build a container with all the neccessary linear algebra objects, purely on the single physics. This gives linear algebra objects that are relevant for a single physics solve. In many cases this is simply a call to buildGhostedLinearObjContainer however, in a few important cases (for instance in stochastic galerkin methods) this will return a container for a single instantiation of the physics. This is the ghosted version.

Implemented in panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >, and panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

template<typename Traits>

virtual Teuchos::RCP<ReadOnlyVector_GlobalEvaluationData> panzer::LinearObjFactory< Traits >::buildReadOnlyDomainContainer ( ) const

pure virtual

Build a GlobalEvaluationDataContainer that handles all domain communication. This is used primarily for gather operations and hides the allocation and usage of the ghosted vector from the user.

Implemented in panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >, and panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

template<typename Traits>

virtual void panzer::LinearObjFactory< Traits >::globalToGhostContainer ( const LinearObjContainer &  container, LinearObjContainer &  ghostContainer, int    ) const

pure virtual

Implemented in panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >, and panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

template<typename Traits>

virtual void panzer::LinearObjFactory< Traits >::ghostToGlobalContainer ( const LinearObjContainer &  ghostContainer, LinearObjContainer &  container, int    ) const

pure virtual

Implemented in panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >, and panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

template<typename Traits>

virtual void panzer::LinearObjFactory< Traits >::initializeContainer ( int  , LinearObjContainer &  loc  ) const

pure virtual

Initialize container with a specific set of member values.

Note

This will overwrite everything in the container and zero out values not requested.

Implemented in panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >, panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, and panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

template<typename Traits>

virtual void panzer::LinearObjFactory< Traits >::initializeGhostedContainer ( int  , LinearObjContainer &  loc  ) const

pure virtual

Initialize container with a specific set of member values.

Note

This will overwrite everything in the container and zero out values not requested.

Implemented in panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >, panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, and panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

template<typename Traits>

virtual void panzer::LinearObjFactory< Traits >::adjustForDirichletConditions ( const LinearObjContainer &  localBCRows, const LinearObjContainer &  globalBCRows, LinearObjContainer &  ghostedObjs, bool  zeroVectorRows = false, bool  adjustX = false  ) const

pure virtual

Adjust the residual vector and Jacobian matrix (if they exist) for applied dirichlet conditions. The adjustment considers if a boundary condition was set globally and locally and based on that result adjust the ghosted matrix and residual vector so that when they are summed across processors they resulting Dirichlet condition is correct.

Parameters

[in]	localBCRows	Linear object container uses the X vector to indicate locally set dirichlet conditions. The format is if an entry of the vector is nonzero then it was set as a dirichlet condition.
[in]	globalBCRows	Linear object container uses the X vector to indicate globally set dirichlet conditions. The format is if an entry of the vector is nonzero then it was set as a dirichlet condition.
[in,out]	ghostedObjs	Ghosted linear object container storing the residual and jacobian matrix for any boundary conditions set. The matrix will be modified by zeroing any rows that are set as nonzero in globalBCRows but zero in localBCRows (similarly for the vector). If a row is nonzero in both localBCRows and globalBCRows then those rows in both the matrix and the residual vector are devided by the corresponding entry in the globalBCRows.
[in]	zeroVectorRows	Instead of preserving (and scaling) the vector rows, setting this to true will zero them instead.

Implemented in panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >, and panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

template<typename Traits>

virtual void panzer::LinearObjFactory< Traits >::applyDirichletBCs ( const LinearObjContainer &  counter, LinearObjContainer &  result  ) const

pure virtual

Adjust a vector by replacing selected rows with the value of the evaluated dirichlet conditions. This is handled through the standard container mechanism.

Parameters

[in]	counter	Contains a counter vector (the "x" vector) indicating which rows contain dirichlet conditions by having a non zero entry. The dirichlet condition values are specified in the "f" vector.
[in,out]	result	The vector to be modifed is the "f" vector.

Implemented in panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >, and panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

template<typename Traits>

virtual Teuchos::MpiComm<int> panzer::LinearObjFactory< Traits >::getComm ( ) const

pure virtual

Acess to the MPI Comm used in constructing this LOF.

Implemented in panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >, and panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

template<typename Traits>

template<typename EvalT >

Teuchos::RCP<PHX::Evaluator<Traits> > panzer::LinearObjFactory< Traits >::buildScatter ( const Teuchos::ParameterList &  pl ) const

inline

Use preconstructed scatter evaluators.

Definition at line 219 of file Panzer_LinearObjFactory.hpp.

template<typename Traits>

template<typename EvalT >

Teuchos::RCP<PHX::Evaluator<Traits> > panzer::LinearObjFactory< Traits >::buildGather ( const Teuchos::ParameterList &  pl ) const

inline

Use preconstructed gather evaluators.

Definition at line 224 of file Panzer_LinearObjFactory.hpp.

template<typename Traits>

template<typename EvalT >

Teuchos::RCP<PHX::Evaluator<Traits> > panzer::LinearObjFactory< Traits >::buildGatherTangent ( const Teuchos::ParameterList &  pl ) const

inline

Use preconstructed gather evaluators.

Definition at line 229 of file Panzer_LinearObjFactory.hpp.

template<typename Traits>

template<typename EvalT >

Teuchos::RCP<PHX::Evaluator<Traits> > panzer::LinearObjFactory< Traits >::buildGatherDomain ( const Teuchos::ParameterList &  pl ) const

inline

Use preconstructed gather evaluators.

Definition at line 234 of file Panzer_LinearObjFactory.hpp.

template<typename Traits>

template<typename EvalT >

Teuchos::RCP<PHX::Evaluator<Traits> > panzer::LinearObjFactory< Traits >::buildGatherOrientation ( const Teuchos::ParameterList &  pl ) const

inline

Use preconstructed gather evaluators.

Definition at line 239 of file Panzer_LinearObjFactory.hpp.

template<typename Traits>

template<typename EvalT >

Teuchos::RCP<PHX::Evaluator<Traits> > panzer::LinearObjFactory< Traits >::buildScatterDirichlet ( const Teuchos::ParameterList &  pl ) const

inline

Use preconstructed dirichlet scatter evaluators.

Definition at line 244 of file Panzer_LinearObjFactory.hpp.

template<typename Traits>

virtual Teuchos::RCP<const panzer::GlobalIndexer> panzer::LinearObjFactory< Traits >::getDomainGlobalIndexer ( ) const

pure virtual

Get the domain global indexer object associated with this factory.

Implemented in panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >, panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, and panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

template<typename Traits>

virtual Teuchos::RCP<const panzer::GlobalIndexer> panzer::LinearObjFactory< Traits >::getRangeGlobalIndexer ( ) const

pure virtual

Get the range global indexer object associated with this factory.

Implemented in panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >, panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, and panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

template<typename Traits>

virtual void panzer::LinearObjFactory< Traits >::beginFill ( LinearObjContainer &  ) const

inlinevirtual

Reimplemented in panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, and panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

Definition at line 253 of file Panzer_LinearObjFactory.hpp.

template<typename Traits>

virtual void panzer::LinearObjFactory< Traits >::endFill ( LinearObjContainer &  ) const

inlinevirtual

Reimplemented in panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >, and panzer::TpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >.

Definition at line 254 of file Panzer_LinearObjFactory.hpp.

Member Data Documentation

template<typename Traits>

Teuchos::RCP<Evaluator_TemplateManager> panzer::LinearObjFactory< Traits >::scatterManager_

private

Definition at line 263 of file Panzer_LinearObjFactory.hpp.

template<typename Traits>

Teuchos::RCP<Evaluator_TemplateManager> panzer::LinearObjFactory< Traits >::scatterDirichletManager_

private

Definition at line 264 of file Panzer_LinearObjFactory.hpp.

template<typename Traits>

Teuchos::RCP<Evaluator_TemplateManager> panzer::LinearObjFactory< Traits >::gatherManager_

private

Definition at line 265 of file Panzer_LinearObjFactory.hpp.

template<typename Traits>

Teuchos::RCP<Evaluator_TemplateManager> panzer::LinearObjFactory< Traits >::gatherTangentManager_

private

Definition at line 266 of file Panzer_LinearObjFactory.hpp.

template<typename Traits>

Teuchos::RCP<Evaluator_TemplateManager> panzer::LinearObjFactory< Traits >::gatherDomainManager_

private

Definition at line 267 of file Panzer_LinearObjFactory.hpp.

template<typename Traits>

Teuchos::RCP<Evaluator_TemplateManager> panzer::LinearObjFactory< Traits >::gatherOrientManager_

private

Definition at line 268 of file Panzer_LinearObjFactory.hpp.

---

The documentation for this class was generated from the following file:

• Panzer_LinearObjFactory.hpp
