#include <Panzer_ResponseEvaluatorFactory_ExtremeValue.hpp>

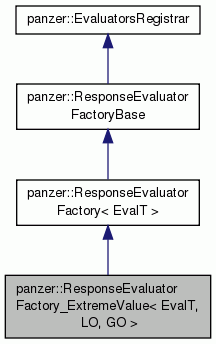

Inheritance diagram for panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >:

Public Member Functions
	ResponseEvaluatorFactory_ExtremeValue (MPI_Comm comm, int cubatureDegree=1, bool requiresCellReduction=true, bool useMax=true, const std::string &quadPointField="", const Teuchos::RCP< const panzer::LinearObjFactory< panzer::Traits > > &linearObjFactory=Teuchos::null, const Teuchos::RCP< const panzer::GlobalIndexer > &globalIndexer=Teuchos::null, bool applyDirichletToDerivative=false, std::string in_prefix="")

virtual	~ResponseEvaluatorFactory_ExtremeValue ()

virtual Teuchos::RCP < ResponseBase >	buildResponseObject (const std::string &responseName) const

virtual Teuchos::RCP < ResponseBase >	buildResponseObject (const std::string &responseName, const std::vector< WorksetDescriptor > &) const

virtual void	buildAndRegisterEvaluators (const std::string &responseName, PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &physicsBlock, const Teuchos::ParameterList &user_data) const

virtual bool	typeSupported () const

Public Member Functions inherited from panzer::ResponseEvaluatorFactory< EvalT >
	ResponseEvaluatorFactory ()

virtual	~ResponseEvaluatorFactory ()

Public Member Functions inherited from panzer::ResponseEvaluatorFactoryBase
	ResponseEvaluatorFactoryBase ()

virtual	~ResponseEvaluatorFactoryBase ()

Public Member Functions inherited from panzer::EvaluatorsRegistrar
int	setDetailsIndex (const int details_index)

int	getDetailsIndex () const
	Get the WorksetDetails index. More...

Protected Member Functions
int	getCubatureDegree () const
	Accessor method for Cubature degree (can be used by sub classes) More...

Protected Member Functions inherited from panzer::EvaluatorsRegistrar
	EvaluatorsRegistrar ()
	Default ctor initializes WorksetDetails index to 0. More...

virtual	~EvaluatorsRegistrar ()

template<typename EvalT >
void	registerEvaluator (PHX::FieldManager< panzer::Traits > &fm, const Teuchos::RCP< PHX::Evaluator< panzer::Traits > > &op) const

Private Attributes
MPI_Comm	comm_

int	cubatureDegree_

bool	requiresCellExtreme_

bool	useMax_

std::string	quadPointField_

Teuchos::RCP< const panzer::LinearObjFactory < panzer::Traits > >	linearObjFactory_

Teuchos::RCP< const panzer::GlobalIndexer >	globalIndexer_

bool	applyDirichletToDerivative_

std::string	prefix_

Detailed Description

template<typename EvalT, typename LO, typename GO>
class panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >

This class defines a response based on a functional.

Definition at line 31 of file Panzer_ResponseEvaluatorFactory_ExtremeValue.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename LO , typename GO >

panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >::ResponseEvaluatorFactory_ExtremeValue	(	MPI_Comm	comm,
		int	cubatureDegree = `1`,
		bool	requiresCellReduction = `true`,
		bool	useMax = `true`,
		const std::string &	quadPointField = `""`,
		const Teuchos::RCP< const panzer::LinearObjFactory< panzer::Traits > > &	linearObjFactory = `Teuchos::null`,
		const Teuchos::RCP< const panzer::GlobalIndexer > &	globalIndexer = `Teuchos::null`,
		bool	applyDirichletToDerivative = `false`,
		std::string	in_prefix = `""`
	)

inline

Definition at line 34 of file Panzer_ResponseEvaluatorFactory_ExtremeValue.hpp.

template<typename EvalT , typename LO , typename GO >

virtual panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >::~ResponseEvaluatorFactory_ExtremeValue ( )

inlinevirtual

Definition at line 52 of file Panzer_ResponseEvaluatorFactory_ExtremeValue.hpp.

Member Function Documentation

template<typename EvalT , typename LO , typename GO >

Teuchos::RCP< ResponseBase > panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >::buildResponseObject ( const std::string & responseName ) const

virtual

Build the response object used by this factory. This object assumes the role of the scatter target and will be accessible by all the evaluators in the field managers.

Parameters

[in] responseName Name of response to be built. This name will be used for looking up the response in the GlobalEvaluationDataContainer object.

Definition at line 28 of file Panzer_ResponseEvaluatorFactory_ExtremeValue_impl.hpp.

template<typename EvalT , typename LO , typename GO >

virtual Teuchos::RCP<ResponseBase> panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >::buildResponseObject	(	const std::string &	responseName,
		const std::vector< WorksetDescriptor > &	wkstdescs
	)		const

inlinevirtual

Build the response object used by this factory. This object assumes the role of the scatter target and will be accessible by all the evaluators in the field managers. This is the sideset version of the buildResponseObject function.

Parameters

[in]	responseName	Name of response to be built. This name will be used for looking up the response in the `GlobalEvaluationDataContainer` object.
[in]	wkstdescs	A vector of descriptors for the elements this response is over.

Implements panzer::ResponseEvaluatorFactory< EvalT >.

Definition at line 65 of file Panzer_ResponseEvaluatorFactory_ExtremeValue.hpp.

template<typename EvalT , typename LO , typename GO >

void panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >::buildAndRegisterEvaluators	(	const std::string &	responseName,
		PHX::FieldManager< panzer::Traits > &	fm,
		const panzer::PhysicsBlock &	physicsBlock,
		const Teuchos::ParameterList &	user_data
	)		const

virtual

Build and register evaluators for a response on a particular physics block.

Parameters

[in]	responseName	The name of the response to be constructed by these evaluators.
[in,out]	fm	Field manager to be fuild with the evaluators.
[in]	physicsBlock	What physics block is being used for constructing the evaluators
[in]	user_data	The user data parameter list, this stores things that the user may find useful.

Implements panzer::ResponseEvaluatorFactory< EvalT >.

Definition at line 38 of file Panzer_ResponseEvaluatorFactory_ExtremeValue_impl.hpp.

template<typename EvalT , typename LO , typename GO >

bool panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >::typeSupported ( ) const

virtual

Is this evaluation type supported by the factory. This is used to determine cases where a response may support a particular evaluation type, however at runtime the user decides not to enable the (say) Jacobian evaluation of this response.

Note that use of this mechanism is complementary to having the builder return Teuchos::null for a particular evaluation type.

Implements panzer::ResponseEvaluatorFactory< EvalT >.

Definition at line 92 of file Panzer_ResponseEvaluatorFactory_ExtremeValue_impl.hpp.

template<typename EvalT , typename LO , typename GO >

int panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >::getCubatureDegree ( ) const

inlineprotected

Accessor method for Cubature degree (can be used by sub classes)

Definition at line 96 of file Panzer_ResponseEvaluatorFactory_ExtremeValue.hpp.

Member Data Documentation

template<typename EvalT , typename LO , typename GO >

MPI_Comm panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >::comm_

private

Definition at line 99 of file Panzer_ResponseEvaluatorFactory_ExtremeValue.hpp.

template<typename EvalT , typename LO , typename GO >

int panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >::cubatureDegree_

private

Definition at line 100 of file Panzer_ResponseEvaluatorFactory_ExtremeValue.hpp.

template<typename EvalT , typename LO , typename GO >

bool panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >::requiresCellExtreme_

private

Definition at line 101 of file Panzer_ResponseEvaluatorFactory_ExtremeValue.hpp.

template<typename EvalT , typename LO , typename GO >

bool panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >::useMax_

private

Definition at line 102 of file Panzer_ResponseEvaluatorFactory_ExtremeValue.hpp.

template<typename EvalT , typename LO , typename GO >

std::string panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >::quadPointField_

private

Definition at line 103 of file Panzer_ResponseEvaluatorFactory_ExtremeValue.hpp.

template<typename EvalT , typename LO , typename GO >

Teuchos::RCP<const panzer::LinearObjFactory<panzer::Traits> > panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >::linearObjFactory_

private

Definition at line 104 of file Panzer_ResponseEvaluatorFactory_ExtremeValue.hpp.

template<typename EvalT , typename LO , typename GO >

Teuchos::RCP<const panzer::GlobalIndexer> panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >::globalIndexer_

private

Definition at line 105 of file Panzer_ResponseEvaluatorFactory_ExtremeValue.hpp.

template<typename EvalT , typename LO , typename GO >

bool panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >::applyDirichletToDerivative_

private

Definition at line 106 of file Panzer_ResponseEvaluatorFactory_ExtremeValue.hpp.

template<typename EvalT , typename LO , typename GO >

std::string panzer::ResponseEvaluatorFactory_ExtremeValue< EvalT, LO, GO >::prefix_

private

Definition at line 107 of file Panzer_ResponseEvaluatorFactory_ExtremeValue.hpp.
