panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT > Class Template Reference

#include <Panzer_BlockedTpetraLinearObjFactory.hpp>

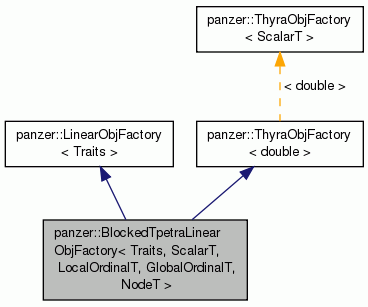

Inheritance diagram for panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >:

Public Types
typedef BlockedTpetraLinearObjContainer < ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >	BTLOC
typedef Tpetra::Vector < ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >	VectorType
typedef Tpetra::CrsMatrix < ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >	CrsMatrixType
typedef Tpetra::Operator < ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >	OperatorType
typedef Tpetra::CrsGraph < LocalOrdinalT, GlobalOrdinalT, NodeT >	CrsGraphType
typedef Tpetra::Map < LocalOrdinalT, GlobalOrdinalT, NodeT >	MapType
typedef Tpetra::Import < LocalOrdinalT, GlobalOrdinalT, NodeT >	ImportType
typedef Tpetra::Export < LocalOrdinalT, GlobalOrdinalT, NodeT >	ExportType
typedef Thyra::TpetraVector < ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >	ThyraVector
typedef Thyra::TpetraLinearOp < ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >	ThyraLinearOp

Public Member Functions
	BlockedTpetraLinearObjFactory (const Teuchos::RCP< const Teuchos::MpiComm< int > > &comm, const Teuchos::RCP< const BlockedDOFManager > &gidProvider)
	BlockedTpetraLinearObjFactory (const Teuchos::RCP< const Teuchos::MpiComm< int > > &comm, const std::vector< Teuchos::RCP< const panzer::GlobalIndexer >> &gidProviders)
	Ctor that takes a vector of DOFManagers instead of the BlockedDOFManager. Plan is to deprecate the BlockedDOFManager, but for now it is ingrained in all gather/scatter operators. More...
virtual	~BlockedTpetraLinearObjFactory ()
virtual void	readVector (const std::string &, LinearObjContainer &, int) const
virtual void	writeVector (const std::string &, const LinearObjContainer &, int) const
virtual Teuchos::RCP < LinearObjContainer >	buildLinearObjContainer () const
virtual Teuchos::RCP < LinearObjContainer >	buildPrimitiveLinearObjContainer () const
virtual Teuchos::RCP < LinearObjContainer >	buildGhostedLinearObjContainer () const
virtual Teuchos::RCP < LinearObjContainer >	buildPrimitiveGhostedLinearObjContainer () const
virtual void	globalToGhostContainer (const LinearObjContainer &container, LinearObjContainer &ghostContainer, int) const
virtual void	ghostToGlobalContainer (const LinearObjContainer &ghostContainer, LinearObjContainer &container, int) const
virtual void	adjustForDirichletConditions (const LinearObjContainer &localBCRows, const LinearObjContainer &globalBCRows, LinearObjContainer &ghostedObjs, bool zeroVectorRows=false, bool adjustX=false) const
virtual void	applyDirichletBCs (const LinearObjContainer &counter, LinearObjContainer &result) const
virtual Teuchos::RCP < ReadOnlyVector_GlobalEvaluationData >	buildReadOnlyDomainContainer () const
Teuchos::MpiComm< int >	getComm () const
template<typename EvalT >
Teuchos::RCP < panzer::CloneableEvaluator >	buildScatter () const
	Use preconstructed scatter evaluators. More...
template<typename EvalT >
Teuchos::RCP < panzer::CloneableEvaluator >	buildGather () const
	Use preconstructed gather evaluators. More...
template<typename EvalT >
Teuchos::RCP < panzer::CloneableEvaluator >	buildGatherTangent () const
	Use preconstructed gather evaluators. More...
template<typename EvalT >
Teuchos::RCP < panzer::CloneableEvaluator >	buildGatherDomain () const
	Use preconstructed gather evaluators. More...
template<typename EvalT >
Teuchos::RCP < panzer::CloneableEvaluator >	buildGatherOrientation () const
	Use preconstructed gather evaluators. More...
template<typename EvalT >
Teuchos::RCP < panzer::CloneableEvaluator >	buildScatterDirichlet () const
	Use preconstructed dirichlet scatter evaluators. More...
void	initializeContainer (int, LinearObjContainer &loc) const
void	initializeContainer (int mem, BTLOC &loc) const
void	initializeGhostedContainer (int, LinearObjContainer &loc) const
void	initializeGhostedContainer (int mem, BTLOC &loc) const
Teuchos::RCP< const Thyra::VectorSpaceBase < ScalarT > >	getThyraDomainSpace () const
	Get the domain vector space (x and dxdt) More...
Teuchos::RCP< const Thyra::VectorSpaceBase < ScalarT > >	getThyraRangeSpace () const
	Get the range vector space (f) More...
Teuchos::RCP< const Thyra::VectorSpaceBase < ScalarT > >	getThyraDomainSpace (int blk) const
	Get the domain vector space (x and dxdt) More...
Teuchos::RCP< const Thyra::VectorSpaceBase < ScalarT > >	getThyraRangeSpace (int blk) const
	Get the range vector space (f) More...
Teuchos::RCP < Thyra::VectorBase< ScalarT > >	getThyraDomainVector () const
	Get a domain vector. More...
Teuchos::RCP < Thyra::VectorBase< ScalarT > >	getThyraRangeVector () const
	Get a range vector. More...
Teuchos::RCP < Thyra::LinearOpBase< ScalarT > >	getThyraMatrix () const
	Get a Thyra operator. More...
Teuchos::RCP< const Thyra::VectorSpaceBase < ScalarT > >	getGhostedThyraDomainSpace () const
	Get the domain vector space (x and dxdt) More...
Teuchos::RCP< const Thyra::VectorSpaceBase < ScalarT > >	getGhostedThyraRangeSpace () const
	Get the range vector space (f) More...
Teuchos::RCP < Thyra::VectorBase< ScalarT > >	getGhostedThyraDomainVector () const
	Get a domain vector. More...
Teuchos::RCP < Thyra::VectorBase< ScalarT > >	getGhostedThyraRangeVector () const
	Get a range vector. More...
Teuchos::RCP < Thyra::BlockedLinearOpBase < ScalarT > >	getGhostedThyraMatrix () const
	Get a Thyra operator. More...
virtual Teuchos::RCP< const MapType >	getMap (int i) const
	get the map from the matrix More...
virtual Teuchos::RCP< const MapType >	getGhostedMap (int i) const
	get the ghosted map from the matrix More...
virtual Teuchos::RCP< const CrsGraphType >	getGraph (int i, int j) const
	get the graph of the crs matrix More...
virtual Teuchos::RCP< const CrsGraphType >	getGhostedGraph (int i, int j) const
	get the ghosted graph of the crs matrix More...
virtual Teuchos::RCP< const ImportType >	getGhostedImport (int i) const
	get importer for converting an overalapped object to a "normal" object More...
virtual Teuchos::RCP< const ExportType >	getGhostedExport (int j) const
	get exporter for converting an overalapped object to a "normal" object More...
Teuchos::RCP< CrsMatrixType >	getTpetraMatrix (int i, int j) const
Teuchos::RCP< CrsMatrixType >	getGhostedTpetraMatrix (int i, int j) const
Teuchos::RCP< VectorType >	getTpetraDomainVector (int i) const
Teuchos::RCP< VectorType >	getGhostedTpetraDomainVector (int i) const
Teuchos::RCP< VectorType >	getTpetraRangeVector (int i) const
Teuchos::RCP< VectorType >	getGhostedTpetraRangeVector (int i) const
int	getBlockRowCount () const
	how many block rows More...
int	getBlockColCount () const
	how many block columns More...
void	addExcludedPair (int rowBlock, int colBlock)
	exclude a block pair from the matrix More...
void	addExcludedPairs (const std::vector< std::pair< int, int > > &exPairs)
	exclude a vector of pairs from the matrix More...
virtual void	beginFill (LinearObjContainer &loc) const
virtual void	endFill (LinearObjContainer &loc) const
Teuchos::RCP< const panzer::BlockedDOFManager >	getGlobalIndexer () const
Teuchos::RCP< const panzer::GlobalIndexer >	getDomainGlobalIndexer () const
	Get the domain unique global indexer this factory was created with. More...
Teuchos::RCP< const panzer::GlobalIndexer >	getRangeGlobalIndexer () const
	Get the range unique global indexer this factory was created with. More...
Public Member Functions inherited from panzer::LinearObjFactory< Traits >
virtual	~LinearObjFactory ()
template<typename BuilderT >
void	buildGatherScatterEvaluators (const BuilderT &builder)
template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildScatter (const Teuchos::ParameterList &pl) const
	Use preconstructed scatter evaluators. More...
template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildGather (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators. More...
template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildGatherTangent (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators. More...
template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildGatherDomain (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators. More...
template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildGatherOrientation (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators. More...
template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildScatterDirichlet (const Teuchos::ParameterList &pl) const
	Use preconstructed dirichlet scatter evaluators. More...
Public Member Functions inherited from panzer::ThyraObjFactory< double >
virtual	~ThyraObjFactory ()

Protected Member Functions
Teuchos::RCP< const GlobalIndexer >	getGlobalIndexer (int i) const
void	makeRoomForBlocks (std::size_t blockCnt)
	Allocate the space in the std::vector objects so we can fill with appropriate Tpetra data. More...
void	ghostToGlobalThyraVector (const Teuchos::RCP< const Thyra::VectorBase< ScalarT > > &in, const Teuchos::RCP< Thyra::VectorBase< ScalarT > > &out) const
void	ghostToGlobalThyraMatrix (const Thyra::LinearOpBase< ScalarT > &in, Thyra::LinearOpBase< ScalarT > &out) const
void	globalToGhostThyraVector (const Teuchos::RCP< const Thyra::VectorBase< ScalarT > > &in, const Teuchos::RCP< Thyra::VectorBase< ScalarT > > &out) const
void	adjustForDirichletConditions (const VectorType &local_bcs, const VectorType &global_bcs, const Teuchos::Ptr< VectorType > &f, const Teuchos::Ptr< CrsMatrixType > &A, bool zeroVectorRows) const
void	ghostToGlobalTpetraVector (int i, const VectorType &in, VectorType &out) const
void	ghostToGlobalTpetraMatrix (int blockRow, const CrsMatrixType &in, CrsMatrixType &out) const
void	globalToGhostTpetraVector (int i, const VectorType &in, VectorType &out) const
virtual Teuchos::RCP< const MapType >	buildTpetraMap (int i) const
virtual Teuchos::RCP< const MapType >	buildTpetraGhostedMap (int i) const
virtual Teuchos::RCP< const CrsGraphType >	buildTpetraGraph (int i, int j) const
virtual Teuchos::RCP< const CrsGraphType >	buildTpetraGhostedGraph (int i, int j) const

Protected Attributes
Teuchos::RCP< const GlobalIndexer >	blockProvider_
Teuchos::RCP< const BlockedDOFManager >	blockedDOFManager_
std::vector< Teuchos::RCP < const GlobalIndexer > >	gidProviders_
std::unordered_set< std::pair < int, int > , panzer::pair_hash >	excludedPairs_
Teuchos::RCP < Thyra::ProductVectorSpaceBase < ScalarT > >	rangeSpace_
Teuchos::RCP < Thyra::ProductVectorSpaceBase < ScalarT > >	domainSpace_
Teuchos::RCP < Thyra::ProductVectorSpaceBase < ScalarT > >	ghostedRangeSpace_
Teuchos::RCP < Thyra::ProductVectorSpaceBase < ScalarT > >	ghostedDomainSpace_
Teuchos::RCP< const Teuchos::MpiComm< int > >	comm_
std::vector< Teuchos::RCP < const MapType > >	maps_
std::vector< Teuchos::RCP < const MapType > >	ghostedMaps_
std::unordered_map< std::pair < int, int >, Teuchos::RCP < const CrsGraphType > , panzer::pair_hash >	graphs_
std::unordered_map< std::pair < int, int >, Teuchos::RCP < const CrsGraphType > , panzer::pair_hash >	ghostedGraphs_
std::vector< Teuchos::RCP < const ImportType > >	importers_
std::vector< Teuchos::RCP < const ExportType > >	exporters_

Detailed Description

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>
class panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >

Definition at line 81 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

Member Typedef Documentation

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

typedef BlockedTpetraLinearObjContainer<ScalarT,LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::BTLOC

Definition at line 84 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::Vector<ScalarT,LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::VectorType

Definition at line 85 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::CrsMatrix<ScalarT,LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::CrsMatrixType

Definition at line 86 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::Operator<ScalarT,LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::OperatorType

Definition at line 87 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::CrsGraph<LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::CrsGraphType

Definition at line 88 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::Map<LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::MapType

Definition at line 89 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::Import<LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ImportType

Definition at line 90 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::Export<LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ExportType

Definition at line 91 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

typedef Thyra::TpetraVector<ScalarT,LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ThyraVector

Definition at line 93 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

typedef Thyra::TpetraLinearOp<ScalarT,LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ThyraLinearOp

Definition at line 94 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

Constructor & Destructor Documentation

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::BlockedTpetraLinearObjFactory	(	const Teuchos::RCP< const Teuchos::MpiComm< int > > &	comm,
		const Teuchos::RCP< const BlockedDOFManager > &	gidProvider
	)

Definition at line 76 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::BlockedTpetraLinearObjFactory	(	const Teuchos::RCP< const Teuchos::MpiComm< int > > &	comm,
		const std::vector< Teuchos::RCP< const panzer::GlobalIndexer >> &	gidProviders
	)

Ctor that takes a vector of DOFManagers instead of the BlockedDOFManager. Plan is to deprecate the BlockedDOFManager, but for now it is ingrained in all gather/scatter operators.

Definition at line 92 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::~BlockedTpetraLinearObjFactory ( )

virtual

Definition at line 101 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

Member Function Documentation

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

virtual void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::readVector ( const std::string &  identifier, LinearObjContainer &  loc, int  id  ) const

inlinevirtual

Read in a vector from a file. Fill a particular vector in the linear object container.

Parameters

[in]	identifier	Key for specifying which file(s) to read
[in]	loc	Linear object container to fill with the vector
[in]	id	Id for the field to be filled

Implements panzer::LinearObjFactory< Traits >.

Definition at line 111 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

virtual void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::writeVector ( const std::string &  identifier, const LinearObjContainer &  loc, int  id  ) const

inlinevirtual

Write in a vector from a file. Fill a particular vector in the linear object container.

Parameters

[in]	identifier	Key for specifying which file(s) to read
[in]	loc	Linear object container to fill with the vector
[in]	id	Id for the field to be filled

Implements panzer::LinearObjFactory< Traits >.

Definition at line 114 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< LinearObjContainer > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildLinearObjContainer ( ) const

virtual

Build a container with all the neccessary linear algebra objects. This is the non-ghosted version.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 110 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

virtual Teuchos::RCP<LinearObjContainer> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildPrimitiveLinearObjContainer ( ) const

inlinevirtual

Build a container with all the neccessary linear algebra objects, purely on the single physics. This gives linear algebra objects that are relevant for a single physics solve. In many cases this is simply a call to buildLinearObjContainer however, in a few important cases (for instance in stochastic galerkin methods) this will return a container for a single instantiation of the physics. This is the non-ghosted version.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 119 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< LinearObjContainer > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildGhostedLinearObjContainer ( ) const

virtual

Build a container with all the neccessary linear algebra objects. This is the ghosted version.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 126 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

virtual Teuchos::RCP<LinearObjContainer> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildPrimitiveGhostedLinearObjContainer ( ) const

inlinevirtual

Build a container with all the neccessary linear algebra objects, purely on the single physics. This gives linear algebra objects that are relevant for a single physics solve. In many cases this is simply a call to buildGhostedLinearObjContainer however, in a few important cases (for instance in stochastic galerkin methods) this will return a container for a single instantiation of the physics. This is the ghosted version.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 124 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::globalToGhostContainer ( const LinearObjContainer &  container, LinearObjContainer &  ghostContainer, int  mem  ) const

virtual

Implements panzer::LinearObjFactory< Traits >.

Definition at line 141 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostToGlobalContainer ( const LinearObjContainer &  ghostContainer, LinearObjContainer &  container, int  mem  ) const

virtual

Implements panzer::LinearObjFactory< Traits >.

Definition at line 164 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::adjustForDirichletConditions ( const LinearObjContainer &  localBCRows, const LinearObjContainer &  globalBCRows, LinearObjContainer &  ghostedObjs, bool  zeroVectorRows = false, bool  adjustX = false  ) const

virtual

Adjust the residual vector and Jacobian matrix (if they exist) for applied dirichlet conditions. The adjustment considers if a boundary condition was set globally and locally and based on that result adjust the ghosted matrix and residual vector so that when they are summed across processors they resulting Dirichlet condition is correct.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 187 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::applyDirichletBCs ( const LinearObjContainer &  counter, LinearObjContainer &  result  ) const

virtual

Adjust a vector by replacing selected rows with the value of the evaluated dirichlet conditions. This is handled through the standard container mechanism.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 337 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< ReadOnlyVector_GlobalEvaluationData > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildReadOnlyDomainContainer ( ) const

virtual

Build a GlobalEvaluationDataContainer that handles all domain communication. This is used primarily for gather operations and hides the allocation and usage of the ghosted vector from the user.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 353 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::MpiComm< int > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getComm ( ) const

virtual

Acess to the MPI Comm used in constructing this LOF.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 398 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

template<typename EvalT >

Teuchos::RCP<panzer::CloneableEvaluator> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildScatter ( ) const

inline

Use preconstructed scatter evaluators.

Definition at line 167 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

template<typename EvalT >

Teuchos::RCP<panzer::CloneableEvaluator > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildGather ( ) const

inline

Use preconstructed gather evaluators.

Definition at line 172 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

template<typename EvalT >

Teuchos::RCP<panzer::CloneableEvaluator > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildGatherTangent ( ) const

inline

Use preconstructed gather evaluators.

Definition at line 177 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

template<typename EvalT >

Teuchos::RCP<panzer::CloneableEvaluator > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildGatherDomain ( ) const

inline

Use preconstructed gather evaluators.

Definition at line 182 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

template<typename EvalT >

Teuchos::RCP<panzer::CloneableEvaluator > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildGatherOrientation ( ) const

inline

Use preconstructed gather evaluators.

Definition at line 187 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

template<typename EvalT >

Teuchos::RCP<panzer::CloneableEvaluator> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildScatterDirichlet ( ) const

inline

Use preconstructed dirichlet scatter evaluators.

Definition at line 192 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::initializeContainer ( int  mem, LinearObjContainer &  loc  ) const

virtual

Initialize container with a specific set of member values.

Note

This will overwrite everything in the container and zero out values not requested.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 405 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::initializeContainer	(	int	mem,
		BTLOC &	loc
	)		const

Initialize container with a specific set of member values.

Note

This will overwrite everything in the container and zero out values not requested.

Definition at line 424 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::initializeGhostedContainer ( int  mem, LinearObjContainer &  loc  ) const

virtual

Initialize container with a specific set of member values.

Note

This will overwrite everything in the container and zero out values not requested.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 413 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::initializeGhostedContainer	(	int	mem,
		BTLOC &	loc
	)		const

Initialize container with a specific set of member values.

Note

This will overwrite everything in the container and zero out values not requested.

Definition at line 445 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getThyraDomainSpace ( ) const

virtual

Get the domain vector space (x and dxdt)

Implements panzer::ThyraObjFactory< double >.

Definition at line 507 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getThyraRangeSpace ( ) const

virtual

Get the range vector space (f)

Implements panzer::ThyraObjFactory< double >.

Definition at line 524 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getThyraDomainSpace

(

int

blk

)

const

Get the domain vector space (x and dxdt)

Definition at line 541 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getThyraRangeSpace

(

int

blk

)

const

Get the range vector space (f)

Definition at line 553 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Thyra::VectorBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getThyraDomainVector

(

)

const

Get a domain vector.

Definition at line 565 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Thyra::VectorBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getThyraRangeVector

(

)

const

Get a range vector.

Definition at line 583 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Thyra::LinearOpBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getThyraMatrix ( ) const

virtual

Get a Thyra operator.

Implements panzer::ThyraObjFactory< double >.

Definition at line 595 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedThyraDomainSpace

(

)

const

Get the domain vector space (x and dxdt)

Definition at line 625 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedThyraRangeSpace

(

)

const

Get the range vector space (f)

Definition at line 642 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Thyra::VectorBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedThyraDomainVector

(

)

const

Get a domain vector.

Definition at line 659 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Thyra::VectorBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedThyraRangeVector

(

)

const

Get a range vector.

Definition at line 671 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Thyra::BlockedLinearOpBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedThyraMatrix

(

)

const

Get a Thyra operator.

Definition at line 683 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::Map< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getMap ( int  i ) const

virtual

get the map from the matrix

Definition at line 861 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::Map< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedMap ( int  i ) const

virtual

get the ghosted map from the matrix

Definition at line 872 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::CrsGraph< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGraph ( int  i, int  j  ) const

virtual

get the graph of the crs matrix

Definition at line 884 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::CrsGraph< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedGraph ( int  i, int  j  ) const

virtual

get the ghosted graph of the crs matrix

Definition at line 904 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::Import< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedImport ( int  i ) const

virtual

get importer for converting an overalapped object to a "normal" object

Definition at line 924 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::Export< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedExport ( int  j ) const

virtual

get exporter for converting an overalapped object to a "normal" object

Definition at line 935 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Tpetra::CrsMatrix< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getTpetraMatrix	(	int	i,
		int	j
	)		const

Definition at line 1079 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Tpetra::CrsMatrix< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedTpetraMatrix	(	int	i,
		int	j
	)		const

Definition at line 1094 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Tpetra::Vector< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getTpetraDomainVector

(

int

i

)

const

Definition at line 1109 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Tpetra::Vector< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedTpetraDomainVector

(

int

i

)

const

Definition at line 1118 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Tpetra::Vector< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getTpetraRangeVector

(

int

i

)

const

Definition at line 1127 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Tpetra::Vector< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedTpetraRangeVector

(

int

i

)

const

Definition at line 1136 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

int panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getBlockRowCount

(

)

const

how many block rows

Definition at line 1145 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

int panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getBlockColCount

(

)

const

how many block columns

Definition at line 1153 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::addExcludedPair	(	int	rowBlock,
		int	colBlock
	)

exclude a block pair from the matrix

Definition at line 470 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::addExcludedPairs

(

const std::vector< std::pair< int, int > > &

exPairs

)

exclude a vector of pairs from the matrix

Definition at line 477 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::beginFill ( LinearObjContainer &  loc ) const

virtual

Reimplemented from panzer::LinearObjFactory< Traits >.

Definition at line 1160 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::endFill ( LinearObjContainer &  loc ) const

virtual

Reimplemented from panzer::LinearObjFactory< Traits >.

Definition at line 1169 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<const panzer::BlockedDOFManager> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGlobalIndexer ( ) const

inline

Definition at line 309 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<const panzer::GlobalIndexer> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getDomainGlobalIndexer ( ) const

inlinevirtual

Get the domain unique global indexer this factory was created with.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 313 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<const panzer::GlobalIndexer> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getRangeGlobalIndexer ( ) const

inlinevirtual

Get the range unique global indexer this factory was created with.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 317 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const GlobalIndexer > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGlobalIndexer ( int  i ) const

protected

Definition at line 486 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::makeRoomForBlocks ( std::size_t  blockCnt )

protected

Allocate the space in the std::vector objects so we can fill with appropriate Tpetra data.

Definition at line 493 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostToGlobalThyraVector ( const Teuchos::RCP< const Thyra::VectorBase< ScalarT > > &  in, const Teuchos::RCP< Thyra::VectorBase< ScalarT > > &  out  ) const

protected

Definition at line 712 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostToGlobalThyraMatrix ( const Thyra::LinearOpBase< ScalarT > &  in, Thyra::LinearOpBase< ScalarT > &  out  ) const

protected

Definition at line 740 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::globalToGhostThyraVector ( const Teuchos::RCP< const Thyra::VectorBase< ScalarT > > &  in, const Teuchos::RCP< Thyra::VectorBase< ScalarT > > &  out  ) const

protected

Definition at line 786 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::adjustForDirichletConditions ( const VectorType &  local_bcs, const VectorType &  global_bcs, const Teuchos::Ptr< VectorType > &  f, const Teuchos::Ptr< CrsMatrixType > &  A, bool  zeroVectorRows  ) const

protected

Definition at line 271 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostToGlobalTpetraVector ( int  i, const VectorType &  in, VectorType &  out  ) const

protected

Definition at line 817 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostToGlobalTpetraMatrix ( int  blockRow, const CrsMatrixType &  in, CrsMatrixType &  out  ) const

protected

Definition at line 829 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::globalToGhostTpetraVector ( int  i, const VectorType &  in, VectorType &  out  ) const

protected

Definition at line 847 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::Map< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildTpetraMap ( int  i ) const

protectedvirtual

Definition at line 946 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::Map< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildTpetraGhostedMap ( int  i ) const

protectedvirtual

Definition at line 960 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::CrsGraph< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildTpetraGraph ( int  i, int  j  ) const

protectedvirtual

Definition at line 974 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::CrsGraph< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildTpetraGhostedGraph ( int  i, int  j  ) const

protectedvirtual

Definition at line 998 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

Member Data Documentation

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<const GlobalIndexer> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::blockProvider_

protected

Definition at line 329 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<const BlockedDOFManager> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::blockedDOFManager_

protected

Definition at line 330 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

std::vector<Teuchos::RCP<const GlobalIndexer> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::gidProviders_

protected

Definition at line 331 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

std::unordered_set<std::pair<int,int>,panzer::pair_hash> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::excludedPairs_

protected

Definition at line 334 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<Thyra::ProductVectorSpaceBase<ScalarT> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::rangeSpace_

mutableprotected

Definition at line 344 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<Thyra::ProductVectorSpaceBase<ScalarT> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::domainSpace_

mutableprotected

Definition at line 345 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<Thyra::ProductVectorSpaceBase<ScalarT> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostedRangeSpace_

mutableprotected

Definition at line 347 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<Thyra::ProductVectorSpaceBase<ScalarT> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostedDomainSpace_

mutableprotected

Definition at line 348 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<const Teuchos::MpiComm<int> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::comm_

protected

Definition at line 371 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

std::vector<Teuchos::RCP<const MapType> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::maps_

mutableprotected

Definition at line 372 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

std::vector<Teuchos::RCP<const MapType> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostedMaps_

mutableprotected

Definition at line 373 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

std::unordered_map<std::pair<int,int>,Teuchos::RCP<const CrsGraphType>,panzer::pair_hash> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::graphs_

mutableprotected

Definition at line 374 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

std::unordered_map<std::pair<int,int>,Teuchos::RCP<const CrsGraphType>,panzer::pair_hash> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostedGraphs_

mutableprotected

Definition at line 375 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

std::vector<Teuchos::RCP<const ImportType> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::importers_

mutableprotected

Definition at line 377 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>

std::vector<Teuchos::RCP<const ExportType> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::exporters_

mutableprotected

Definition at line 378 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

---

The documentation for this class was generated from the following files:

• Panzer_BlockedTpetraLinearObjFactory.hpp
• Panzer_BlockedTpetraLinearObjFactory_impl.hpp
