#include <Panzer_EquationSet_DefaultImpl_decl.hpp>

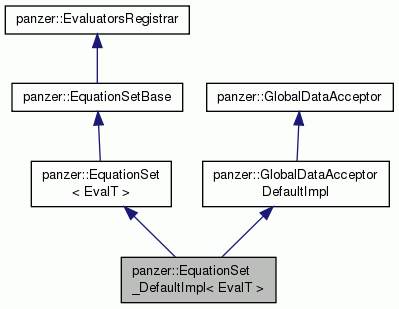

Inheritance diagram for panzer::EquationSet_DefaultImpl< EvalT >:

Classes
struct	DOFDescriptor

Public Member Functions
	EquationSet_DefaultImpl (const Teuchos::RCP< Teuchos::ParameterList > &params, const int &default_integration_order, const panzer::CellData &cell_data, const Teuchos::RCP< panzer::GlobalData > &global_data, const bool build_transient_support)

virtual	~EquationSet_DefaultImpl ()

virtual void	buildAndRegisterGatherAndOrientationEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::FieldLibrary &fl, const LinearObjFactory< panzer::Traits > &lof, const Teuchos::ParameterList &user_data) const

virtual void	buildAndRegisterScatterEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::FieldLibrary &fl, const LinearObjFactory< panzer::Traits > &lof, const Teuchos::ParameterList &user_data) const

virtual void	buildAndRegisterEquationSetEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::FieldLibrary &fl, const Teuchos::ParameterList &user_data) const =0

virtual void	buildAndRegisterDOFProjectionsToIPEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::FieldLayoutLibrary &fl, const Teuchos::RCP< panzer::IntegrationRule > &ir, const Teuchos::Ptr< const panzer::LinearObjFactory< panzer::Traits > > &lof, const Teuchos::ParameterList &user_data) const

virtual void	buildAndRegisterClosureModelEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::FieldLayoutLibrary &fl, const Teuchos::RCP< panzer::IntegrationRule > &ir, const panzer::ClosureModelFactory_TemplateManager< panzer::Traits > &factory, const Teuchos::ParameterList &models, const Teuchos::ParameterList &user_data) const
	Register closure model evaluators with the model name internally specified by the equation set. More...

virtual void	buildAndRegisterClosureModelEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::FieldLayoutLibrary &fl, const Teuchos::RCP< panzer::IntegrationRule > &ir, const panzer::ClosureModelFactory_TemplateManager< panzer::Traits > &factory, const std::string &model_name, const Teuchos::ParameterList &models, const Teuchos::ParameterList &user_data) const
	Register closure model evaluators with the model name specified by an argument. More...

virtual void	buildAndRegisterInitialConditionEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::FieldLibrary &fl, const panzer::ClosureModelFactory_TemplateManager< panzer::Traits > &factory, const std::string &model_name, const Teuchos::ParameterList &models, const LinearObjFactory< panzer::Traits > &lof, const Teuchos::ParameterList &user_data) const

virtual const Teuchos::RCP < Teuchos::ParameterList >	getEvaluatorParameterList () const
	Returns the parameter list that will be passed off from the equaiton set to the closure model evaluator factory. This allows users to pass parameters from a particular equaiton set to its associated closure models. More...

virtual const std::vector < std::pair< std::string, Teuchos::RCP < panzer::PureBasis > > > &	getProvidedDOFs () const
	Return the Basis for the equation set, key is the DOF name (note coordinate DOFs are NOT included) More...

virtual const std::vector < std::vector< std::string > > &	getCoordinateDOFs () const
	Return a vector of vectors that correspond to DOFs set as coordinate fields. More...

virtual const std::map< int, Teuchos::RCP < panzer::IntegrationRule > > &	getIntegrationRules () const
	Return a map of unique integration rules for the equation set, key is the integration order. More...

virtual void	setElementBlockId (const std::string &blockId)

virtual std::string	getElementBlockId () const

virtual std::string	getType () const
	Returns the type of the equation set object. Corresponds to the keyword used by the equation set factory to build a particular concrete equation set. More...

virtual void	setTangentParamNames (const std::vector< std::string > &tangent_param_names)
	Set the list of tangent parameter names. More...

void	getAddedDOFs (std::vector< std::string > &dofNames) const

void	updateDOF (const std::string &dofName, int basisOrder, int integrationOrder=-1)
	Modifying an existing DOF's basis function and integration rule. More...

int	getBasisOrder (const std::string &dofName) const
	Get the basis order for an existing degree of freedom. More...

int	getIntegrationOrder (const std::string &dofName) const
	Get the integration order for an existing degree of freedom. More...

Public Member Functions inherited from panzer::EquationSet< EvalT >
	EquationSet ()

virtual	~EquationSet ()

Public Member Functions inherited from panzer::EquationSetBase
	EquationSetBase ()

virtual	~EquationSetBase ()

Public Member Functions inherited from panzer::EvaluatorsRegistrar
int	setDetailsIndex (const int details_index)

int	getDetailsIndex () const
	Get the WorksetDetails index. More...

Public Member Functions inherited from panzer::GlobalDataAcceptorDefaultImpl
	GlobalDataAcceptorDefaultImpl ()

	GlobalDataAcceptorDefaultImpl (const Teuchos::RCP< panzer::GlobalData > &gd)

	~GlobalDataAcceptorDefaultImpl ()

void	setGlobalData (const Teuchos::RCP< panzer::GlobalData > &gd)

Teuchos::RCP< panzer::GlobalData >	getGlobalData () const

Public Member Functions inherited from panzer::GlobalDataAcceptor
virtual	~GlobalDataAcceptor ()

Protected Member Functions
virtual void	setupDOFs ()
	Builds the integration rule, basis, DOFs, and default parameter list. This MUST be called in the constructor of all classes derived form this object. More...

bool	buildTransientSupport () const
	Returns true if transient support should be enabled in the equation set. More...

void	addDOF (const std::string &dofName, const std::string &basisType, const int &basisOrder, const int integrationOrder=-1, const std::string residualName="", const std::string scatterName="")

void	addDOFGrad (const std::string &dofName, const std::string &gradName="")

void	addDOFCurl (const std::string &dofName, const std::string &curlName="")

void	addDOFDiv (const std::string &dofName, const std::string &divName="")

void	addDOFTimeDerivative (const std::string &dofName, const std::string &dotName="")

void	setCoordinateDOFs (const std::vector< std::string > &dofNames)

void	addClosureModel (const std::string &closure_model)

void	setDefaultValidParameters (Teuchos::ParameterList &valid_parameters)

Teuchos::RCP< panzer::PureBasis >	getBasisForDOF (const std::string &dof_name) const
	Returns the PureBasis associated with the residual contributions for the dof_name. More...

Teuchos::RCP < panzer::IntegrationRule >	getIntRuleForDOF (const std::string &dof_name) const
	Returns the integration rule associated with the residual contributions for the dof_name. More...

Teuchos::RCP < panzer::BasisIRLayout >	getBasisIRLayoutForDOF (const std::string &dof_name) const
	Returns the BasisIRLayout for the dof_name. More...

void	buildAndRegisterResidualSummationEvaluator (PHX::FieldManager< panzer::Traits > &fm, const std::string dof_name, const std::vector< std::string > &residual_contributions, const std::string residual_field_name="") const

void	buildAndRegisterResidualSummationEvaluator (PHX::FieldManager< panzer::Traits > &fm, const std::string dof_name, const std::vector< std::string > &residual_contributions, const std::vector< double > &scale_contributions, const std::string residual_field_name="") const

Teuchos::RCP < Teuchos::ParameterList >	getEquationSetParameterList () const
	Returns the parameter list used to build this equation set. More...

void	setupDeprecatedDOFsSupport ()

Protected Member Functions inherited from panzer::EvaluatorsRegistrar
	EvaluatorsRegistrar ()
	Default ctor initializes WorksetDetails index to 0. More...

virtual	~EvaluatorsRegistrar ()

template<typename EvalT >
void	registerEvaluator (PHX::FieldManager< panzer::Traits > &fm, const Teuchos::RCP< PHX::Evaluator< panzer::Traits > > &op) const

Protected Attributes
std::map< std::string, DOFDescriptor >	m_provided_dofs_desc
	Maps the dof name into a DOFDescriptor. Should be private, but is protected so that the aux equaiton sets can access it. More...

std::vector< std::string >	m_tangent_param_names

Private Types
typedef std::map< std::string, DOFDescriptor > ::const_iterator	DescriptorIterator
	For convenience, declare the DOFDescriptor iterator. More...

typedef std::map< std::string, std::pair< Teuchos::RCP < panzer::PureBasis > , Teuchos::RCP< std::vector < std::string > > > >::const_iterator	BasisIterator
	For convenience, declare a basis iterator. More...

Private Attributes
std::map< std::string, std::pair< Teuchos::RCP < panzer::PureBasis > , Teuchos::RCP< std::vector < std::string > > > >	m_basis_to_dofs
	Map that links a common basis to a vector of dof names. Key is the unique basis name, the value is a pair that contains an RCP to a basis and an RCP to a vector of dof names that share the basis. More...

const Teuchos::RCP < Teuchos::ParameterList >	m_input_params

int	m_default_integration_order

const panzer::CellData	m_cell_data

const bool	m_build_transient_support

std::vector< std::pair < std::string, Teuchos::RCP < panzer::PureBasis > > >	m_provided_dofs
	Key is the dof name and the value is the corresponding basis. More...

std::vector< std::pair < std::string, Teuchos::RCP < panzer::PureBasis > > >	m_provided_coord_prefixes
	Key is the coordinate prefix name and the value is the corresponding basis. More...

std::map< int, Teuchos::RCP < panzer::IntegrationRule > >	m_int_rules
	Key is the integration rule order and the value is the corresponding integration rule. More...

std::map< std::string, Teuchos::RCP < panzer::PureBasis > >	m_unique_bases
	Key is the basis name from panzer::PureBasis::name() and value is the corresponding PureBasis. More...

Teuchos::RCP < Teuchos::ParameterList >	m_eval_plist

std::string	m_block_id

std::string	m_type

std::vector< std::string >	m_closure_model_ids

std::vector< std::vector < std::string > >	m_coordinate_dofs

Detailed Description

template<typename EvalT>
class panzer::EquationSet_DefaultImpl< EvalT >

Definition at line 63 of file Panzer_EquationSet_DefaultImpl_decl.hpp.

Member Typedef Documentation

template<typename EvalT >

typedef std::map<std::string,DOFDescriptor>::const_iterator panzer::EquationSet_DefaultImpl< EvalT >::DescriptorIterator

private

For convenience, declare the DOFDescriptor iterator.

Definition at line 386 of file Panzer_EquationSet_DefaultImpl_decl.hpp.

template<typename EvalT >

typedef std::map<std::string,std::pair<Teuchos::RCP<panzer::PureBasis>,Teuchos::RCP<std::vector<std::string> > > >::const_iterator panzer::EquationSet_DefaultImpl< EvalT >::BasisIterator

private

For convenience, declare a basis iterator.

Definition at line 402 of file Panzer_EquationSet_DefaultImpl_decl.hpp.

Constructor & Destructor Documentation

template<typename EvalT >

panzer::EquationSet_DefaultImpl< EvalT >::EquationSet_DefaultImpl	(	const Teuchos::RCP< Teuchos::ParameterList > &	params,
		const int &	default_integration_order,
		const panzer::CellData &	cell_data,
		const Teuchos::RCP< panzer::GlobalData > &	global_data,
		const bool	build_transient_support
	)

Definition at line 67 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

virtual panzer::EquationSet_DefaultImpl< EvalT >::~EquationSet_DefaultImpl ( )

inlinevirtual

Definition at line 74 of file Panzer_EquationSet_DefaultImpl_decl.hpp.

Member Function Documentation

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::buildAndRegisterGatherAndOrientationEvaluators	(	PHX::FieldManager< panzer::Traits > &	fm,
		const panzer::FieldLibrary &	fl,
		const LinearObjFactory< panzer::Traits > &	lof,
		const Teuchos::ParameterList &	user_data
	)		const

virtual

Implements panzer::EquationSet< EvalT >.

Definition at line 165 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::buildAndRegisterScatterEvaluators	(	PHX::FieldManager< panzer::Traits > &	fm,
		const panzer::FieldLibrary &	fl,
		const LinearObjFactory< panzer::Traits > &	lof,
		const Teuchos::ParameterList &	user_data
	)		const

virtual

Implements panzer::EquationSet< EvalT >.

Definition at line 541 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

virtual void panzer::EquationSet_DefaultImpl< EvalT >::buildAndRegisterEquationSetEvaluators	(	PHX::FieldManager< panzer::Traits > &	fm,
		const panzer::FieldLibrary &	fl,
		const Teuchos::ParameterList &	user_data
	)		const

pure virtual

Implements panzer::EquationSet< EvalT >.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::buildAndRegisterDOFProjectionsToIPEvaluators	(	PHX::FieldManager< panzer::Traits > &	fm,
		const panzer::FieldLayoutLibrary &	fl,
		const Teuchos::RCP< panzer::IntegrationRule > &	ir,
		const Teuchos::Ptr< const panzer::LinearObjFactory< panzer::Traits > > &	lof,
		const Teuchos::ParameterList &	user_data
	)		const

virtual

Implements panzer::EquationSet< EvalT >.

Definition at line 361 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::buildAndRegisterClosureModelEvaluators	(	PHX::FieldManager< panzer::Traits > &	fm,
		const panzer::FieldLayoutLibrary &	field_library,
		const Teuchos::RCP< panzer::IntegrationRule > &	ir,
		const panzer::ClosureModelFactory_TemplateManager< panzer::Traits > &	factory,
		const Teuchos::ParameterList &	models,
		const Teuchos::ParameterList &	user_data
	)		const

virtual

Register closure model evaluators with the model name internally specified by the equation set.

Implements panzer::EquationSet< EvalT >.

Definition at line 599 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::buildAndRegisterClosureModelEvaluators	(	PHX::FieldManager< panzer::Traits > &	fm,
		const panzer::FieldLayoutLibrary &	field_library,
		const Teuchos::RCP< panzer::IntegrationRule > &	ir,
		const panzer::ClosureModelFactory_TemplateManager< panzer::Traits > &	factory,
		const std::string &	model_name,
		const Teuchos::ParameterList &	models,
		const Teuchos::ParameterList &	user_data
	)		const

virtual

Register closure model evaluators with the model name specified by an argument.

Implements panzer::EquationSet< EvalT >.

Definition at line 617 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::buildAndRegisterInitialConditionEvaluators	(	PHX::FieldManager< panzer::Traits > &	fm,
		const panzer::FieldLibrary &	fl,
		const panzer::ClosureModelFactory_TemplateManager< panzer::Traits > &	factory,
		const std::string &	model_name,
		const Teuchos::ParameterList &	models,
		const LinearObjFactory< panzer::Traits > &	lof,
		const Teuchos::ParameterList &	user_data
	)		const

virtual

Implements panzer::EquationSet< EvalT >.

Definition at line 642 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

const Teuchos::RCP< Teuchos::ParameterList > panzer::EquationSet_DefaultImpl< EvalT >::getEvaluatorParameterList ( ) const

virtual

Returns the parameter list that will be passed off from the equaiton set to the closure model evaluator factory. This allows users to pass parameters from a particular equaiton set to its associated closure models.

Implements panzer::EquationSet< EvalT >.

Definition at line 731 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

const std::vector< std::pair< std::string, Teuchos::RCP< panzer::PureBasis > > > & panzer::EquationSet_DefaultImpl< EvalT >::getProvidedDOFs ( ) const

virtual

Return the Basis for the equation set, key is the DOF name (note coordinate DOFs are NOT included)

Implements panzer::EquationSet< EvalT >.

Definition at line 739 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

const std::vector< std::vector< std::string > > & panzer::EquationSet_DefaultImpl< EvalT >::getCoordinateDOFs ( ) const

virtual

Return a vector of vectors that correspond to DOFs set as coordinate fields.

Implements panzer::EquationSet< EvalT >.

Definition at line 747 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

const std::map< int, Teuchos::RCP< panzer::IntegrationRule > > & panzer::EquationSet_DefaultImpl< EvalT >::getIntegrationRules ( ) const

virtual

Return a map of unique integration rules for the equation set, key is the integration order.

Implements panzer::EquationSet< EvalT >.

Definition at line 755 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::setElementBlockId ( const std::string & blockId )

virtual

Implements panzer::EquationSet< EvalT >.

Definition at line 763 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

std::string panzer::EquationSet_DefaultImpl< EvalT >::getElementBlockId ( ) const

virtual

Implements panzer::EquationSet< EvalT >.

Definition at line 774 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

std::string panzer::EquationSet_DefaultImpl< EvalT >::getType ( ) const

virtual

Returns the type of the equation set object. Corresponds to the keyword used by the equation set factory to build a particular concrete equation set.

Implements panzer::EquationSet< EvalT >.

Definition at line 781 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::setTangentParamNames ( const std::vector< std::string > & tangent_param_names )

virtual

Set the list of tangent parameter names.

Implements panzer::EquationSetBase.

Definition at line 788 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::getAddedDOFs ( std::vector< std::string > & dofNames ) const

Used to get the DOFs that have been added to the equation set. This can be used at anytime, however it returns only DOFs added using the addDOF method. Note that if setupDOFs has been called, the getProvidedDOFs should be used instead (it also returns more information about the basis being used).

Parameters

[out] dofNames The name of all the dofs that have been added so far. Any previous entries in this vector will be discarded.

Definition at line 803 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::updateDOF	(	const std::string &	dofName,
		int	basisOrder,
		int	integrationOrder = `-1`
	)

Modifying an existing DOF's basis function and integration rule.

This imples the DOF already has been added and the setupDOFs method has not been called. Note that this method is public so that non-derived classes (like mixed in interfaces can call it). Furthermore, the type of basis cannot be changed, only the order.

Parameters

[in]	dofName	(Required) Name of field to lookup in the unique global indexer.
[in]	basisOrder	(Required) Polynomial order for the basis for this DOF.
[in]	integrationOrder	(Optional) Order of the integration rule associated with this DOF. If set to -1 (default), it will use the default integration order.

Definition at line 814 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

int panzer::EquationSet_DefaultImpl< EvalT >::getBasisOrder ( const std::string & dofName ) const

Get the basis order for an existing degree of freedom.

Parameters

[in] dofName (Required) Name of field to lookup in the unique global indexer.

Definition at line 840 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

int panzer::EquationSet_DefaultImpl< EvalT >::getIntegrationOrder ( const std::string & dofName ) const

Get the integration order for an existing degree of freedom.

Parameters

[in] dofName (Required) Name of field to lookup in the unique global indexer.

Definition at line 854 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::setupDOFs ( )

protectedvirtual

Builds the integration rule, basis, DOFs, and default parameter list. This MUST be called in the constructor of all classes derived form this object.

Definition at line 86 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

bool panzer::EquationSet_DefaultImpl< EvalT >::buildTransientSupport ( ) const

protected

Returns true if transient support should be enabled in the equation set.

Definition at line 795 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::addDOF	(	const std::string &	dofName,
		const std::string &	basisType,
		const int &	basisOrder,
		const int	integrationOrder = `-1`,
		const std::string	residualName = `""`,
		const std::string	scatterName = `""`
	)

protected

Alert the panzer library of a DOF provided by this equation set. This automatically sets up the gather/scatter routines neccessary to evaluate and assemble with this unknown.

Parameters

[in]	dofName	(Required) Name of field to lookup in the unique global indexer. This also serves as a key for the remaining `addDOF*` methods.
[in]	basisType	(Required) Name of the basis type for this DOF.
[in]	basisOrder	(Required) Polynomial order for the basis for this DOF.
[in]	integrationOrder	(Optional) Order of the integration rule associated with this DOF. If set to -1 (default), it will use the default integration order.
[in]	residualName	(Optional) Name of field that is to be scattered associated with this DOF. If not supplied or an empty string used, the default is to add the prefix "RESIDUAL_" to the dofName for the residual field name.
[in]	scatterName	(Optional) Name of the required scatter field associated with this DOF. If not supplied or an empty string used, the default is to add the prefix "SCATTER_" to the dofName for the scatter field name.

Definition at line 868 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::addDOFGrad	(	const std::string &	dofName,
		const std::string &	gradName = `""`
	)

protected

Alert the panzer library that a gradient of particular a DOF is needed.

Parameters

[in]	dofName	(Required) Name of field to lookup in the unique global indexer.
[in]	gradName	(Optional) Name of the gradient field associated with this DOF. If not supplied or an empty string used, the default is to add the prefix "GRAD_" to the dofName for the name of the gradient field.

Definition at line 913 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::addDOFCurl	(	const std::string &	dofName,
		const std::string &	curlName = `""`
	)

protected

Alert the panzer library that a curl of particular a DOF is needed.

Parameters

[in]	dofName	(Required) Name of field to lookup in the unique global indexer.
[in]	curlName	(Optional) Name of the curl field associated with this DOF. If not supplied or an empty string used, the default is to add the prefix "CURL_" to the dofName for the naem of the curl field.

Definition at line 935 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::addDOFDiv	(	const std::string &	dofName,
		const std::string &	divName = `""`
	)

protected

Alert the panzer library that a div of particular a DOF is needed.

Parameters

[in]	dofName	(Required) Name of field to lookup in the unique global indexer.
[in]	divName	(Optional) Name of the div field associated with this DOF. If not supplied or an empty string used, the default is to add the prefix "DIV__" to the dofName for the naem of the div field.

Definition at line 957 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::addDOFTimeDerivative	(	const std::string &	dofName,
		const std::string &	dotName = `""`
	)

protected

Alert the panzer library that a time derivative of particular a DOF is needed.

Parameters

[in]	dofName	(Required) Name of field to lookup in the unique global indexer.
[in]	dotName	(Optional) Name of the time derivative field associated with this DOF. If not supplied or an empty string used, the default is to add the prefix "DXDT_" to the dofName for the name of the time derivative field.

Definition at line 979 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::setCoordinateDOFs ( const std::vector< std::string > & dofNames )

protected

Alert the panzer to the fact that a set of DOFs coorespond to coordinates. They may have to be handled differently.

Parameters

[in] dofNames Name of fields that will represent the coordinates (in order). Must be of dimension equal to the size of the problem. Also DOF must have been already added.

Definition at line 1001 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::addClosureModel ( const std::string & closure_model )

protected

Alert the equation set default implementation to build the required closure model(s) for this equation set. You can make multiple calls to this funciton to build multiple closure models.

Definition at line 1132 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::setDefaultValidParameters ( Teuchos::ParameterList & valid_parameters )

protected

Sets the valid default parameters in the parameter list used by the default equation set implementaiton. To validate the incoming user list, get the defaults using this call, then add their own valid parameters specific to the user derived equation set and then validate the list.

Definition at line 1020 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

Teuchos::RCP< panzer::PureBasis > panzer::EquationSet_DefaultImpl< EvalT >::getBasisForDOF ( const std::string & dof_name ) const

protected

Returns the PureBasis associated with the residual contributions for the dof_name.

Definition at line 1029 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

Teuchos::RCP< panzer::IntegrationRule > panzer::EquationSet_DefaultImpl< EvalT >::getIntRuleForDOF ( const std::string & dof_name ) const

protected

Returns the integration rule associated with the residual contributions for the dof_name.

Definition at line 1039 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

Teuchos::RCP< panzer::BasisIRLayout > panzer::EquationSet_DefaultImpl< EvalT >::getBasisIRLayoutForDOF ( const std::string & dof_name ) const

protected

Returns the BasisIRLayout for the dof_name.

Definition at line 1051 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::buildAndRegisterResidualSummationEvaluator	(	PHX::FieldManager< panzer::Traits > &	fm,
		const std::string	dof_name,
		const std::vector< std::string > &	residual_contributions,
		const std::string	residual_field_name = `""`
	)		const

protected

Adds a Sum evaluator that evaluates the local residual contributions by summing a vector of fields of integrated residuals. This is a convenience function for when a user integrates multiple residual contributions and needs to sum them together before being loaded into the global matrix. Almost all implementations do this internally and this function just automates that process for users.

Parameters

[in]	fm	Field Manager to register new evaluator with
[in]	dof_name	Name of DOF that this residual will contribute to
[in]	residual_contributions	Vector of field names that will be summed to produce the residual contributions
[in]	residualfield_name	Name of the evalauted residual field. This is optional and will use a default value if the string is empty.

Definition at line 1064 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::buildAndRegisterResidualSummationEvaluator	(	PHX::FieldManager< panzer::Traits > &	fm,
		const std::string	dof_name,
		const std::vector< std::string > &	residual_contributions,
		const std::vector< double > &	scale_contributions,
		const std::string	residual_field_name = `""`
	)		const

protected

Adds a Sum evaluator that evaluates the local residual contributions by summing a vector of fields of integrated residuals. This version allows you to scale each term. This is a convenience function for when a user integrates multiple residual contributions and needs to sum them together before being loaded into the global matrix. Almost all implementations do this internally and this function just automates that process for users.

Parameters

[in]	fm	Field Manager to register new evaluator with
[in]	dof_name	Name of DOF that this residual will contribute to
[in]	residual_contributions	Vector of field names that will be summed to produce the residual contributions
[in]	scale_contributions	Vector of scalars for each term in the residual contributions.
[in]	residualfield_name	Name of the evalauted residual field. This is optional and will use a default value if the string is empty.

Definition at line 1097 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

Teuchos::RCP< Teuchos::ParameterList > panzer::EquationSet_DefaultImpl< EvalT >::getEquationSetParameterList ( ) const

protected

Returns the parameter list used to build this equation set.

Definition at line 1140 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::EquationSet_DefaultImpl< EvalT >::setupDeprecatedDOFsSupport ( )

protected

Definition at line 147 of file Panzer_EquationSet_DefaultImpl_impl.hpp.

Member Data Documentation

template<typename EvalT >

std::map<std::string,DOFDescriptor> panzer::EquationSet_DefaultImpl< EvalT >::m_provided_dofs_desc

protected

Maps the dof name into a DOFDescriptor. Should be private, but is protected so that the aux equaiton sets can access it.

Definition at line 378 of file Panzer_EquationSet_DefaultImpl_decl.hpp.

template<typename EvalT >

std::vector<std::string> panzer::EquationSet_DefaultImpl< EvalT >::m_tangent_param_names

protected

Definition at line 381 of file Panzer_EquationSet_DefaultImpl_decl.hpp.

template<typename EvalT >

std::map<std::string,std::pair<Teuchos::RCP<panzer::PureBasis>,Teuchos::RCP<std::vector<std::string> > > > panzer::EquationSet_DefaultImpl< EvalT >::m_basis_to_dofs

private

Map that links a common basis to a vector of dof names. Key is the unique basis name, the value is a pair that contains an RCP to a basis and an RCP to a vector of dof names that share the basis.

Some of our evaluators are vectorized to work on a block of dofs as long as they share a common basis. We can minimize the evaluators built below by grouping dofs with a common basis. This struct is for grouping dofs with a common basis.

Definition at line 399 of file Panzer_EquationSet_DefaultImpl_decl.hpp.

template<typename EvalT >

const Teuchos::RCP<Teuchos::ParameterList> panzer::EquationSet_DefaultImpl< EvalT >::m_input_params

private

Definition at line 404 of file Panzer_EquationSet_DefaultImpl_decl.hpp.

template<typename EvalT >

int panzer::EquationSet_DefaultImpl< EvalT >::m_default_integration_order

private

Definition at line 405 of file Panzer_EquationSet_DefaultImpl_decl.hpp.

template<typename EvalT >

const panzer::CellData panzer::EquationSet_DefaultImpl< EvalT >::m_cell_data

private
