#include <Panzer_BCStrategy_WeakDirichlet_DefaultImpl.hpp>

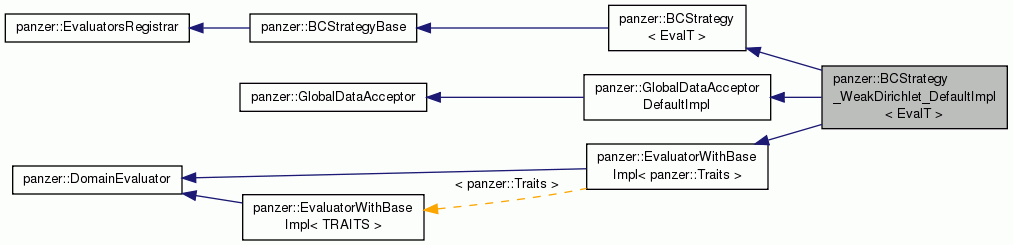

Inheritance diagram for panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >:

Public Member Functions
	BCStrategy_WeakDirichlet_DefaultImpl (const panzer::BC &bc, const Teuchos::RCP< panzer::GlobalData > &global_data)

virtual	~BCStrategy_WeakDirichlet_DefaultImpl ()

Public Member Functions inherited from panzer::BCStrategy< EvalT >
	BCStrategy (const panzer::BC &bc)

virtual	~BCStrategy ()

Public Member Functions inherited from panzer::BCStrategyBase
	BCStrategyBase ()

virtual	~BCStrategyBase ()

Public Member Functions inherited from panzer::EvaluatorsRegistrar
int	setDetailsIndex (const int details_index)

int	getDetailsIndex () const
	Get the WorksetDetails index. More...

Public Member Functions inherited from panzer::GlobalDataAcceptorDefaultImpl
	GlobalDataAcceptorDefaultImpl ()

	GlobalDataAcceptorDefaultImpl (const Teuchos::RCP< panzer::GlobalData > &gd)

	~GlobalDataAcceptorDefaultImpl ()

void	setGlobalData (const Teuchos::RCP< panzer::GlobalData > &gd)

Teuchos::RCP< panzer::GlobalData >	getGlobalData () const

Public Member Functions inherited from panzer::GlobalDataAcceptor
virtual	~GlobalDataAcceptor ()

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< panzer::Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...

Public Member Functions inherited from PHX::EvaluatorWithBaseImpl< panzer::Traits >
virtual void	evaluateFields (typename Traits::EvalData d) override=0

Public Member Functions inherited from PHX::Evaluator< Traits >
	Evaluator ()

virtual	~Evaluator ()

virtual void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &vm)=0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	evaluatedFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	contributedFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	dependentFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	unsharedFields () const =0

virtual void	preEvaluate (typename Traits::PreEvalData d)=0

virtual void	postEvaluate (typename Traits::PostEvalData d)=0

virtual const std::string &	getName () const =0

virtual void	bindField (const PHX::FieldTag &ft, const PHX::any &f)=0

virtual PHX::DeviceEvaluator < Traits > *	createDeviceEvaluator () const =0

virtual void	rebuildDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void	deleteDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void	printFieldValues (std::ostream &os) const =0

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...

virtual	~DomainEvaluator ()=default
	Default destructor. More...

void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...

DomainType	getDomain ()
	Get the domain for the evaluator. More...

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Private Attributes
std::vector< std::tuple < std::string, std::string, std::string, int, Teuchos::RCP < panzer::PureBasis > , Teuchos::RCP < panzer::IntegrationRule > > >	m_residual_contributions
	A vector of tuples containing information for each residual contribution for a corresponding Neumann bc. More...

std::vector< std::string >	m_required_dof_names
	All DOF field names needed by this BC: this vector is used to build gather evaluators for each DOF. More...

Derived from BCStrategy
virtual void	setup (const panzer::PhysicsBlock &side_pb, const Teuchos::ParameterList &user_data)=0

virtual void	buildAndRegisterEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &side_pb, const panzer::ClosureModelFactory_TemplateManager< panzer::Traits > &factory, const Teuchos::ParameterList &models, const Teuchos::ParameterList &user_data) const =0

virtual void	buildAndRegisterGatherScatterEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &side_pb, const panzer::LinearObjFactory< panzer::Traits > &lof, const Teuchos::ParameterList &user_data) const

virtual void	buildAndRegisterScatterEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &side_pb, const LinearObjFactory< panzer::Traits > &lof, const Teuchos::ParameterList &user_data) const

virtual void	buildAndRegisterGatherAndOrientationEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &side_pb, const LinearObjFactory< panzer::Traits > &lof, const Teuchos::ParameterList &user_data) const

Derived from PHX::EvaluatorWithDefaultImpl
virtual void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &vm)=0

virtual void	evaluateFields (typename Traits::EvalData d)=0

User Interface methods to provide information to the default implementation to be able to build the default evaluators for a Neumann BC
virtual void	requireDOFGather (const std::string required_dof_name)
	Requires that a gather evaluator for the DOF be constructed. More...

virtual void	addResidualContribution (const std::string residual_name, const std::string dof_name, const std::string flux_name, const int integration_order, const panzer::PhysicsBlock &side_pb)
	Adds a residual contribution for a neumann condition to a particular equation. More...

const std::vector< std::tuple < std::string, std::string, std::string, int, Teuchos::RCP < panzer::PureBasis > , Teuchos::RCP < panzer::IntegrationRule > > >	getResidualContributionData () const
	Returns information for the residual contribution integrations associated with this Neumann BC. More...

Query methods for underlying data
const panzer::BC	bc () const
	Returns the boundary condition data for this object. More...

Utility functions used by default implementation
Teuchos::RCP< panzer::PureBasis >	getBasis (const std::string dof_name, const panzer::PhysicsBlock &side_pb) const
	Finds the basis for the corresponding dof_name in the physics block. More...

Teuchos::RCP < panzer::IntegrationRule >	buildIntegrationRule (const int integration_order, const panzer::PhysicsBlock &side_pb) const
	Allocates and returns the integration rule associated with an integration order and side physics block. More...

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0, GHOST =1, REAL =2, VIRTUAL =3, EXTERNAL =4, ALL =5 }
	Domain types supported by worksets. More...

Protected Member Functions inherited from panzer::EvaluatorsRegistrar
	EvaluatorsRegistrar ()
	Default ctor initializes WorksetDetails index to 0. More...

virtual	~EvaluatorsRegistrar ()

template<typename EvalT >
void	registerEvaluator (PHX::FieldManager< panzer::Traits > &fm, const Teuchos::RCP< PHX::Evaluator< panzer::Traits > > &op) const

Protected Attributes inherited from panzer::BCStrategy< EvalT >
const panzer::BC	m_bc

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< panzer::Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT>
class panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >

Definition at line 67 of file Panzer_BCStrategy_WeakDirichlet_DefaultImpl.hpp.

Constructor & Destructor Documentation

template<typename EvalT >

panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >::BCStrategy_WeakDirichlet_DefaultImpl	(	const panzer::BC &	bc,
		const Teuchos::RCP< panzer::GlobalData > &	global_data
	)

Definition at line 74 of file Panzer_BCStrategy_WeakDirichlet_DefaultImpl_impl.hpp.

template<typename EvalT >

panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >::~BCStrategy_WeakDirichlet_DefaultImpl ( )

virtual

Definition at line 85 of file Panzer_BCStrategy_WeakDirichlet_DefaultImpl_impl.hpp.

Member Function Documentation

template<typename EvalT >

virtual void panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >::setup	(	const panzer::PhysicsBlock &	side_pb,
		const Teuchos::ParameterList &	user_data
	)

pure virtual

  Must be called before this->buildAndRegisterEvaluators() and

this->buildAndRegisterGatherScatterEvaluators().

Implements panzer::BCStrategy< EvalT >.

template<typename EvalT >

virtual void panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >::buildAndRegisterEvaluators	(	PHX::FieldManager< panzer::Traits > &	fm,
		const panzer::PhysicsBlock &	side_pb,
		const panzer::ClosureModelFactory_TemplateManager< panzer::Traits > &	factory,
		const Teuchos::ParameterList &	models,
		const Teuchos::ParameterList &	user_data
	)		const

pure virtual

Implements panzer::BCStrategy< EvalT >.

template<typename EvalT >

void panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >::buildAndRegisterGatherScatterEvaluators	(	PHX::FieldManager< panzer::Traits > &	fm,
		const panzer::PhysicsBlock &	side_pb,
		const panzer::LinearObjFactory< panzer::Traits > &	lof,
		const Teuchos::ParameterList &	user_data
	)		const

virtual

Definition at line 93 of file Panzer_BCStrategy_WeakDirichlet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >::buildAndRegisterScatterEvaluators	(	PHX::FieldManager< panzer::Traits > &	fm,
		const panzer::PhysicsBlock &	side_pb,
		const LinearObjFactory< panzer::Traits > &	lof,
		const Teuchos::ParameterList &	user_data
	)		const

virtual

Implements panzer::BCStrategy< EvalT >.

Definition at line 169 of file Panzer_BCStrategy_WeakDirichlet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >::buildAndRegisterGatherAndOrientationEvaluators	(	PHX::FieldManager< panzer::Traits > &	fm,
		const panzer::PhysicsBlock &	side_pb,
		const LinearObjFactory< panzer::Traits > &	lof,
		const Teuchos::ParameterList &	user_data
	)		const

virtual

Implements panzer::BCStrategy< EvalT >.

Definition at line 105 of file Panzer_BCStrategy_WeakDirichlet_DefaultImpl_impl.hpp.

template<typename EvalT >

virtual void panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >::postRegistrationSetup	(	typename Traits::SetupData	d,
		PHX::FieldManager< Traits > &	vm
	)

pure virtual

template<typename EvalT >

virtual void panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >::evaluateFields ( typename Traits::EvalData d )

pure virtual

template<typename EvalT >

void panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >::requireDOFGather ( const std::string required_dof_name )

virtual

Requires that a gather evaluator for the DOF be constructed.

Definition at line 228 of file Panzer_BCStrategy_WeakDirichlet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >::addResidualContribution	(	const std::string	residual_name,
		const std::string	dof_name,
		const std::string	flux_name,
		const int	integration_order,
		const panzer::PhysicsBlock &	side_pb
	)

virtual

Adds a residual contribution for a neumann condition to a particular equation.

Parameters

residual_name	[in] Name of the residual field that is to be scattered to the global residual.
dof_name	[in] Name of the DOF residual that the Neumann contribution should be added to.
flux_name	[in] Name of the flux field that will be integrated over to form the residual.
integration_order	[in] Order of the integration rule needed to define the data layouts for the flux integration.
side_pb	[in] The side physics block. Used to build the PureBasis and IntegrationRule for a residual contribution.

Definition at line 236 of file Panzer_BCStrategy_WeakDirichlet_DefaultImpl_impl.hpp.

template<typename EvalT >

const std::vector< std::tuple< std::string, std::string, std::string, int, Teuchos::RCP< panzer::PureBasis >, Teuchos::RCP< panzer::IntegrationRule > > > panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >::getResidualContributionData ( ) const

Returns information for the residual contribution integrations associated with this Neumann BC.

Definition at line 257 of file Panzer_BCStrategy_WeakDirichlet_DefaultImpl_impl.hpp.

template<typename EvalT >

const panzer::BC panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >::bc ( ) const

Returns the boundary condition data for this object.

Definition at line 298 of file Panzer_BCStrategy_WeakDirichlet_DefaultImpl_impl.hpp.

template<typename EvalT >

Teuchos::RCP< panzer::PureBasis > panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >::getBasis	(	const std::string	dof_name,
		const panzer::PhysicsBlock &	side_pb
	)		const

private

Finds the basis for the corresponding dof_name in the physics block.

Definition at line 266 of file Panzer_BCStrategy_WeakDirichlet_DefaultImpl_impl.hpp.

template<typename EvalT >

Teuchos::RCP< panzer::IntegrationRule > panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >::buildIntegrationRule	(	const int	integration_order,
		const panzer::PhysicsBlock &	side_pb
	)		const

private

Allocates and returns the integration rule associated with an integration order and side physics block.

Definition at line 288 of file Panzer_BCStrategy_WeakDirichlet_DefaultImpl_impl.hpp.

Member Data Documentation

template<typename EvalT >

std::vector<std::tuple<std::string,std::string,std::string,int,Teuchos::RCP<panzer::PureBasis>,Teuchos::RCP<panzer::IntegrationRule> > > panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >::m_residual_contributions

private

A vector of tuples containing information for each residual contribution for a corresponding Neumann bc.

  Each entry in the vector is a different contribution to an
  individual residual equation.  A single Neumann BC can
  contribute to multiple equations (e.g. all momentum
  equations).  The tuple has 6 entries, with the indices
  described below.

  \param index 0 - Name of the residual field that is to be scattered to the global residual.

Parameters

index	1 - Name of the DOF residual that the Neumann residual contribution should be added to.
index	2 - Name of the flux field that will be integrated over to form the residual.
index	3 - Order of the integration rule needed to define the data layouts for the flux integration.
index	4 - RCP to the basis for the dof that the Neumann residual contribution is added to.
index	5 - RCP to the Integration Rule for the side integration for the Neumann residual contribution.

Definition at line 182 of file Panzer_BCStrategy_WeakDirichlet_DefaultImpl.hpp.

template<typename EvalT >

std::vector<std::string> panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >::m_required_dof_names

private

All DOF field names needed by this BC: this vector is used to build gather evaluators for each DOF.

Definition at line 185 of file Panzer_BCStrategy_WeakDirichlet_DefaultImpl.hpp.

The documentation for this class was generated from the following files:

Public Member Functions

Private Attributes

Derived from BCStrategy

Derived from PHX::EvaluatorWithDefaultImpl

User Interface methods to provide information to the default implementation to be able to build the default evaluators for a Neumann BC

Query methods for underlying data

Utility functions used by default implementation

Additional Inherited Members

Detailed Description

template<typename EvalT> class panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<typename EvalT>
class panzer::BCStrategy_WeakDirichlet_DefaultImpl< EvalT >
