#include <Panzer_BCStrategy_Dirichlet_DefaultImpl.hpp>

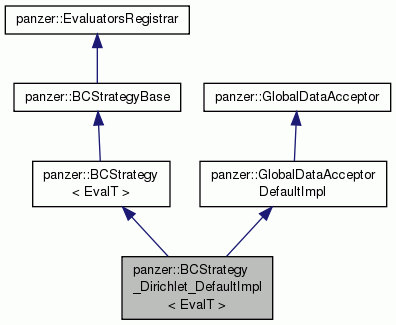

Inheritance diagram for panzer::BCStrategy_Dirichlet_DefaultImpl< EvalT >:

Classes
struct	DOFDescriptor

Public Member Functions
	BCStrategy_Dirichlet_DefaultImpl (const panzer::BC &bc, const Teuchos::RCP< panzer::GlobalData > &global_data, const bool check_apply_bc=false)

virtual	~BCStrategy_Dirichlet_DefaultImpl ()

virtual void	setup (const panzer::PhysicsBlock &side_pb, const Teuchos::ParameterList &user_data)=0

virtual void	buildAndRegisterEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &pb, const panzer::ClosureModelFactory_TemplateManager< panzer::Traits > &factory, const Teuchos::ParameterList &models, const Teuchos::ParameterList &user_data) const =0

virtual void	buildAndRegisterGatherScatterEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &pb, const panzer::LinearObjFactory< panzer::Traits > &lof, const Teuchos::ParameterList &user_data) const

virtual void	buildAndRegisterScatterEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &side_pb, const LinearObjFactory< panzer::Traits > &lof, const Teuchos::ParameterList &user_data) const

virtual void	buildAndRegisterGatherAndOrientationEvaluators (PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &side_pb, const LinearObjFactory< panzer::Traits > &lof, const Teuchos::ParameterList &user_data) const

Public Member Functions inherited from panzer::BCStrategy< EvalT >
	BCStrategy (const panzer::BC &bc)

virtual	~BCStrategy ()

Public Member Functions inherited from panzer::BCStrategyBase
	BCStrategyBase ()

virtual	~BCStrategyBase ()

Public Member Functions inherited from panzer::EvaluatorsRegistrar
int	setDetailsIndex (const int details_index)

int	getDetailsIndex () const
	Get the WorksetDetails index. More...

Public Member Functions inherited from panzer::GlobalDataAcceptorDefaultImpl
	GlobalDataAcceptorDefaultImpl ()

	GlobalDataAcceptorDefaultImpl (const Teuchos::RCP< panzer::GlobalData > &gd)

	~GlobalDataAcceptorDefaultImpl ()

void	setGlobalData (const Teuchos::RCP< panzer::GlobalData > &gd)

Teuchos::RCP< panzer::GlobalData >	getGlobalData () const

Public Member Functions inherited from panzer::GlobalDataAcceptor
virtual	~GlobalDataAcceptor ()

Protected Types
typedef std::map< std::string, DOFDescriptor > ::const_iterator	DescriptorIterator
	For convenience, declare the DOFDescriptor iterator. More...

Protected Member Functions
void	buildDescriptorMapFromVectors () const

void	addDOF (const std::string &dofName)

void	addCoefficientTarget (const std::string &targetName, const std::string &dofName, const std::string &residualName="")

void	addTarget (const std::string &targetName, const std::string &dofName, const std::string &residualName="")

void	addDotTarget (const std::string &targetName, const std::string &dofName, const std::string &dotName="", const std::string &residualName="")

Protected Member Functions inherited from panzer::EvaluatorsRegistrar
	EvaluatorsRegistrar ()
	Default ctor initializes WorksetDetails index to 0. More...

virtual	~EvaluatorsRegistrar ()

template<typename EvalT >
void	registerEvaluator (PHX::FieldManager< panzer::Traits > &fm, const Teuchos::RCP< PHX::Evaluator< panzer::Traits > > &op) const

Protected Attributes
std::map< std::string, DOFDescriptor >	m_provided_dofs_desc

std::vector< std::string >	required_dof_names

std::map< std::string, std::string >	residual_to_dof_names_map

std::map< std::string, std::string >	residual_to_target_field_map

bool	check_apply_bc

bool	descriptor_map_built

Protected Attributes inherited from panzer::BCStrategy< EvalT >
const panzer::BC	m_bc

Detailed Description

template<typename EvalT>
class panzer::BCStrategy_Dirichlet_DefaultImpl< EvalT >

Definition at line 62 of file Panzer_BCStrategy_Dirichlet_DefaultImpl.hpp.

Member Typedef Documentation

template<typename EvalT >

typedef std::map<std::string,DOFDescriptor>::const_iterator panzer::BCStrategy_Dirichlet_DefaultImpl< EvalT >::DescriptorIterator

protected

For convenience, declare the DOFDescriptor iterator.

Definition at line 134 of file Panzer_BCStrategy_Dirichlet_DefaultImpl.hpp.

Constructor & Destructor Documentation

template<typename EvalT >

panzer::BCStrategy_Dirichlet_DefaultImpl< EvalT >::BCStrategy_Dirichlet_DefaultImpl	(	const panzer::BC &	bc,
		const Teuchos::RCP< panzer::GlobalData > &	global_data,
		const bool	check_apply_bc = `false`
	)

Definition at line 78 of file Panzer_BCStrategy_Dirichlet_DefaultImpl_impl.hpp.

template<typename EvalT >

panzer::BCStrategy_Dirichlet_DefaultImpl< EvalT >::~BCStrategy_Dirichlet_DefaultImpl ( )

virtual

Definition at line 92 of file Panzer_BCStrategy_Dirichlet_DefaultImpl_impl.hpp.

Member Function Documentation

template<typename EvalT >

virtual void panzer::BCStrategy_Dirichlet_DefaultImpl< EvalT >::setup	(	const panzer::PhysicsBlock &	side_pb,
		const Teuchos::ParameterList &	user_data
	)

pure virtual

  Must be called before this->buildAndRegisterEvaluators() and

this->buildAndRegisterGatherScatterEvaluators().

Implements panzer::BCStrategy< EvalT >.

template<typename EvalT >

virtual void panzer::BCStrategy_Dirichlet_DefaultImpl< EvalT >::buildAndRegisterEvaluators	(	PHX::FieldManager< panzer::Traits > &	fm,
		const panzer::PhysicsBlock &	pb,
		const panzer::ClosureModelFactory_TemplateManager< panzer::Traits > &	factory,
		const Teuchos::ParameterList &	models,
		const Teuchos::ParameterList &	user_data
	)		const

pure virtual

Implements panzer::BCStrategy< EvalT >.

template<typename EvalT >

void panzer::BCStrategy_Dirichlet_DefaultImpl< EvalT >::buildAndRegisterGatherScatterEvaluators	(	PHX::FieldManager< panzer::Traits > &	fm,
		const panzer::PhysicsBlock &	pb,
		const panzer::LinearObjFactory< panzer::Traits > &	lof,
		const Teuchos::ParameterList &	user_data
	)		const

virtual

Definition at line 100 of file Panzer_BCStrategy_Dirichlet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::BCStrategy_Dirichlet_DefaultImpl< EvalT >::buildAndRegisterScatterEvaluators	(	PHX::FieldManager< panzer::Traits > &	fm,
		const panzer::PhysicsBlock &	side_pb,
		const LinearObjFactory< panzer::Traits > &	lof,
		const Teuchos::ParameterList &	user_data
	)		const

virtual

Implements panzer::BCStrategy< EvalT >.

Definition at line 116 of file Panzer_BCStrategy_Dirichlet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::BCStrategy_Dirichlet_DefaultImpl< EvalT >::buildAndRegisterGatherAndOrientationEvaluators	(	PHX::FieldManager< panzer::Traits > &	fm,
		const panzer::PhysicsBlock &	side_pb,
		const LinearObjFactory< panzer::Traits > &	lof,
		const Teuchos::ParameterList &	user_data
	)		const

virtual

Implements panzer::BCStrategy< EvalT >.

Definition at line 207 of file Panzer_BCStrategy_Dirichlet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::BCStrategy_Dirichlet_DefaultImpl< EvalT >::buildDescriptorMapFromVectors ( ) const

protected

This is to support backward compatibility and allow a migration path from the old protected data approach of specifying the inputs and outputs of this class.

Definition at line 414 of file Panzer_BCStrategy_Dirichlet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::BCStrategy_Dirichlet_DefaultImpl< EvalT >::addDOF ( const std::string & dofName )

protected

Definition at line 453 of file Panzer_BCStrategy_Dirichlet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::BCStrategy_Dirichlet_DefaultImpl< EvalT >::addCoefficientTarget	(	const std::string &	targetName,
		const std::string &	dofName,
		const std::string &	residualName = `""`
	)

protected

Alert the panzer library that the DOF should be evaluated using a coefficient residual as opposed to evaluating the basis and forcing the value to be equal at some point in the element.

Parameters

[in]	targetName	(Required) Name of field that corresponds to the evaluated dirichlet condition. This exists only in the PHX::FieldManager and is required to be distinct from the `dofName`.
[in]	dofName	(Required) Name of field to lookup in the unique global indexer. The
[in]	residualName	(Optional) Name of field that is to be scattered associated with this DOF. If not supplied or an empty string used, the default is to add the prefix "RESIDUAL_" to the dofName for the residual field name.

Definition at line 483 of file Panzer_BCStrategy_Dirichlet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::BCStrategy_Dirichlet_DefaultImpl< EvalT >::addTarget	(	const std::string &	targetName,
		const std::string &	dofName,
		const std::string &	residualName = `""`
	)

protected

Alert the panzer library of a DOF that is required by this boundary condition. This automatically sets up the gather/scatter routines neccessary to evaluate and assemble with this unknown.

Parameters

[in]	targetName	(Required) Name of field that corresponds to the evaluated dirichlet condition. This exists only in the PHX::FieldManager and is required to be distinct from the `dofName`.
[in]	dofName	(Required) Name of field to lookup in the unique global indexer. The
[in]	residualName	(Optional) Name of field that is to be scattered associated with this DOF. If not supplied or an empty string used, the default is to add the prefix "RESIDUAL_" to the dofName for the residual field name.

Definition at line 466 of file Panzer_BCStrategy_Dirichlet_DefaultImpl_impl.hpp.

template<typename EvalT >

void panzer::BCStrategy_Dirichlet_DefaultImpl< EvalT >::addDotTarget	(	const std::string &	targetName,
		const std::string &	dofName,
		const std::string &	dotName = `""`,
		const std::string &	residualName = `""`
	)

protected

Alert the panzer library that the time derivative of a DOF is required by this boundary condition. This automatically sets up the gather/scatter routines neccessary to evaluate and assemble with this unknown.

Parameters

[in]	targetName	(Required) Name of field that corresponds to the evaluated dirichlet condition. This exists only in the PHX::FieldManager and is required to be distinct from the `dofName`.
[in]	dofName	(Required) Name of field to lookup in the unique global indexer. The
[in]	residualName	(Optional) Name of field that is to be scattered associated with this DOF. If not supplied or an empty string used, the default is to add the prefix "RESIDUAL_" to the dofName for the residual field name.
