A 2DArrayWidget used for editing arrays whose template type is double. More...

#include <Optika_ArrayWidget.hpp>

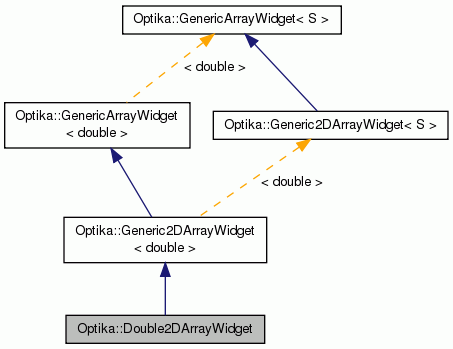

Inheritance diagram for Optika::Double2DArrayWidget:

Constructors
	Double2DArrayWidget (QString name, QString type, const RCP< const ParameterEntryValidator > validator, QWidget *parent=0)
	Constructs an Double2DArrayWidget. More...

Overridden from Generic2DArrayWidget
double	getWidgetValue (int row, int col)

QWidget *	getEditorWidget (int row, int col)

Overridden from GenericArrayWidget
void	accept ()

Additional Inherited Members
Public Member Functions inherited from Optika::Generic2DArrayWidget< double >
	Generic2DArrayWidget (QString name, QString type, const RCP< const ParameterEntryValidator > validator, QWidget *parent=0)
	Constructs a Generic2DArrayWidget. More...

void	initData (TwoDArray< double > array)
	Initializes all of the data in the array widget so when it pops up, the individual widgets are populate with their current values in the array. Also, sets the `baseArray` to `array`. More...

TwoDArray< double >	getArrayFromWidgets ()
	Retrieves all the data currently entered in each of the individual widgets and compiles it into a TwoDArray. More...

TwoDArray< double >	getData () const
	gets the data currently stored in baseArray. More...

Public Member Functions inherited from Optika::GenericArrayWidget< double >
const QString	getType () const
	Gets the type of array being edited. More...

const QString	getName () const
	Returns the name of the parameter being edits. More...

const RCP< const ParameterEntryValidator >	getEntryValidator () const
	Returns the validator being used on the array. More...

virtual void	accept ()=0
	called when the user is done entering data into the widget. MUST BE IMPLEMENTED AS A SLOT IN CONCRETE SUBCLASSES! More...

	GenericArrayWidget (QString name, QString type, const RCP< const ParameterEntryValidator > validator, QWidget *parent=0)
	Constructs a GenericArrayWidget. More...

Protected Member Functions inherited from Optika::Generic2DArrayWidget< double >
void	doAcceptWork ()
	Do all the things that need to be done when accept is called. More...

Protected Member Functions inherited from Optika::GenericArrayWidget< double >
virtual void	setupArrayLayout ()
	Sets up the layout for the arrayContainer, including adding what ever editing widget should be used for the particual type of array. More...

Protected Attributes inherited from Optika::Generic2DArrayWidget< double >
TwoDArray< QWidget * >	widgetArray
	An array containing the individual widgets which make up the array widget editor. The widget at row,col is the widget which will edit the value at row,col in the baseArray. More...

TwoDArray< double >	baseArray
	The actual array data that the widget is editing. When the user is finished editing, this TwoDArray is then populated with the values they entered. More...

Protected Attributes inherited from Optika::GenericArrayWidget< double >
QWidget *	arrayContainer
	The widget containing all of the editing widgets (e.g. QLineEdits, and QSpinBoxes) that comprise the array editor. More...

Detailed Description

A 2DArrayWidget used for editing arrays whose template type is double.

Definition at line 543 of file Optika_ArrayWidget.hpp.

Constructor & Destructor Documentation

Optika::Double2DArrayWidget::Double2DArrayWidget	(	QString	name,
		QString	type,
		const RCP< const ParameterEntryValidator >	validator,
		QWidget *	parent = `0`
	)
