LOCAInterface Class Reference

Inheritance diagram for LOCAInterface:

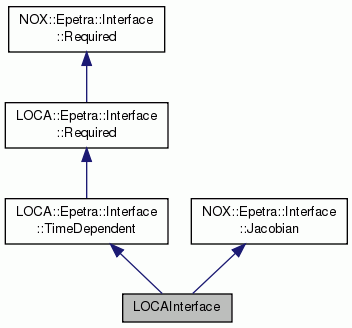

Collaboration diagram for LOCAInterface:

Public Member Functions
	LOCAInterface (Teuchos::RCP< ProblemLOCAPrototype > &aProblem, Teuchos::RCP< ContinuationManager > aContinuationManager)
bool	computeF (const Epetra_Vector &x, Epetra_Vector &f, const NOX::Epetra::Interface::Required::FillType F)
	Compute the function, F, given the specified input vector x. Returns true if computation was successful.
bool	computeJacobian (const Epetra_Vector &x, Epetra_Operator &Jac)
void	setParameters (const LOCA::ParameterVector &params)
	Set parameters in the user's application. More...
void	printSolution (const Epetra_Vector &x, const double conParam)
	Call user's own print routine for vector-parameter pair.
virtual bool	computeShiftedMatrix (double alpha, double beta, const Epetra_Vector &x, Epetra_Operator &A)
	Call user routine for computing the shifted matrix where is the Jacobian matrix and is the mass matrix.
virtual void	setXdot (const Epetra_Vector &xdot, const double time)
	Routine used in XYZT to set x_dot and time in the interface. More...
Public Member Functions inherited from LOCA::Epetra::Interface::TimeDependent
	TimeDependent ()
	Constructor.
virtual	~TimeDependent ()
	Destructor.
Public Member Functions inherited from LOCA::Epetra::Interface::Required
	Required ()
	Constructor.
virtual	~Required ()
	Destructor.
virtual void	dataForPrintSolution (const int, const int, const int)
	Provides data to application for output files. More...
virtual void	setMultiPointParameter (const int)
	Set multipoint parameter in the user's application. More...
virtual void	preProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus, LOCA::Epetra::Group &)
	Perform any preprocessing before a continuation step starts. More...
virtual void	postProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus, LOCA::Epetra::Group &)
	Perform any postprocessing after a continuation step finishes. More...
virtual void	projectToDraw (const NOX::Epetra::Vector &x, double *px) const
	Projects solution to a few scalars for multiparameter continuation. More...
virtual int	projectToDrawDimension () const
	Returns the dimension of the projection to draw array.
Public Member Functions inherited from NOX::Epetra::Interface::Required
	Required ()
	Constructor.
Public Member Functions inherited from NOX::Epetra::Interface::Jacobian
	Jacobian ()
	Constructor.
virtual	~Jacobian ()
	Destructor.

Additional Inherited Members
Public Types inherited from NOX::Epetra::Interface::Required
enum	FillType {   Residual, Jac, Prec, FD_Res,   MF_Res, MF_Jac, User }
	Type of fill that a computeF() method is used for. More...

Member Function Documentation

bool LOCAInterface::computeJacobian ( const Epetra_Vector &  x, Epetra_Operator &  Jac  )

virtual

Compute Jacobian given the specified input vector x. Returns true if computation was successful.

Implements NOX::Epetra::Interface::Jacobian.

void LOCAInterface::setParameters ( const LOCA::ParameterVector &  p )

virtual

Set parameters in the user's application.

Should be called prior to calling one of the compute functions.

Implements LOCA::Epetra::Interface::Required.

References LOCA::ParameterVector::getLabel(), LOCA::ParameterVector::getValue(), and LOCA::ParameterVector::length().

void LOCAInterface::setXdot ( const Epetra_Vector &  , const double    )

virtual

Routine used in XYZT to set x_dot and time in the interface.

The computeF() routine for XYZT problems needs to be a function of x_dot, but th NOX/LOCA computeF() does not take x_dot as an argument. This is used to set x_dot in the application interface so the subsequent call to computeF has the correct x_dot value. The timeStep argument is sent so the use can set the global time, for cases when computeF, computeJacobian, computeMassMatrix fills are functions of time (nonautonomous systems).

Reimplemented from LOCA::Epetra::Interface::TimeDependent.

---

The documentation for this class was generated from the following files:

• LOCAInterface.H
• LOCAInterface.C
