ConstrainedOptPack::MatrixIdentConcat Class Reference

Matrix class for a matrix vertically concatonated with an identity matrix {abstract}. More...

#include <ConstrainedOptPack_MatrixIdentConcat.hpp>

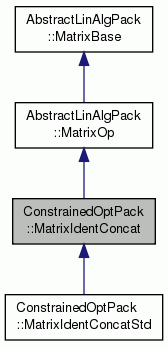

Inheritance diagram for ConstrainedOptPack::MatrixIdentConcat:

Access to representation.
virtual Range1D	D_rng () const =0
virtual Range1D	I_rng () const =0
virtual value_type	alpha () const =0
virtual const MatrixOp &	D () const =0
virtual BLAS_Cpp::Transp	D_trans () const =0

Overridden from MatrixBase
size_type	rows () const
size_type	cols () const
size_type	nz () const

Overridden from MatrixOp
std::ostream &	output (std::ostream &out) const
void	Vp_StMtV (VectorMutable *vs_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const Vector &vs_rhs2, value_type beta) const
void	Vp_StMtV (VectorMutable *vs_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const SpVectorSlice &sv_rhs2, value_type beta) const

Detailed Description

Matrix class for a matrix vertically concatonated with an identity matrix {abstract}.

Represents an interface for a matrix that represents:

M = [ alpha*op(D) ]
    [      I      ]
where:
    D_rng = [1,rows(op(D))]
    I_rng = [rows(op(D))+1,rows(op(D))+cols(op(D))]

or

M = [      I      ]
    [ alpha*op(D) ]
where:
    D_rng = [cols(op(D))+1,rows(op(D))+cols(op(D))]
    I_rng = [1,cols(op(D))]

and I is a op(D).cols() x op(D).cols() indentity matrix and the full matrix M is of order (op(D).rows() + op(D).cols()) x op(D).cols().

Definition at line 72 of file ConstrainedOptPack_MatrixIdentConcat.hpp.

Member Function Documentation

virtual Range1D ConstrainedOptPack::MatrixIdentConcat::D_rng ( ) const

pure virtual

Implemented in ConstrainedOptPack::MatrixIdentConcatStd.

virtual Range1D ConstrainedOptPack::MatrixIdentConcat::I_rng ( ) const

pure virtual

Implemented in ConstrainedOptPack::MatrixIdentConcatStd.

virtual value_type ConstrainedOptPack::MatrixIdentConcat::alpha ( ) const

pure virtual

Implemented in ConstrainedOptPack::MatrixIdentConcatStd.

virtual const MatrixOp& ConstrainedOptPack::MatrixIdentConcat::D ( ) const

pure virtual

Implemented in ConstrainedOptPack::MatrixIdentConcatStd.

virtual BLAS_Cpp::Transp ConstrainedOptPack::MatrixIdentConcat::D_trans ( ) const

pure virtual

Implemented in ConstrainedOptPack::MatrixIdentConcatStd.

size_type ConstrainedOptPack::MatrixIdentConcat::rows ( ) const

virtual

Reimplemented from AbstractLinAlgPack::MatrixBase.

Definition at line 136 of file ConstrainedOptPack_MatrixIdentConcat.cpp.

size_type ConstrainedOptPack::MatrixIdentConcat::cols ( ) const

virtual

Reimplemented from AbstractLinAlgPack::MatrixBase.

Definition at line 141 of file ConstrainedOptPack_MatrixIdentConcat.cpp.

size_type ConstrainedOptPack::MatrixIdentConcat::nz ( ) const

virtual

Reimplemented from AbstractLinAlgPack::MatrixBase.

Definition at line 146 of file ConstrainedOptPack_MatrixIdentConcat.cpp.

std::ostream & ConstrainedOptPack::MatrixIdentConcat::output ( std::ostream &  out ) const

virtual

Reimplemented from AbstractLinAlgPack::MatrixOp.

Definition at line 154 of file ConstrainedOptPack_MatrixIdentConcat.cpp.

void ConstrainedOptPack::MatrixIdentConcat::Vp_StMtV	(	VectorMutable *	vs_lhs,
		value_type	alpha,
		BLAS_Cpp::Transp	trans_rhs1,
		const Vector &	vs_rhs2,
		value_type	beta
	)		const

Definition at line 183 of file ConstrainedOptPack_MatrixIdentConcat.cpp.

void ConstrainedOptPack::MatrixIdentConcat::Vp_StMtV	(	VectorMutable *	vs_lhs,
		value_type	alpha,
		BLAS_Cpp::Transp	trans_rhs1,
		const SpVectorSlice &	sv_rhs2,
		value_type	beta
	)		const

Definition at line 192 of file ConstrainedOptPack_MatrixIdentConcat.cpp.

---

The documentation for this class was generated from the following files:

• ConstrainedOptPack_MatrixIdentConcat.hpp
• ConstrainedOptPack_MatrixIdentConcat.cpp
