MoochoPack::CheckConvergenceStd_AddedStepSetOptions Class Reference

Set options for CheckConvergenceStd_AddedStep from an OptionsFromStream object. More...

#include <MoochoPack_CheckConvergenceStd_AddedStepSetOptions.hpp>

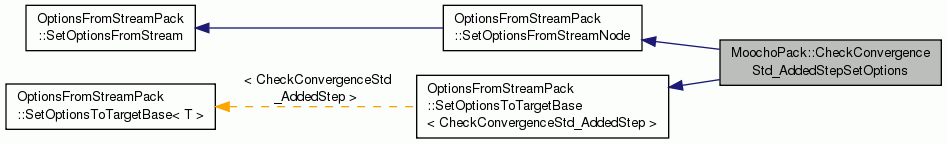

Inheritance diagram for MoochoPack::CheckConvergenceStd_AddedStepSetOptions:
Inheritance graph
[legend]

Public Member Functions

 CheckConvergenceStd_AddedStepSetOptions (CheckConvergenceStd_AddedStep *target=0, const char opt_grp_name[]="CheckConvergenceStd")

- Public Member Functions inherited from OptionsFromStreamPack::SetOptionsFromStreamNode
 SetOptionsFromStreamNode (const std::string &options_group, int num_options, const char *option_names[], bool exists_optional=true)
 Constructs with the name of the options group and the names of the options. More...

void set_options (const OptionsFromStream &options)
 Overridden from SetOptionsFromStream and calls setOption(...). More...

- Public Member Functions inherited from OptionsFromStreamPack::SetOptionsFromStream
virtual ~SetOptionsFromStream ()

- Public Member Functions inherited from OptionsFromStreamPack::SetOptionsToTargetBase< CheckConvergenceStd_AddedStep >
 SetOptionsToTargetBase (CheckConvergenceStd_AddedStep *target=0)

void set_target (CheckConvergenceStd_AddedStep *target)

CheckConvergenceStd_AddedStep * get_target ()

const
CheckConvergenceStd_AddedStep *
get_target () const

CheckConvergenceStd_AddedStep & target ()

const
CheckConvergenceStd_AddedStep &
target () const


Protected Member Functions

void setOption (int option_num, const std::string &option_value)
 Overridden from SetOptionsFromStreamNode. More...


Detailed Description

Set options for CheckConvergenceStd_AddedStep from an OptionsFromStream object.

The default options group name is CheckConvergenceStd.

The options group is:

{verbatim} options_group CheckConvergenceStd { scale_kkt_error_by = SCALE_BY_ONE; scale_opt_error_by_Gf = true; } {verbatim}

{description} [scale_kkt_error_by] Determines if and how the optimality (opt_kkt_err) and feasiblity (feas_kkt_err) errors for the convergence check are scaled by for the unkowns x before comparing it to the set tolerances of opt_tol and feas_tol (see the class {CheckConvergenceStd_AddedStep} and its printed algorithm for more details). {description} [SCALE_BY_ONE] no scaling by x [SCALE_BY_NORM_2_X] scale opt_kkt_err and feas_kkt_err by 1/||x||2 [SCALE_BY_NORM_INF_X] scale opt_kkt_err and feas_kkt_err by 1/||x||inf {description} [scale_opt_error_by_Gf] Determines if opt_kkt_err is scaled by ||Gf_k||inf or not. {description}

Definition at line 81 of file MoochoPack_CheckConvergenceStd_AddedStepSetOptions.hpp.

Constructor & Destructor Documentation

MoochoPack::CheckConvergenceStd_AddedStepSetOptions::CheckConvergenceStd_AddedStepSetOptions ( CheckConvergenceStd_AddedStep target = 0,
const char  opt_grp_name[] = "CheckConvergenceStd"
)

Member Function Documentation

void MoochoPack::CheckConvergenceStd_AddedStepSetOptions::setOption ( int  option_num,
const std::string &  option_value
)
protectedvirtual

Overridden from SetOptionsFromStreamNode.

Implements OptionsFromStreamPack::SetOptionsFromStreamNode.


The documentation for this class was generated from the following file:
