Concrete implementation class for a matrix vertically concatonated with an identity matrix. More...

#include <ConstrainedOptPack_MatrixIdentConcatStd.hpp>

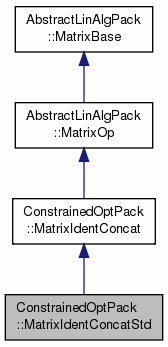

Inheritance diagram for ConstrainedOptPack::MatrixIdentConcatStd:

Private Member Functions
void	assert_initialized () const

Private Attributes
AbstractLinAlgPack::VectorSpace *	space_cols

AbstractLinAlgPack::VectorSpace *	space_rows

AbstractLinAlgPack::MatrixOp *	D

RangePack::Range1D	D_rng

RangePack::Range1D	I_rng

value_type	alpha_

BLAS_Cpp::Transp	D_trans_

Public types
enum	ETopBottom { TOP, BOTTOM }

typedef Teuchos::RCP< const MatrixOp >	D_ptr_t

Constructors/initializers.
	MatrixIdentConcatStd ()
	Constructs to uninitialized. More...

virtual void	initialize (const VectorSpace::space_ptr_t &space_cols, const VectorSpace::space_ptr_t &space_rows, ETopBottom top_or_bottom, value_type alpha, const D_ptr_t &D_ptr, BLAS_Cpp::Transp D_trans)
	Setup with a matrix object. More...

virtual void	set_uninitialized ()
	Set the matrix to uninitialized. More...

virtual const D_ptr_t &	D_ptr () const
	Return the smart reference counted point to the `D` matrix. More...

Overridden form MatrixIdentConcat
Range1D	D_rng () const

Range1D	I_rng () const

value_type	alpha () const

const MatrixOp &	D () const

BLAS_Cpp::Transp	D_trans () const

Overridden from MatrixOp
const VectorSpace &	space_cols () const

const VectorSpace &	space_rows () const

MatrixOp &	operator= (const MatrixOp &m)
	The default just performs a shallow copy and just copies the underlying smart reference counted pointer. If other behavior is desired then this method must be overridden. More...

Additional Inherited Members
Public Types inherited from AbstractLinAlgPack::MatrixOp
enum	EMatNormType { MAT_NORM_INF, MAT_NORM_2, MAT_NORM_1, MAT_NORM_FORB }
	Type of matrix norm. More...

Public Member Functions inherited from ConstrainedOptPack::MatrixIdentConcat
size_type	rows () const

size_type	cols () const

size_type	nz () const

std::ostream &	output (std::ostream &out) const

void	Vp_StMtV (VectorMutable *vs_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const Vector &vs_rhs2, value_type beta) const

void	Vp_StMtV (VectorMutable *vs_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const SpVectorSlice &sv_rhs2, value_type beta) const

Public Member Functions inherited from AbstractLinAlgPack::MatrixOp
virtual void	zero_out ()
	M_lhs = 0 : Zero out the matrix. More...

virtual void	Mt_S (value_type alpha)
	M_lhs *= alpha : Multiply a matrix by a scalar. More...

virtual MatrixOp &	operator= (const MatrixOp &mwo_rhs)
	M_lhs = mwo_rhs : Virtual assignment operator. More...

virtual mat_mut_ptr_t	clone ()
	Clone the non-const matrix object (if supported). More...

virtual mat_ptr_t	clone () const
	Clone the const matrix object (if supported). More...

const MatNorm	calc_norm (EMatNormType requested_norm_type=MAT_NORM_1, bool allow_replacement=false) const
	Compute a norm of this matrix. More...

virtual mat_ptr_t	sub_view (const Range1D &row_rng, const Range1D &col_rng) const
	Create a transient constant sub-matrix view of this matrix (if supported). More...

mat_ptr_t	sub_view (const index_type &rl, const index_type &ru, const index_type &cl, const index_type &cu) const
	Inlined implementation calls `this->sub_view(Range1D(rl,ru),Range1D(cl,cu))`. More...

virtual mat_ptr_t	perm_view (const Permutation P_row, const index_type row_part[], int num_row_part, const Permutation P_col, const index_type col_part[], int num_col_part) const
	Create a permuted view: `M_perm = P_row' * M * P_col`. More...

virtual mat_ptr_t	perm_view_update (const Permutation P_row, const index_type row_part[], int num_row_part, const Permutation P_col, const index_type col_part[], int num_col_part, const mat_ptr_t &perm_view) const
	Reinitialize a permuted view: `M_perm = P_row' * M * P_col`. More...

Public Member Functions inherited from AbstractLinAlgPack::MatrixBase
virtual	~MatrixBase ()
	Virtual destructor. More...

Protected Member Functions inherited from AbstractLinAlgPack::MatrixOp
virtual bool	Mp_StM (MatrixOp *mwo_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs) const
	mwo_lhs += alpha * op(M_rhs) (BLAS xAXPY). More...

virtual bool	Mp_StM (value_type alpha, const MatrixOp &M_rhs, BLAS_Cpp::Transp trans_rhs)
	M_lhs += alpha * op(mwo_rhs) (BLAS xAXPY). More...

virtual bool	Mp_StMtP (MatrixOp *mwo_lhs, value_type alpha, BLAS_Cpp::Transp M_trans, const GenPermMatrixSlice &P_rhs, BLAS_Cpp::Transp P_rhs_trans) const
	mwo_lhs += alpha * op(M_rhs) * op(P_rhs). More...

virtual bool	Mp_StMtP (value_type alpha, const MatrixOp &mwo_rhs, BLAS_Cpp::Transp M_trans, const GenPermMatrixSlice &P_rhs, BLAS_Cpp::Transp P_rhs_trans)
	M_lhs += alpha * op(mwo_rhs) * op(P_rhs). More...

virtual bool	Mp_StPtM (MatrixOp *mwo_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs, BLAS_Cpp::Transp P_rhs_trans, BLAS_Cpp::Transp M_trans) const
	mwo_lhs += alpha * op(P_rhs) * op(M_rhs). More...

virtual bool	Mp_StPtM (value_type alpha, const GenPermMatrixSlice &P_rhs, BLAS_Cpp::Transp P_rhs_trans, const MatrixOp &mwo_rhs, BLAS_Cpp::Transp M_trans)
	M_lhs += alpha * op(P_rhs) * op(mwo_rhs). More...

virtual bool	Mp_StPtMtP (MatrixOp *mwo_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, BLAS_Cpp::Transp M_trans, const GenPermMatrixSlice &P_rhs2, BLAS_Cpp::Transp P_rhs2_trans) const
	mwo_lhs += alpha * op(P_rhs1) * op(M_rhs) * op(P_rhs2). More...

virtual bool	Mp_StPtMtP (value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, const MatrixOp &mwo_rhs, BLAS_Cpp::Transp M_trans, const GenPermMatrixSlice &P_rhs2, BLAS_Cpp::Transp P_rhs2_trans)
	M_lhs += alpha * op(P_rhs1) * op(mwo_rhs) * op(P_rhs2). More...

virtual void	Vp_StMtV (VectorMutable *v_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const Vector &v_rhs2, value_type beta) const =0
	v_lhs = alpha * op(M_rhs1) * v_rhs2 + beta * v_lhs (BLAS xGEMV) More...

virtual void	Vp_StMtV (VectorMutable *v_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const SpVectorSlice &sv_rhs2, value_type beta) const
	v_lhs = alpha * op(M_rhs1) * sv_rhs2 + beta * v_lhs (BLAS xGEMV) More...

virtual void	Vp_StPtMtV (VectorMutable *v_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, BLAS_Cpp::Transp M_rhs2_trans, const Vector &v_rhs3, value_type beta) const
	v_lhs = alpha * op(P_rhs1) * op(M_rhs2) * v_rhs3 + beta * v_rhs More...

virtual void	Vp_StPtMtV (VectorMutable *v_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, BLAS_Cpp::Transp M_rhs2_trans, const SpVectorSlice &sv_rhs3, value_type beta) const
	v_lhs = alpha * op(P_rhs1) * op(M_rhs2) * sv_rhs3 + beta * v_rhs More...

virtual value_type	transVtMtV (const Vector &v_rhs1, BLAS_Cpp::Transp trans_rhs2, const Vector &v_rhs3) const
	result = v_rhs1' * op(M_rhs2) * v_rhs3 More...

virtual value_type	transVtMtV (const SpVectorSlice &sv_rhs1, BLAS_Cpp::Transp trans_rhs2, const SpVectorSlice &sv_rhs3) const
	result = sv_rhs1' * op(M_rhs2) * sv_rhs3 More...

virtual void	syr2k (BLAS_Cpp::Transp M_trans, value_type alpha, const GenPermMatrixSlice &P1, BLAS_Cpp::Transp P1_trans, const GenPermMatrixSlice &P2, BLAS_Cpp::Transp P2_trans, value_type beta, MatrixSymOp *symwo_lhs) const
	Perform a specialized rank-2k update of a dense symmetric matrix of the form: More...

virtual bool	Mp_StMtM (MatrixOp *mwo_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const MatrixOp &mwo_rhs2, BLAS_Cpp::Transp trans_rhs2, value_type beta) const
	mwo_lhs = alpha * op(M_rhs1) * op(mwo_rhs2) + beta * mwo_lhs (left) (xGEMM). More...

virtual bool	Mp_StMtM (MatrixOp *mwo_lhs, value_type alpha, const MatrixOp &mwo_rhs1, BLAS_Cpp::Transp trans_rhs1, BLAS_Cpp::Transp trans_rhs2, value_type beta) const
	mwo_lhs = alpha * op(mwo_rhs1) * op(M_rhs2) + beta * mwo_lhs (right) (xGEMM) More...

virtual bool	Mp_StMtM (value_type alpha, const MatrixOp &mwo_rhs1, BLAS_Cpp::Transp trans_rhs1, const MatrixOp &mwo_rhs2, BLAS_Cpp::Transp trans_rhs2, value_type beta)
	M_lhs = alpha * op(mwo_rhs1) * op(mwo_rhs2) + beta * mwo_lhs (left) (xGEMM) More...

virtual bool	syrk (BLAS_Cpp::Transp M_trans, value_type alpha, value_type beta, MatrixSymOp *sym_lhs) const
	Perform a rank-k update of a symmetric matrix of the form: More...

virtual bool	syrk (const MatrixOp &mwo_rhs, BLAS_Cpp::Transp M_trans, value_type alpha, value_type beta)
	Perform a rank-k update of a symmetric matrix of the form: More...

Detailed Description

Concrete implementation class for a matrix vertically concatonated with an identity matrix.

Represents an interface for a matrix that represents:

M = [ alpha*op(D) ]    (TOP)
    [     I       ]

or

M = [     I       ]
    [ alpha*op(D) ]   (BOTTOM)

This subclass allows a client to set the representation matrix D.

Definition at line 67 of file ConstrainedOptPack_MatrixIdentConcatStd.hpp.

Member Typedef Documentation

typedef Teuchos::RCP<const MatrixOp> ConstrainedOptPack::MatrixIdentConcatStd::D_ptr_t

Definition at line 75 of file ConstrainedOptPack_MatrixIdentConcatStd.hpp.

Member Enumeration Documentation

enum ConstrainedOptPack::MatrixIdentConcatStd::ETopBottom

Enumerator
TOP
BOTTOM

Definition at line 73 of file ConstrainedOptPack_MatrixIdentConcatStd.hpp.

Constructor & Destructor Documentation

ConstrainedOptPack::MatrixIdentConcatStd::MatrixIdentConcatStd ( )

Constructs to uninitialized.

Definition at line 51 of file ConstrainedOptPack_MatrixIdentConcatStd.cpp.

Member Function Documentation

void ConstrainedOptPack::MatrixIdentConcatStd::initialize	(	const VectorSpace::space_ptr_t &	space_cols,
		const VectorSpace::space_ptr_t &	space_rows,
		ETopBottom	top_or_bottom,
		value_type	alpha,
		const D_ptr_t &	D_ptr,
		BLAS_Cpp::Transp	D_trans
	)

virtual

Setup with a matrix object.

Parameters

top_or_bottom	[in] If `TOP` then `M = [ alphaop(D); I ]` and if `BOTTOM` then `M = [ I; alphaop(D) ]`
alpha	[in] Scalar that multiplies `op(D)`
D_ptr	[in] Smart pointer to a matrix object that represents `D`. The matrix object pointed to must not be altered until `this` object is no longer in use or `this->set_uninitialized()` has been called.
D_trans	[in] Determines if `op(D) = D` (`no_trans#`) or `op(D) = D'` (`trans`).

Preconditions:

D.get() != NULL (throw std::invalid_argument)
space_cols->dim() == rows(op(D)) + cols(op(D)) (throw std::invalid_argument)
space_rows->dim() == cols(op(D)) (throw std::invalid_argument)
space_cols->sub_space(D_rng)->is_compatible(op(D).space_cols()) (throw std::invalid_argument) See D_rng defined below
space_rows->is_compatible(op(D).space_rows()) (throw std::invalid_argument)

Postconditions:

this->D_ptr().get() == D_ptr.get()
&this->D() == this->D_ptr().get()
this->D_trans() == D_trans
this->alpha() == alpha
this->rows() == rows(op(D)) + cols(op(D))
this->cols() == cols(op(D))
&this->space_cols() == space_cols.get()
&this->space_rows() == space_rows.get()
[top_or_bottom == TOP] this->D_rng() = [1,rows(op(D))]
[top_or_bottom == TOP] this->I_rng() = [rows(op(D))+1,rows(op(D))+cols(op(D))]
[top_or_bottom == BOTTOM] this->D_rng() = [cols(op(D))+1,rows(op(D))+cols(op(D))]
[top_or_bottom == BOTTOM] this->I_rng() = [1,cols(op(D))]

Definition at line 56 of file ConstrainedOptPack_MatrixIdentConcatStd.cpp.

void ConstrainedOptPack::MatrixIdentConcatStd::set_uninitialized ( )

virtual

Set the matrix to uninitialized.

Postconditions:

this->space_cols() throws an exception
this->space_rows() throws an exception
this->D_ptr().get() == NULL
&this->D() throws an exception
this->D_trans() == no_trans
this->alpha() == 0.0
this->rows() == 0
this->cols() == 0
[top_or_bottom == TOP] this->D_rng() = [1,rows(op(D))]
[top_or_bottom == TOP] this->I_rng() = [rows(op(D))+1,rows(op(D))+cols(op(D))]
[top_or_bottom == BOTTOM] this->D_rng() = [cols(op(D))+1,rows(op(D))+cols(op(D))]
[top_or_bottom == BOTTOM] this->I_rng() = [1,cols(op(D))]

Definition at line 94 of file ConstrainedOptPack_MatrixIdentConcatStd.cpp.

const MatrixIdentConcatStd::D_ptr_t & ConstrainedOptPack::MatrixIdentConcatStd::D_ptr ( ) const

virtual

Return the smart reference counted point to the D matrix.

If the matrix object D is owned exclusively by this matrix object then this->D_ptr().count() == 1 on return.

Definition at line 106 of file ConstrainedOptPack_MatrixIdentConcatStd.cpp.

Range1D ConstrainedOptPack::MatrixIdentConcatStd::D_rng ( ) const

virtual

Implements ConstrainedOptPack::MatrixIdentConcat.

Range1D ConstrainedOptPack::MatrixIdentConcatStd::I_rng ( ) const

virtual

Implements ConstrainedOptPack::MatrixIdentConcat.

value_type ConstrainedOptPack::MatrixIdentConcatStd::alpha ( ) const

virtual

Implements ConstrainedOptPack::MatrixIdentConcat.

Definition at line 123 of file ConstrainedOptPack_MatrixIdentConcatStd.cpp.

const MatrixOp& ConstrainedOptPack::MatrixIdentConcatStd::D ( ) const

virtual

Implements ConstrainedOptPack::MatrixIdentConcat.

BLAS_Cpp::Transp ConstrainedOptPack::MatrixIdentConcatStd::D_trans ( ) const

virtual

Implements ConstrainedOptPack::MatrixIdentConcat.

Definition at line 133 of file ConstrainedOptPack_MatrixIdentConcatStd.cpp.

const VectorSpace& ConstrainedOptPack::MatrixIdentConcatStd::space_cols ( ) const

virtual

Implements AbstractLinAlgPack::MatrixBase.

const VectorSpace& ConstrainedOptPack::MatrixIdentConcatStd::space_rows ( ) const

virtual

Implements AbstractLinAlgPack::MatrixBase.

MatrixOp & ConstrainedOptPack::MatrixIdentConcatStd::operator= ( const MatrixOp & m )

The default just performs a shallow copy and just copies the underlying smart reference counted pointer. If other behavior is desired then this method must be overridden.

Definition at line 150 of file ConstrainedOptPack_MatrixIdentConcatStd.cpp.

void ConstrainedOptPack::MatrixIdentConcatStd::assert_initialized ( ) const

private

Definition at line 158 of file ConstrainedOptPack_MatrixIdentConcatStd.cpp.
