Default subclass for MultiVectorMutable implemented using columns of separate abstract vectors. More...

#include <AbstractLinAlgPack_MultiVectorMutableCols.hpp>

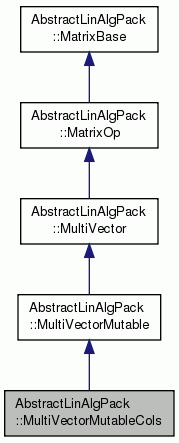

Inheritance diagram for AbstractLinAlgPack::MultiVectorMutableCols:

Private Attributes
const VectorSpace *	space_cols

const VectorSpace *	space_rows

VectorMutable *	column_vectors

Constructors/Initializers
	MultiVectorMutableCols ()
	Construct to initialized. More...

	MultiVectorMutableCols (const Teuchos::RCP< const VectorSpace > &space_cols, const Teuchos::RCP< const VectorSpace > &space_rows, Teuchos::RCP< VectorMutable > col_vecs[]=NULL)
	Calls `initalize()`. More...

void	initialize (const Teuchos::RCP< const VectorSpace > &space_cols, const Teuchos::RCP< const VectorSpace > &space_rows, Teuchos::RCP< VectorMutable > col_vecs[]=NULL)
	Initialize given the spaces for the columns and rows and possibly the column vectors. More...

void	set_uninitialized ()
	Set uninitalized. More...

Overridden from MatrixBase
size_type	rows () const

size_type	cols () const

Overridden from MatrixOp
const VectorSpace &	space_cols () const

const VectorSpace &	space_rows () const

void	zero_out ()

void	Mt_S (value_type alpha)

MatrixOp &	operator= (const MatrixOp &mwo_rhs)

mat_mut_ptr_t	clone ()

mat_ptr_t	clone () const

void	Vp_StMtV (VectorMutable *v_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const Vector &v_rhs2, value_type beta) const

void	Vp_StMtV (VectorMutable *v_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const SpVectorSlice &sv_rhs2, value_type beta) const

bool	syrk (BLAS_Cpp::Transp M_trans, value_type alpha, value_type beta, MatrixSymOp *sym_lhs) const

Overridden from MultiVector
access_by_t	access_by () const
	Returns `return & COL_ACCESS == true` only. More...

Overridden from MultiVectorMutable
vec_mut_ptr_t	col (index_type j)

vec_mut_ptr_t	row (index_type i)
	Returns `return.get() == NULL` More...

vec_mut_ptr_t	diag (int k)
	Returns `return.get() == NULL` More...

multi_vec_mut_ptr_t	mv_sub_view (const Range1D &row_rng, const Range1D &col_rng)

Additional Inherited Members
Public Types inherited from AbstractLinAlgPack::MultiVectorMutable
typedef Teuchos::RCP < VectorMutable >	vec_mut_ptr_t

typedef Teuchos::RCP < MultiVectorMutable >	multi_vec_mut_ptr_t

Public Types inherited from AbstractLinAlgPack::MultiVector
enum	{ ROW_ACCESS = 0x1, COL_ACCESS = 0x2, DIAG_ACCESS = 0x4 }

typedef int	access_by_t

typedef Teuchos::RCP< const Vector >	vec_ptr_t

typedef Teuchos::RCP< const MultiVector >	multi_vec_ptr_t

Public Types inherited from AbstractLinAlgPack::MatrixOp
enum	EMatNormType { MAT_NORM_INF, MAT_NORM_2, MAT_NORM_1, MAT_NORM_FORB }
	Type of matrix norm. More...

Public Member Functions inherited from AbstractLinAlgPack::MultiVectorMutable
virtual multi_vec_mut_ptr_t	mv_clone ()
	Clone the non-const multi-vector object. More...

multi_vec_mut_ptr_t	mv_sub_view (const index_type &rl, const index_type &ru, const index_type &cl, const index_type &cu)
	Inlined implementation calls `this->mv_sub_view(Range1D(rl,ru),Range1D(cl,cu))`. More...

bool	Mp_StM (MatrixOp *mwo_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs) const

bool	Mp_StM (value_type alpha, const MatrixOp &M_rhs, BLAS_Cpp::Transp trans_rhs)

multi_vec_ptr_t	mv_clone () const

vec_ptr_t	col (index_type j) const

vec_ptr_t	row (index_type i) const

vec_ptr_t	diag (int k) const

multi_vec_ptr_t	mv_sub_view (const Range1D &row_rng, const Range1D &col_rng) const

Public Member Functions inherited from AbstractLinAlgPack::MultiVector
multi_vec_ptr_t	mv_sub_view (const index_type &rl, const index_type &ru, const index_type &cl, const index_type &cu) const
	Inlined implementation calls `this->mv_sub_view(Range1D(rl,ru),Range1D(cl,cu))`. More...

mat_ptr_t	sub_view (const Range1D &row_rng, const Range1D &col_rng) const
	Returns `this->mv_sub_view(row_rng,col_rng)` casted to a MatrixOp. More...

bool	Mp_StMtM (MatrixOp *mwo_lhs, value_type alpha, const MatrixOp &mwo_rhs1, BLAS_Cpp::Transp trans_rhs1, BLAS_Cpp::Transp trans_rhs2, value_type beta) const
	Provides a specialized implementation for `mwo_rhs1` of type `MatrixSymDiag`. More...

bool	Mp_StMtM (MatrixOp *mwo_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const MatrixOp &mwo_rhs2, BLAS_Cpp::Transp trans_rhs2, value_type beta) const
	Provides a specialized implementation for `mwo_rhs2` of type `MatrixSymDiag`. More...

Public Member Functions inherited from AbstractLinAlgPack::MatrixOp
virtual std::ostream &	output (std::ostream &out) const
	Virtual output function. More...

const MatNorm	calc_norm (EMatNormType requested_norm_type=MAT_NORM_1, bool allow_replacement=false) const
	Compute a norm of this matrix. More...

mat_ptr_t	sub_view (const index_type &rl, const index_type &ru, const index_type &cl, const index_type &cu) const
	Inlined implementation calls `this->sub_view(Range1D(rl,ru),Range1D(cl,cu))`. More...

virtual mat_ptr_t	perm_view (const Permutation P_row, const index_type row_part[], int num_row_part, const Permutation P_col, const index_type col_part[], int num_col_part) const
	Create a permuted view: `M_perm = P_row' * M * P_col`. More...

virtual mat_ptr_t	perm_view_update (const Permutation P_row, const index_type row_part[], int num_row_part, const Permutation P_col, const index_type col_part[], int num_col_part, const mat_ptr_t &perm_view) const
	Reinitialize a permuted view: `M_perm = P_row' * M * P_col`. More...

Public Member Functions inherited from AbstractLinAlgPack::MatrixBase
virtual	~MatrixBase ()
	Virtual destructor. More...

virtual size_type	nz () const
	Return the number of nonzero elements in the matrix. More...

Protected Member Functions inherited from AbstractLinAlgPack::MultiVector
virtual void	apply_op (EApplyBy apply_by, const RTOpPack::RTOp &primary_op, const size_t num_multi_vecs, const MultiVector multi_vecs[], const size_t num_targ_multi_vecs, MultiVectorMutable targ_multi_vecs[], RTOpPack::ReductTarget *reduct_objs[], const index_type primary_first_ele, const index_type primary_sub_dim, const index_type primary_global_offset, const index_type secondary_first_ele, const index_type secondary_sub_dim) const
	Apply a reduction/transformation operator row by row, or column by column and return an array of the reduction objects. More...

virtual void	apply_op (EApplyBy apply_by, const RTOpPack::RTOp &primary_op, const RTOpPack::RTOp &secondary_op, const size_t num_multi_vecs, const MultiVector multi_vecs[], const size_t num_targ_multi_vecs, MultiVectorMutable targ_multi_vecs[], RTOpPack::ReductTarget *reduct_obj, const index_type primary_first_ele, const index_type primary_sub_dim, const index_type primary_global_offset, const index_type secondary_first_ele, const index_type secondary_sub_dim) const
	Apply a reduction/transformation operator row by row, or column by column and reduce the intermediate reduction objects into one reduction object. More...

Protected Member Functions inherited from AbstractLinAlgPack::MatrixOp
virtual bool	Mp_StMtP (MatrixOp *mwo_lhs, value_type alpha, BLAS_Cpp::Transp M_trans, const GenPermMatrixSlice &P_rhs, BLAS_Cpp::Transp P_rhs_trans) const
	mwo_lhs += alpha * op(M_rhs) * op(P_rhs). More...

virtual bool	Mp_StMtP (value_type alpha, const MatrixOp &mwo_rhs, BLAS_Cpp::Transp M_trans, const GenPermMatrixSlice &P_rhs, BLAS_Cpp::Transp P_rhs_trans)
	M_lhs += alpha * op(mwo_rhs) * op(P_rhs). More...

virtual bool	Mp_StPtM (MatrixOp *mwo_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs, BLAS_Cpp::Transp P_rhs_trans, BLAS_Cpp::Transp M_trans) const
	mwo_lhs += alpha * op(P_rhs) * op(M_rhs). More...

virtual bool	Mp_StPtM (value_type alpha, const GenPermMatrixSlice &P_rhs, BLAS_Cpp::Transp P_rhs_trans, const MatrixOp &mwo_rhs, BLAS_Cpp::Transp M_trans)
	M_lhs += alpha * op(P_rhs) * op(mwo_rhs). More...

virtual bool	Mp_StPtMtP (MatrixOp *mwo_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, BLAS_Cpp::Transp M_trans, const GenPermMatrixSlice &P_rhs2, BLAS_Cpp::Transp P_rhs2_trans) const
	mwo_lhs += alpha * op(P_rhs1) * op(M_rhs) * op(P_rhs2). More...

virtual bool	Mp_StPtMtP (value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, const MatrixOp &mwo_rhs, BLAS_Cpp::Transp M_trans, const GenPermMatrixSlice &P_rhs2, BLAS_Cpp::Transp P_rhs2_trans)
	M_lhs += alpha * op(P_rhs1) * op(mwo_rhs) * op(P_rhs2). More...

virtual void	Vp_StPtMtV (VectorMutable *v_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, BLAS_Cpp::Transp M_rhs2_trans, const Vector &v_rhs3, value_type beta) const
	v_lhs = alpha * op(P_rhs1) * op(M_rhs2) * v_rhs3 + beta * v_rhs More...

virtual void	Vp_StPtMtV (VectorMutable *v_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, BLAS_Cpp::Transp M_rhs2_trans, const SpVectorSlice &sv_rhs3, value_type beta) const
	v_lhs = alpha * op(P_rhs1) * op(M_rhs2) * sv_rhs3 + beta * v_rhs More...

virtual value_type	transVtMtV (const Vector &v_rhs1, BLAS_Cpp::Transp trans_rhs2, const Vector &v_rhs3) const
	result = v_rhs1' * op(M_rhs2) * v_rhs3 More...

virtual value_type	transVtMtV (const SpVectorSlice &sv_rhs1, BLAS_Cpp::Transp trans_rhs2, const SpVectorSlice &sv_rhs3) const
	result = sv_rhs1' * op(M_rhs2) * sv_rhs3 More...

virtual void	syr2k (BLAS_Cpp::Transp M_trans, value_type alpha, const GenPermMatrixSlice &P1, BLAS_Cpp::Transp P1_trans, const GenPermMatrixSlice &P2, BLAS_Cpp::Transp P2_trans, value_type beta, MatrixSymOp *symwo_lhs) const
	Perform a specialized rank-2k update of a dense symmetric matrix of the form: More...

virtual bool	Mp_StMtM (value_type alpha, const MatrixOp &mwo_rhs1, BLAS_Cpp::Transp trans_rhs1, const MatrixOp &mwo_rhs2, BLAS_Cpp::Transp trans_rhs2, value_type beta)
	M_lhs = alpha * op(mwo_rhs1) * op(mwo_rhs2) + beta * mwo_lhs (left) (xGEMM) More...

virtual bool	syrk (const MatrixOp &mwo_rhs, BLAS_Cpp::Transp M_trans, value_type alpha, value_type beta)
	Perform a rank-k update of a symmetric matrix of the form: More...

Detailed Description

Default subclass for MultiVectorMutable implemented using columns of separate abstract vectors.

Only column access is permitted. This is a very bad implementation of a multi-vector but this will work in situations where you need a multi-vector but some underlying linear algebra library does not directly support them.

The only difficult issue is what to use for the vector space for the rows of the multi-vector space_row. This has to be carefully chosen so that all will work well.

ToDo: Finish documentation!

Definition at line 68 of file AbstractLinAlgPack_MultiVectorMutableCols.hpp.

Constructor & Destructor Documentation

AbstractLinAlgPack::MultiVectorMutableCols::MultiVectorMutableCols ( )

Construct to initialized.

Definition at line 53 of file AbstractLinAlgPack_MultiVectorMutableCols.cpp.

AbstractLinAlgPack::MultiVectorMutableCols::MultiVectorMutableCols	(	const Teuchos::RCP< const VectorSpace > &	space_cols,
		const Teuchos::RCP< const VectorSpace > &	space_rows,
		Teuchos::RCP< VectorMutable >	col_vecs[] = `NULL`
	)

Calls initalize().

Definition at line 56 of file AbstractLinAlgPack_MultiVectorMutableCols.cpp.

Member Function Documentation

void AbstractLinAlgPack::MultiVectorMutableCols::initialize	(	const Teuchos::RCP< const VectorSpace > &	space_cols,
		const Teuchos::RCP< const VectorSpace > &	space_rows,
		Teuchos::RCP< VectorMutable >	col_vecs[] = `NULL`
	)

Initialize given the spaces for the columns and rows and possibly the column vectors.

Parameters

space_cols	[in] The space that the columns must lie in. The underlying vector space must not be changed while `this` is in use.
space_rows	[in] The space that the rows must lie in. The underlying vector space must not be changed while `this` is in use. What this argument really specifies is what vector type will be compatible with the vectors that the client may try to use to interact with the rows of this multivector.
col_vecs	[in] Array (size `space_rows->dim()`) of column vectors to use for the columns of `this`. It is allowed for `col_vecs==NULL` in which case `space_cols->create_member()` will be used to create the colmns of `this`.

Preconditions:

space_cols.get() != NULL (throw std::invalid_argument)
space_rows.get() != NULL (throw std::invalid_argument)
space_cols->dim() > 0 (throw std::invalid_argument)
space_rows->dim() > 0 (throw std::invalid_argument)
[col_vecs != NULL] col_vecs[j-1].get() != NULL && col_vecs[j-1]->space().is_compatible(*space_cols) == true, for j=1..space_rows->dim()

Postconditions:

&this->space_cols() == space_cols.get() &this->space_rows() == space_rows.get() [col_vecs != NULL] this->col(j).get() == col_vecs[j-1].get(), for j=1..space_rows->dim()

Definition at line 65 of file AbstractLinAlgPack_MultiVectorMutableCols.cpp.

void AbstractLinAlgPack::MultiVectorMutableCols::set_uninitialized ( )

Set uninitalized.

Definition at line 85 of file AbstractLinAlgPack_MultiVectorMutableCols.cpp.

size_type AbstractLinAlgPack::MultiVectorMutableCols::rows ( ) const

virtual

Reimplemented from AbstractLinAlgPack::MatrixBase.

Definition at line 94 of file AbstractLinAlgPack_MultiVectorMutableCols.cpp.

size_type AbstractLinAlgPack::MultiVectorMutableCols::cols ( ) const

virtual

Reimplemented from AbstractLinAlgPack::MatrixBase.

Definition at line 99 of file AbstractLinAlgPack_MultiVectorMutableCols.cpp.

const VectorSpace& AbstractLinAlgPack::MultiVectorMutableCols::space_cols ( ) const

virtual

Implements AbstractLinAlgPack::MatrixBase.

const VectorSpace& AbstractLinAlgPack::MultiVectorMutableCols::space_rows ( ) const

virtual

Implements AbstractLinAlgPack::MatrixBase.

void AbstractLinAlgPack::MultiVectorMutableCols::zero_out ( )

virtual

Reimplemented from AbstractLinAlgPack::MultiVectorMutable.

Definition at line 116 of file AbstractLinAlgPack_MultiVectorMutableCols.cpp.

void AbstractLinAlgPack::MultiVectorMutableCols::Mt_S ( value_type alpha )

virtual

Reimplemented from AbstractLinAlgPack::MultiVectorMutable.

Definition at line 122 of file AbstractLinAlgPack_MultiVectorMutableCols.cpp.

MatrixOp & AbstractLinAlgPack::MultiVectorMutableCols::operator= ( const MatrixOp & mwo_rhs )

virtual

Reimplemented from AbstractLinAlgPack::MultiVectorMutable.

Definition at line 129 of file AbstractLinAlgPack_MultiVectorMutableCols.cpp.

MatrixOp::mat_mut_ptr_t AbstractLinAlgPack::MultiVectorMutableCols::clone ( )

virtual

Reimplemented from AbstractLinAlgPack::MultiVectorMutable.

Definition at line 141 of file AbstractLinAlgPack_MultiVectorMutableCols.cpp.

MatrixOp::mat_ptr_t AbstractLinAlgPack::MultiVectorMutableCols::clone ( ) const

virtual

Reimplemented from AbstractLinAlgPack::MultiVector.

Definition at line 148 of file AbstractLinAlgPack_MultiVectorMutableCols.cpp.

void AbstractLinAlgPack::MultiVectorMutableCols::Vp_StMtV	(	VectorMutable *	v_lhs,
		value_type	alpha,
		BLAS_Cpp::Transp	trans_rhs1,
		const Vector &	v_rhs2,
		value_type	beta
	)		const

virtual

Implements AbstractLinAlgPack::MatrixOp.

Definition at line 154 of file AbstractLinAlgPack_MultiVectorMutableCols.cpp.

void AbstractLinAlgPack::MultiVectorMutableCols::Vp_StMtV	(	VectorMutable *	v_lhs,
		value_type	alpha,
		BLAS_Cpp::Transp	trans_rhs1,
		const SpVectorSlice &	sv_rhs2,
		value_type	beta
	)		const
