ML_Epetra::CrsGraphWrapper Class Reference

ML_Epetra::CrsGraphWrapper: a class to wrap an Epetra_CrsGraph as Epetra_RowMatrix. More...

#include <ml_Epetra_wrap_CrsGraph_as_RowMatrix.H>

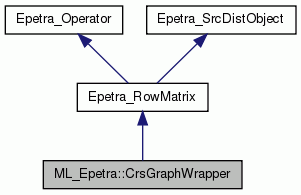

Inheritance diagram for ML_Epetra::CrsGraphWrapper:

Collaboration diagram for ML_Epetra::CrsGraphWrapper:

Public Member Functions
	CrsGraphWrapper (const Epetra_CrsGraph &graph, const Epetra_Map &dm, const Epetra_Map &rm, const Epetra_Comm &comm)
	Constructs a CrsGraphWrapper class. More...
virtual	~CrsGraphWrapper ()
	Destructor.
int	NumMyRowEntries (int MyRow, int &NumEntries) const
	Returns the number of nonzero entries in MyRow. More...
int	MaxNumEntries () const
	Returns the maximum of NumMyRowEntries() over all rows.
int	ExtractMyRowCopy (int MyRow, int Length, int &NumEntries, double *Values, int *Indices) const
	Returns a copy of the specified local row in user-provided arrays. More...
int	ExtractDiagonalCopy (Epetra_Vector &Diagonal) const
	not implemented, method will throw error and terminate execution.
int	Multiply (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	not implemented, method will throw error and terminate execution.
int	Solve (bool Upper, bool Trans, bool UnitDiagonal, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	not implemented, method will throw error and terminate execution.
int	InvRowSums (Epetra_Vector &x) const
	not implemented, method will throw error and terminate execution.
int	LeftScale (const Epetra_Vector &x)
	not implemented, method will throw error and terminate execution.
int	InvColSums (Epetra_Vector &x) const
	not implemented, method will throw error and terminate execution.
int	RightScale (const Epetra_Vector &x)
	not implemented, method will throw error and terminate execution.
bool	Filled () const
	If FillComplete() has been called, this query returns true, otherwise it returns false.
double	NormInf () const
	not implemented, method will throw error and terminate execution.
double	NormOne () const
	not implemented, method will throw error and terminate execution.
long long	NumGlobalNonzeros () const
	Returns the number of nonzero entries in the global matrix.
long long	NumGlobalRows () const
	Returns the number of global matrix rows.
long long	NumGlobalCols () const
	Returns the number of global matrix columns.
long long	NumGlobalDiagonals () const
	Returns the number of global nonzero diagonal entries, based on global row/column index comparisons.
int	NumMyNonzeros () const
	Returns the number of nonzero entries in the calling processor's portion of the matrix.
int	NumMyRows () const
	Returns the number of matrix rows owned by the calling processor.
int	NumMyCols () const
	Returns the number of matrix columns owned by the calling processor.
int	NumMyDiagonals () const
	Returns the number of local nonzero diagonal entries, based on global row/column index comparisons.
bool	LowerTriangular () const
	If matrix is lower triangular in local index space, this query returns true, otherwise it returns false.
bool	UpperTriangular () const
	If matrix is upper triangular in local index space, this query returns true, otherwise it returns false.
const Epetra_Map &	RowMatrixRowMap () const
	Returns the Epetra_Map object associated with the rows of this matrix.
const Epetra_Map &	RowMatrixColMap () const
	Returns the Epetra_Map object associated with the columns of this matrix.
const Epetra_Import *	RowMatrixImporter () const
	Returns the Epetra_Import object that contains the import operations for distributed operations.
const Epetra_BlockMap &	Map () const
	Returns the Epetra_Map object associated with the rows of this matrix, derived from Epetra_Operator.
int	SetUseTranspose (bool UseTranspose)
	not implemented, method will always return -1
int	Apply (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	not implemented, method will throw error and terminate execution.
int	ApplyInverse (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	not implemented, method will throw error and terminate execution.
const char *	Label () const
	returns the label of this class
bool	UseTranspose () const
	returns the usetranspose_ flag
bool	HasNormInf () const
	always returns false
const Epetra_Comm &	Comm () const
	returns ref to the Epetra_Comm associated with this class
const Epetra_Map &	OperatorDomainMap () const
	returns ref to the OperatorDomainMap associated with this class
const Epetra_Map &	OperatorRangeMap () const
	returns ref to the OperatorRangeMap associated with this class

Detailed Description

ML_Epetra::CrsGraphWrapper: a class to wrap an Epetra_CrsGraph as Epetra_RowMatrix.

Wraps a Epetra_CrsGraph as an Epetra_RowMatrix.

Class ML_Epetra::CrsGraphWrapper takes an Epetra_CrsGraph object and wraps it as an Epetra_RowMatrix. It can then be used as input to ML to generate a plain aggegration MG hierarchy. Note that the resulting coarse grid operators are rubbish and need to be replaced before actually applying this hierarchy to something. This class' destructor does not destoy any of the passed objects, so they need to be destoyed separately.

To make use of the full functionality of this class it requires ML to be configured with the following options:

• –enable-epetra

Author

Michael Gee, SNL 9214

Date

Last update to Doxygen: 01-Apr-05

Constructor & Destructor Documentation

ML_Epetra::CrsGraphWrapper::CrsGraphWrapper ( const Epetra_CrsGraph &  graph, const Epetra_Map &  dm, const Epetra_Map &  rm, const Epetra_Comm &  comm  )

inline

Constructs a CrsGraphWrapper class.

Constructs a CrsGraphWrapper class. As this wrapper implements an Epetra_RowMatrix, it can then be used as input to ML to generate a plain aggegration MG hierarchy. Note that the resulting coarse grid operators are rubbish and need to be replaced before actually applying this hierarchy to something.

Parameters

graph	(In) : ref to Epetra_CrsGraph
dm	(In) : ref to the DomainMap
rm	(In) : ref to the RangeMap
comm	(In) : the Epetra_Comm to be used

Member Function Documentation

int ML_Epetra::CrsGraphWrapper::ExtractMyRowCopy ( int  MyRow, int  Length, int &  NumEntries, double *  Values, int *  Indices  ) const

inlinevirtual

Returns a copy of the specified local row in user-provided arrays.

As this class wraps a graph and implements an Epetra_RowMatrix,
int-values are taken from the graph and converted to double values.

Parameters

In	MyRow - Local row to extract.
In	Length - Length of Values and Indices.
Out	NumEntries - Number of nonzero entries extracted.
Out	Values - Extracted values for this row.
Out	Indices - Extracted global column indices for the corresponding values.

Returns

Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

References Epetra_CrsGraph::ExtractMyRowCopy().

int ML_Epetra::CrsGraphWrapper::NumMyRowEntries ( int  MyRow, int &  NumEntries  ) const

inlinevirtual

Returns the number of nonzero entries in MyRow.

Parameters

In	MyRow - Local row.
Out	NumEntries - Number of nonzero values present.

Returns

Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

References Epetra_CrsGraph::NumMyIndices().

---

The documentation for this class was generated from the following file:

• ml_Epetra_wrap_CrsGraph_as_RowMatrix.H
