Helper class that allows SerendipityBasis construction with poly order arguments that are passed to the tensor-basis constructor. (SerendipityBasis itself requires a BasisPtr at construction.) More...
#include <Intrepid2_SerendipityBasisFamily.hpp>

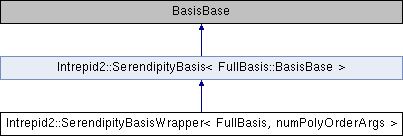

Inheritance diagram for Intrepid2::SerendipityBasisWrapper< FullBasis, numPolyOrderArgs >:
Public Types | |
| using | BasisBase = typename FullBasis::BasisBase |
| using | BasisPtr = Teuchos::RCP< BasisBase > |
| using | DeviceType = typename BasisBase::DeviceType |
| using | ExecutionSpace = typename BasisBase::ExecutionSpace |
| using | OutputValueType = typename BasisBase::OutputValueType |
| using | PointValueType = typename BasisBase::PointValueType |
| using | OrdinalTypeArray1D = typename BasisBase::OrdinalTypeArray1D |
| using | OrdinalTypeArray1DHost = typename BasisBase::OrdinalTypeArray1DHost |
| using | OrdinalTypeArray2DHost = typename BasisBase::OrdinalTypeArray2DHost |
| using | OutputViewType = typename BasisBase::OutputViewType |
| using | PointViewType = typename BasisBase::PointViewType |
 Public Types inherited from Intrepid2::SerendipityBasis< FullBasis::BasisBase > | |
| using | BasisBase = FullBasis::BasisBase |
| using | BasisPtr = Teuchos::RCP< BasisBase > |
| using | DeviceType = typename BasisBase::DeviceType |
| using | ExecutionSpace = typename BasisBase::ExecutionSpace |
| using | OutputValueType = typename BasisBase::OutputValueType |
| using | PointValueType = typename BasisBase::PointValueType |
| using | OrdinalTypeArray1D = typename BasisBase::OrdinalTypeArray1D |
| using | OrdinalTypeArray1DHost = typename BasisBase::OrdinalTypeArray1DHost |
| using | OrdinalTypeArray2DHost = typename BasisBase::OrdinalTypeArray2DHost |
| using | OutputViewType = typename BasisBase::OutputViewType |
| using | PointViewType = typename BasisBase::PointViewType |
Public Member Functions | |
| SerendipityBasisWrapper (int polyOrder, const EPointType pointType=POINTTYPE_DEFAULT) | |
| single-argument constructor, for isotropic bases. | |
| template<bool M = (numPolyOrderArgs==2)> | |
| SerendipityBasisWrapper (int polyOrder_x, int polyOrder_y, const EPointType pointType=POINTTYPE_DEFAULT, typename std::enable_if< M >::type *=0) | |
| two-argument constructor; enabled if numPolyOrderArgs is 2. | |
| template<bool M = (numPolyOrderArgs==3)> | |
| SerendipityBasisWrapper (int polyOrder_x, int polyOrder_y, int polyOrder_z, const EPointType pointType=POINTTYPE_DEFAULT, typename std::enable_if< M >::type *=0) | |
| three-argument constructor; enabled if numPolyOrderArgs is 3. | |
| Public Member Functions inherited from Intrepid2::SerendipityBasis< FullBasis::BasisBase > | |
| SerendipityBasis (BasisPtr fullBasis) | |
| Constructor. More... | |
| virtual int | getNumTensorialExtrusions () const override |
| virtual BasisValues < OutputValueType, DeviceType > | allocateBasisValues (TensorPoints< PointValueType, DeviceType > points, const EOperator operatorType=OPERATOR_VALUE) const override |
| Allocate BasisValues container suitable for passing to the getValues() variant that takes a TensorPoints container as argument. More... | |
| virtual const char * | getName () const override |
| Returns basis name. More... | |
| virtual void | getValues (BasisValues< OutputValueType, DeviceType > outputValues, const TensorPoints< PointValueType, DeviceType > inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override |
| Evaluation of a FEM basis on a reference cell, using point and output value containers that allow preservation of tensor-product structure. More... | |
| virtual void | getValues (OutputViewType outputValues, const PointViewType inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override |
| Evaluation of a FEM basis on a reference cell. More... | |
| virtual HostBasisPtr < OutputValueType, PointValueType > | getHostBasis () const override |
| Creates and returns a Basis object whose DeviceType template argument is Kokkos::HostSpace::device_type, but is otherwise identical to this. More... | |
| BasisPtr | getUnderlyingBasis () const |
| Returns a pointer to the underlying full basis. More... | |
| OrdinalTypeArray1D | ordinalMap () const |
| Returns the ordinal map from the Serendipity basis ordinal to the ordinal in the underlying full basis. More... | |
Additional Inherited Members | |
| Protected Attributes inherited from Intrepid2::SerendipityBasis< FullBasis::BasisBase > | |
| BasisPtr | fullBasis_ |
| std::string | name_ |
| int | numTensorialExtrusions_ |
| OrdinalTypeArray1D | ordinalMap_ |
Detailed Description
template<class FullBasis, int numPolyOrderArgs>
class Intrepid2::SerendipityBasisWrapper< FullBasis, numPolyOrderArgs >
Helper class that allows SerendipityBasis construction with poly order arguments that are passed to the tensor-basis constructor. (SerendipityBasis itself requires a BasisPtr at construction.)
Definition at line 69 of file Intrepid2_SerendipityBasisFamily.hpp.
The documentation for this class was generated from the following file:
- http://docs.trilinos.org/dev/packages/intrepid2/src/Discretization/Basis/Intrepid2_SerendipityBasisFamily.hpp
