For mathematical details of the construction, see: More...

#include <Intrepid2_HierarchicalBasis_HCURL_TRI.hpp>

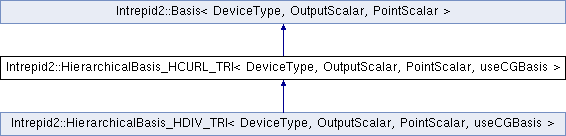

Inheritance diagram for Intrepid2::HierarchicalBasis_HCURL_TRI< DeviceType, OutputScalar, PointScalar, useCGBasis >:

Public Types
using	BasisBase = Basis< DeviceType, OutputScalar, PointScalar >

using	HostBasis = HierarchicalBasis_HCURL_TRI< typename Kokkos::HostSpace::device_type, OutputScalar, PointScalar, useCGBasis >

using	OrdinalTypeArray1DHost = Kokkos::View< ordinal_type *, typename ExecutionSpace::array_layout, Kokkos::HostSpace >
	View type for 1d host array.

using	OrdinalTypeArray2DHost = Kokkos::View< ordinal_type **, typename ExecutionSpace::array_layout, Kokkos::HostSpace >
	View type for 2d host array.

using	OutputViewType = Kokkos::DynRankView< OutputValueType, Kokkos::LayoutStride, DeviceType >
	View type for basis value output.

using	PointViewType = Kokkos::DynRankView< PointValueType, Kokkos::LayoutStride, DeviceType >
	View type for input points.

using	ScalarViewType = Kokkos::DynRankView< scalarType, Kokkos::LayoutStride, DeviceType >
	View type for scalars.

using	ExecutionSpace = typename DeviceType::execution_space
	(Kokkos) Execution space for basis.

Public Types inherited from Intrepid2::Basis< DeviceType, OutputScalar, PointScalar >
using	DeviceType = Device
	(Kokkos) Device type on which Basis is templated. Does not necessarily return true for Kokkos::is_device (may be Kokkos::Serial, for example).

using	ExecutionSpace = typename DeviceType::execution_space
	(Kokkos) Execution space for basis.

using	OutputValueType = outputValueType
	Output value type for basis; default is double.

using	PointValueType = pointValueType
	Point value type for basis; default is double.

using	OrdinalViewType = Kokkos::View< ordinal_type, DeviceType >
	View type for ordinal.

using	EBasisViewType = Kokkos::View< EBasis, DeviceType >
	View for basis type.

using	ECoordinatesViewType = Kokkos::View< ECoordinates, DeviceType >
	View for coordinate system type.

using	OrdinalTypeArray1DHost = Kokkos::View< ordinal_type *, typename ExecutionSpace::array_layout, Kokkos::HostSpace >
	View type for 1d host array.

using	OrdinalTypeArray2DHost = Kokkos::View< ordinal_type **, typename ExecutionSpace::array_layout, Kokkos::HostSpace >
	View type for 2d host array.

using	OrdinalTypeArray3DHost = Kokkos::View< ordinal_type ***, typename ExecutionSpace::array_layout, Kokkos::HostSpace >
	View type for 3d host array.

using	OrdinalTypeArrayStride1DHost = Kokkos::View< ordinal_type *, Kokkos::LayoutStride, Kokkos::HostSpace >
	View type for 1d host array.

using	OrdinalTypeArray1D = Kokkos::View< ordinal_type *, DeviceType >
	View type for 1d device array.

using	OrdinalTypeArray2D = Kokkos::View< ordinal_type **, DeviceType >
	View type for 2d device array.

using	OrdinalTypeArray3D = Kokkos::View< ordinal_type ***, DeviceType >
	View type for 3d device array.

using	OrdinalTypeArrayStride1D = Kokkos::View< ordinal_type *, Kokkos::LayoutStride, DeviceType >
	View type for 1d device array.

typedef ScalarTraits < pointValueType > ::scalar_type	scalarType
	Scalar type for point values.

using	OutputViewType = Kokkos::DynRankView< OutputValueType, Kokkos::LayoutStride, DeviceType >
	View type for basis value output.

using	PointViewType = Kokkos::DynRankView< PointValueType, Kokkos::LayoutStride, DeviceType >
	View type for input points.

using	ScalarViewType = Kokkos::DynRankView< scalarType, Kokkos::LayoutStride, DeviceType >
	View type for scalars.

Public Member Functions
	HierarchicalBasis_HCURL_TRI (int polyOrder, const EPointType pointType=POINTTYPE_DEFAULT)
	Constructor. More...

const char *	getName () const override
	Returns basis name. More...

virtual bool	requireOrientation () const override
	True if orientation is required.

virtual void	getValues (OutputViewType outputValues, const PointViewType inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override
	Evaluation of a FEM basis on a reference cell. More...

BasisPtr< DeviceType, OutputScalar, PointScalar >	getSubCellRefBasis (const ordinal_type subCellDim, const ordinal_type subCellOrd) const override
	returns the basis associated to a subCell. More...

virtual BasisPtr< typename Kokkos::HostSpace::device_type, OutputScalar, PointScalar >	getHostBasis () const override
	Creates and returns a Basis object whose DeviceType template argument is Kokkos::HostSpace::device_type, but is otherwise identical to this. More...

Public Member Functions inherited from Intrepid2::Basis< DeviceType, OutputScalar, PointScalar >
OutputValueType	getDummyOutputValue ()
	Dummy array to receive input arguments.

PointValueType	getDummyPointValue ()
	Dummy array to receive input arguments.

Kokkos::DynRankView < OutputValueType, DeviceType >	allocateOutputView (const int numPoints, const EOperator operatorType=OPERATOR_VALUE) const
	Allocate a View container suitable for passing to the getValues() variant that accepts Kokkos DynRankViews as arguments (as opposed to the Intrepid2 BasisValues and PointValues containers). More...

virtual BasisValues < OutputValueType, DeviceType >	allocateBasisValues (TensorPoints< PointValueType, DeviceType > points, const EOperator operatorType=OPERATOR_VALUE) const
	Allocate BasisValues container suitable for passing to the getValues() variant that takes a TensorPoints container as argument. More...

virtual void	getScratchSpaceSize (ordinal_type &perTeamSpaceSize, ordinal_type &perThreadSpaceSize, const PointViewType inputPoints, const EOperator operatorType=OPERATOR_VALUE) const
	Return the size of the scratch space, in bytes, needed for using the team-level implementation of getValues. More...

virtual KOKKOS_INLINE_FUNCTION void	getValues (OutputViewType, const PointViewType, const EOperator, const typename Kokkos::TeamPolicy< ExecutionSpace >::member_type &teamMember, const typename ExecutionSpace::scratch_memory_space &scratchStorage, const ordinal_type subcellDim=-1, const ordinal_type subcellOrdinal=-1) const
	Team-level evaluation of basis functions on a reference cell. More...

virtual void	getValues (const ExecutionSpace &, OutputViewType, const PointViewType, const EOperator=OPERATOR_VALUE) const
	Evaluation of a FEM basis on a reference cell. More...

virtual void	getValues (BasisValues< OutputValueType, DeviceType > outputValues, const TensorPoints< PointValueType, DeviceType > inputPoints, const EOperator operatorType=OPERATOR_VALUE) const
	Evaluation of a FEM basis on a reference cell, using point and output value containers that allow preservation of tensor-product structure. More...

virtual void	getValues (OutputViewType, const PointViewType, const PointViewType, const EOperator=OPERATOR_VALUE) const
	Evaluation of an FVD basis evaluation on a physical cell. More...

virtual void	getDofCoords (ScalarViewType) const
	Returns spatial locations (coordinates) of degrees of freedom on the reference cell.

virtual void	getDofCoeffs (ScalarViewType) const
	Coefficients for computing degrees of freedom for Lagrangian basis If P is an element of the space spanned by the basis, := P(dofCoords(i)) dofCoeffs(i) are the nodal coefficients associated to basis function i. More...

OrdinalTypeArray1DHost	getFieldOrdinalsForDegree (OrdinalTypeArray1DHost &degrees) const
	For hierarchical bases, returns the field ordinals that have at most the specified degree in each dimension. Assuming that these are less than or equal to the polynomial orders provided at Basis construction, the corresponding polynomials will form a superset of the Basis of the same type constructed with polynomial orders corresponding to the specified degrees. More...

std::vector< int >	getFieldOrdinalsForDegree (std::vector< int > &degrees) const
	For hierarchical bases, returns the field ordinals that have at most the specified degree in each dimension. Assuming that these are less than or equal to the polynomial orders provided at Basis construction, the corresponding polynomials will form a superset of the Basis of the same type constructed with polynomial orders corresponding to the specified degrees. More...

OrdinalTypeArray1DHost	getFieldOrdinalsForH1Degree (OrdinalTypeArray1DHost &degrees) const
	For hierarchical bases, returns the field ordinals that have at most the specified H^1 degree in each dimension. Assuming that these are less than or equal to the polynomial orders provided at Basis construction, the corresponding polynomials will form a superset of the Basis of the same type constructed with polynomial orders corresponding to the specified degrees. More...

std::vector< int >	getFieldOrdinalsForH1Degree (std::vector< int > &degrees) const
	For hierarchical bases, returns the field ordinals that have at most the specified H^1 degree in each dimension. Assuming that these are less than or equal to the polynomial orders provided at Basis construction, the corresponding polynomials will form a superset of the Basis of the same type constructed with polynomial orders corresponding to the specified degrees. More...

OrdinalTypeArray1DHost	getPolynomialDegreeOfField (int fieldOrdinal) const
	For hierarchical bases, returns the polynomial degree (which may have multiple values in higher spatial dimensions) for the specified basis ordinal as a host array. More...

OrdinalTypeArray1DHost	getH1PolynomialDegreeOfField (int fieldOrdinal) const
	For hierarchical bases, returns the polynomial degree (which may have multiple values in higher spatial dimensions) for the specified basis ordinal as a host array. More...

std::vector< int >	getPolynomialDegreeOfFieldAsVector (int fieldOrdinal) const
	For hierarchical bases, returns the polynomial degree (which may have multiple values in higher spatial dimensions) for the specified basis ordinal as a host array. More...

std::vector< int >	getH1PolynomialDegreeOfFieldAsVector (int fieldOrdinal) const
	For hierarchical bases, returns the polynomial degree (which may have multiple values in higher spatial dimensions) for the specified basis ordinal as a host array. More...

int	getPolynomialDegreeLength () const
	For hierarchical bases, returns the number of entries required to specify the polynomial degree of a basis function.

ordinal_type	getCardinality () const
	Returns cardinality of the basis. More...

ordinal_type	getDegree () const
	Returns the degree of the basis. More...

EFunctionSpace	getFunctionSpace () const
	Returns the function space for the basis. More...

shards::CellTopology	getBaseCellTopology () const
	Returns the base cell topology for which the basis is defined. See Shards documentation https://trilinos.org/packages/shards for definition of base cell topology. More...

EBasis	getBasisType () const
	Returns the basis type. More...

ECoordinates	getCoordinateSystem () const
	Returns the type of coordinate system for which the basis is defined. More...

ordinal_type	getDofCount (const ordinal_type subcDim, const ordinal_type subcOrd) const
	DoF count for specified subcell. More...

ordinal_type	getDofOrdinal (const ordinal_type subcDim, const ordinal_type subcOrd, const ordinal_type subcDofOrd) const
	DoF tag to ordinal lookup. More...

virtual int	getNumTensorialExtrusions () const
	returns the number of tensorial extrusions relative to the cell topology returned by getBaseCellTopology(). Base class returns 0; overridden by TensorBasis.

const OrdinalTypeArray3DHost	getAllDofOrdinal () const
	DoF tag to ordinal data structure.

const OrdinalTypeArrayStride1DHost	getDofTag (const ordinal_type dofOrd) const
	DoF ordinal to DoF tag lookup. More...

const OrdinalTypeArray2DHost	getAllDofTags () const
	Retrieves all DoF tags. More...

ordinal_type	getDomainDimension () const
	Returns the spatial dimension of the domain of the basis; this is equal to getBaseCellTopology().getDimension() + getNumTensorialExtrusions(). More...

Protected Attributes
int	polyOrder_

Protected Attributes inherited from Intrepid2::Basis< DeviceType, OutputScalar, PointScalar >
ordinal_type	basisCardinality_
	Cardinality of the basis, i.e., the number of basis functions/degrees-of-freedom.

ordinal_type	basisDegree_
	Degree of the largest complete polynomial space that can be represented by the basis.

unsigned	basisCellTopologyKey_
	Identifier of the base topology of the cells for which the basis is defined. See the Shards package for definition of base cell topology. For TensorBasis subclasses, by default this the cell topology that is extruded (i.e., it is a lower-dimensional CellTopology than the space on which the tensor basis is defined). This allows tensor bases to be defined in higher dimensions than shards::CellTopology supports. TensorBasis subclasses can opt to use an equivalent shards CellTopology for base topology, as well as using Intrepid2's tagging for tensor bases in dimensions up to 3, by calling TensorBasis::setShardsTopologyAndTags().

EBasis	basisType_
	Type of the basis.

ECoordinates	basisCoordinates_
	The coordinate system for which the basis is defined.

EFunctionSpace	functionSpace_
	The function space in which the basis is defined.

OrdinalTypeArray2DHost	ordinalToTag_
	"true" if tagToOrdinal_ and ordinalToTag_ have been initialized More...

OrdinalTypeArray3DHost	tagToOrdinal_
	DoF tag to ordinal lookup table. More...

Kokkos::DynRankView < scalarType, DeviceType >	dofCoords_
	Coordinates of degrees-of-freedom for basis functions defined in physical space.

Kokkos::DynRankView < scalarType, DeviceType >	dofCoeffs_
	Coefficients for computing degrees of freedom for Lagrangian basis If P is an element of the space spanned by the basis, := P(dofCoords_(i)) dofCoeffs_(i) are the nodal coefficients associated to basis functions i. More...

OrdinalTypeArray2DHost	fieldOrdinalPolynomialDegree_
	Polynomial degree for each degree of freedom. Only defined for hierarchical bases right now. The number of entries per degree of freedom in this table depends on the basis type. For hypercubes, this will be the spatial dimension. We have not yet determined what this will be for simplices beyond 1D; there are not yet hierarchical simplicial bases beyond 1D in Intrepid2. More...

OrdinalTypeArray2DHost	fieldOrdinalH1PolynomialDegree_
	H^1 polynomial degree for each degree of freedom. Only defined for hierarchical bases right now. The number of entries per degree of freedom in this table depends on the basis type. For hypercubes, this will be the spatial dimension. We have not yet determined what this will be for simplices beyond 1D; there are not yet hierarchical simplicial bases beyond 1D in Intrepid2. More...

Additional Inherited Members
Protected Member Functions inherited from Intrepid2::Basis< DeviceType, OutputScalar, PointScalar >
void	setOrdinalTagData (OrdinalTypeView3D &tagToOrdinal, OrdinalTypeView2D &ordinalToTag, const OrdinalTypeView1D tags, const ordinal_type basisCard, const ordinal_type tagSize, const ordinal_type posScDim, const ordinal_type posScOrd, const ordinal_type posDfOrd)
	Fills ordinalToTag_ and tagToOrdinal_ by basis-specific tag data. More...

Detailed Description

template<typename DeviceType, typename OutputScalar = double, typename PointScalar = double, bool useCGBasis = true>
class Intrepid2::HierarchicalBasis_HCURL_TRI< DeviceType, OutputScalar, PointScalar, useCGBasis >

For mathematical details of the construction, see:

Federico Fuentes, Brendan Keith, Leszek Demkowicz, Sriram Nagaraj. "Orientation embedded high order shape functions for the exact sequence elements of all shapes." Computers & Mathematics with Applications, Volume 70, Issue 4, 2015, Pages 353-458, ISSN 0898-1221. https://doi.org/10.1016/j.camwa.2015.04.027.

Note that the template argument defineVertexFunctions controls whether this basis is defined in a strictly hierarchical way. If defineVertexFunctions is false, then the first basis function is the constant 1.0, and this basis will be suitable for discontinuous discretizations. If defineVertexFunctions is true, then the first basis function will instead be 1.0-x-y, and the basis will be suitable for continuous discretizations.

Definition at line 328 of file Intrepid2_HierarchicalBasis_HCURL_TRI.hpp.

Constructor & Destructor Documentation

template<typename DeviceType , typename OutputScalar = double, typename PointScalar = double, bool useCGBasis = true>

Intrepid2::HierarchicalBasis_HCURL_TRI< DeviceType, OutputScalar, PointScalar, useCGBasis >::HierarchicalBasis_HCURL_TRI	(	int	polyOrder,
		const EPointType	pointType = `POINTTYPE_DEFAULT`
	)

inline

Constructor.

Parameters

[in]	polyOrder	- the polynomial order of the basis.
[in]	pointType	- point type for nodal basis. Ignored here (irrelevant for hierarchical/modal basis).

Definition at line 352 of file Intrepid2_HierarchicalBasis_HCURL_TRI.hpp.

Member Function Documentation

template<typename DeviceType , typename OutputScalar = double, typename PointScalar = double, bool useCGBasis = true>

virtual BasisPtr<typename Kokkos::HostSpace::device_type, OutputScalar, PointScalar> Intrepid2::HierarchicalBasis_HCURL_TRI< DeviceType, OutputScalar, PointScalar, useCGBasis >::getHostBasis ( ) const

inlineoverridevirtual

Creates and returns a Basis object whose DeviceType template argument is Kokkos::HostSpace::device_type, but is otherwise identical to this.

Returns: Pointer to the new Basis object.

Reimplemented from Intrepid2::Basis< DeviceType, OutputScalar, PointScalar >.

Reimplemented in Intrepid2::HierarchicalBasis_HDIV_TRI< DeviceType, OutputScalar, PointScalar, useCGBasis >.

Definition at line 553 of file Intrepid2_HierarchicalBasis_HCURL_TRI.hpp.

template<typename DeviceType , typename OutputScalar = double, typename PointScalar = double, bool useCGBasis = true>

const char* Intrepid2::HierarchicalBasis_HCURL_TRI< DeviceType, OutputScalar, PointScalar, useCGBasis >::getName ( ) const

inlineoverridevirtual

Returns basis name.

Returns: the name of the basis

Reimplemented from Intrepid2::Basis< DeviceType, OutputScalar, PointScalar >.

Reimplemented in Intrepid2::HierarchicalBasis_HDIV_TRI< DeviceType, OutputScalar, PointScalar, useCGBasis >.

Definition at line 479 of file Intrepid2_HierarchicalBasis_HCURL_TRI.hpp.

template<typename DeviceType , typename OutputScalar = double, typename PointScalar = double, bool useCGBasis = true>

BasisPtr<DeviceType,OutputScalar,PointScalar> Intrepid2::HierarchicalBasis_HCURL_TRI< DeviceType, OutputScalar, PointScalar, useCGBasis >::getSubCellRefBasis	(	const ordinal_type	subCellDim,
		const ordinal_type	subCellOrd
	)		const

inlineoverridevirtual

returns the basis associated to a subCell.

The bases of the subCell are the restriction to the subCell of the bases of the parent cell.

Parameters

[in]	subCellDim	- dimension of subCell
[in]	subCellOrd	- position of the subCell among of the subCells having the same dimension

Returns: pointer to the subCell basis of dimension subCellDim and position subCellOrd

Reimplemented from Intrepid2::Basis< DeviceType, OutputScalar, PointScalar >.

Definition at line 539 of file Intrepid2_HierarchicalBasis_HCURL_TRI.hpp.

References Intrepid2::Basis< DeviceType, OutputScalar, PointScalar >::basisDegree_.

template<typename DeviceType , typename OutputScalar = double, typename PointScalar = double, bool useCGBasis = true>

virtual void Intrepid2::HierarchicalBasis_HCURL_TRI< DeviceType, OutputScalar, PointScalar, useCGBasis >::getValues	(	OutputViewType	outputValues,
		const PointViewType	inputPoints,
		const EOperator	operatorType = `OPERATOR_VALUE`
	)		const

inlineoverridevirtual

Evaluation of a FEM basis on a reference cell.

Returns values of operatorType acting on FEM basis functions for a set of points in the reference cell for which the basis is defined.

Parameters

outputValues	[out] - variable rank array with the basis values
inputPoints	[in] - rank-2 array (P,D) with the evaluation points
operatorType	[in] - the operator acting on the basis functions

Remarks: For rank and dimension specifications of the output array see Section MD array template arguments for basis methods. Dimensions of ArrayScalar arguments are checked at runtime if HAVE_INTREPID2_DEBUG is defined.; A FEM basis spans a COMPLETE or INCOMPLETE polynomial space on the reference cell which is a smooth function space. Thus, all operator types that are meaningful for the approximated function space are admissible. When the order of the operator exceeds the degree of the basis, the output array is filled with the appropriate number of zeros.

Reimplemented from Intrepid2::Basis< DeviceType, OutputScalar, PointScalar >.

Reimplemented in Intrepid2::HierarchicalBasis_HDIV_TRI< DeviceType, OutputScalar, PointScalar, useCGBasis >.

Definition at line 512 of file Intrepid2_HierarchicalBasis_HCURL_TRI.hpp.

Referenced by Intrepid2::HierarchicalBasis_HDIV_TRI< DeviceType, OutputScalar, PointScalar, useCGBasis >::getValues().

The documentation for this class was generated from the following file:

http://docs.trilinos.org/dev/packages/intrepid2/src/Discretization/Basis/Intrepid2_HierarchicalBasis_HCURL_TRI.hpp

Public Types

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

template<typename DeviceType, typename OutputScalar = double, typename PointScalar = double, bool useCGBasis = true> class Intrepid2::HierarchicalBasis_HCURL_TRI< DeviceType, OutputScalar, PointScalar, useCGBasis >

Constructor & Destructor Documentation

Member Function Documentation

template<typename DeviceType, typename OutputScalar = double, typename PointScalar = double, bool useCGBasis = true>
class Intrepid2::HierarchicalBasis_HCURL_TRI< DeviceType, OutputScalar, PointScalar, useCGBasis >
