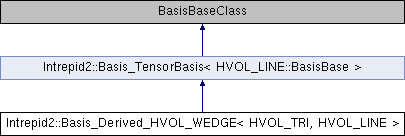

Inheritance diagram for Intrepid2::Basis_Derived_HVOL_WEDGE< HVOL_TRI, HVOL_LINE >:
Public Types | |
| using | ExecutionSpace = typename HVOL_LINE::ExecutionSpace |
| using | OutputValueType = typename HVOL_LINE::OutputValueType |
| using | PointValueType = typename HVOL_LINE::PointValueType |
| using | OutputViewType = typename HVOL_LINE::OutputViewType |
| using | PointViewType = typename HVOL_LINE::PointViewType |
| using | ScalarViewType = typename HVOL_LINE::ScalarViewType |
| using | BasisBase = typename HVOL_LINE::BasisBase |
| using | TriBasis = HVOL_TRI |
| using | LineBasis = HVOL_LINE |
| using | TensorBasis = Basis_TensorBasis< BasisBase > |
 Public Types inherited from Intrepid2::Basis_TensorBasis< HVOL_LINE::BasisBase > | |
| using | BasisBase = BasisBaseClass |
| using | BasisPtr = Teuchos::RCP< HVOL_LINE::BasisBase > |
| using | DeviceType = typename HVOL_LINE::BasisBase::DeviceType |
| using | ExecutionSpace = typename HVOL_LINE::BasisBase::ExecutionSpace |
| using | OutputValueType = typename HVOL_LINE::BasisBase::OutputValueType |
| using | PointValueType = typename HVOL_LINE::BasisBase::PointValueType |
| using | OrdinalTypeArray1DHost = typename HVOL_LINE::BasisBase::OrdinalTypeArray1DHost |
| using | OrdinalTypeArray2DHost = typename HVOL_LINE::BasisBase::OrdinalTypeArray2DHost |
| using | OutputViewType = typename HVOL_LINE::BasisBase::OutputViewType |
| using | PointViewType = typename HVOL_LINE::BasisBase::PointViewType |
| using | TensorBasis = Basis_TensorBasis< BasisBaseClass > |
Public Member Functions | |
| Basis_Derived_HVOL_WEDGE (int polyOrder_xy, int polyOrder_z, const EPointType pointType=POINTTYPE_DEFAULT) | |
| Constructor. More... | |
| Basis_Derived_HVOL_WEDGE (int polyOrder, const EPointType pointType=POINTTYPE_DEFAULT) | |
| Constructor. More... | |
| virtual bool | requireOrientation () const override |
| True if orientation is required. | |
| virtual const char * | getName () const override |
| Returns basis name. More... | |
| virtual HostBasisPtr < OutputValueType, PointValueType > | getHostBasis () const override |
| Creates and returns a Basis object whose DeviceType template argument is Kokkos::HostSpace::device_type, but is otherwise identical to this. More... | |
| Public Member Functions inherited from Intrepid2::Basis_TensorBasis< HVOL_LINE::BasisBase > | |
| Basis_TensorBasis (BasisPtr basis1, BasisPtr basis2, EFunctionSpace functionSpace=FUNCTION_SPACE_MAX, const bool useShardsCellTopologyAndTags=false) | |
| Constructor. More... | |
| void | setShardsTopologyAndTags () |
| virtual int | getNumTensorialExtrusions () const override |
| ordinal_type | getTensorDkEnumeration (ordinal_type dkEnum1, ordinal_type operatorOrder1, ordinal_type dkEnum2, ordinal_type operatorOrder2) const |
| Given "Dk" enumeration indices for the component bases, returns a Dk enumeration index for the composite basis. More... | |
| virtual OperatorTensorDecomposition | getSimpleOperatorDecomposition (const EOperator &operatorType) const |
| Returns a simple decomposition of the specified operator: what operator(s) should be applied to basis1, and what operator(s) to basis2. A one-element OperatorTensorDecomposition corresponds to a single TensorData entry; a multiple-element OperatorTensorDecomposition corresponds to a VectorData object with axialComponents = false. More... | |
| virtual OperatorTensorDecomposition | getOperatorDecomposition (const EOperator operatorType) const |
| Returns a full decomposition of the specified operator. (Full meaning that all TensorBasis components are expanded into their non-TensorBasis components.) | |
| virtual BasisValues < OutputValueType, DeviceType > | allocateBasisValues (TensorPoints< PointValueType, DeviceType > points, const EOperator operatorType=OPERATOR_VALUE) const override |
| Allocate BasisValues container suitable for passing to the getValues() variant that takes a TensorPoints container as argument. More... | |
| void | getComponentPoints (const PointViewType inputPoints, const bool attemptTensorDecomposition, PointViewType &inputPoints1, PointViewType &inputPoints2, bool &tensorDecompositionSucceeded) const |
| Method to extract component points from composite points. More... | |
| virtual void | getDofCoords (typename HVOL_LINE::BasisBase::ScalarViewType dofCoords) const override |
| Fills in spatial locations (coordinates) of degrees of freedom (nodes) on the reference cell. More... | |
| virtual void | getDofCoeffs (typename HVOL_LINE::BasisBase::ScalarViewType dofCoeffs) const override |
| Fills in coefficients of degrees of freedom on the reference cell. More... | |
| std::vector< BasisPtr > | getTensorBasisComponents () const |
| virtual void | getValues (BasisValues< OutputValueType, DeviceType > outputValues, const TensorPoints< PointValueType, DeviceType > inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override |
| Evaluation of a FEM basis on a reference cell, using point and output value containers that allow preservation of tensor-product structure. More... | |
| void | getValues (OutputViewType outputValues, const PointViewType inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override |
| Evaluation of a FEM basis on a reference cell. More... | |
| virtual void | getValues (OutputViewType outputValues, const EOperator operatorType, const PointViewType inputPoints1, const PointViewType inputPoints2, bool tensorPoints) const |
| Evaluation of a tensor FEM basis on a reference cell; subclasses should override this. More... | |
| void | getValues (OutputViewType outputValues, const PointViewType inputPoints1, const EOperator operatorType1, const PointViewType inputPoints2, const EOperator operatorType2, bool tensorPoints, double weight=1.0) const |
| Evaluation of a tensor FEM basis on a reference cell. More... | |
Protected Attributes | |
| std::string | name_ |
| ordinal_type | order_xy_ |
| ordinal_type | order_z_ |
| EPointType | pointType_ |
| Protected Attributes inherited from Intrepid2::Basis_TensorBasis< HVOL_LINE::BasisBase > | |
| BasisPtr | basis1_ |
| BasisPtr | basis2_ |
| std::vector< BasisPtr > | tensorComponents_ |
| std::string | name_ |
| int | numTensorialExtrusions_ |
Detailed Description
template<class HVOL_TRI, class HVOL_LINE>
class Intrepid2::Basis_Derived_HVOL_WEDGE< HVOL_TRI, HVOL_LINE >
Definition at line 25 of file Intrepid2_DerivedBasis_HVOL_WEDGE.hpp.
Constructor & Destructor Documentation
template<class HVOL_TRI , class HVOL_LINE >
|
inline |
Constructor.
- Parameters
-
[in] polyOrder_xy - the polynomial order in the x and y dimensions. [in] polyOrder_z - the polynomial order in the z dimension. [in] pointType - type of lattice used for creating the DoF coordinates.
Definition at line 51 of file Intrepid2_DerivedBasis_HVOL_WEDGE.hpp.
References Intrepid2::Basis_TensorBasis< BasisBase >::getName().
template<class HVOL_TRI , class HVOL_LINE >
|
inline |
Constructor.
- Parameters
-
[in] polyOrder - the polynomial order to use in both dimensions. [in] pointType - type of lattice used for creating the DoF coordinates.
Definition at line 73 of file Intrepid2_DerivedBasis_HVOL_WEDGE.hpp.
Member Function Documentation
template<class HVOL_TRI , class HVOL_LINE >
|
inlineoverridevirtual |
Creates and returns a Basis object whose DeviceType template argument is Kokkos::HostSpace::device_type, but is otherwise identical to this.
- Returns
- Pointer to the new Basis object.
Reimplemented from Intrepid2::Basis_TensorBasis< HVOL_LINE::BasisBase >.
Definition at line 99 of file Intrepid2_DerivedBasis_HVOL_WEDGE.hpp.
template<class HVOL_TRI , class HVOL_LINE >
|
inlineoverridevirtual |
Returns basis name.
- Returns
- the name of the basis
Reimplemented from Intrepid2::Basis_TensorBasis< HVOL_LINE::BasisBase >.
Definition at line 90 of file Intrepid2_DerivedBasis_HVOL_WEDGE.hpp.
The documentation for this class was generated from the following file:
- http://docs.trilinos.org/dev/packages/intrepid2/src/Discretization/Basis/Intrepid2_DerivedBasis_HVOL_WEDGE.hpp
