Implementation of H(vol) basis on the quadrilateral that is templated on H(vol) on the line. More...

#include <Intrepid2_DerivedBasis_HVOL_QUAD.hpp>

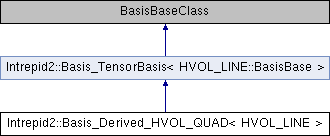

Inheritance diagram for Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >:

Public Types
using	ExecutionSpace = typename HVOL_LINE::ExecutionSpace

using	OutputValueType = typename HVOL_LINE::OutputValueType

using	PointValueType = typename HVOL_LINE::PointValueType

using	OutputViewType = typename HVOL_LINE::OutputViewType

using	PointViewType = typename HVOL_LINE::PointViewType

using	ScalarViewType = typename HVOL_LINE::ScalarViewType

using	BasisBase = typename HVOL_LINE::BasisBase

Public Types inherited from Intrepid2::Basis_TensorBasis< HVOL_LINE::BasisBase >
using	BasisBase = BasisBaseClass

using	BasisPtr = Teuchos::RCP< HVOL_LINE::BasisBase >

using	DeviceType = typename HVOL_LINE::BasisBase::DeviceType

using	ExecutionSpace = typename HVOL_LINE::BasisBase::ExecutionSpace

using	OutputValueType = typename HVOL_LINE::BasisBase::OutputValueType

using	PointValueType = typename HVOL_LINE::BasisBase::PointValueType

using	OrdinalTypeArray1DHost = typename HVOL_LINE::BasisBase::OrdinalTypeArray1DHost

using	OrdinalTypeArray2DHost = typename HVOL_LINE::BasisBase::OrdinalTypeArray2DHost

using	OutputViewType = typename HVOL_LINE::BasisBase::OutputViewType

using	PointViewType = typename HVOL_LINE::BasisBase::PointViewType

using	TensorBasis = Basis_TensorBasis< BasisBaseClass >

Public Member Functions
	Basis_Derived_HVOL_QUAD (int polyOrder_x, int polyOrder_y, const EPointType pointType=POINTTYPE_DEFAULT)
	Constructor. More...

	Basis_Derived_HVOL_QUAD (int polyOrder, const EPointType pointType=POINTTYPE_DEFAULT)
	Constructor. More...

virtual const char *	getName () const override
	Returns basis name. More...

virtual bool	requireOrientation () const override
	True if orientation is required.

virtual OperatorTensorDecomposition	getSimpleOperatorDecomposition (const EOperator &operatorType) const override
	Returns a simple decomposition of the specified operator: what operator(s) should be applied to basis1, and what operator(s) to basis2. A one-element OperatorTensorDecomposition corresponds to a single TensorData entry; a multiple-element OperatorTensorDecomposition corresponds to a VectorData object with axialComponents = false. More...

virtual BasisPtr< typename Kokkos::HostSpace::device_type, typename BasisBase::OutputValueType, typename BasisBase::PointValueType >	getHostBasis () const override
	Creates and returns a Basis object whose DeviceType template argument is Kokkos::HostSpace::device_type, but is otherwise identical to this. More...

Public Member Functions inherited from Intrepid2::Basis_TensorBasis< HVOL_LINE::BasisBase >
	Basis_TensorBasis (BasisPtr basis1, BasisPtr basis2, EFunctionSpace functionSpace=FUNCTION_SPACE_MAX, const bool useShardsCellTopologyAndTags=false)
	Constructor. More...

void	setShardsTopologyAndTags ()

virtual int	getNumTensorialExtrusions () const override

ordinal_type	getTensorDkEnumeration (ordinal_type dkEnum1, ordinal_type operatorOrder1, ordinal_type dkEnum2, ordinal_type operatorOrder2) const
	Given "Dk" enumeration indices for the component bases, returns a Dk enumeration index for the composite basis. More...

virtual OperatorTensorDecomposition	getOperatorDecomposition (const EOperator operatorType) const
	Returns a full decomposition of the specified operator. (Full meaning that all TensorBasis components are expanded into their non-TensorBasis components.)

virtual BasisValues < OutputValueType, DeviceType >	allocateBasisValues (TensorPoints< PointValueType, DeviceType > points, const EOperator operatorType=OPERATOR_VALUE) const override
	Allocate BasisValues container suitable for passing to the getValues() variant that takes a TensorPoints container as argument. More...

void	getComponentPoints (const PointViewType inputPoints, const bool attemptTensorDecomposition, PointViewType &inputPoints1, PointViewType &inputPoints2, bool &tensorDecompositionSucceeded) const
	Method to extract component points from composite points. More...

virtual void	getDofCoords (typename HVOL_LINE::BasisBase::ScalarViewType dofCoords) const override
	Fills in spatial locations (coordinates) of degrees of freedom (nodes) on the reference cell. More...

virtual void	getDofCoeffs (typename HVOL_LINE::BasisBase::ScalarViewType dofCoeffs) const override
	Fills in coefficients of degrees of freedom on the reference cell. More...

std::vector< BasisPtr >	getTensorBasisComponents () const

virtual void	getValues (BasisValues< OutputValueType, DeviceType > outputValues, const TensorPoints< PointValueType, DeviceType > inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override
	Evaluation of a FEM basis on a reference cell, using point and output value containers that allow preservation of tensor-product structure. More...

void	getValues (OutputViewType outputValues, const PointViewType inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override
	Evaluation of a FEM basis on a reference cell. More...

virtual void	getValues (OutputViewType outputValues, const EOperator operatorType, const PointViewType inputPoints1, const PointViewType inputPoints2, bool tensorPoints) const
	Evaluation of a tensor FEM basis on a reference cell; subclasses should override this. More...

void	getValues (OutputViewType outputValues, const PointViewType inputPoints1, const EOperator operatorType1, const PointViewType inputPoints2, const EOperator operatorType2, bool tensorPoints, double weight=1.0) const
	Evaluation of a tensor FEM basis on a reference cell. More...

Protected Types
using	LineBasis = HVOL_LINE

using	TensorBasis = Basis_TensorBasis< typename HVOL_LINE::BasisBase >

Protected Attributes
std::string	name_

ordinal_type	polyOrder_x_

ordinal_type	polyOrder_y_

EPointType	pointType_

Protected Attributes inherited from Intrepid2::Basis_TensorBasis< HVOL_LINE::BasisBase >
BasisPtr	basis1_

BasisPtr	basis2_

std::vector< BasisPtr >	tensorComponents_

std::string	name_

int	numTensorialExtrusions_

Detailed Description

template<class HVOL_LINE>
class Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >

Implementation of H(vol) basis on the quadrilateral that is templated on H(vol) on the line.

Definition at line 65 of file Intrepid2_DerivedBasis_HVOL_QUAD.hpp.

Constructor & Destructor Documentation

template<class HVOL_LINE >

Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::Basis_Derived_HVOL_QUAD	(	int	polyOrder_x,
		int	polyOrder_y,
		const EPointType	pointType = `POINTTYPE_DEFAULT`
	)

inline

Constructor.

Parameters

[in]	polyOrder_x	- the polynomial order in the x dimension.
[in]	polyOrder_y	- the polynomial order in the y dimension.
[in]	pointType	- type of lattice used for creating the DoF coordinates.

Definition at line 92 of file Intrepid2_DerivedBasis_HVOL_QUAD.hpp.

References Intrepid2::Basis_TensorBasis< BasisBase >::getName().

template<class HVOL_LINE >

Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::Basis_Derived_HVOL_QUAD	(	int	polyOrder,
		const EPointType	pointType = `POINTTYPE_DEFAULT`
	)

inline

Constructor.

Parameters

[in]	polyOrder	- the polynomial order to use in both dimensions.
[in]	pointType	- type of lattice used for creating the DoF coordinates.

Definition at line 113 of file Intrepid2_DerivedBasis_HVOL_QUAD.hpp.

Member Function Documentation

template<class HVOL_LINE >

virtual BasisPtr<typename Kokkos::HostSpace::device_type, typename BasisBase::OutputValueType, typename BasisBase::PointValueType> Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::getHostBasis ( ) const

inlineoverridevirtual

Creates and returns a Basis object whose DeviceType template argument is Kokkos::HostSpace::device_type, but is otherwise identical to this.

Returns: Pointer to the new Basis object.

Reimplemented from Intrepid2::Basis_TensorBasis< HVOL_LINE::BasisBase >.

Definition at line 152 of file Intrepid2_DerivedBasis_HVOL_QUAD.hpp.

template<class HVOL_LINE >

virtual const char* Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::getName ( ) const

inlineoverridevirtual

Returns basis name.

Returns: the name of the basis

Reimplemented from Intrepid2::Basis_TensorBasis< HVOL_LINE::BasisBase >.

Definition at line 121 of file Intrepid2_DerivedBasis_HVOL_QUAD.hpp.

template<class HVOL_LINE >

virtual OperatorTensorDecomposition Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::getSimpleOperatorDecomposition ( const EOperator & operatorType ) const

inlineoverridevirtual

Returns a simple decomposition of the specified operator: what operator(s) should be applied to basis1, and what operator(s) to basis2. A one-element OperatorTensorDecomposition corresponds to a single TensorData entry; a multiple-element OperatorTensorDecomposition corresponds to a VectorData object with axialComponents = false.

Subclasses must override this method.

Reimplemented from Intrepid2::Basis_TensorBasis< HVOL_LINE::BasisBase >.

Definition at line 131 of file Intrepid2_DerivedBasis_HVOL_QUAD.hpp.

The documentation for this class was generated from the following file:

http://docs.trilinos.org/dev/packages/intrepid2/src/Discretization/Basis/Intrepid2_DerivedBasis_HVOL_QUAD.hpp
