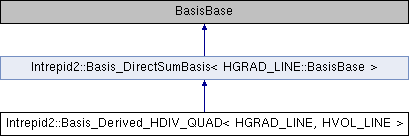

Inheritance diagram for Intrepid2::Basis_Derived_HDIV_QUAD< HGRAD_LINE, HVOL_LINE >:

Public Types
using	ExecutionSpace = typename HGRAD_LINE::ExecutionSpace

using	OutputValueType = typename HGRAD_LINE::OutputValueType

using	PointValueType = typename HGRAD_LINE::PointValueType

using	BasisBase = typename HGRAD_LINE::BasisBase

Public Types inherited from Intrepid2::Basis_DirectSumBasis< HGRAD_LINE::BasisBase >
using	BasisBase = HGRAD_LINE::BasisBase

using	BasisPtr = Teuchos::RCP< BasisBase >

using	DeviceType = typename BasisBase::DeviceType

using	ExecutionSpace = typename BasisBase::ExecutionSpace

using	OutputValueType = typename BasisBase::OutputValueType

using	PointValueType = typename BasisBase::PointValueType

using	OrdinalTypeArray1DHost = typename BasisBase::OrdinalTypeArray1DHost

using	OrdinalTypeArray2DHost = typename BasisBase::OrdinalTypeArray2DHost

using	OutputViewType = typename BasisBase::OutputViewType

using	PointViewType = typename BasisBase::PointViewType

using	ScalarViewType = typename BasisBase::ScalarViewType

Public Member Functions
	Basis_Derived_HDIV_QUAD (int polyOrder_x, int polyOrder_y, const EPointType pointType=POINTTYPE_DEFAULT)
	Constructor. More...

	Basis_Derived_HDIV_QUAD (int polyOrder, const EPointType pointType=POINTTYPE_DEFAULT)
	Constructor. More...

virtual bool	requireOrientation () const override
	True if orientation is required.

virtual const char *	getName () const override
	Returns basis name. More...

Teuchos::RCP< BasisBase >	getSubCellRefBasis (const ordinal_type subCellDim, const ordinal_type subCellOrd) const override
	returns the basis associated to a subCell. More...

virtual HostBasisPtr < OutputValueType, PointValueType >	getHostBasis () const override
	Creates and returns a Basis object whose DeviceType template argument is Kokkos::HostSpace::device_type, but is otherwise identical to this. More...

Public Member Functions inherited from Intrepid2::Basis_DirectSumBasis< HGRAD_LINE::BasisBase >
	Basis_DirectSumBasis (BasisPtr basis1, BasisPtr basis2)
	Constructor. More...

virtual BasisValues < OutputValueType, DeviceType >	allocateBasisValues (TensorPoints< PointValueType, DeviceType > points, const EOperator operatorType=OPERATOR_VALUE) const override
	Allocate BasisValues container suitable for passing to the getValues() variant that takes a TensorPoints container as argument. More...

virtual void	getDofCoords (ScalarViewType dofCoords) const override
	Fills in spatial locations (coordinates) of degrees of freedom (nodes) on the reference cell. More...

virtual void	getDofCoeffs (ScalarViewType dofCoeffs) const override
	Fills in coefficients of degrees of freedom for Lagrangian basis on the reference cell. More...

virtual void	getValues (BasisValues< OutputValueType, DeviceType > outputValues, const TensorPoints< PointValueType, DeviceType > inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override
	Evaluation of a FEM basis on a reference cell, using point and output value containers that allow preservation of tensor-product structure. More...

virtual void	getValues (OutputViewType outputValues, const PointViewType inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override
	Evaluation of a FEM basis on a reference cell. More...

virtual int	getNumTensorialExtrusions () const override

Protected Attributes
std::string	name_

ordinal_type	order_x_

ordinal_type	order_y_

EPointType	pointType_

Protected Attributes inherited from Intrepid2::Basis_DirectSumBasis< HGRAD_LINE::BasisBase >
BasisPtr	basis1_

BasisPtr	basis2_

std::string	name_

Private Types
using	Family1 = Basis_Derived_HDIV_Family1_QUAD< HGRAD_LINE, HVOL_LINE >

using	Family2 = Basis_Derived_HDIV_Family2_QUAD< HGRAD_LINE, HVOL_LINE >

using	DirectSumBasis = Basis_DirectSumBasis< typename HGRAD_LINE::BasisBase >

Detailed Description

template<class HGRAD_LINE, class HVOL_LINE>
class Intrepid2::Basis_Derived_HDIV_QUAD< HGRAD_LINE, HVOL_LINE >

Definition at line 303 of file Intrepid2_DerivedBasis_HDIV_QUAD.hpp.

Constructor & Destructor Documentation

template<class HGRAD_LINE , class HVOL_LINE >

Intrepid2::Basis_Derived_HDIV_QUAD< HGRAD_LINE, HVOL_LINE >::Basis_Derived_HDIV_QUAD	(	int	polyOrder_x,
		int	polyOrder_y,
		const EPointType	pointType = `POINTTYPE_DEFAULT`
	)

inline

Constructor.

Parameters

[in]	polyOrder_x	- the polynomial order in the x dimension.
[in]	polyOrder_y	- the polynomial order in the y dimension.
[in]	pointType	- type of lattice used for creating the DoF coordinates.

Definition at line 328 of file Intrepid2_DerivedBasis_HDIV_QUAD.hpp.

References Intrepid2::Basis_DirectSumBasis< BasisBaseClass >::getName().

template<class HGRAD_LINE , class HVOL_LINE >

Intrepid2::Basis_Derived_HDIV_QUAD< HGRAD_LINE, HVOL_LINE >::Basis_Derived_HDIV_QUAD	(	int	polyOrder,
		const EPointType	pointType = `POINTTYPE_DEFAULT`
	)

inline

Constructor.

Parameters

[in]	polyOrder	- the polynomial order to use in all dimensions.
[in]	pointType	- type of lattice used for creating the DoF coordinates.

Definition at line 348 of file Intrepid2_DerivedBasis_HDIV_QUAD.hpp.

Member Function Documentation

template<class HGRAD_LINE , class HVOL_LINE >

virtual HostBasisPtr<OutputValueType, PointValueType> Intrepid2::Basis_Derived_HDIV_QUAD< HGRAD_LINE, HVOL_LINE >::getHostBasis ( ) const

inlineoverridevirtual

Creates and returns a Basis object whose DeviceType template argument is Kokkos::HostSpace::device_type, but is otherwise identical to this.

Returns: Pointer to the new Basis object.

Definition at line 397 of file Intrepid2_DerivedBasis_HDIV_QUAD.hpp.

template<class HGRAD_LINE , class HVOL_LINE >

virtual const char* Intrepid2::Basis_Derived_HDIV_QUAD< HGRAD_LINE, HVOL_LINE >::getName ( ) const

inlineoverridevirtual

Returns basis name.

Returns: the name of the basis

Reimplemented from Intrepid2::Basis_DirectSumBasis< HGRAD_LINE::BasisBase >.

Definition at line 362 of file Intrepid2_DerivedBasis_HDIV_QUAD.hpp.

template<class HGRAD_LINE , class HVOL_LINE >

Teuchos::RCP<BasisBase> Intrepid2::Basis_Derived_HDIV_QUAD< HGRAD_LINE, HVOL_LINE >::getSubCellRefBasis	(	const ordinal_type	subCellDim,
		const ordinal_type	subCellOrd
	)		const

inlineoverride

returns the basis associated to a subCell.

The bases of the subCell are the restriction to the subCell of the bases of the parent cell, projected along normal to the subCell.

TODO: test this method when different orders are used in different directions

Parameters

[in]	subCellDim	- dimension of subCell
[in]	subCellOrd	- position of the subCell among of the subCells having the same dimension

Returns: pointer to the subCell basis of dimension subCellDim and position subCellOrd

Definition at line 377 of file Intrepid2_DerivedBasis_HDIV_QUAD.hpp.

The documentation for this class was generated from the following file:

http://docs.trilinos.org/dev/packages/intrepid2/src/Discretization/Basis/Intrepid2_DerivedBasis_HDIV_QUAD.hpp
