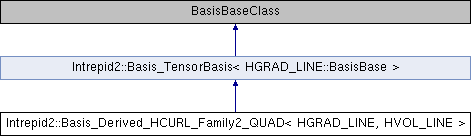

Inheritance diagram for Intrepid2::Basis_Derived_HCURL_Family2_QUAD< HGRAD_LINE, HVOL_LINE >:

Public Types
using	ExecutionSpace = typename HGRAD_LINE::ExecutionSpace

using	OutputValueType = typename HGRAD_LINE::OutputValueType

using	PointValueType = typename HGRAD_LINE::PointValueType

using	OutputViewType = typename HGRAD_LINE::OutputViewType

using	PointViewType = typename HGRAD_LINE::PointViewType

using	ScalarViewType = typename HGRAD_LINE::ScalarViewType

using	LineGradBasis = HGRAD_LINE

using	LineHVolBasis = HVOL_LINE

using	BasisBase = typename HGRAD_LINE::BasisBase

using	TensorBasis = Basis_TensorBasis< BasisBase >

Public Types inherited from Intrepid2::Basis_TensorBasis< HGRAD_LINE::BasisBase >
using	BasisBase = BasisBaseClass

using	BasisPtr = Teuchos::RCP< HGRAD_LINE::BasisBase >

using	DeviceType = typename HGRAD_LINE::BasisBase::DeviceType

using	ExecutionSpace = typename HGRAD_LINE::BasisBase::ExecutionSpace

using	OutputValueType = typename HGRAD_LINE::BasisBase::OutputValueType

using	PointValueType = typename HGRAD_LINE::BasisBase::PointValueType

using	OrdinalTypeArray1DHost = typename HGRAD_LINE::BasisBase::OrdinalTypeArray1DHost

using	OrdinalTypeArray2DHost = typename HGRAD_LINE::BasisBase::OrdinalTypeArray2DHost

using	OutputViewType = typename HGRAD_LINE::BasisBase::OutputViewType

using	PointViewType = typename HGRAD_LINE::BasisBase::PointViewType

using	TensorBasis = Basis_TensorBasis< BasisBaseClass >

Public Member Functions
	Basis_Derived_HCURL_Family2_QUAD (int polyOrder_x, int polyOrder_y, const EPointType pointType=POINTTYPE_DEFAULT)
	Constructor. More...

virtual OperatorTensorDecomposition	getSimpleOperatorDecomposition (const EOperator &operatorType) const override
	Returns a simple decomposition of the specified operator: what operator(s) should be applied to basis1, and what operator(s) to basis2. A one-element vector corresponds to a single TensorData entry; a multiple-element vector corresponds to a VectorData object with axialComponents = false.

virtual void	getValues (OutputViewType outputValues, const EOperator operatorType, const PointViewType inputPoints1, const PointViewType inputPoints2, bool tensorPoints) const override
	multi-component getValues() method (required/called by TensorBasis) More...

virtual void	getDofCoeffs (ScalarViewType dofCoeffs) const override
	Fills in coefficients of degrees of freedom for Lagrangian basis on the reference cell. More...

Public Member Functions inherited from Intrepid2::Basis_TensorBasis< HGRAD_LINE::BasisBase >
	Basis_TensorBasis (BasisPtr basis1, BasisPtr basis2, EFunctionSpace functionSpace=FUNCTION_SPACE_MAX, const bool useShardsCellTopologyAndTags=false)
	Constructor. More...

void	setShardsTopologyAndTags ()

virtual int	getNumTensorialExtrusions () const override

ordinal_type	getTensorDkEnumeration (ordinal_type dkEnum1, ordinal_type operatorOrder1, ordinal_type dkEnum2, ordinal_type operatorOrder2) const
	Given "Dk" enumeration indices for the component bases, returns a Dk enumeration index for the composite basis. More...

virtual OperatorTensorDecomposition	getOperatorDecomposition (const EOperator operatorType) const
	Returns a full decomposition of the specified operator. (Full meaning that all TensorBasis components are expanded into their non-TensorBasis components.)

virtual BasisValues < OutputValueType, DeviceType >	allocateBasisValues (TensorPoints< PointValueType, DeviceType > points, const EOperator operatorType=OPERATOR_VALUE) const override
	Allocate BasisValues container suitable for passing to the getValues() variant that takes a TensorPoints container as argument. More...

void	getComponentPoints (const PointViewType inputPoints, const bool attemptTensorDecomposition, PointViewType &inputPoints1, PointViewType &inputPoints2, bool &tensorDecompositionSucceeded) const
	Method to extract component points from composite points. More...

virtual void	getDofCoords (typename HGRAD_LINE::BasisBase::ScalarViewType dofCoords) const override
	Fills in spatial locations (coordinates) of degrees of freedom (nodes) on the reference cell. More...

virtual void	getDofCoeffs (typename HGRAD_LINE::BasisBase::ScalarViewType dofCoeffs) const override
	Fills in coefficients of degrees of freedom on the reference cell. More...

virtual const char *	getName () const override
	Returns basis name. More...

std::vector< BasisPtr >	getTensorBasisComponents () const

virtual void	getValues (BasisValues< OutputValueType, DeviceType > outputValues, const TensorPoints< PointValueType, DeviceType > inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override
	Evaluation of a FEM basis on a reference cell, using point and output value containers that allow preservation of tensor-product structure. More...

void	getValues (OutputViewType outputValues, const PointViewType inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override
	Evaluation of a FEM basis on a reference cell. More...

virtual void	getValues (OutputViewType outputValues, const EOperator operatorType, const PointViewType inputPoints1, const PointViewType inputPoints2, bool tensorPoints) const
	Evaluation of a tensor FEM basis on a reference cell; subclasses should override this. More...

void	getValues (OutputViewType outputValues, const PointViewType inputPoints1, const EOperator operatorType1, const PointViewType inputPoints2, const EOperator operatorType2, bool tensorPoints, double weight=1.0) const
	Evaluation of a tensor FEM basis on a reference cell. More...

virtual HostBasisPtr < OutputValueType, PointValueType >	getHostBasis () const override
	Creates and returns a Basis object whose DeviceType template argument is Kokkos::HostSpace::device_type, but is otherwise identical to this. More...

Additional Inherited Members
Protected Attributes inherited from Intrepid2::Basis_TensorBasis< HGRAD_LINE::BasisBase >
BasisPtr	basis1_

BasisPtr	basis2_

std::vector< BasisPtr >	tensorComponents_

std::string	name_

int	numTensorialExtrusions_

Detailed Description

template<class HGRAD_LINE, class HVOL_LINE>
class Intrepid2::Basis_Derived_HCURL_Family2_QUAD< HGRAD_LINE, HVOL_LINE >

Definition at line 161 of file Intrepid2_DerivedBasis_HCURL_QUAD.hpp.

Constructor & Destructor Documentation

template<class HGRAD_LINE , class HVOL_LINE >

Intrepid2::Basis_Derived_HCURL_Family2_QUAD< HGRAD_LINE, HVOL_LINE >::Basis_Derived_HCURL_Family2_QUAD	(	int	polyOrder_x,
		int	polyOrder_y,
		const EPointType	pointType = `POINTTYPE_DEFAULT`
	)

inline

Constructor.

Parameters

[in]	polyOrder_x	- the polynomial order in the x dimension.
[in]	polyOrder_y	- the polynomial order in the y dimension.
[in]	pointType	- type of lattice used for creating the DoF coordinates.

Definition at line 186 of file Intrepid2_DerivedBasis_HCURL_QUAD.hpp.

Member Function Documentation

template<class HGRAD_LINE , class HVOL_LINE >

virtual void Intrepid2::Basis_Derived_HCURL_Family2_QUAD< HGRAD_LINE, HVOL_LINE >::getDofCoeffs ( ScalarViewType dofCoeffs ) const

inlineoverridevirtual

Fills in coefficients of degrees of freedom for Lagrangian basis on the reference cell.

Parameters

[out] dofCoeffs - the container into which to place the degrees of freedom.

dofCoeffs have shape (F,D), field dimension matches the cardinality of the basis, and D is the basis dimension.

Degrees of freedom coefficients are such that (dofCoords_(j)) dofCoeffs_(j) = , where are the basis and the Kronecker delta. Note that getDofCoeffs() is supported only for Lagrangian bases.

Definition at line 281 of file Intrepid2_DerivedBasis_HCURL_QUAD.hpp.

References Intrepid2::Basis_TensorBasis< BasisBase >::getDofCoeffs().

template<class HGRAD_LINE , class HVOL_LINE >

virtual void Intrepid2::Basis_Derived_HCURL_Family2_QUAD< HGRAD_LINE, HVOL_LINE >::getValues	(	OutputViewType	outputValues,
		const EOperator	operatorType,
		const PointViewType	inputPoints1,
		const PointViewType	inputPoints2,
		bool	tensorPoints
	)		const

inlineoverridevirtual

multi-component getValues() method (required/called by TensorBasis)

Parameters

[out]	outputValues	- the view into which to place the output values
[in]	operatorType	- the operator on the basis
[in]	inputPoints1	- input points in the x dimension
[in]	inputPoints2	- input points in the y dimension
[in]	tensorPoints	- if true, inputPoints1 and inputPoints2 should be understood as tensorial components of the points in outputValues (i.e., the evaluation points are the tensor product of inputPoints1 and inputPoints2). If false, inputPoints1 and inputPoints2 should correspond elementwise to the evaluation points.

Definition at line 232 of file Intrepid2_DerivedBasis_HCURL_QUAD.hpp.

References Intrepid2::Basis_TensorBasis< BasisBase >::getValues().

The documentation for this class was generated from the following file:

http://docs.trilinos.org/dev/packages/intrepid2/src/Discretization/Basis/Intrepid2_DerivedBasis_HCURL_QUAD.hpp
