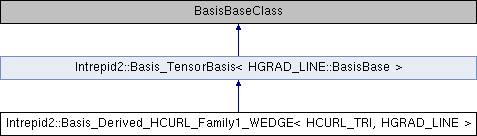

Inheritance diagram for Intrepid2::Basis_Derived_HCURL_Family1_WEDGE< HCURL_TRI, HGRAD_LINE >:
Public Types | |
| using | OutputViewType = typename HGRAD_LINE::OutputViewType |
| using | PointViewType = typename HGRAD_LINE::PointViewType |
| using | ScalarViewType = typename HGRAD_LINE::ScalarViewType |
| using | BasisBase = typename HGRAD_LINE::BasisBase |
| using | DeviceType = typename BasisBase::DeviceType |
| using | ExecutionSpace = typename BasisBase::ExecutionSpace |
| using | OutputValueType = typename BasisBase::OutputValueType |
| using | PointValueType = typename BasisBase::PointValueType |
| using | TriCurlBasis = HCURL_TRI |
| using | LineGradBasis = HGRAD_LINE |
| using | TensorBasis = Basis_TensorBasis< BasisBase > |
 Public Types inherited from Intrepid2::Basis_TensorBasis< HGRAD_LINE::BasisBase > | |
| using | BasisBase = BasisBaseClass |
| using | BasisPtr = Teuchos::RCP< HGRAD_LINE::BasisBase > |
| using | DeviceType = typename HGRAD_LINE::BasisBase::DeviceType |
| using | ExecutionSpace = typename HGRAD_LINE::BasisBase::ExecutionSpace |
| using | OutputValueType = typename HGRAD_LINE::BasisBase::OutputValueType |
| using | PointValueType = typename HGRAD_LINE::BasisBase::PointValueType |
| using | OrdinalTypeArray1DHost = typename HGRAD_LINE::BasisBase::OrdinalTypeArray1DHost |
| using | OrdinalTypeArray2DHost = typename HGRAD_LINE::BasisBase::OrdinalTypeArray2DHost |
| using | OutputViewType = typename HGRAD_LINE::BasisBase::OutputViewType |
| using | PointViewType = typename HGRAD_LINE::BasisBase::PointViewType |
| using | TensorBasis = Basis_TensorBasis< BasisBaseClass > |
Public Member Functions | |
| Basis_Derived_HCURL_Family1_WEDGE (int polyOrder_xy, int polyOrder_z, const EPointType pointType=POINTTYPE_DEFAULT) | |
| Constructor. More... | |
| virtual OperatorTensorDecomposition | getSimpleOperatorDecomposition (const EOperator &operatorType) const override |
| Returns a simple decomposition of the specified operator: what operator(s) should be applied to basis1, and what operator(s) to basis2. A one-element vector corresponds to a single TensorData entry; a multiple-element vector corresponds to a VectorData object with axialComponents = false. | |
| virtual void | getValues (OutputViewType outputValues, const EOperator operatorType, const PointViewType inputPoints1, const PointViewType inputPoints2, bool tensorPoints) const override |
| multi-component getValues() method (required/called by TensorBasis) More... | |
| virtual void | getDofCoeffs (ScalarViewType dofCoeffs) const override |
| Fills in coefficients of degrees of freedom for Lagrangian basis on the reference cell. More... | |
| Public Member Functions inherited from Intrepid2::Basis_TensorBasis< HGRAD_LINE::BasisBase > | |
| Basis_TensorBasis (BasisPtr basis1, BasisPtr basis2, EFunctionSpace functionSpace=FUNCTION_SPACE_MAX, const bool useShardsCellTopologyAndTags=false) | |
| Constructor. More... | |
| void | setShardsTopologyAndTags () |
| virtual int | getNumTensorialExtrusions () const override |
| ordinal_type | getTensorDkEnumeration (ordinal_type dkEnum1, ordinal_type operatorOrder1, ordinal_type dkEnum2, ordinal_type operatorOrder2) const |
| Given "Dk" enumeration indices for the component bases, returns a Dk enumeration index for the composite basis. More... | |
| virtual OperatorTensorDecomposition | getOperatorDecomposition (const EOperator operatorType) const |
| Returns a full decomposition of the specified operator. (Full meaning that all TensorBasis components are expanded into their non-TensorBasis components.) | |
| virtual BasisValues < OutputValueType, DeviceType > | allocateBasisValues (TensorPoints< PointValueType, DeviceType > points, const EOperator operatorType=OPERATOR_VALUE) const override |
| Allocate BasisValues container suitable for passing to the getValues() variant that takes a TensorPoints container as argument. More... | |
| void | getComponentPoints (const PointViewType inputPoints, const bool attemptTensorDecomposition, PointViewType &inputPoints1, PointViewType &inputPoints2, bool &tensorDecompositionSucceeded) const |
| Method to extract component points from composite points. More... | |
| virtual void | getDofCoords (typename HGRAD_LINE::BasisBase::ScalarViewType dofCoords) const override |
| Fills in spatial locations (coordinates) of degrees of freedom (nodes) on the reference cell. More... | |
| virtual void | getDofCoeffs (typename HGRAD_LINE::BasisBase::ScalarViewType dofCoeffs) const override |
| Fills in coefficients of degrees of freedom on the reference cell. More... | |
| virtual const char * | getName () const override |
| Returns basis name. More... | |
| std::vector< BasisPtr > | getTensorBasisComponents () const |
| virtual void | getValues (BasisValues< OutputValueType, DeviceType > outputValues, const TensorPoints< PointValueType, DeviceType > inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override |
| Evaluation of a FEM basis on a reference cell, using point and output value containers that allow preservation of tensor-product structure. More... | |
| void | getValues (OutputViewType outputValues, const PointViewType inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override |
| Evaluation of a FEM basis on a reference cell. More... | |
| virtual void | getValues (OutputViewType outputValues, const EOperator operatorType, const PointViewType inputPoints1, const PointViewType inputPoints2, bool tensorPoints) const |
| Evaluation of a tensor FEM basis on a reference cell; subclasses should override this. More... | |
| void | getValues (OutputViewType outputValues, const PointViewType inputPoints1, const EOperator operatorType1, const PointViewType inputPoints2, const EOperator operatorType2, bool tensorPoints, double weight=1.0) const |
| Evaluation of a tensor FEM basis on a reference cell. More... | |
| virtual HostBasisPtr < OutputValueType, PointValueType > | getHostBasis () const override |
| Creates and returns a Basis object whose DeviceType template argument is Kokkos::HostSpace::device_type, but is otherwise identical to this. More... | |
Additional Inherited Members | |
| Protected Attributes inherited from Intrepid2::Basis_TensorBasis< HGRAD_LINE::BasisBase > | |
| BasisPtr | basis1_ |
| BasisPtr | basis2_ |
| std::vector< BasisPtr > | tensorComponents_ |
| std::string | name_ |
| int | numTensorialExtrusions_ |
Detailed Description
template<class HCURL_TRI, class HGRAD_LINE>
class Intrepid2::Basis_Derived_HCURL_Family1_WEDGE< HCURL_TRI, HGRAD_LINE >
Definition at line 51 of file Intrepid2_DerivedBasis_HCURL_WEDGE.hpp.
Constructor & Destructor Documentation
template<class HCURL_TRI , class HGRAD_LINE >
|
inline |
Constructor.
- Parameters
-
[in] polyOrder_xy - the polynomial order in the x and y dimensions. [in] polyOrder_z - the polynomial order in the z dimension. [in] pointType - type of lattice used for creating the DoF coordinates.
Definition at line 76 of file Intrepid2_DerivedBasis_HCURL_WEDGE.hpp.
Member Function Documentation
template<class HCURL_TRI , class HGRAD_LINE >
|
inlineoverridevirtual |
Fills in coefficients of degrees of freedom for Lagrangian basis on the reference cell.
- Parameters
-
[out] dofCoeffs - the container into which to place the degrees of freedom.
dofCoeffs have shape (F,D), field dimension matches the cardinality of the basis, and D is the basis dimension.
Degrees of freedom coefficients are such that (dofCoords_(j)) dofCoeffs_(j) = , where are the basis and the Kronecker delta. Note that getDofCoeffs() is supported only for Lagrangian bases.
Definition at line 198 of file Intrepid2_DerivedBasis_HCURL_WEDGE.hpp.
References Intrepid2::Basis_TensorBasis< BasisBase >::getDofCoeffs().
template<class HCURL_TRI , class HGRAD_LINE >
|
inlineoverridevirtual |
multi-component getValues() method (required/called by TensorBasis)
- Parameters
-
[out] outputValues - the view into which to place the output values [in] operatorType - the operator on the basis [in] inputPoints1 - input points in the x dimension [in] inputPoints2 - input points in the y dimension [in] tensorPoints - if true, inputPoints1 and inputPoints2 should be understood as tensorial components of the points in outputValues (i.e., the evaluation points are the tensor product of inputPoints1 and inputPoints2). If false, inputPoints1 and inputPoints2 should correspond elementwise to the evaluation points.
Definition at line 129 of file Intrepid2_DerivedBasis_HCURL_WEDGE.hpp.
References Intrepid2::Basis_TensorBasis< BasisBase >::getValues().
The documentation for this class was generated from the following file:
- http://docs.trilinos.org/dev/packages/intrepid2/src/Discretization/Basis/Intrepid2_DerivedBasis_HCURL_WEDGE.hpp
